uoweky Wiegand TCP/IP Network Access Control Board Panel (2 Door)

• <1>Support 2 Door 4 Reader (Get in and out door by swiping card, or get in by swiping card and get out door by button)
• <2>Control of memory up to 20,000 user / Up to 100,000 event buffers
• <3>Network communication via TCP/IP
• <4>Input Format of Reader: Wiegand 26-bit (All card reader with compatible protocol, such as Motorola, HID, EM, M1, etc)
• <5>Software Supportable Database:Access & SQL

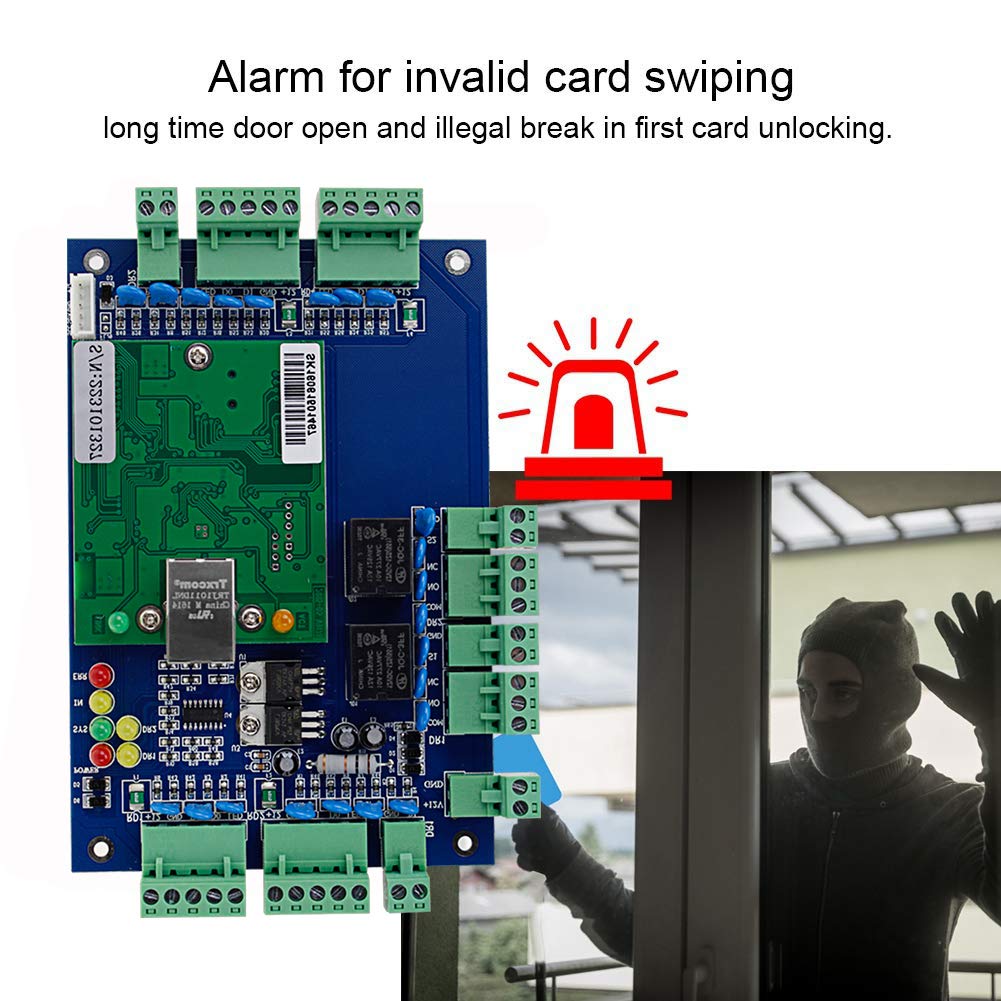

Specifications : Communication:TCP / IP Software support data base: SQL Description: Control 2 door,entry&Exit by card&keypad or exit by hit button Power Supply :12VDC; 4-7A Power Consumption of Circuit Board : Less than 100mA Input Format of Reader : Wiegand 26/34 bit (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc) Quantity of Readers :4 Door Controlled : 2 Door opening time extending setting : 1-600 Seconds(adjustable) Max q ' ty of controller : Unlimited Technical details: Operation Temperature: -40°-70° Operation Humidity : 10-90 % RH ,No Condensation Quanty of users : 20,000 Users Quanty of Event : Buffers(offline) 100,000 Event Buffers Power interruption : protection measure. High Speed Memory, Records never lose Max Distance: From Reader to Controller 100M ,Depand on network range(suggestion distance 80m) Collocations:PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton) Alarm functions : Alarm for long time door open, ilegal break in, intimidate) Fire and alarm linkage:) If no connection with the expansion board,,only has software interface alarm, and drive the computer speaker.) If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm) ) Application/b> Work with Power supply,Lock,Button,Card reader Item Including 1 x Access Controller for four door 1 x Software CD
