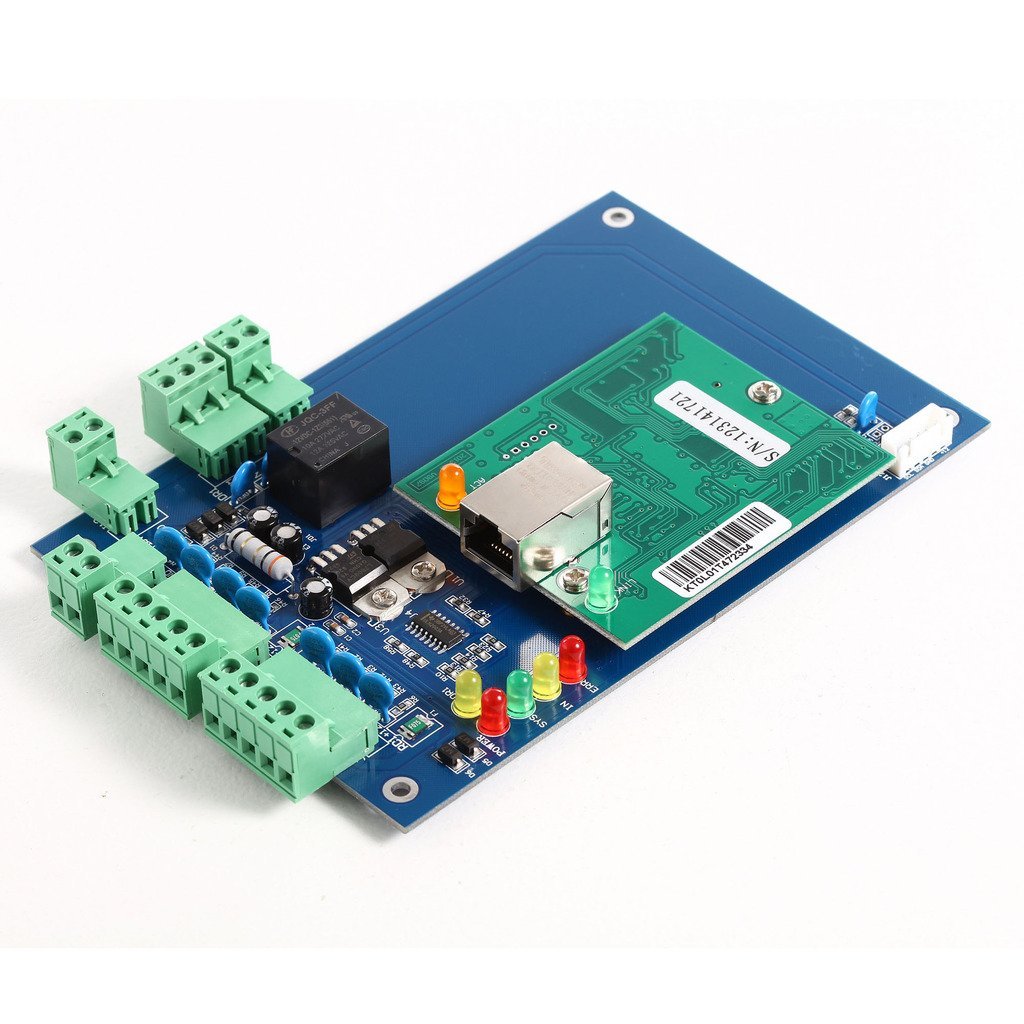

uoweky L01-04 1 Door Wiegand 26 TCP/IP Network Access Control Board Panel RFID Office Controller

• Control of memory up to 20,000 user / Up to 100,000 event buffers
• Support 1 Door 2 Reader (Get in and out door by swiping card, or get in by swiping card and get out door by button)
• Network communication via TCP/IP

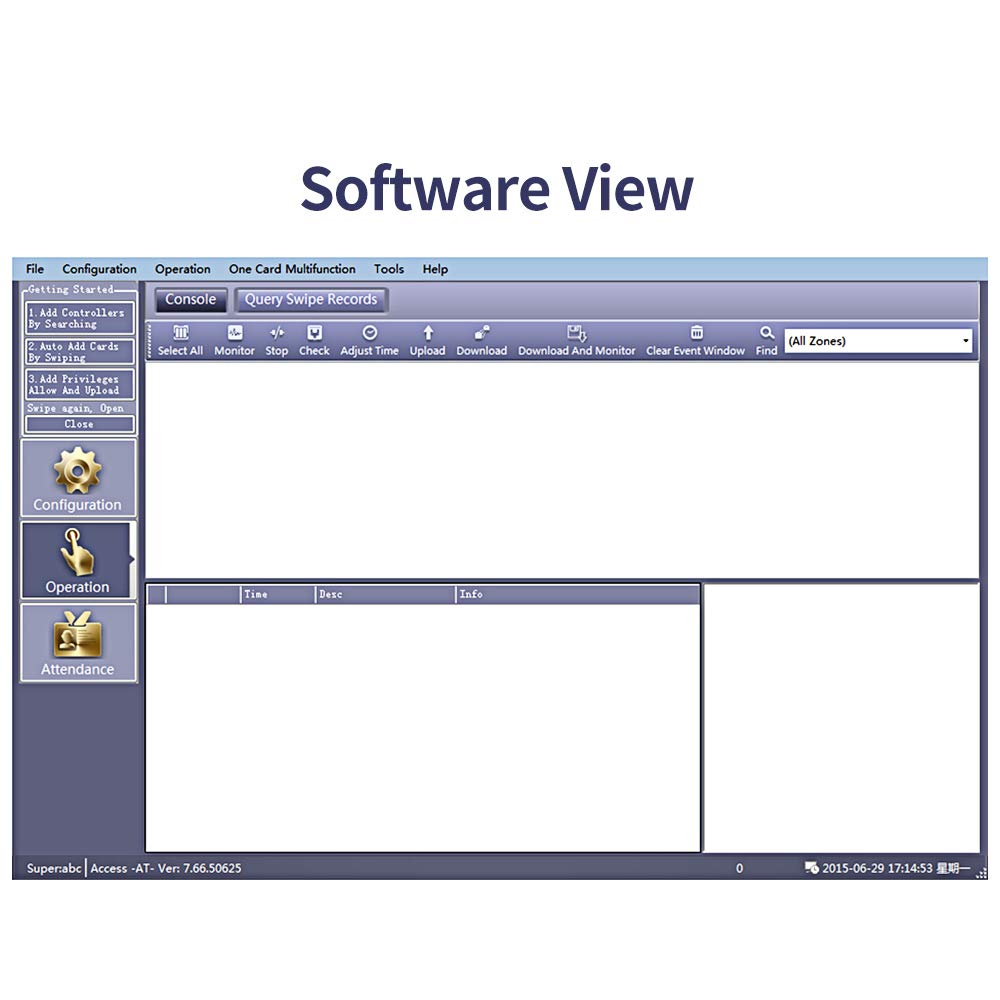

• Software Supportable Database:Access & SQL
• Input Format of Reader: Wiegand 26-bit (All card reader with compatible protocol, such as Motorola, HID, EM, M1, etc)

Product description Dimension: - approx.160(W)x106(H)mm/6.29"(W) x4.17"(H) Communication: TCP/IP Software Supportable Database: Access & SQL Power Supply Input: DC12V Power Consumption of Circuit Board: Less than 100mA Input Format of Reader: Wiegand 26-bit (All card reader with compatible protocol, such as Motorola, HID, EM, M1, etc) Quantity of Readers: 2 units Door Controlled: 1 door (Get in and out door by swiping card, or get in by swiping card and get out door by button) Door Opening Time Extending: Setting: 1~600 seconds (adjustable) Max Quantity of Controller: Unlimited (Remark: N denotes qty of computer serial port or qty of 485hub port, support 256pcs ports) Quantity of Users: 20,000 users Quantity of Event Buffers (offline): 100,000 event buffers Max Distance from Reader to Controller: 100m (suggestion distance 80m) Collocations: PCB board,case,power,power line,serial port communication line,software,manual,certificate,key(2pcs),carton Alarm for Long Time Door Open, Unlawful Entry, Intimidate Fire and alarm linkage: If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm Open door in remote distance: Yes Inter block: Yes Anti pass back and tail: Yes Multi-card open door: Yes Open long time at specified time: Yes Urgency locking: Yes First card unlocking: Yes Unlock based on internal and external validation: Yes Keypad (Card+password, super password): Yes Package: 1 x Access Control Board 1 x CD
