Universal Junction Box Deep Base for Security Surveillance Cameras, Full Aluminium Metal, Waterproof Cable Hidden Box For CCTV IP Camera Dome and Bullet Type (Black)

• Universal deep base for concealing the camera cables and creating a waterproof housing.
• Fits most small to mediam size cameras (up to 105mm Diameter). Suitable for both dome and bullet shape camera.
• Full aluminium alloy construction. solid and waterproof, suitable for both outdoor and indoor installing.
• Rear/Bottom/side access to pass cabling through. Vertically or horizontally fitting. Side entry: 25mm.

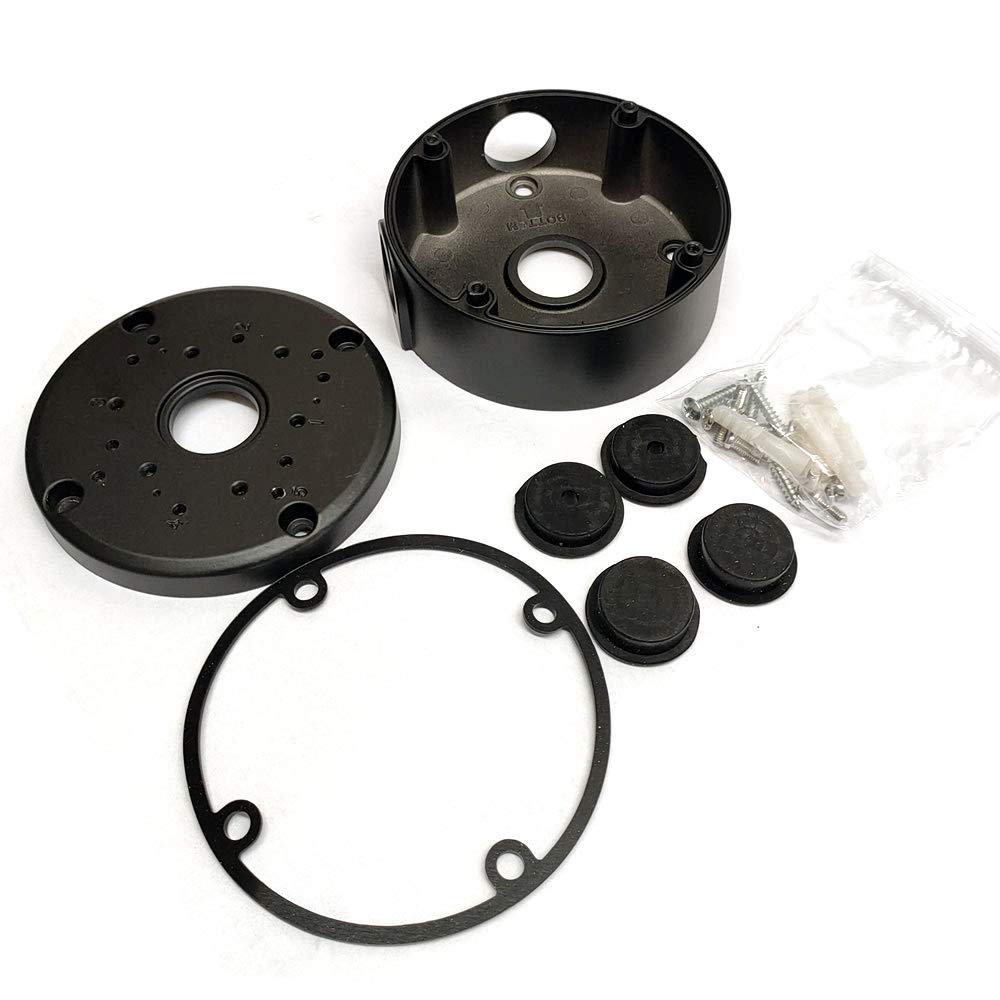

• Including fixings like screw pack, port covers.

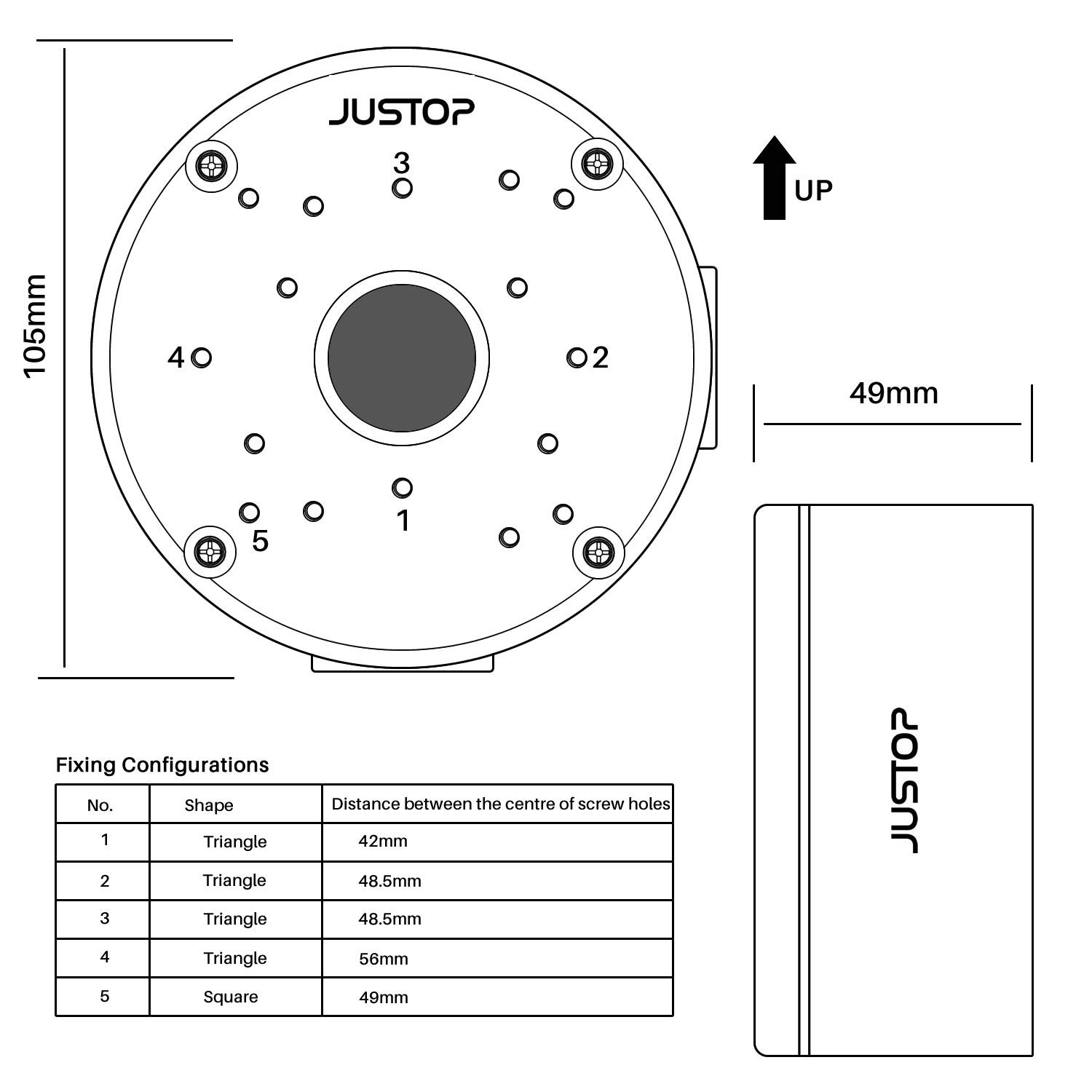

Universal deep base for concealing the camera cables and creating a waterproof housing. Metal chassis, weatherproof design. Multiple screw hole sets for different sized cameras. Suitable for most dome and bullet cameras up to 105mm in diameter*. Vertically or horizontally fitting. (Please refer to the fixings diagram). Specifications Material: Aluminium Alloy Diameter: 105mm Deep: 50mm Waterproof: Yes Application: indoor & outdoor 2 x outlets for side wiring, diameter: 25mm Screw Holes Diagram: The screw hole sets are marked with numbers. The distance is between two centres of screw holes. Please also refer to the item photo diagram. Set 1 - Triangle fit, 42mm Set 2 - Triangle fit, 48.5mm Set 3 - Triangle fit, 48.5mm Set 4 - Triangle fit, 56mm Set 5 - Square fit, 49mm
