Unior 3200/2BI Chain Breaker Press and Rivet Tool

• Material: special tool steel
• Chrome-plated
• Set

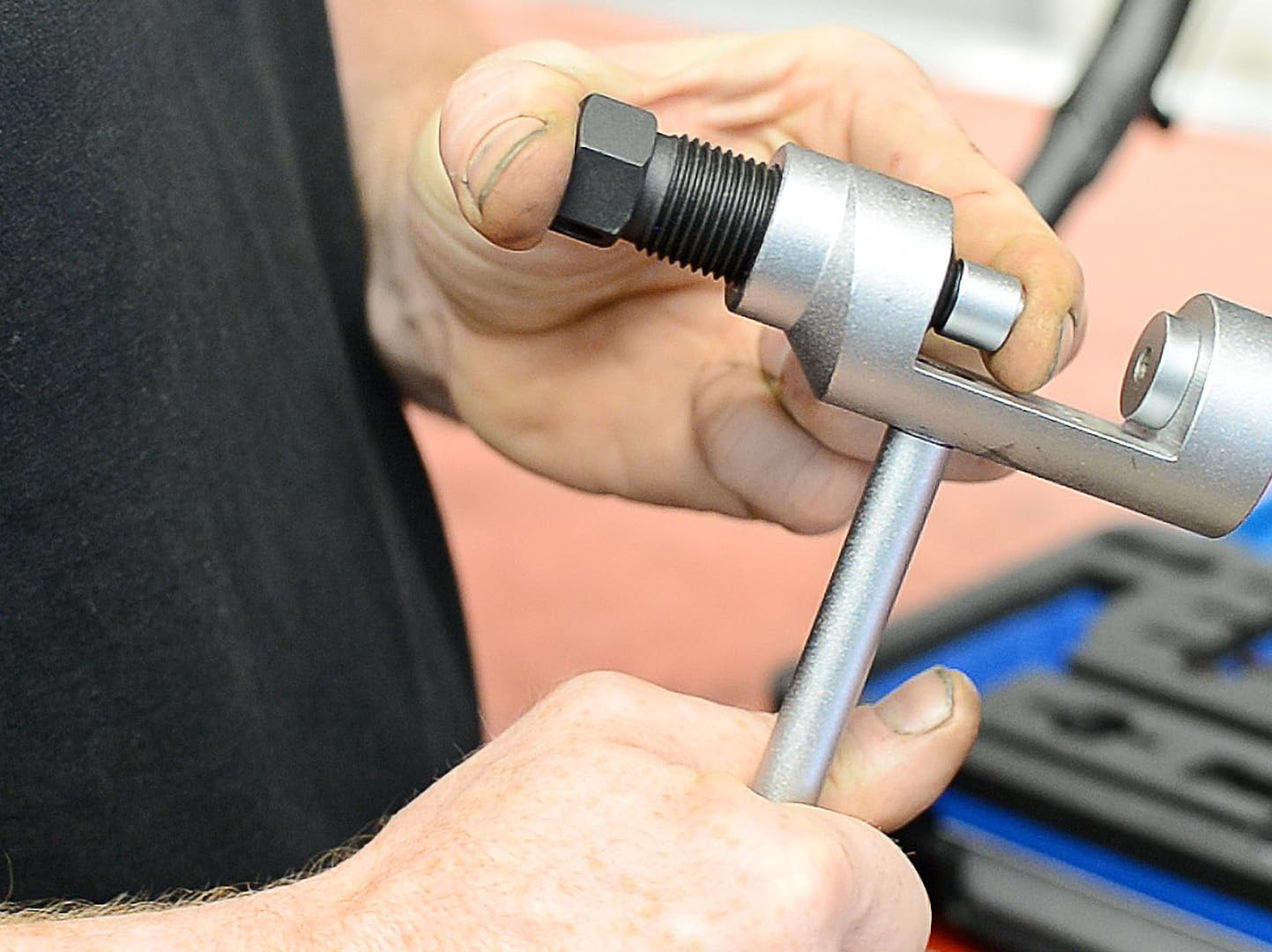

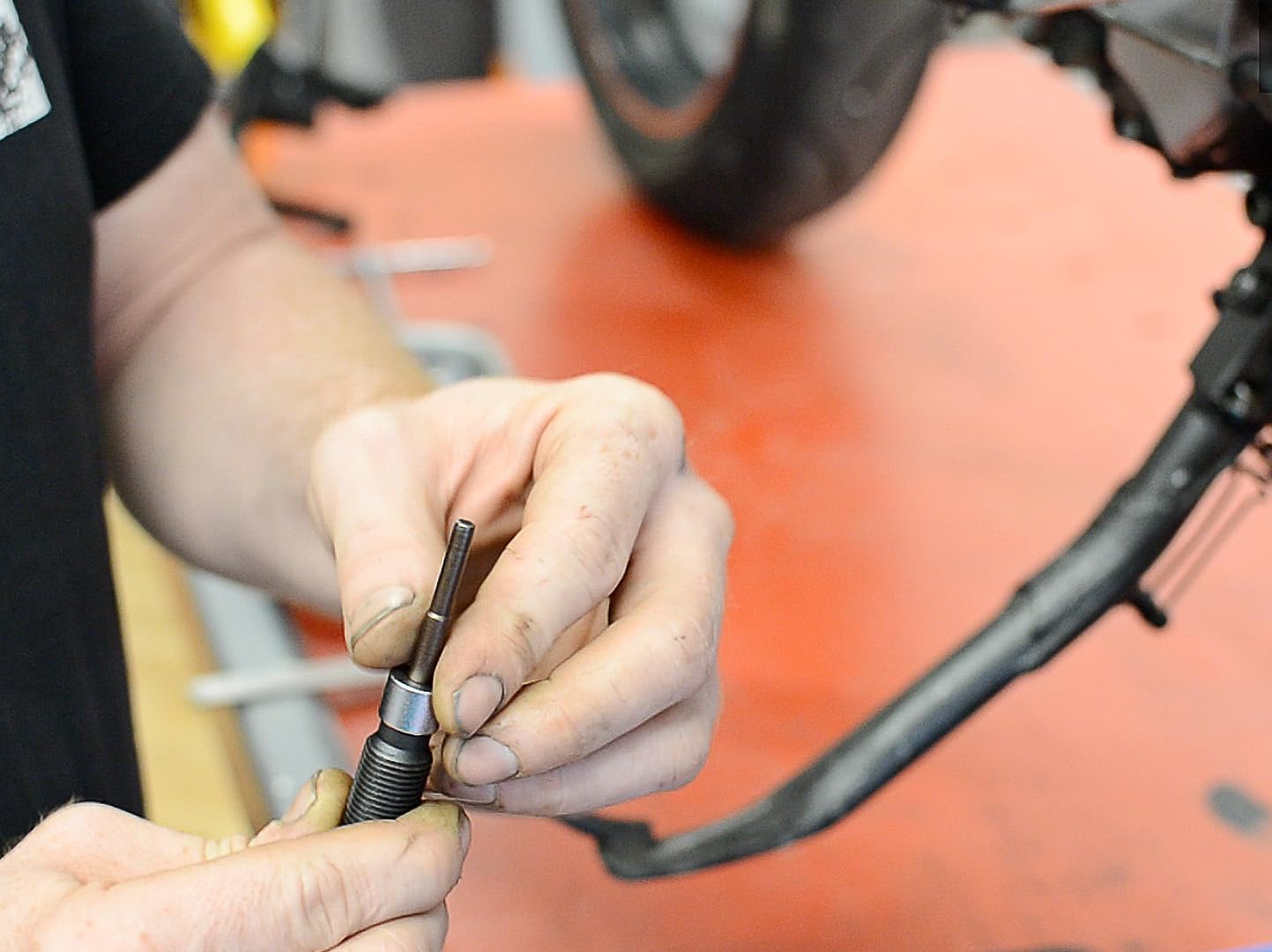

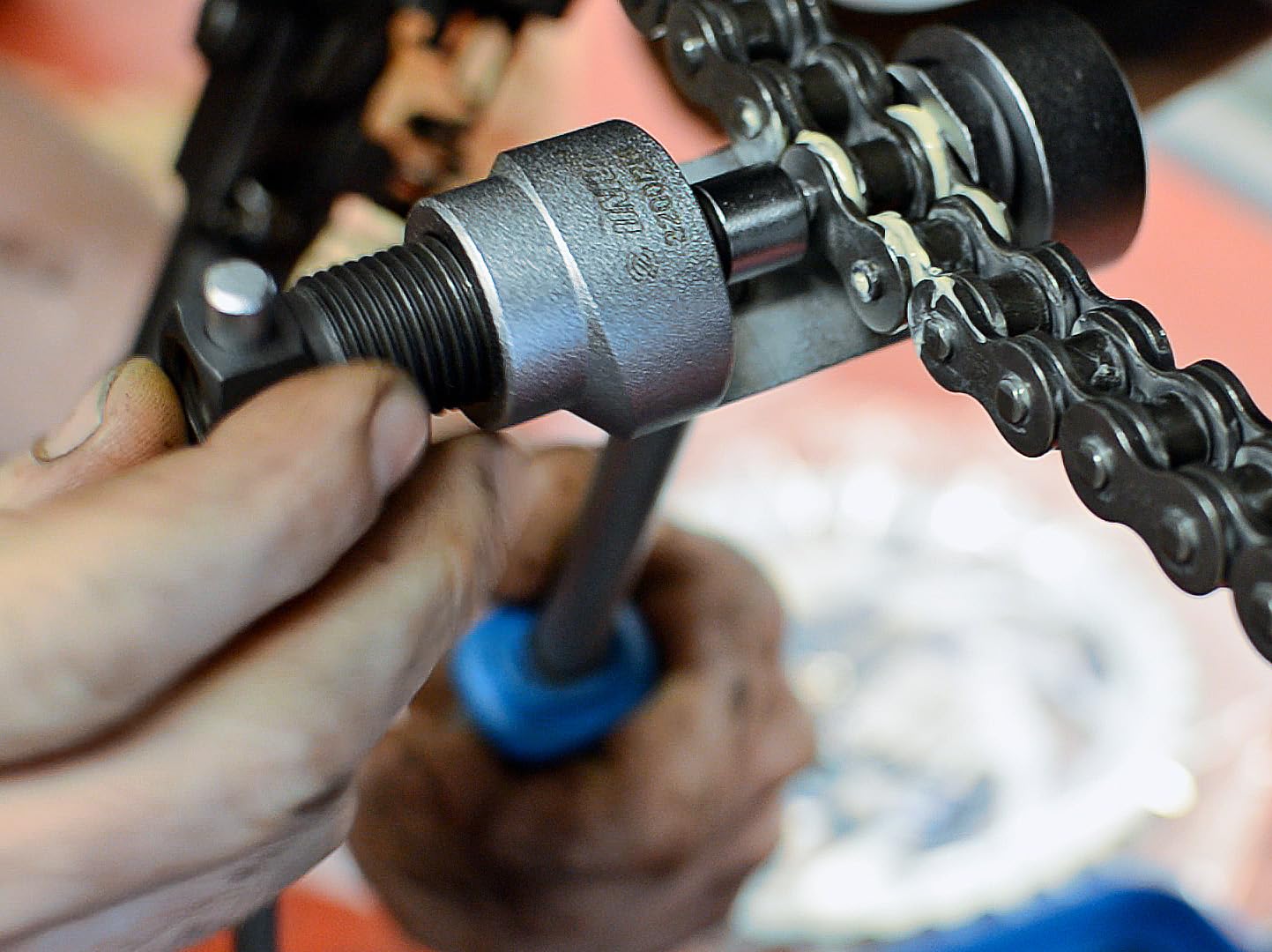

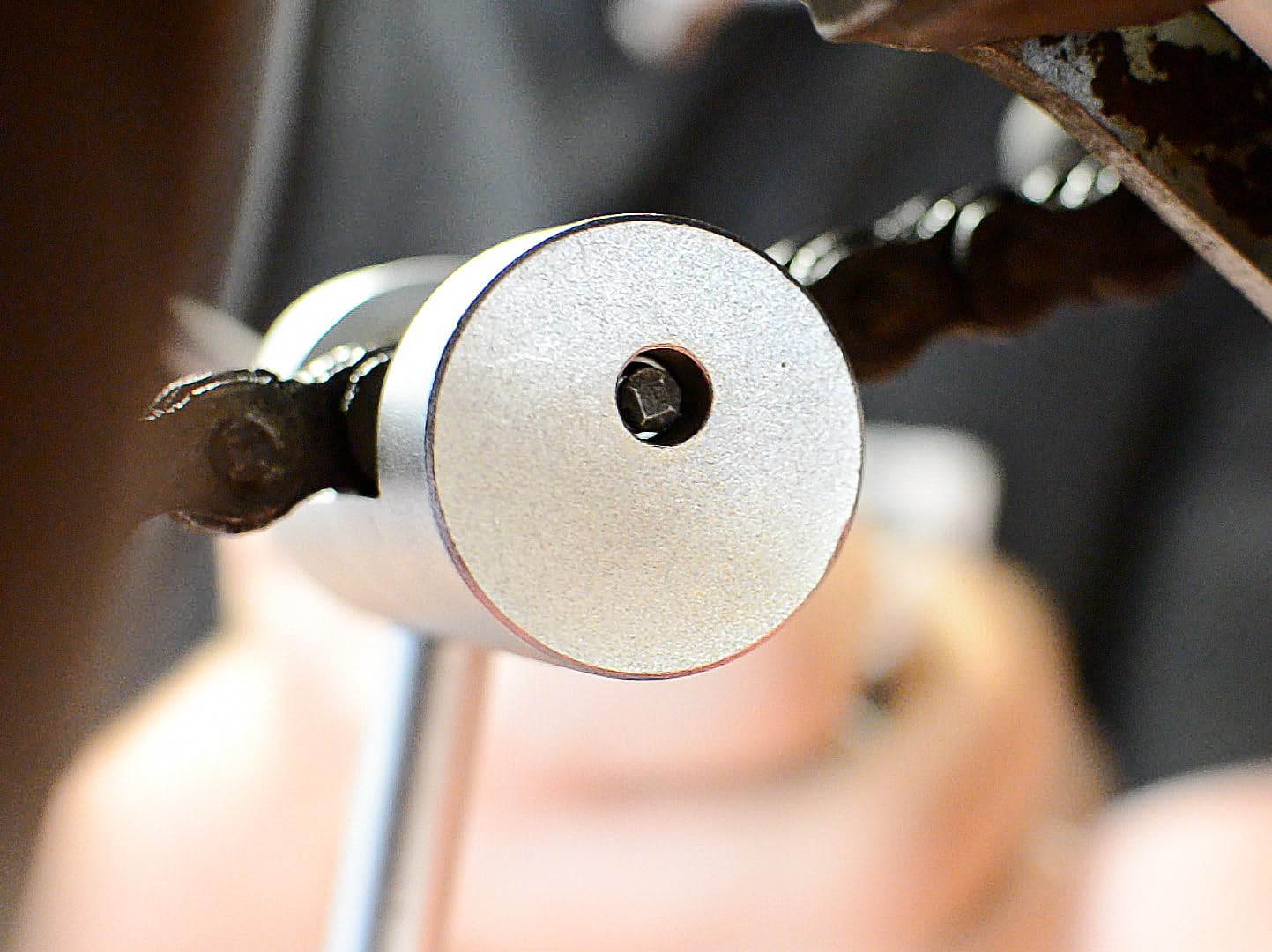

Material: special tool steel with special thermal processing and oil-hardened chrome-plated in accordance with EN 12540 two-component handle, ergonomic dimensions of the cassette: 321 x 198 x 54. Use for DID chain with pitch 520, 525, 530 and 532 for Regina chain with 520, 525, 530 For RK chain 520, 525, 530 and 532 pitch compatible with most motorcycle drive chains disassembly of chain: robust design that allows you to disassemble the chain without additional grinding of the bolt. Choose the matching pin (with diameter 3, diameter 4 or diameter 5 mm) and the appropriate sleeve (diameter 4 or Ø5 Ø6 mm) that corresponds to the pin diameter on the chain. Insert the pin into the tool and position it on the chain link, then turn the handle of the tool until the chain pin falls out. Chain assembly: the chain must be assembled according to the manufacturer's instructions. Choose a set of ferrules suitable for a pressing process that corresponds to the size of the slat (slat widths up to 13, 5 mm or 16 mm). Mount the kit on the tool. Place the tool on the connector and turn the handle until the connector and slat are compressed together. After successful assembly, the riveting process is carried out. You can choose between three different types of rivet bolts (type A, B or C). Place the rivet attachments in the tool and turn the handle until the pin head deformation occurs, so you can achieve a manufacturer's prescribed diameter between 5, 5 and 5.8mm.
