Uninsulated Wire Ferrule Kit, 1000pcs 12 Types of 8-22AWG Wire End Copper Crimp Pin End Terminal Connector for Cable Electrical Group Splice(0.5/0.75/1/1.5/2.5/4/6/10mm²)

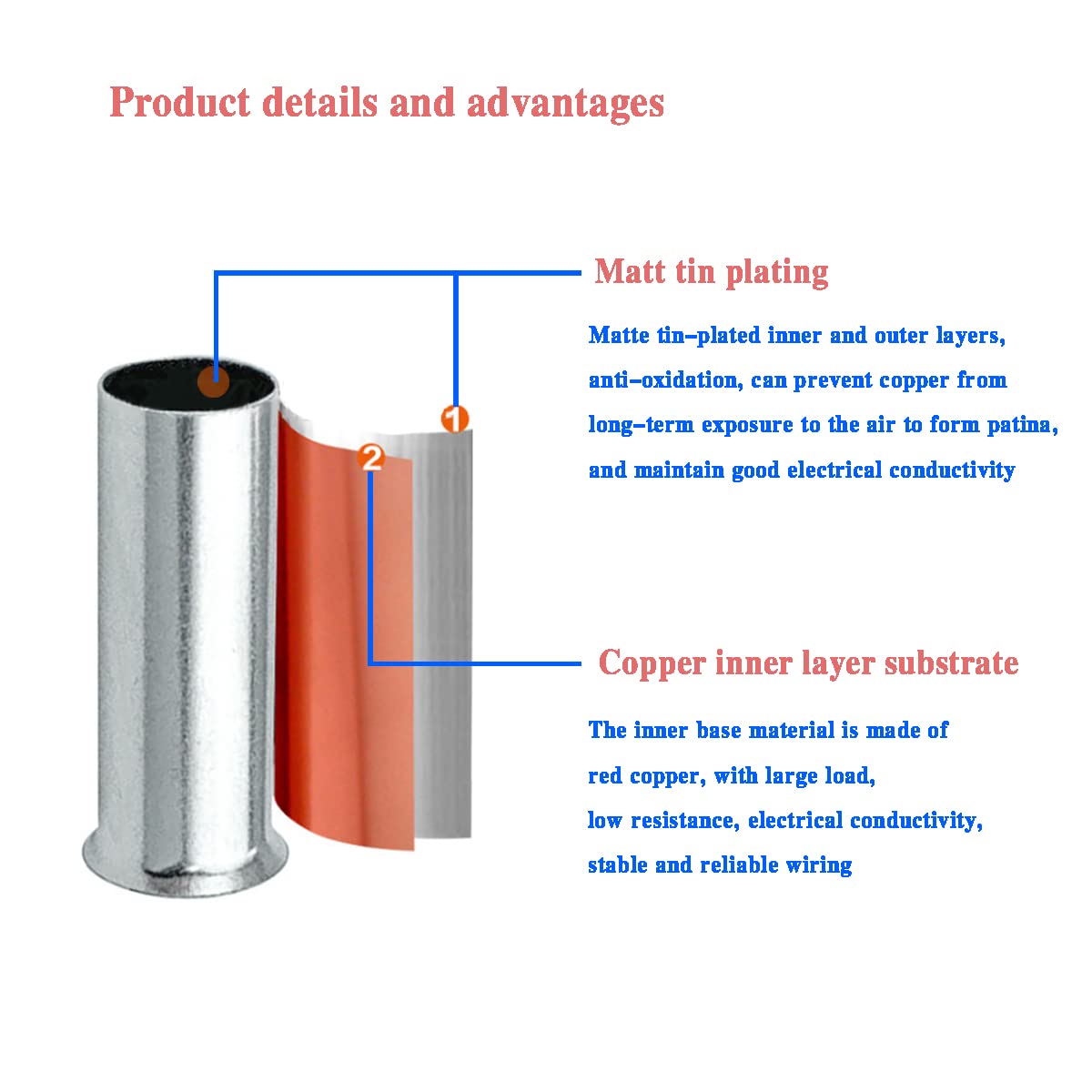

• 【Material】: The terminal terminals are mainly made of red copper, and the inner and outer walls are tin-plated, which has good electrical conductivity and thermal conductivity, and is easy to weld and fix;

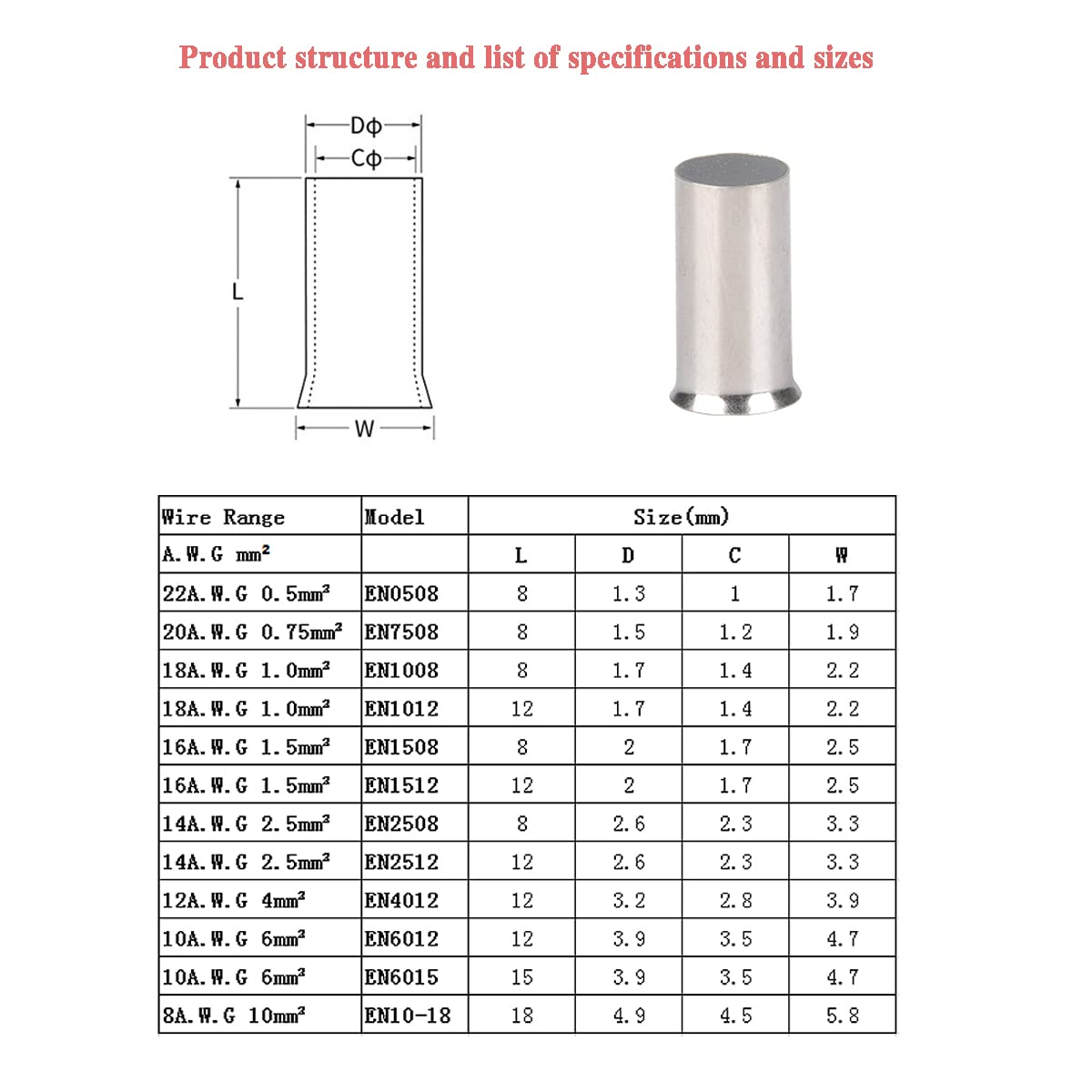

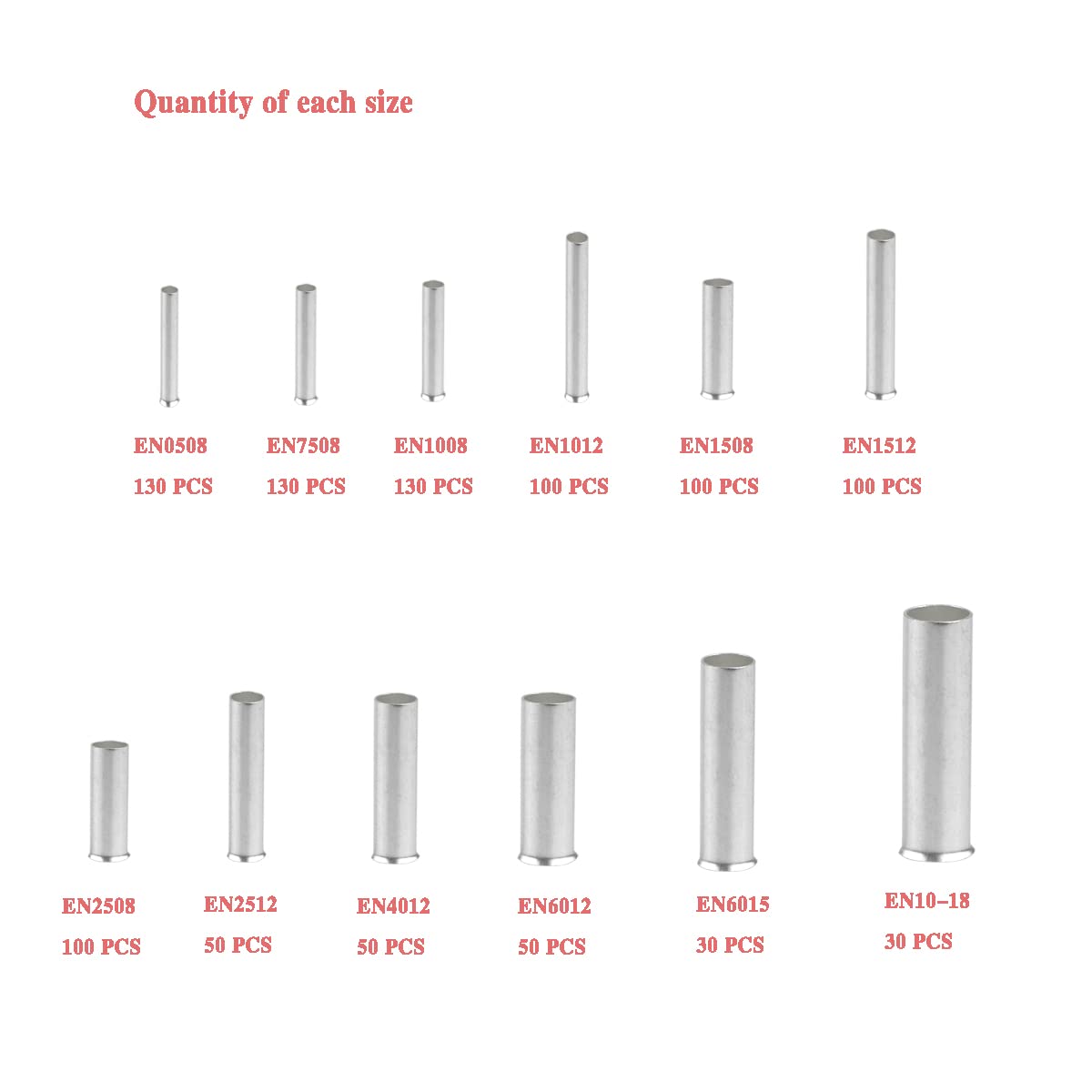

• 【Kit Included】: There are 12 types of wire ferrule kits, including EN0508 0.5mm² (130PCS), EN7508 0.75mm² (130PCS), EN1008 1.0mm² (130PCS), EN1012 1.0mm² (100PCS), EN1508 1.5mm² (100PCS), EN1512 1.5mm²(100PCS), EN2508 2.5mm²(100PCS), EN2512 2.5mm²(50PCS), EN4012 4.0mm²(50PCS), EN6012 6.0mm²(50PCS), EN6015 6.0mm²(30PCS), EN10-18 10mm²(30PCS). Meet your different usage needs.

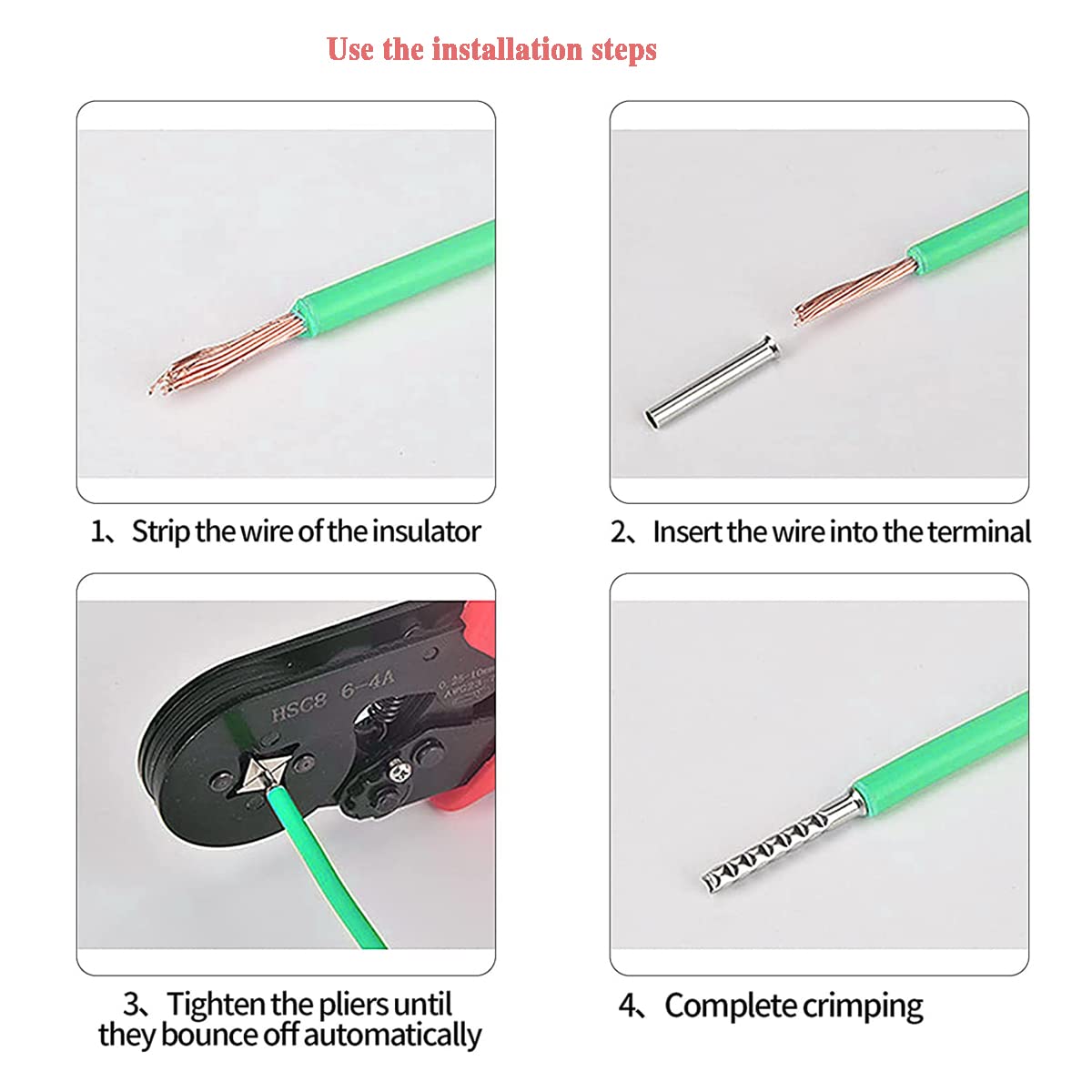

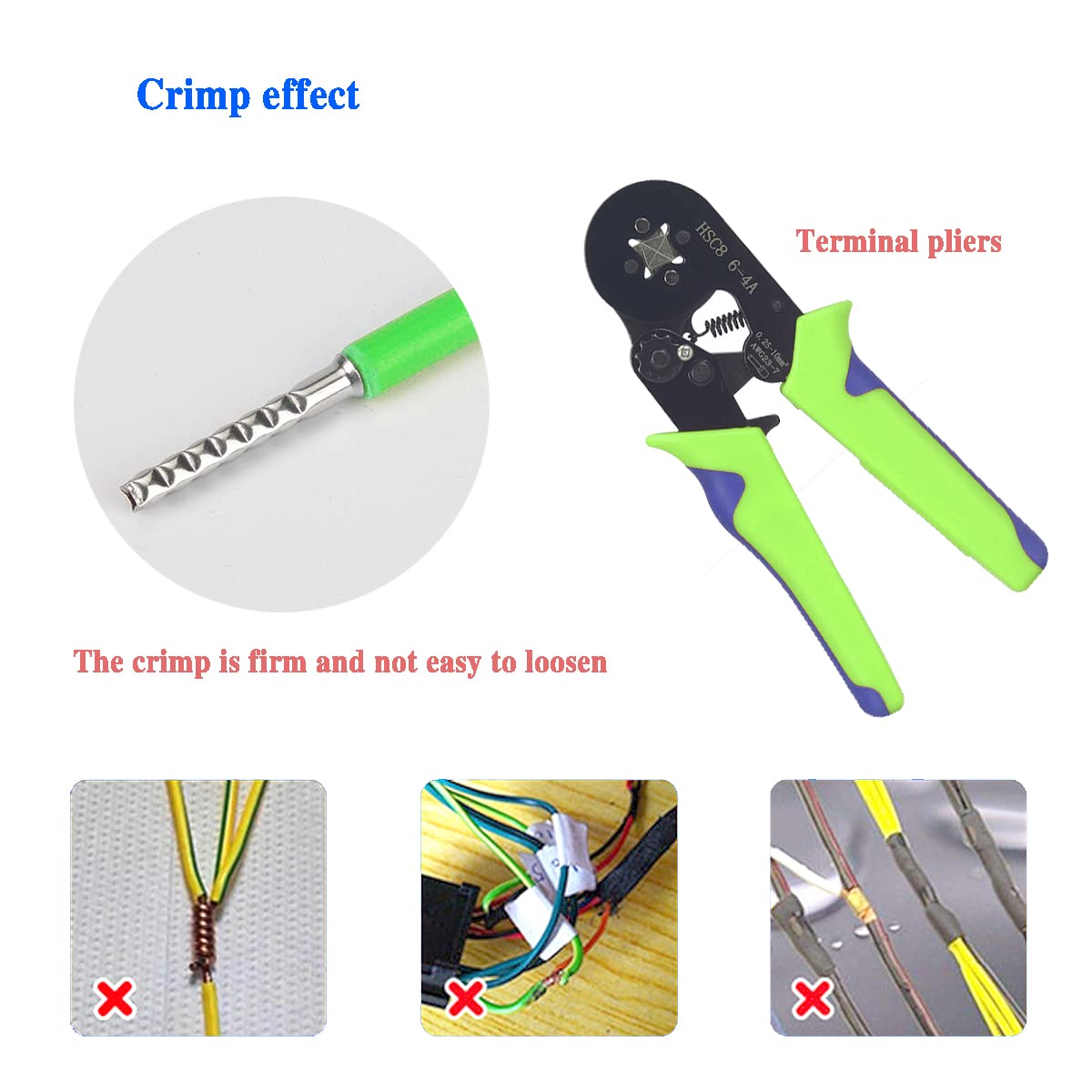

• 【How to use】: Peel off a small section of the sheath at the end of the wire, then put the wire core into the non-insulated wire sleeve terminal, try not to let the wire core stick out of the casing, and then use a pressing tool to compress it. Please note that, Before crimping the terminal, the crimping tool must be adjusted according to the thickness of the wire core.

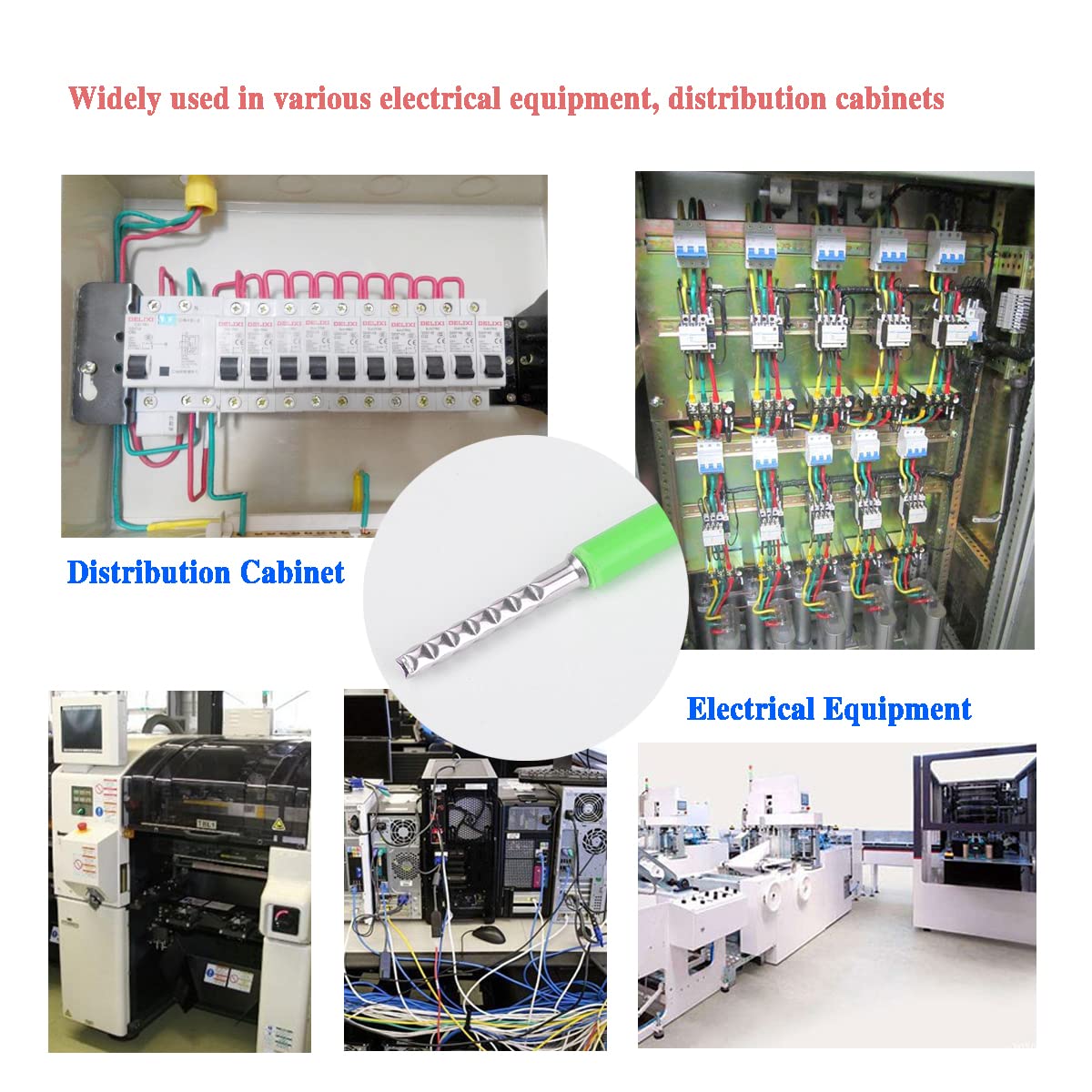

• 【Wide use】: The ferrule design of the insulating bell mouth makes it easier to insert the wire core. The copper sleeve can well protect the wire core, effectively avoid the exposed or broken wire, and keep the electrical equipment well connected. It is widely used in various Various electrical items, electronic equipment, automotive electricians, mechanical equipment, etc.
• 【Storage And Service】: Storage is convenient, all products are stored in a plastic packaging box is convenient for your access. Hope you will like the products we provide,If you have any questions, please contact us in time, we will provide you with services as soon as possible.

Product Category: Uninsulated Wire Ferrule Kits Material: tinned copper Color: silver Packing: plastic box Quantity: 1000 pcs EN0508 （0.5mm²）---------130PCS EN7508 （0.75mm²）-------130PCS EN1008 （1.0mm²）---------130PCS EN1012 （1.0mm²）---------100PCS EN1508 （1.5mm²）---------100PCS EN1512 （1.5mm²）---------100PCS EN2508 （2.5mm²）---------100PCS EN2512 （2.5mm²）---------50PCS EN4012 （4.0mm²）---------50PCS EN6012 （6.0mm²）---------50PCS EN6015 （6.0mm²）---------30PCS EN10-18（10mm²）----------30PCS Warm reminder: 1. Due to the production batch and manual measurement, there will be small differences, please understand; 2. Please check carefully before purchase, and place it in a place that is not easy for children to reach after purchase to avoid scratches and swallowing; 3. If you have any questions, please contact us in time, we will provide you with services as soon as possible.
