Voltage Continuity Tester UT18C Auto Range Handheld Voltage RCD Auto Range Three Phase Alternating Current Voltage Measurement

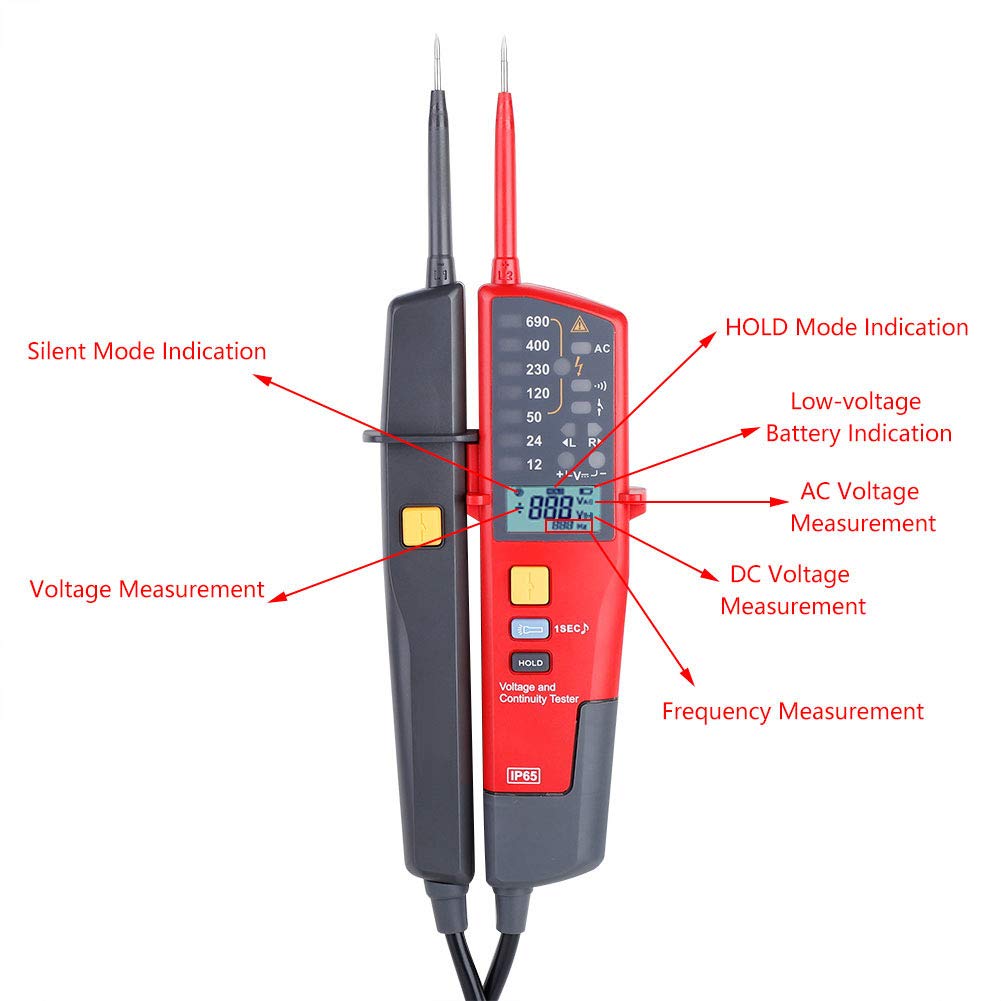

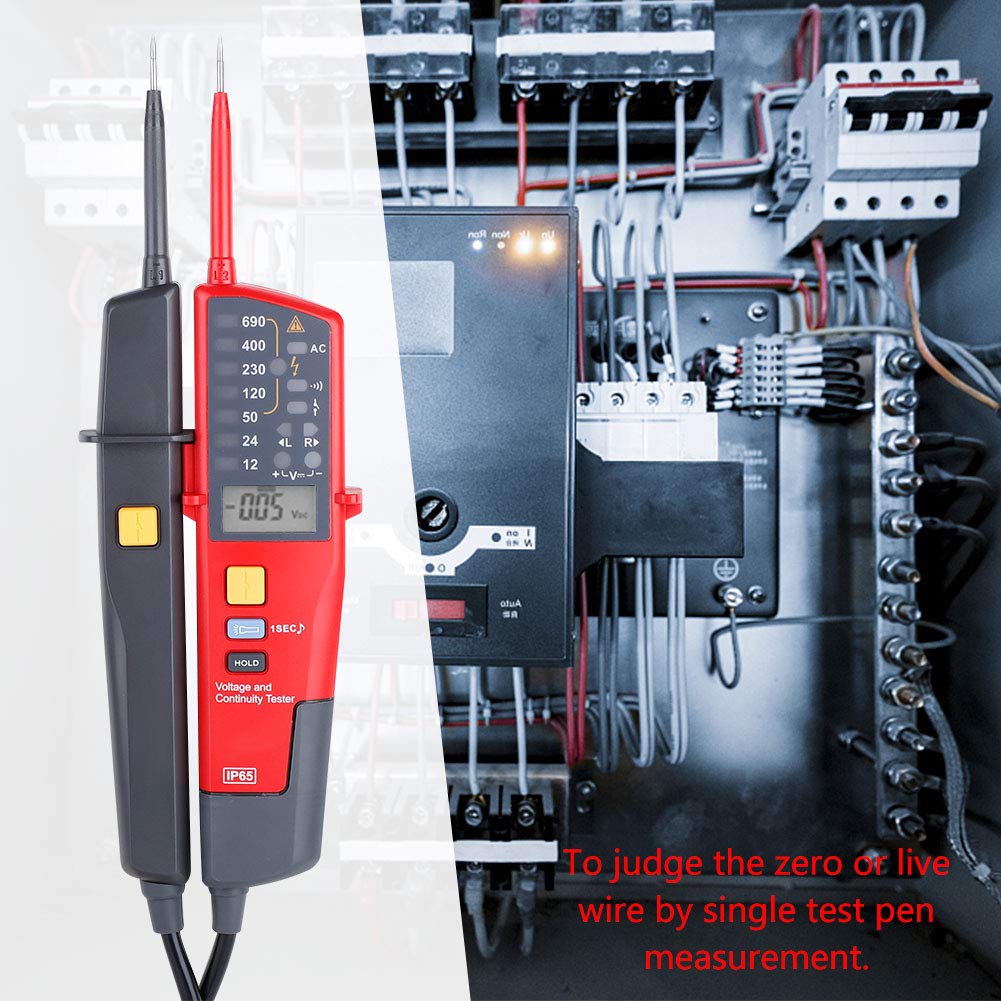

• The zero line or zero line is judged by one electric pen measurement. With automatic range and lighting function, 2.3v-2.5v low voltage display, 713v-718v overvoltage prompt. And has automatic standby and silent mode.
• The voltage and continuity tester is shown for LCD voltage and frequency. AC / DC measurements up to 690V. With on-off test, the resistance range is 0-100 kohms, buzzer and LED illumination prompt. The RCD test has a voltage of 230 volts and a frequency of 50-40 Hz.
• Voltage Continuity Tester is suitable for home, factory, power department, etc., and laboratory measurement functions, mainly used for voltage continuity measurement, with a wide range of applications.

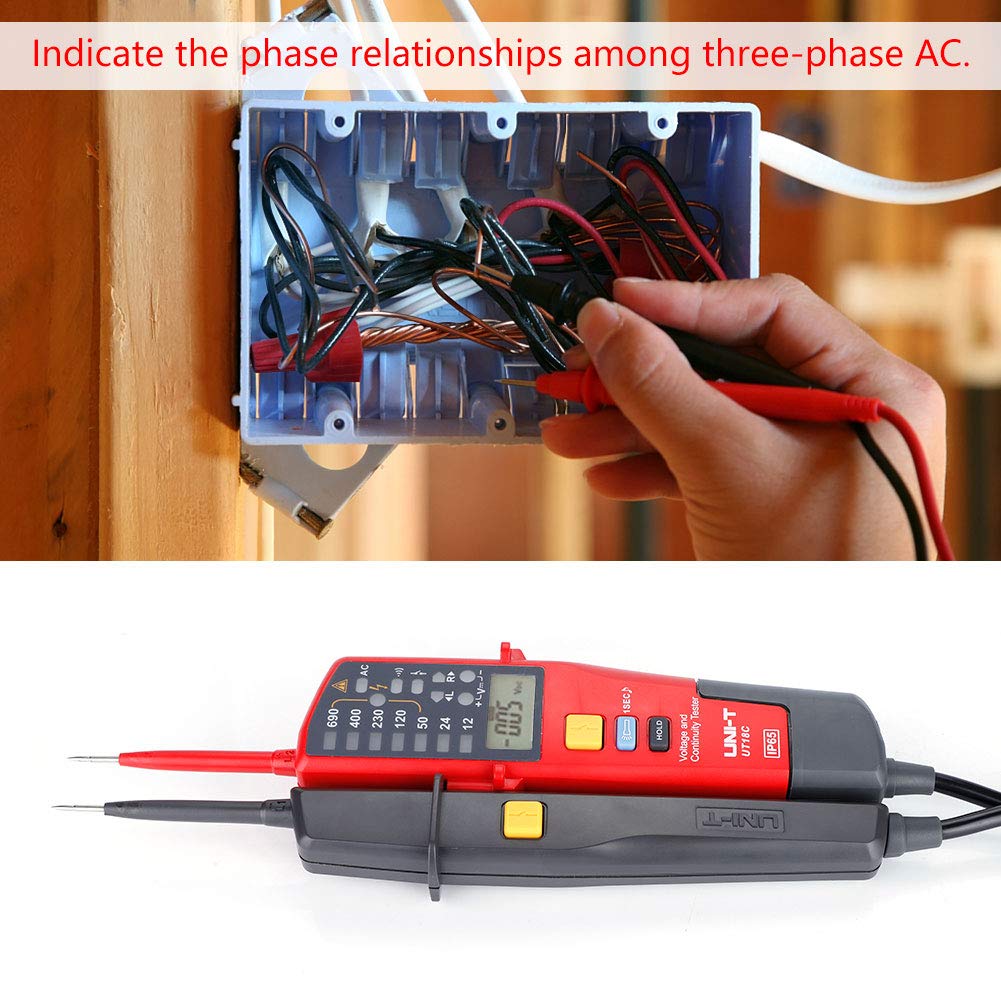

• The handheld multimeter has a three-phase AC phase indication, indicating the phase relationship of the three-phase AC. The phase rotation test frequency is 570 ~ 400VAC (three-phase), and the phase rotation test frequency is 50-60Hz.

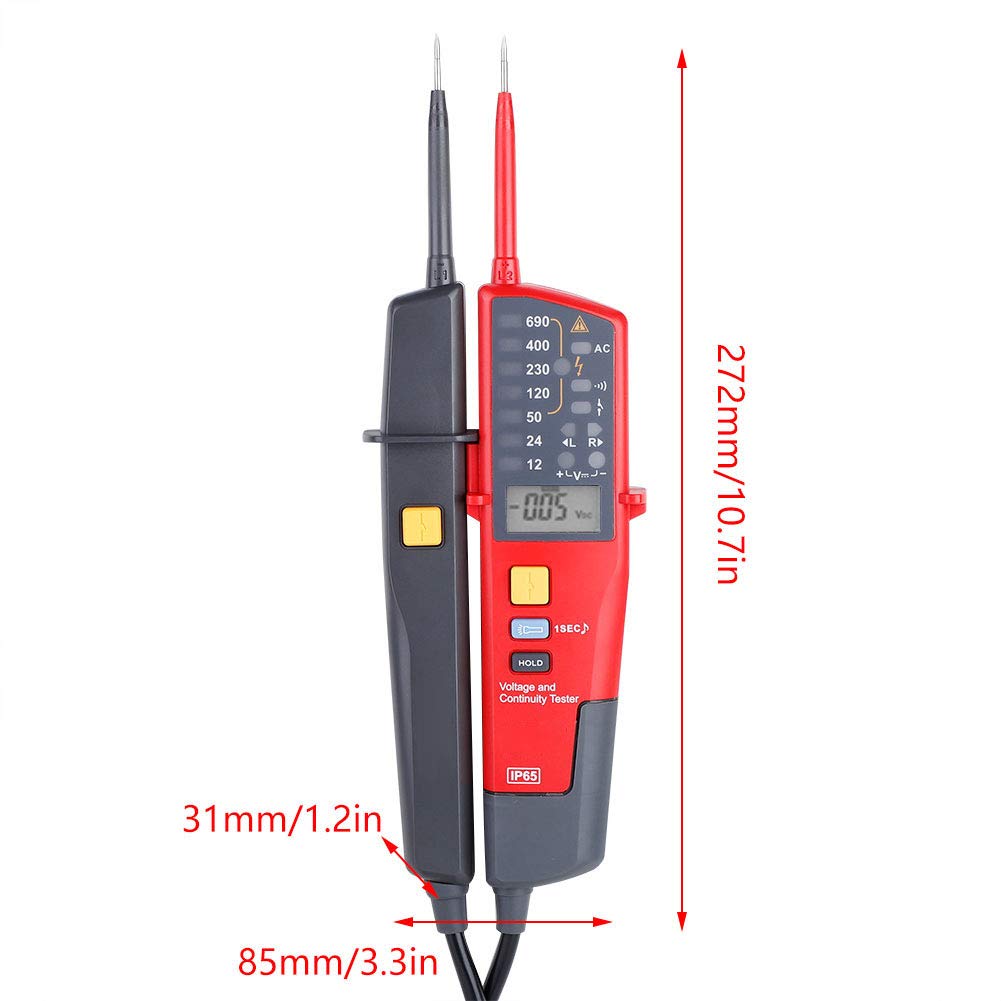

Specification: Brand: UNI-T Model: UT18C Auto Range: Yes High Voltage Indication Range: 713~788V Auto standby Current: <10uA LCD Indication(Voltage): 6V~690V, ±(1.5%+5) LCD Indication(Frequency): 40Hz~400Hz, ±(3%+5) RCD Test: Voltage: 230V, Frequency: 50Hz~400Hz Phase Rotation Test: 570~400VAC (3phase) Single Lead (L2) Detection: Voltage:100V~690V, Frequency: 50Hz~400Hz Self-inspection: LED, LCD No Battery Detection: Voltage Range:50VAC/120VDC~690VDC/AC Polarity Detection: Positive & Negative Low Battery Indication: Voltage:23V~25V Silent Mode: Yes Work Light: Yes Continuity Test: Resistance:0~100kohm Battery: 2pcs * 1.5V AAA Battery (NOT Included) LCD Size: Approx. 28 * 14mm Color: Red + Grey Product Size: Approx. 272*85*31mm/10.7*3.3*1.2inch Weight: Approx. 404g / 14.3oz Voltage Indication Range: 6V 12V 24V 50V 120V 230V 400V 690V Voltage Indication Accuracy: 5V±1V 8V±1V 18V±2V 38V±4V 94V±8V 180V±14V 325V±15V 562V±24V Package List: 1 x Voltage & Continuity Tester
