UNI-T Uni-trend UT582+ Digital RCD (ELCB) Tester AUTO RAMP Leakage Circuit Breaker Meter with Mis-Operation Buzzer

• UT582+ Digital RCD (ELCB) Tester with Certifications: CE, UKCA,
• Key Features * Power off gear * LCD backlight * Data hold
• * AUTO RAMP * Disconnect buzzer * Over-range display: OL * With protect fuses
• * Mis-operation buzzer * Power off buzzer * Full icon display

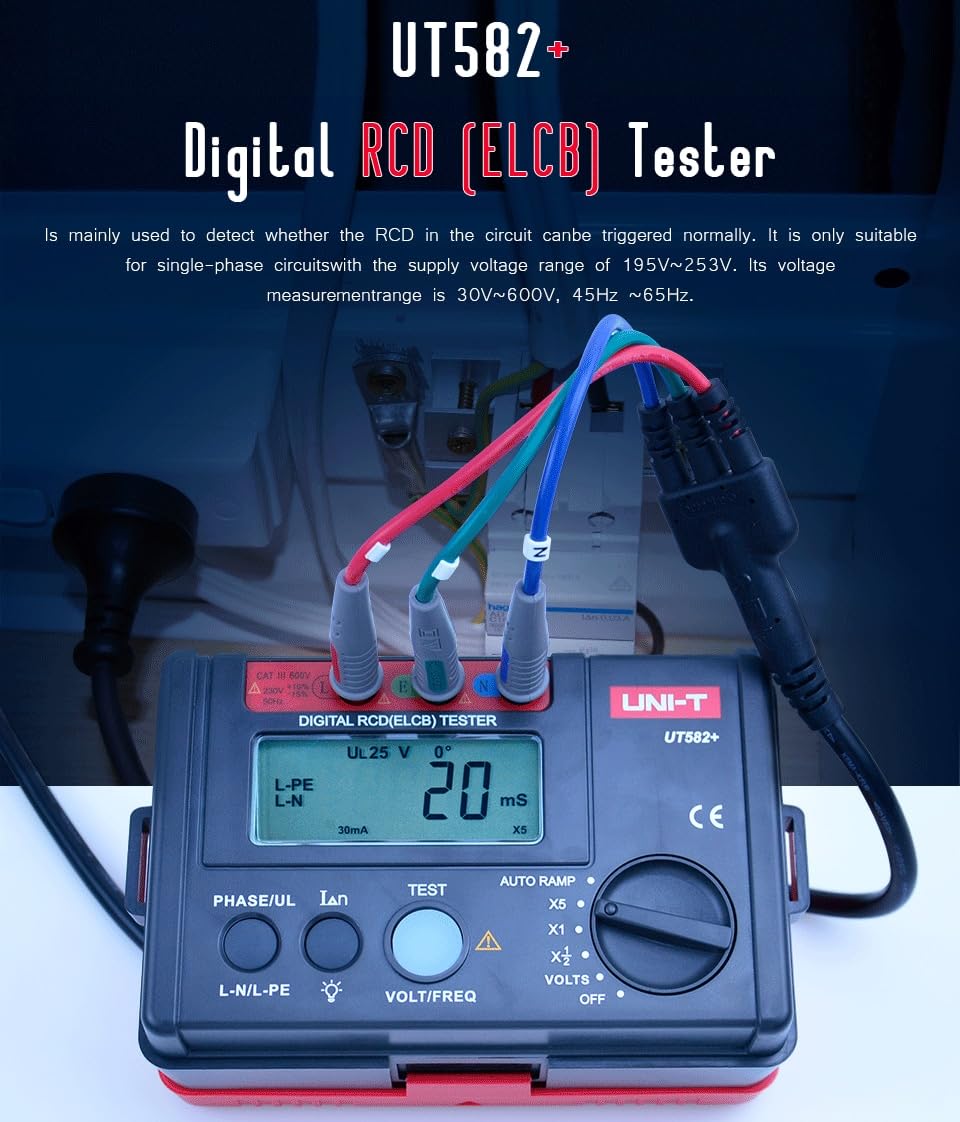

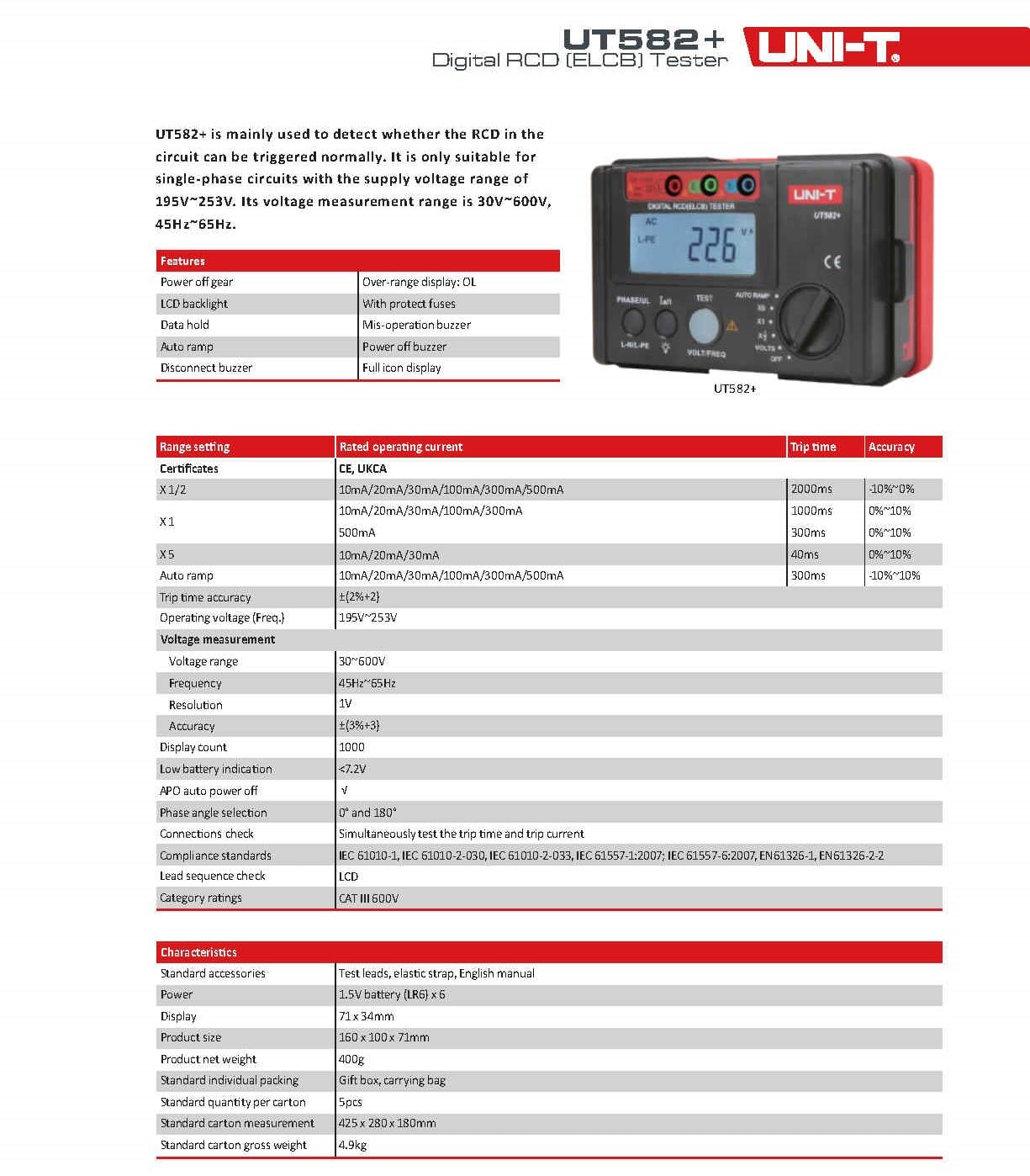

UT582+ Digital RCD (ELCB) Tester UT582+ is mainly used to detect whether the RCD in the circuit can be triggered normally. It is only suitable for single-phase circuits with the supply voltage range of 195V~253V. Its voltage measurement range is 30V~600V, 45Hz ~65Hz. Features of UT582+ Digital RCD (ELCB) Tester Certifications: CE, UKCA ● Power off gear ● LCD backlight ● Data hold ● AUTO RAMP ● Disconnect buzzer ● Over-range display: OL ● With protect fuses ● Mis-operation buzzer ● Power off buzzer ● Full icon display Features Display count 999 Power off gear √ Low battery indication <7.2V APO Auto power off fuction LCD backlight √ Data hold √ Phase angle selection 0° and 180° Connections check Simultaneously test the trip time and trip current AUTO RAMP √ Disconnect buzzer √ Over-range display OL Fused √ Mis-operation buzzer √ Power off buzzer √ Full icon display √ Compliance standard IEC 61010-1, IEC 61010-2-030, IEC 61010-2-033, IEC 61557-1:2007;IEC 61557-6:2007, EN61326-1, EN61326-2-2 Lead sequence check LCD
