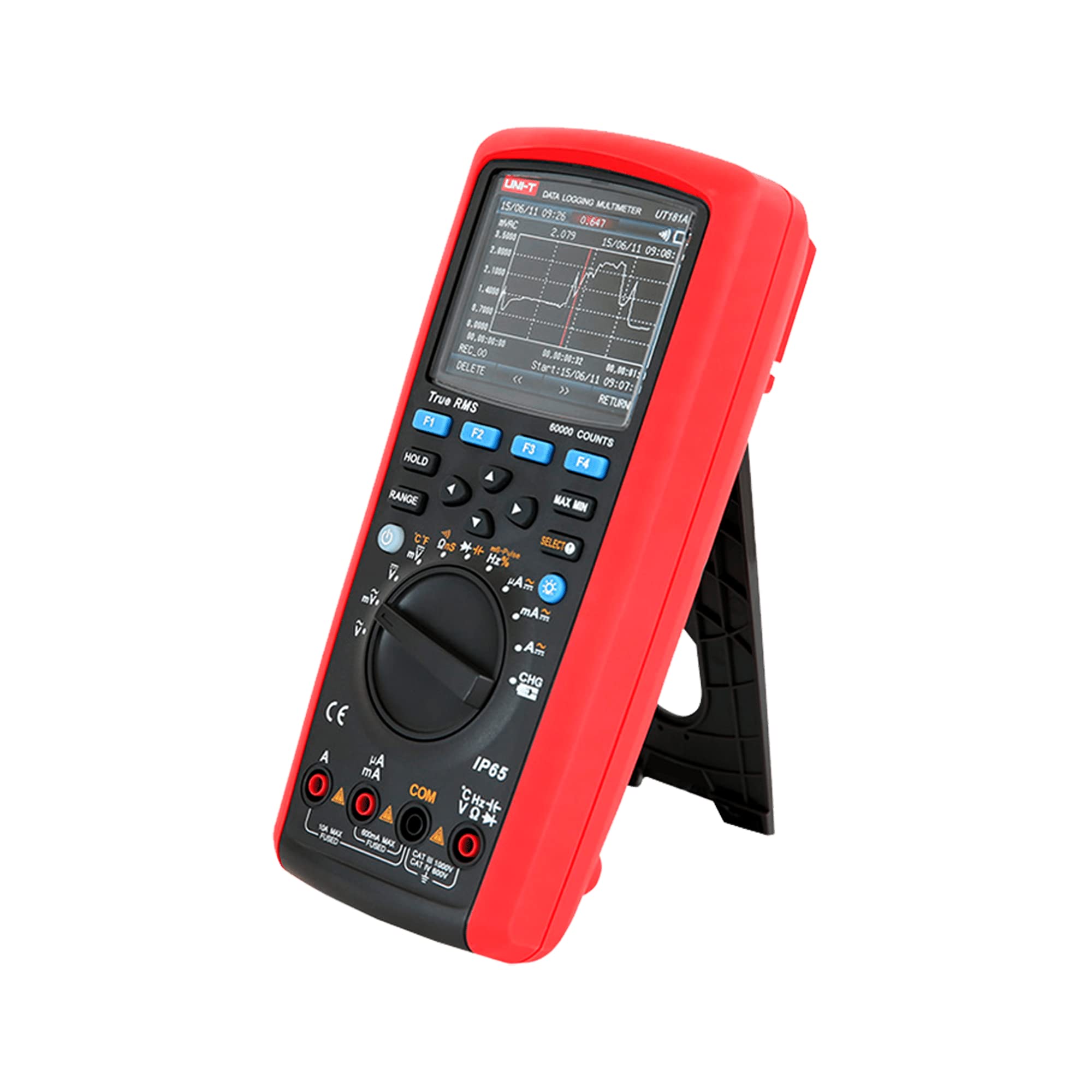

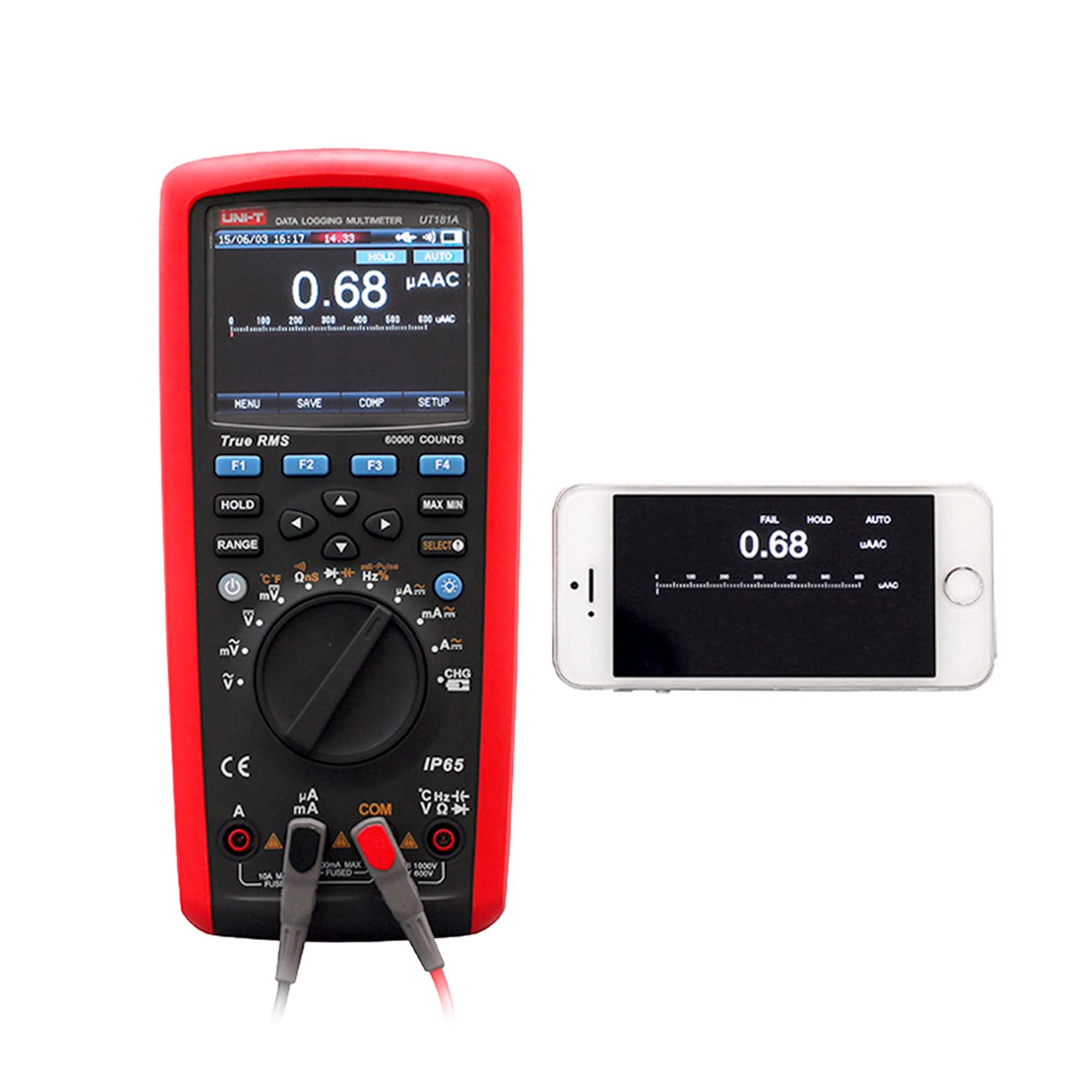

UNI-T Digital Multimeter UT181A/MIE0171

• A high-quality and very universal multi-purpose measuring device.

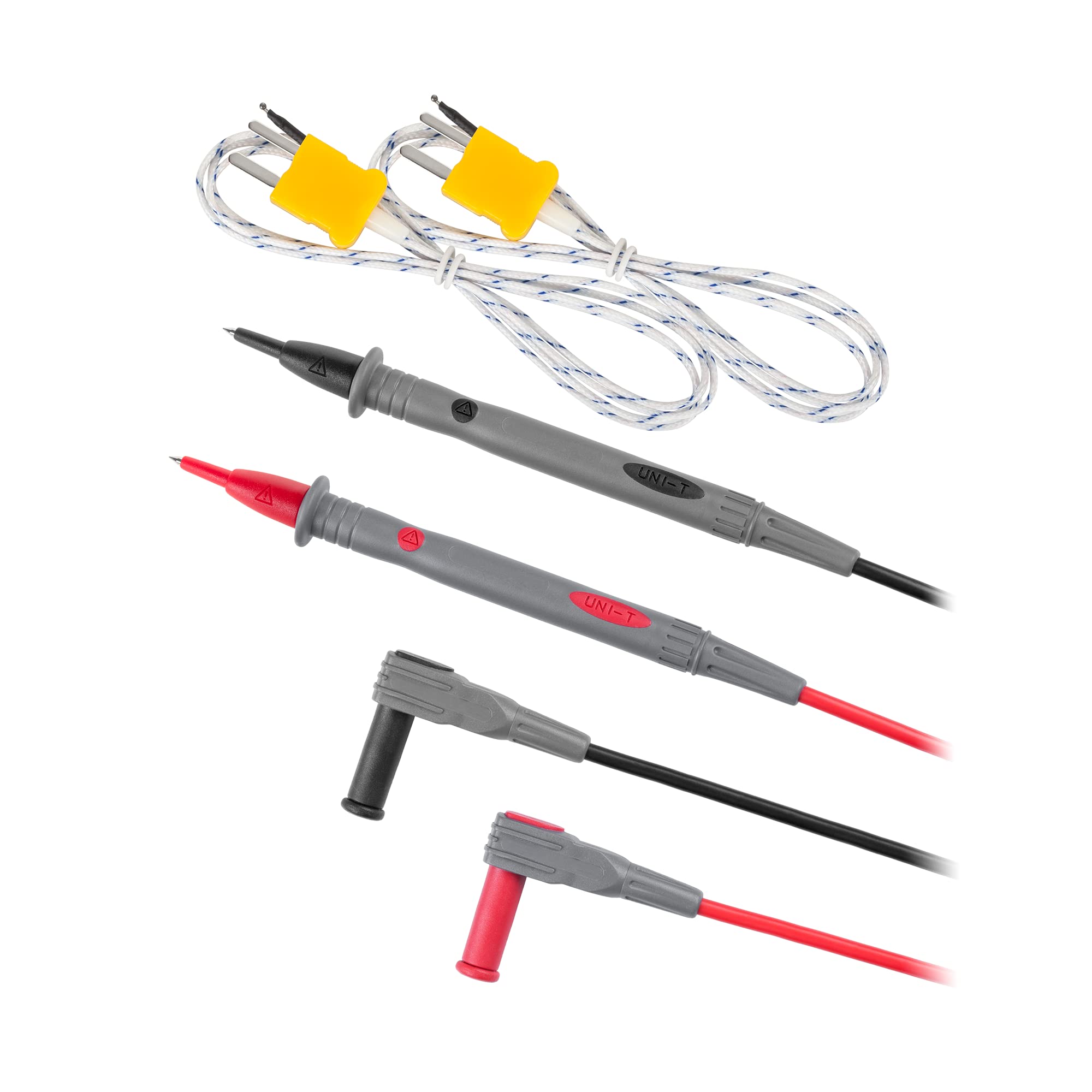

• K-type sensor, sensor for measurements up to 230 °C included.
• TFT display with 320 x 240 pixels.

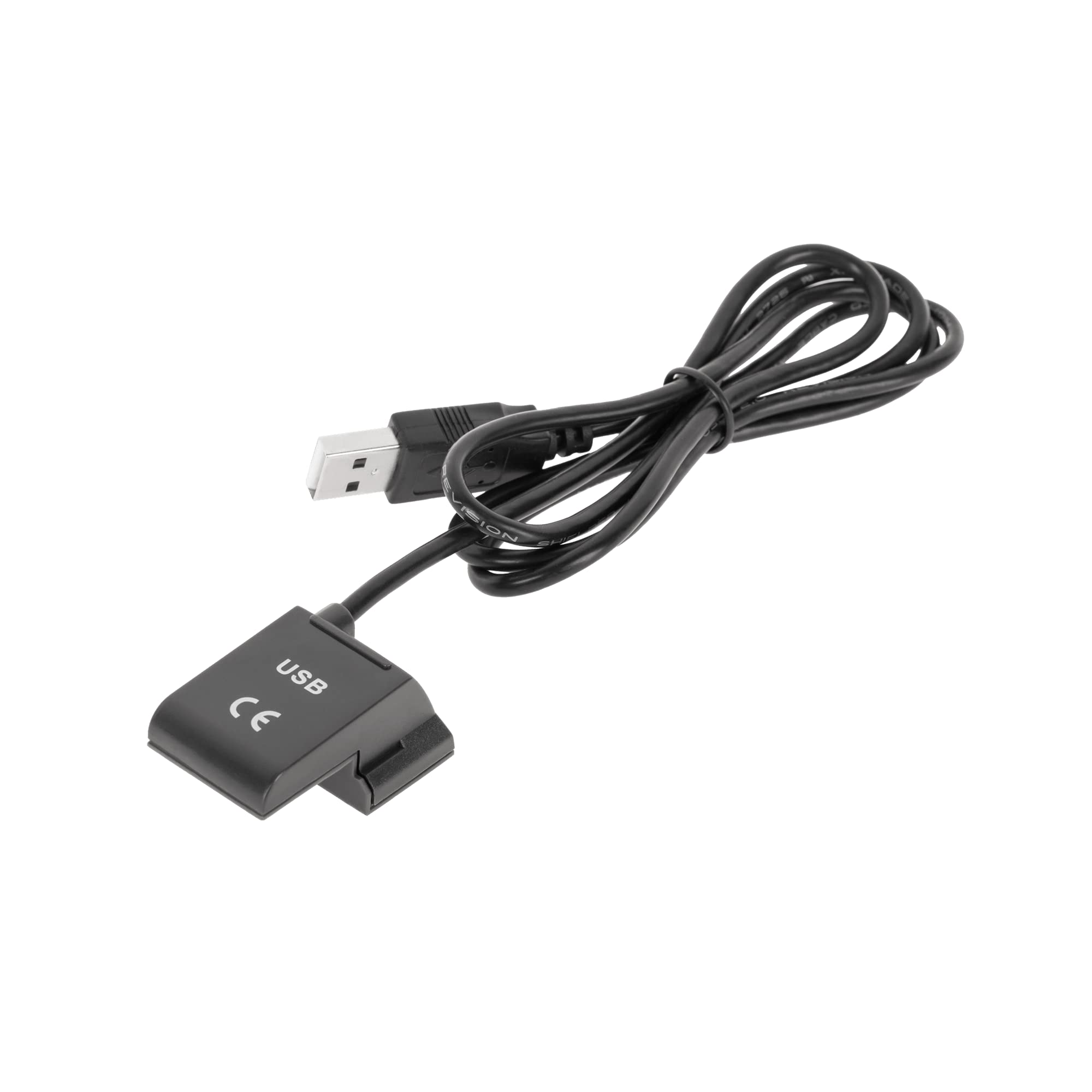

• USB interface, PC data communication, software included.
• Special features: Alarm for misallocation of the measuring sockets, test function for internal fuses.

Specifications DC voltage/DC voltage: 60 mV/600 mV/60 V/600 V/1000 V; ± (0.025% +5) AC voltage/AC voltage: 60 mV/600 mV/6 V/60 V/600 V/1000 V; ± (0.3% +30) DC current: 600 µA/60 mA/600 mA/10 A Current: 600 µA/6000 µA/60 mA/600 mA/10 A; ± (0.6% +20) Resistance: 600 ohm/6 kOhm/60 kOhm/600 kOhm/6 mohm/60 mOhm; ± (0.05% +2) Conductance: 60 nN; ± (2% +10) Capacitance: 6 nF/60 nf/600 nf/6 µF/60 µF/6 mF/60 mF; ± (2% +5) Frequency: 10 Hz-60 MHz; ± (0.01% +5) Temperature range (°C) ፦40 °C-1000°C; ± (1%)) Temperature Range (°F) ፦40°F-1832°F; ± (1.5% +50) Max Display 60000 Special Features Automatic/Manual Range Change True RMS Bandwidth: 100 kHz AC+DC Measurement Low-pass Filter: 1 kHz (-3 dB) Continuity Measurement Diode Test: Approx. 3 V Fill Factor Measurement: 10% -90% Data Hold Function Peak Value Memory Relative Value Measurement 2000 Memory Trend Capture MIN/MAX-AVG (Average) Storage Date/Time Display Comparison Display LCD Lighting Control Analog Display Bargraph: 61 USB warning of poorly selected measuring sockets battery warning automatic shutdown protection of the input circuit input impedance of DC voltage: approx. 10 MOhm - Power supply: lithium battery, 7.4 V, 2200 mAh LCD display: 70 x 52 mm Display: 3.5", color TFT LCD (320 x 240) Package included - Multimeter - Carrying Case - User Manual - USB Cable - CD - Power Supply - Temperature Sensor
