Unbekannt AKR285LG-B AKR 285LG-B Elbow Connector Long Hole Hot-Dip Galvanised with Approval, AKR285LG Langloch

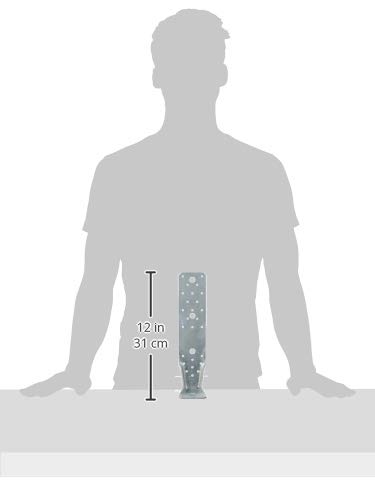

• A: 285 mm; B: 85 mm; C: 65 mm; Number of holes ø 11: 1 piece; Number of holes ø 13.5: 3 pieces; Holes: 1 x ø 13.5 x 25 mm; Number of holes ø 5: 28 pieces.
• Material thickness: 4 mm; material: steel; surface: hot-dip galvanised

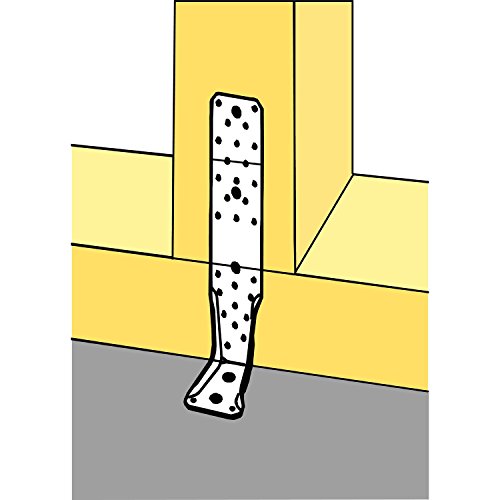

• Application: For optimal connections between wood and other building materials such as concrete, masonry or steel.
• With European technical approval ETA - 07/0285.

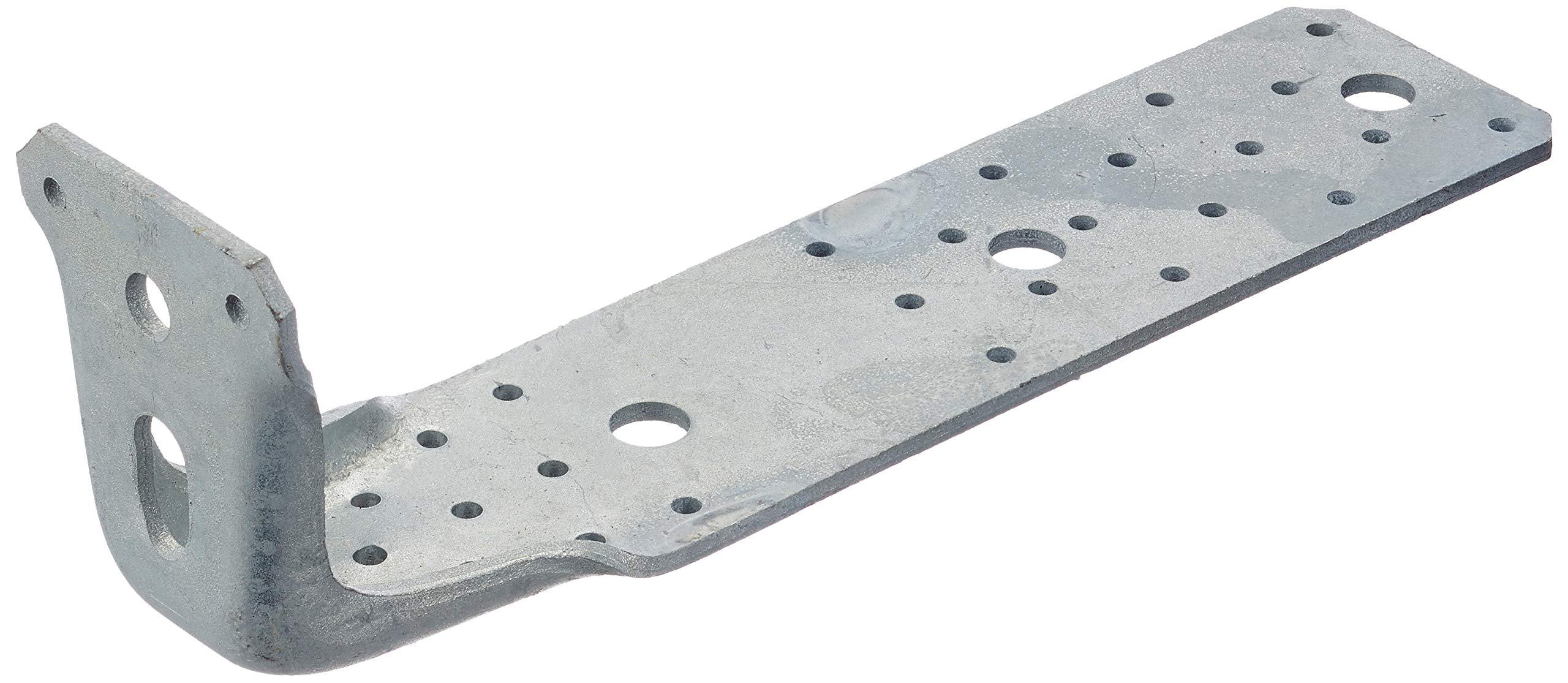

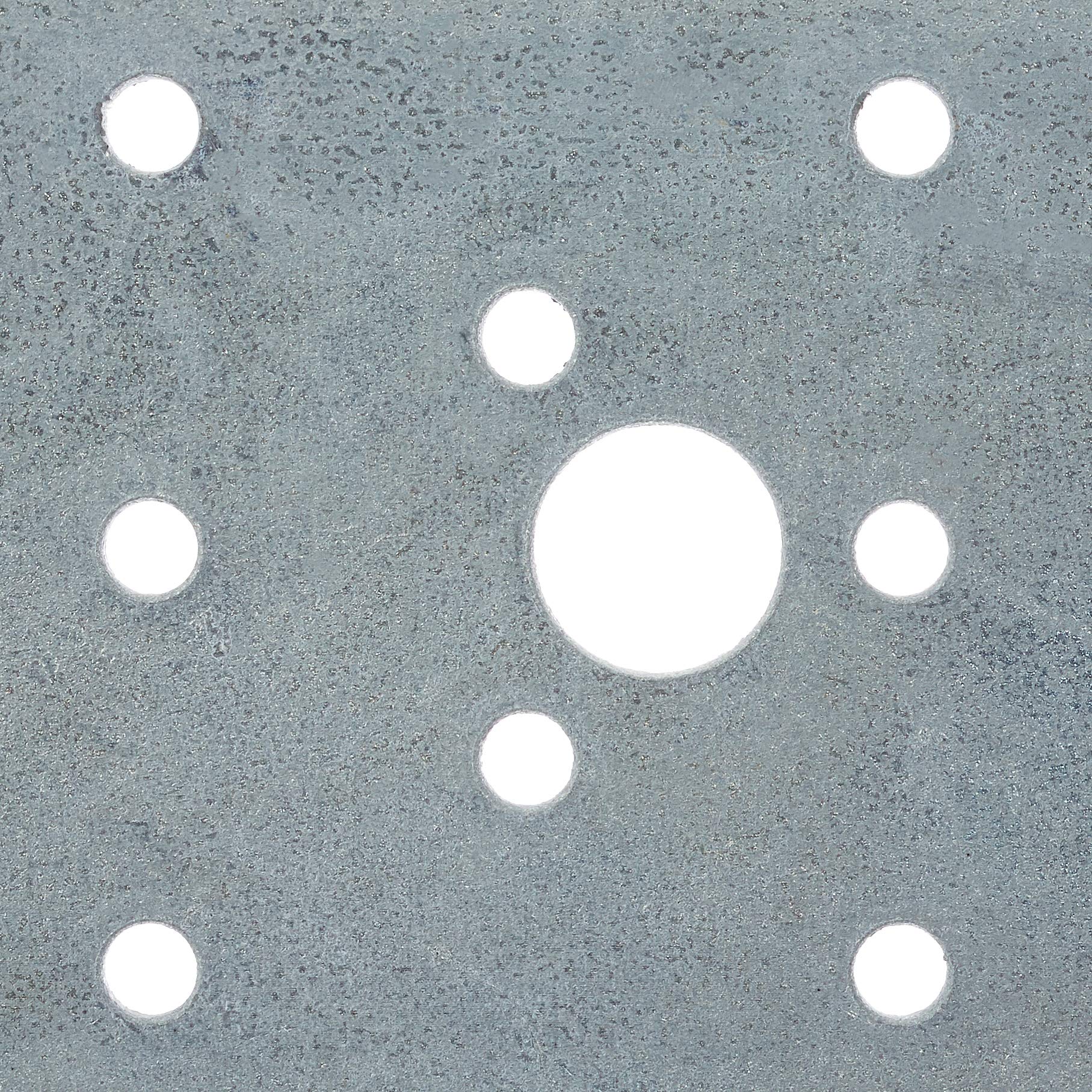

AKR angle connectors are made of 4 mm steel and are subsequently hot-dip galvanized. The AKR angle connectors are provided with nail holes in one and bolt holes in the other leg. The angle connectors AKR (L) are manufactured with a slot. The high load capacity is achieved by two outboard Kant ribs and a special hole pattern in the thighs. Load-bearing in all directions on beams and columns. Partial or full nailing. One-sided or two-sided connections. Possible assembly at a distance from the support in the case of pure tension connections. Optimized bolt utilization.
