6" Ultimate Handwheel For or Less 3/4" Shaft, 3-Way Fixing, Fits Table Saw & More Machinery

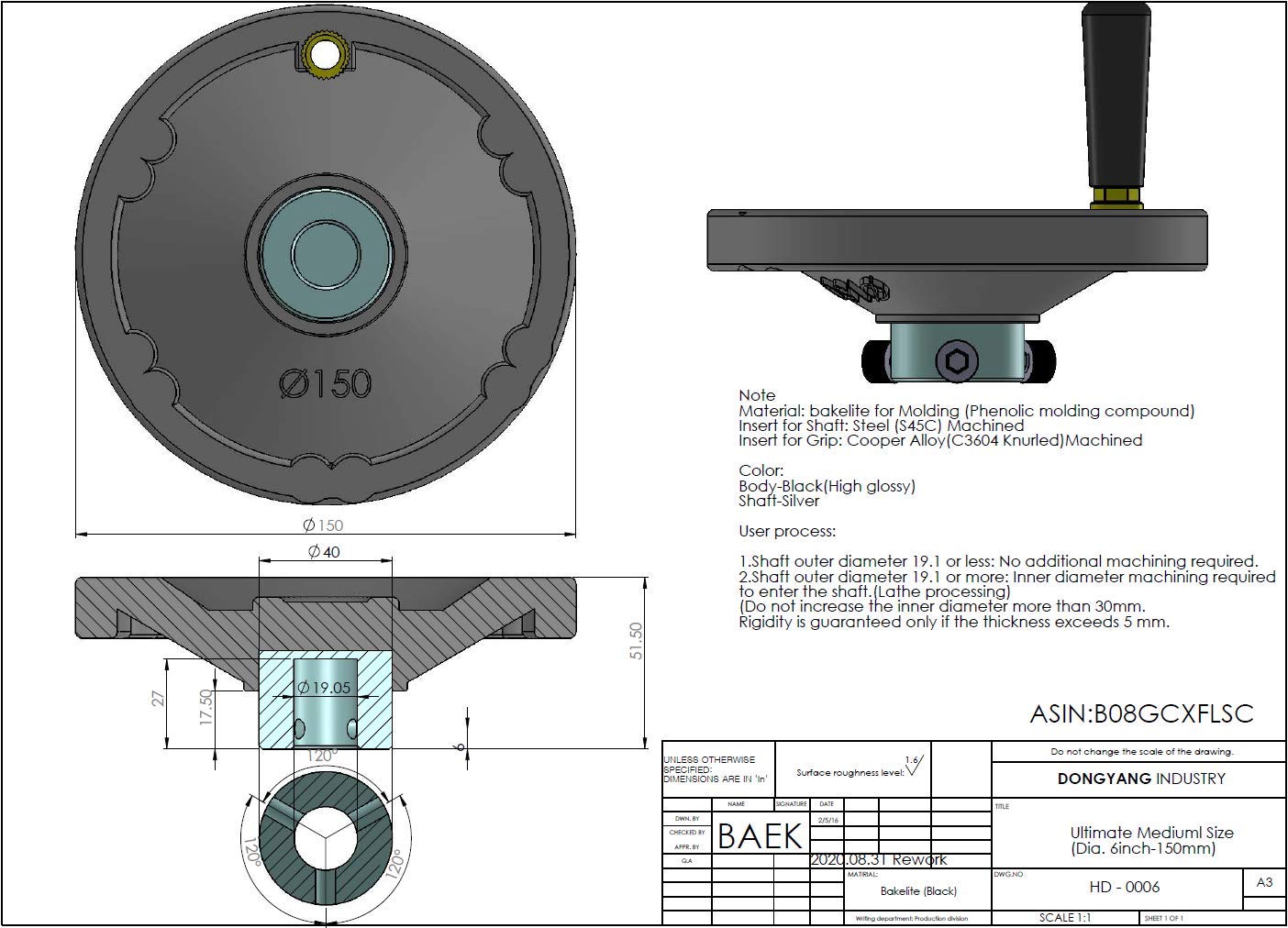

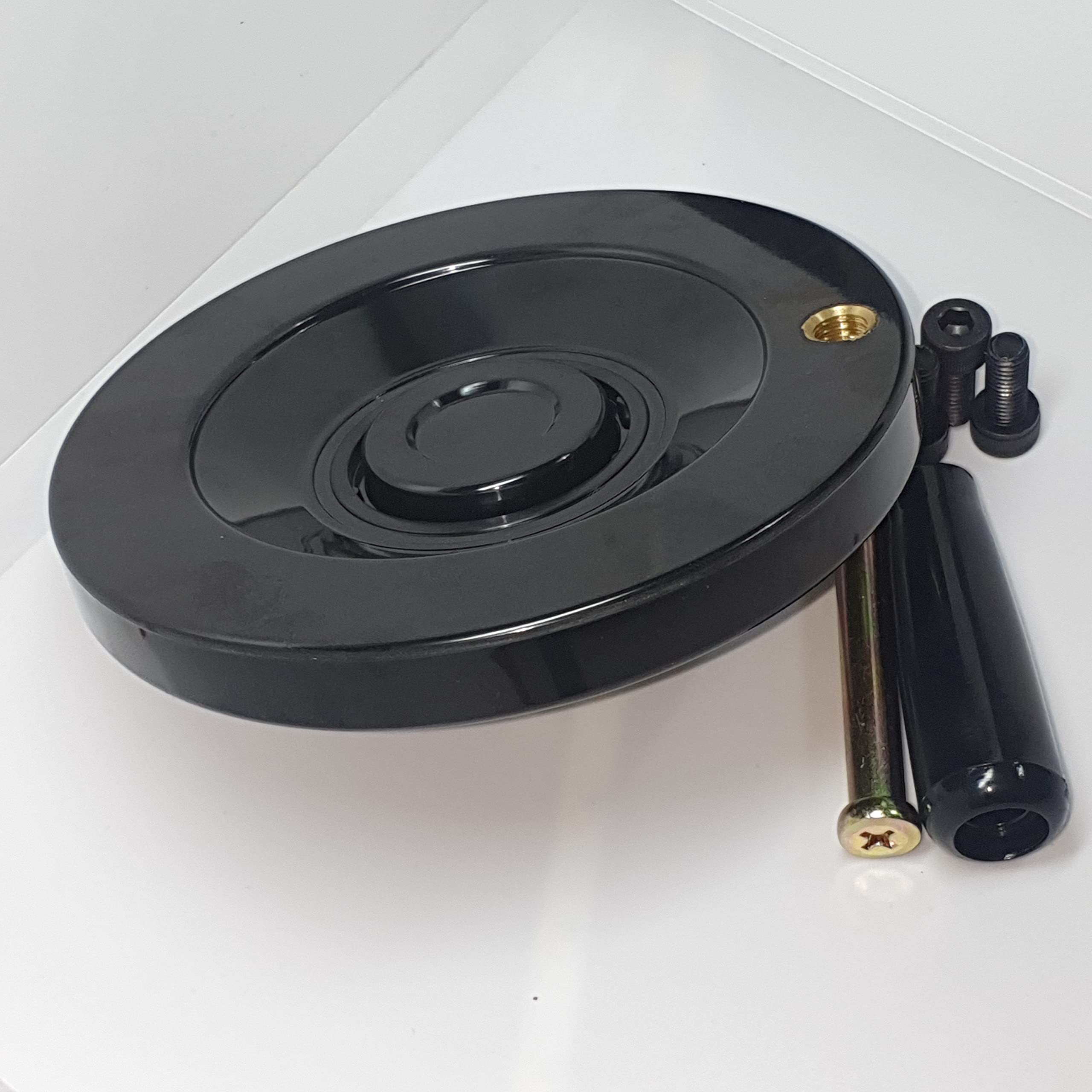

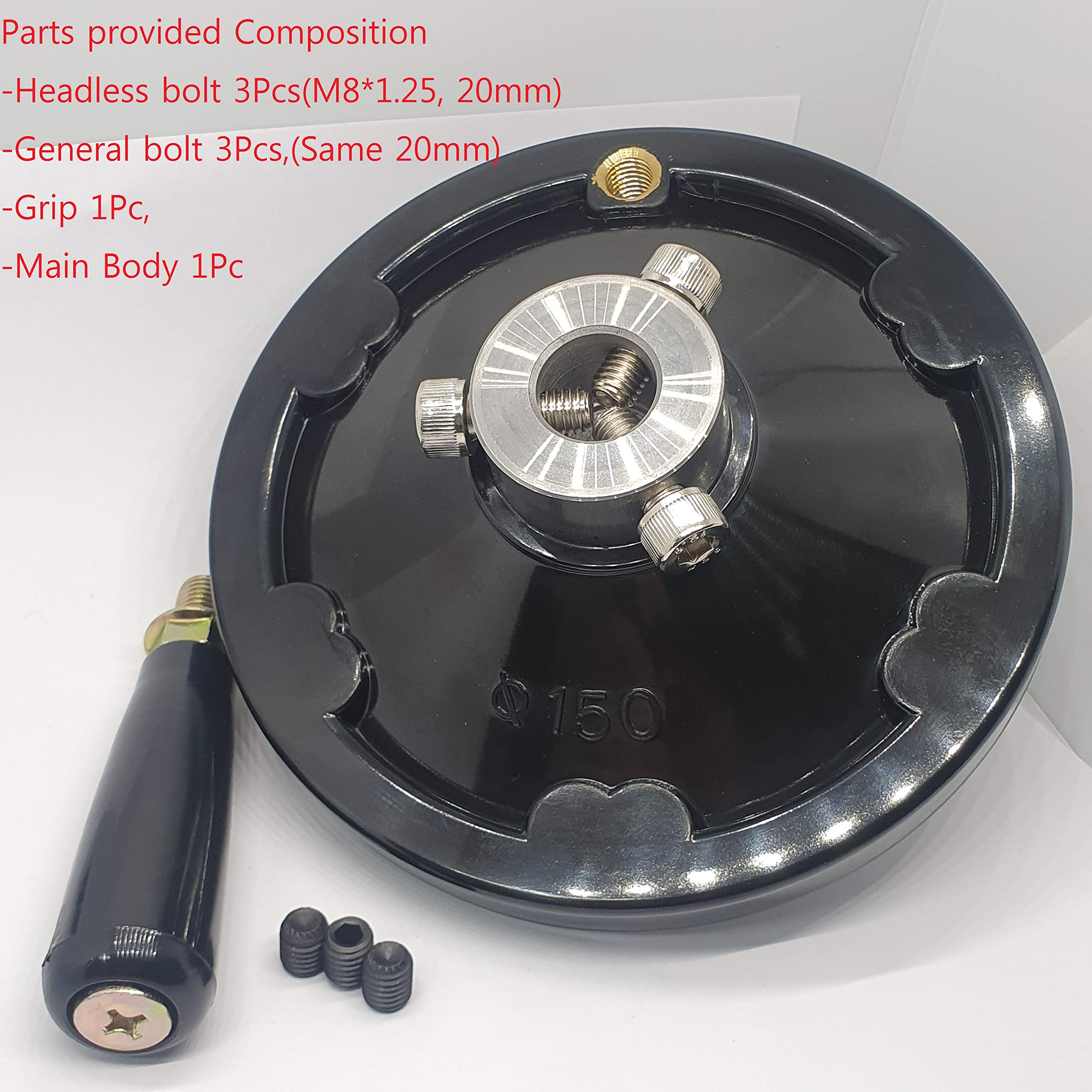

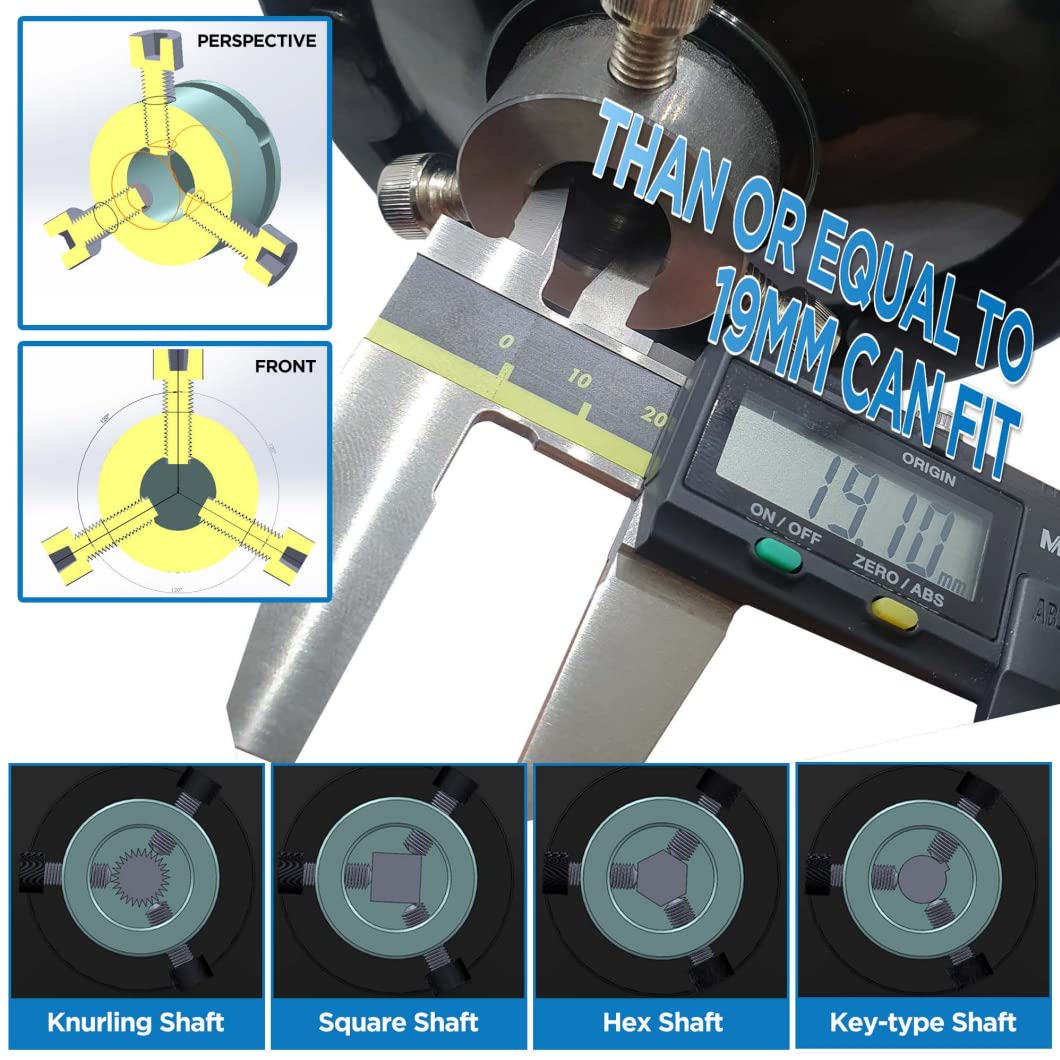

This handle is made in Korea. Conventional handles could only be used in one place. However, this improved handle can be used for many purposes As long as it goes inside the bore that has been drilled in beforehand, it will bite tightly regardless of the axis of any shape Square, star, circle, triangle, etc. The shape of the axis doesn't matter at all That's why we name this handle the 'Ultimate' handwheel 1.Components - Main Body * 1EA ,Out Dia. 5.90"(150mm) - Revolving Knob grip assembly * 1Set axis, body, fixing nut -1EA - 4mm Headless bolt 3EA, 5mm general bolt 3EA Both types screws are provided 2.Material Body - Compression molded bakelite (High glossy ,Black) For professional users, please refer to the raw material report & drawing dimension. Grip nuts - free cutting brass (C3604) Shaft - S45C(Steel for machinery) Bore 3/4" - Depth 1" M8 TAP processing. (120' evenly, 3POINT) This structure means that it can be applied to all axes up to 3/4" and at least 1/8". Manufacturer's recommended specifications: It is recommended to use with a minimum shaft diameter of 3mm or more. This means that even a 1/8" (3.125mm) axis can be used with this handle 3. Application Industrial Machine:Face grinder,Molding and polishing machine, drilling-milling, Turning lathes, Boring, tailstock live Tapping, Drill press, Bench lathes, Table saw, workbench, hydraulic vises, Liquid Filling Machine, etc. 4. Caution The main shaft of the main handle is 1.6" (40mm), so do not extend the bore more than 31mm It will be 1-1/4 in inches. The stiffness may be weakened It has high hardness for high stability It has the same properties as glass. It will cause partial damage if dropped from a high place or hit by metal
