UHPPOTE Full Complete 125KHz EM-ID Card 1 Door Security Access Control Entry System Kit With Electric 120Lbs Magnetic Lock

• Support one-door
• Can be used as a stand alone keypad.Doesn't need to connect on the computer,can works alone
• The RFID lock kit access controller can provide users with more convenience by connecting to terminals.
• This Reader Access Control Keypad can update the safety of your home and office. This electronic access control systems is perfect for Homes, Office, Factory and many other fields!
• The kit offers a method for controlling access safely and automatically, qualifying it as ideal equipment for businesses, offices, factories, and communities. Get the full set of door security system to update your home security!

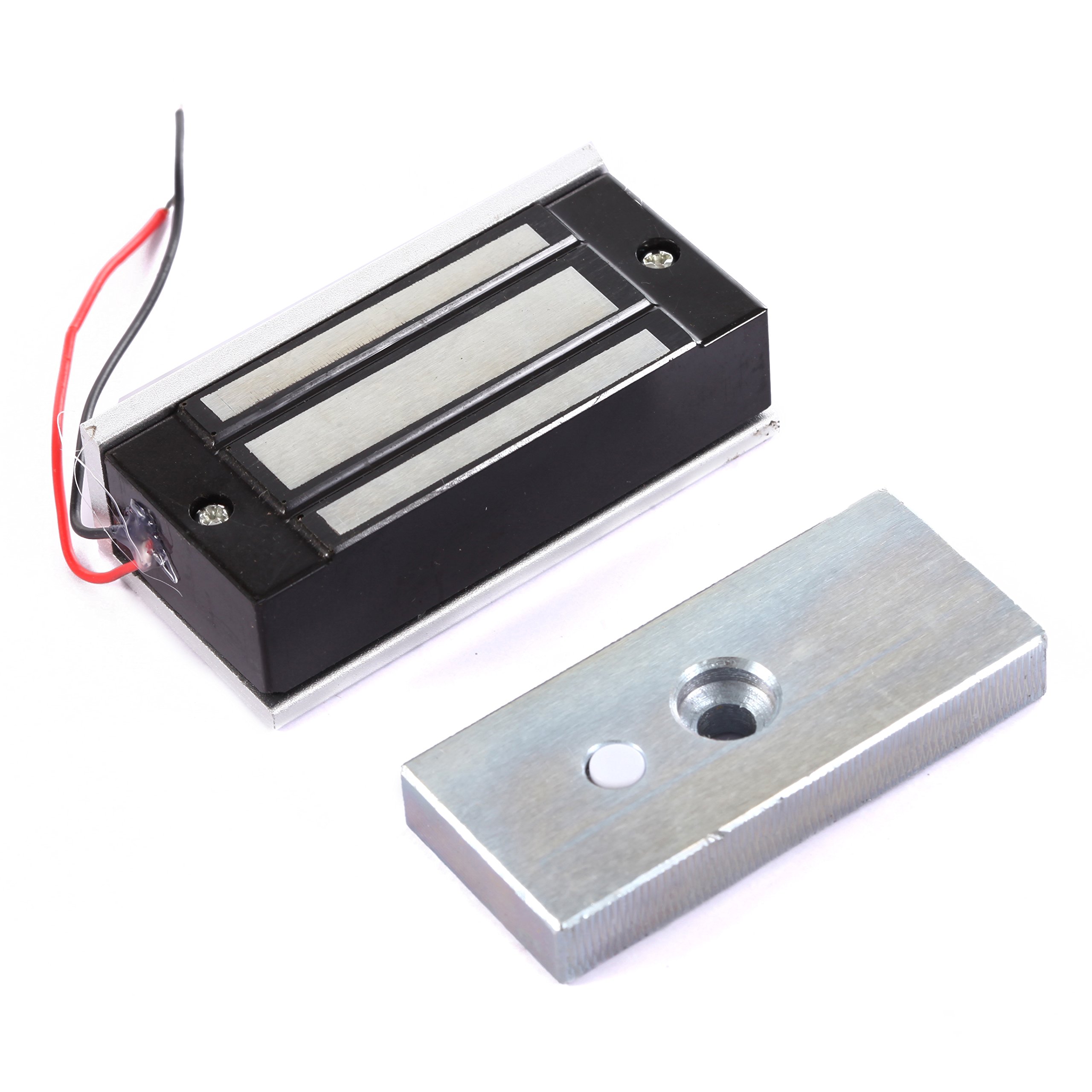

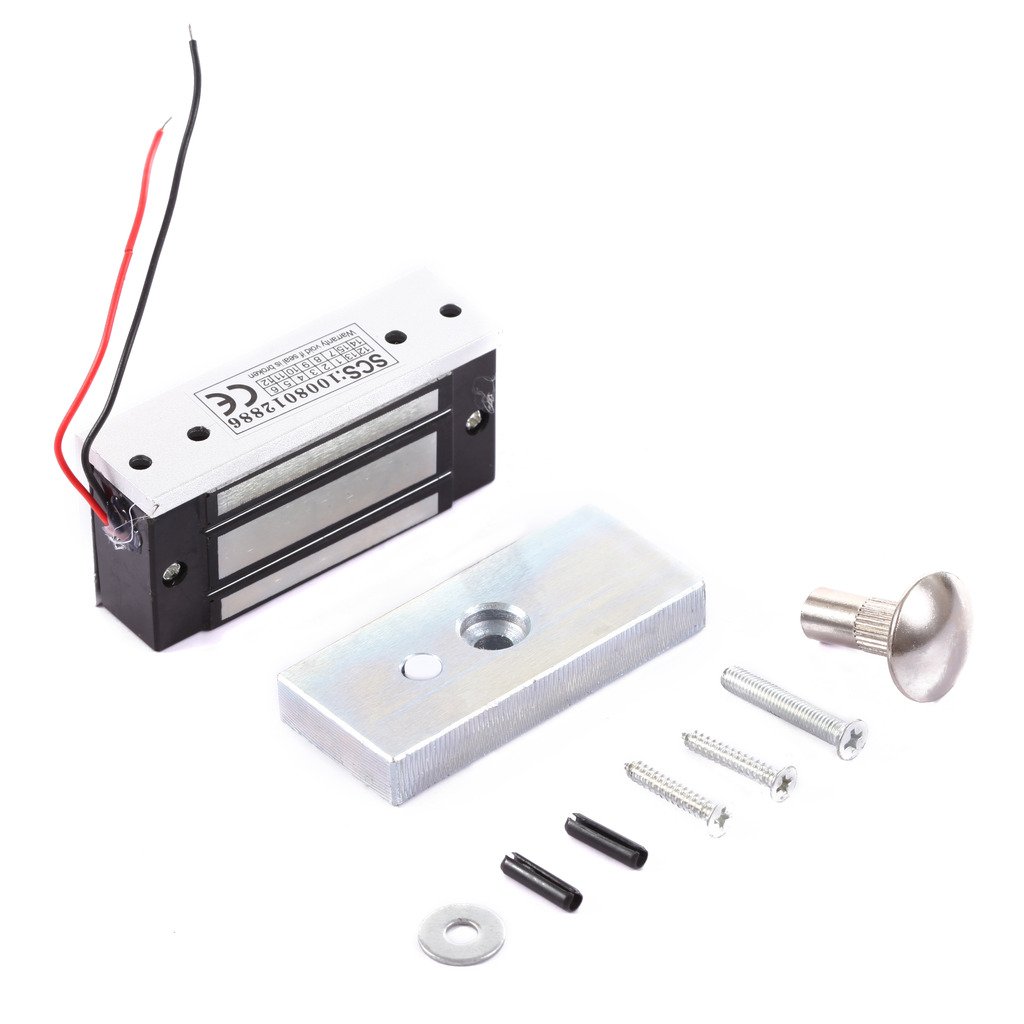

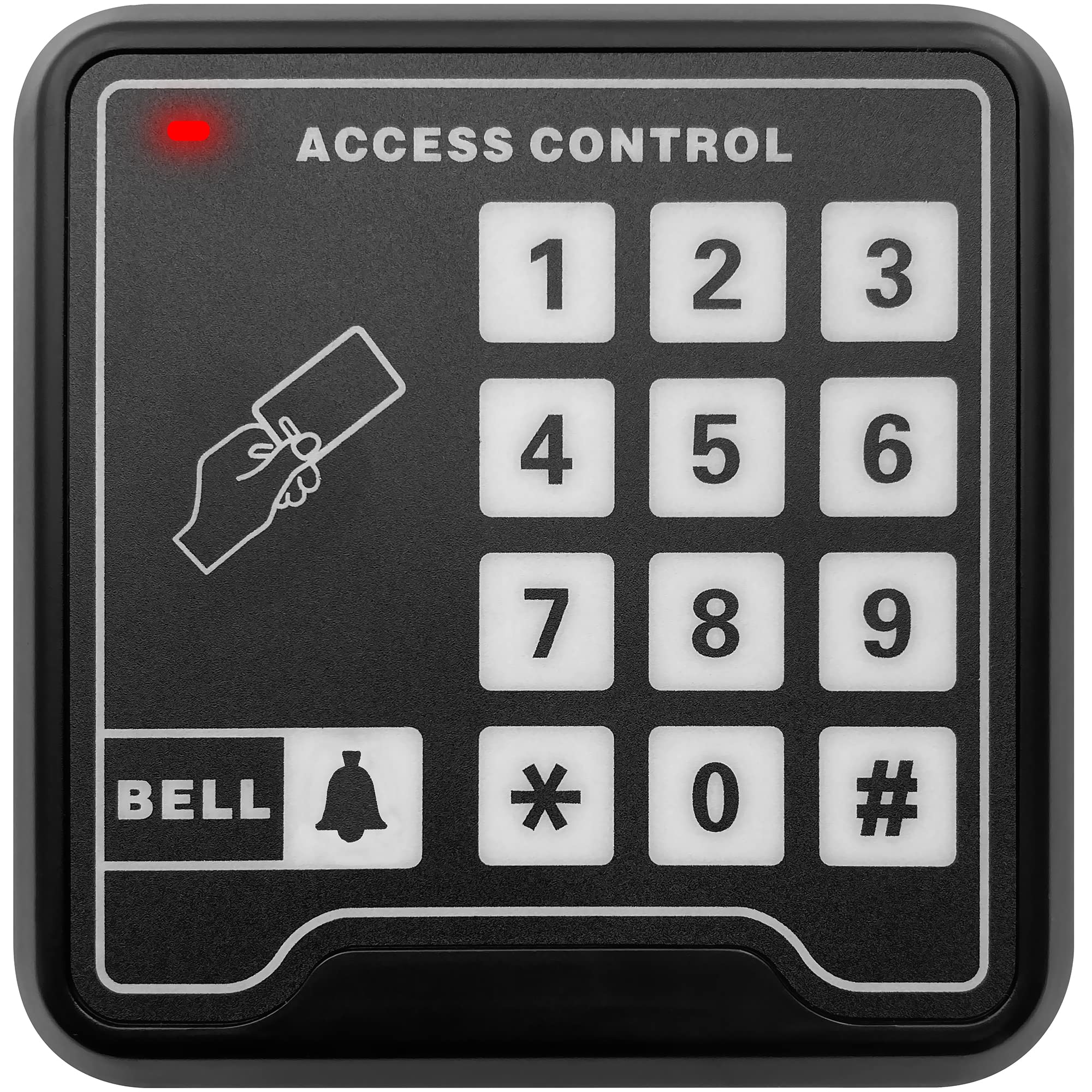

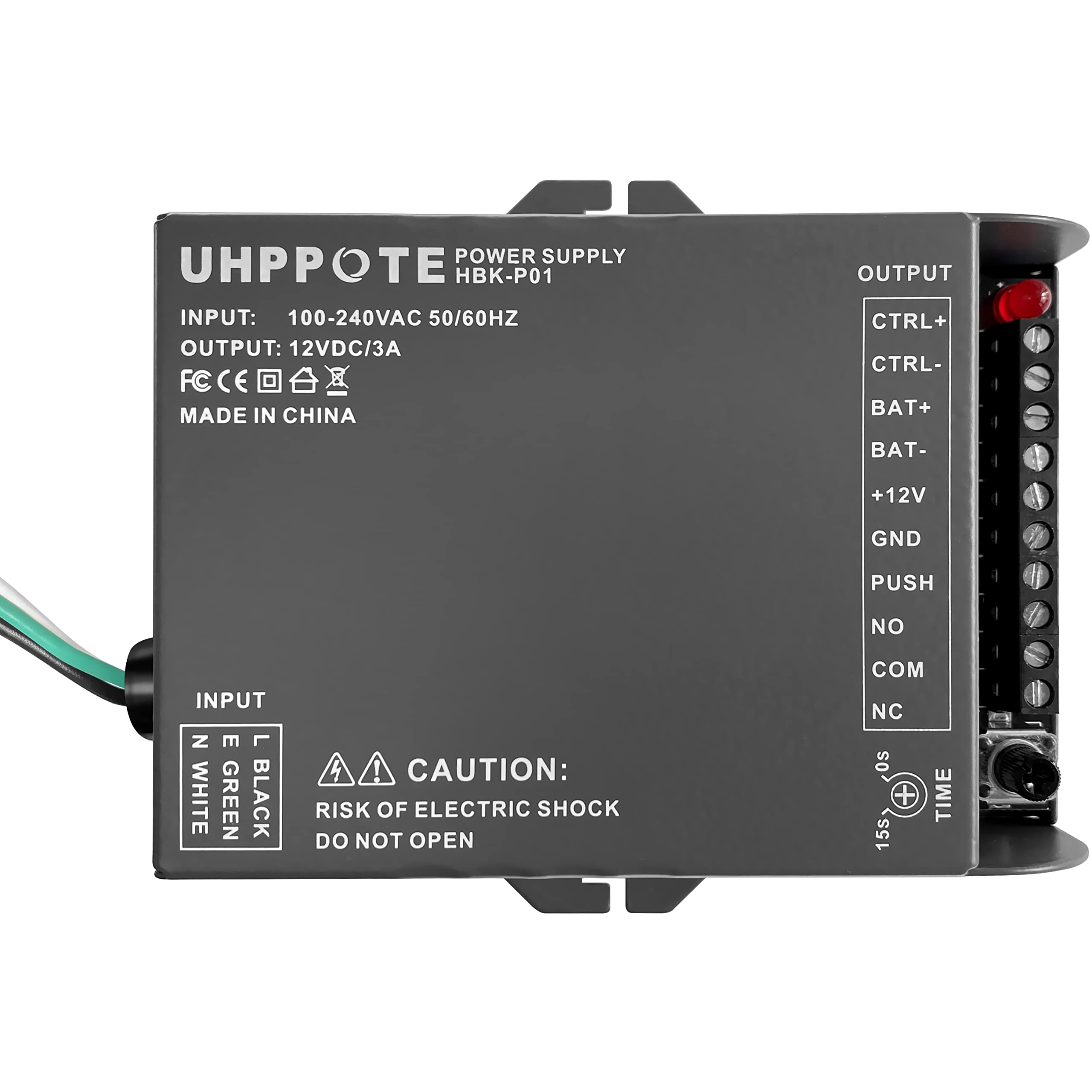

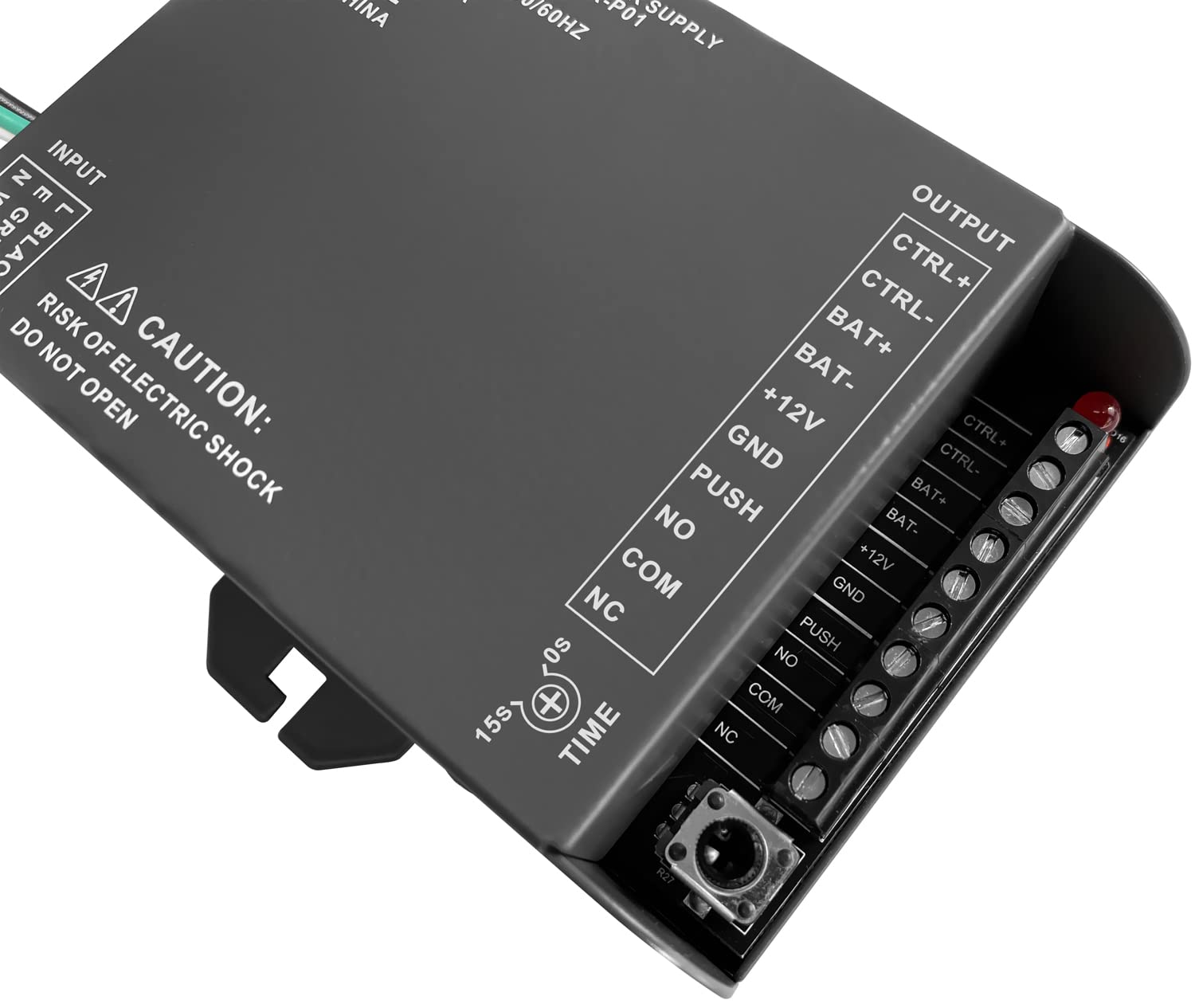

Access Keypad: Full programming from the keypad Adjustable door open time (0-99 seconds) Built-in buzzer; No keypad backlight Operating Voltage: 12VDC RFID Card Capacity: 500 User PIN Capactity: 500 PIN Digits: 4-8 digits Card Type: Standard 125KHz EM Card Reading Distance: Max. 6cm (2-23/64") External Reader: Not support Waterproof: Not support Keypad Backlight: Not support Shell Material: Plastic Shell Size: 100x100x18.5mm (3-15/16"x3-15/16"x47/64") Door Open Options (admin user selectable): Card Only / Password Only / Card + Password / Card or Password Working Temperature: -30°C-60°C / -22°F-140°F Working Humidity: 10%-90%RH, non-condensing Power Supply: IInput Voltage: AC110-240V Input Frequency: 50-60Hz Output Voltage: DC12V/3A Output Power: 36W Time Delay: 0-15 seconds Material of Enclosure: Aluminum Alloy Enclosure Color: Gray Dimensions: 113x78x32mm Electric Magnetic Lock: Voltage: DC12V/100mA Holding Force: 60kg / 130Lbs NC mode - (locked while supplied with power), fail safe Lock Body Size: 80Lx39Wx24.5H(mm) / 3.15Lx1.54Wx0.96H(in) Cover Finish: Anodized aluminum Lock Finish: Zinc Armature Plate Finish: Zinc Keyfobs: Operation Frequency: 125KHz Standard: EM-ID compatible Each keyfob has an unique ID number. Read only and not rewritable Package: 1 x Access control keypad 1 x Electric magnetic lock 1 x Power supply controller 1 x Exit button 10 x Keyfobs 1 x English user Manual Caution: A. The screw of armature plate should not be fixed too tight. Proper elasticity should be guaranteed for the rubber ring so that the armature plate can adjust itself to the appropriate position B. Please keep the surface of the lock clean, or the force will be reduced because of the dust, glue or scotch tape on it
