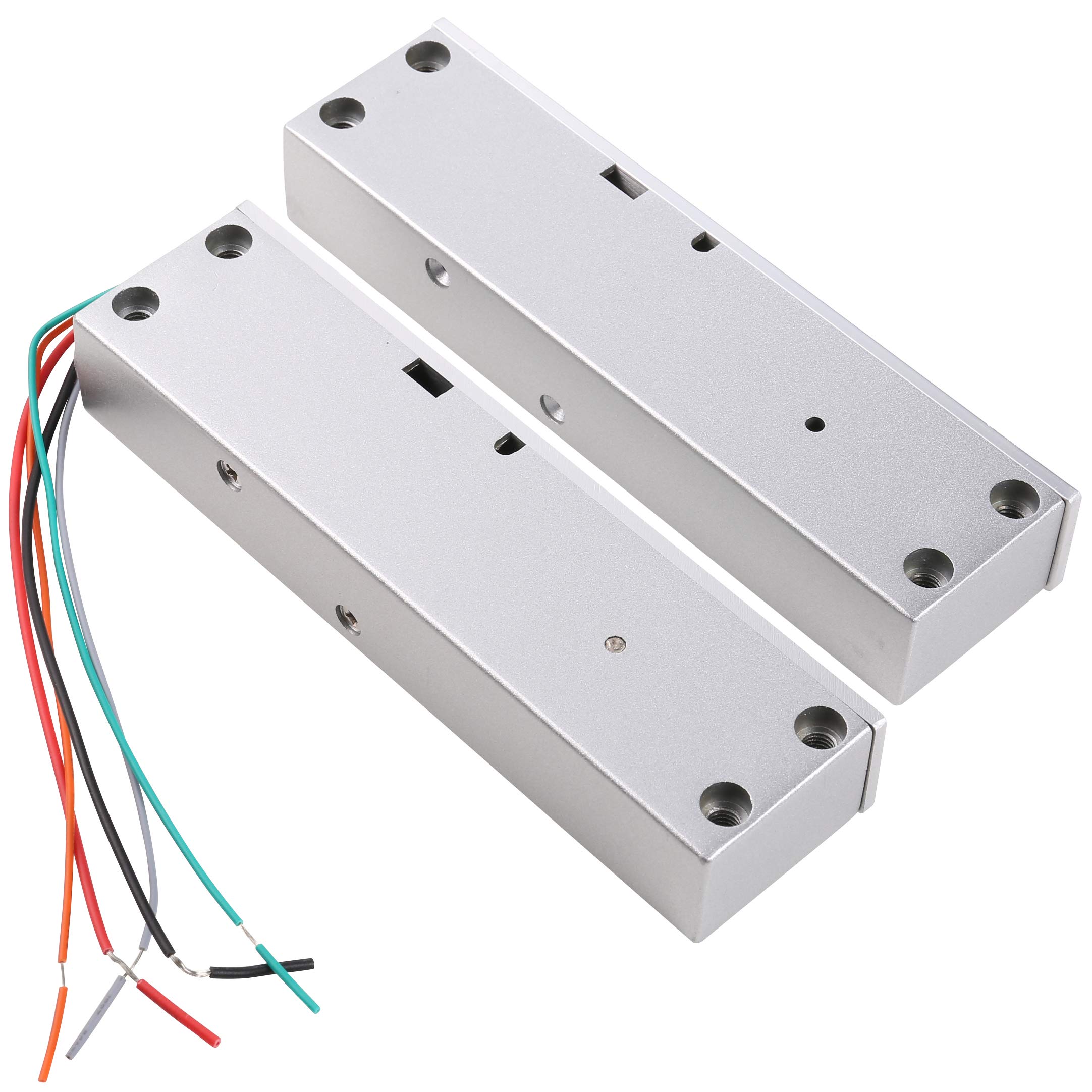

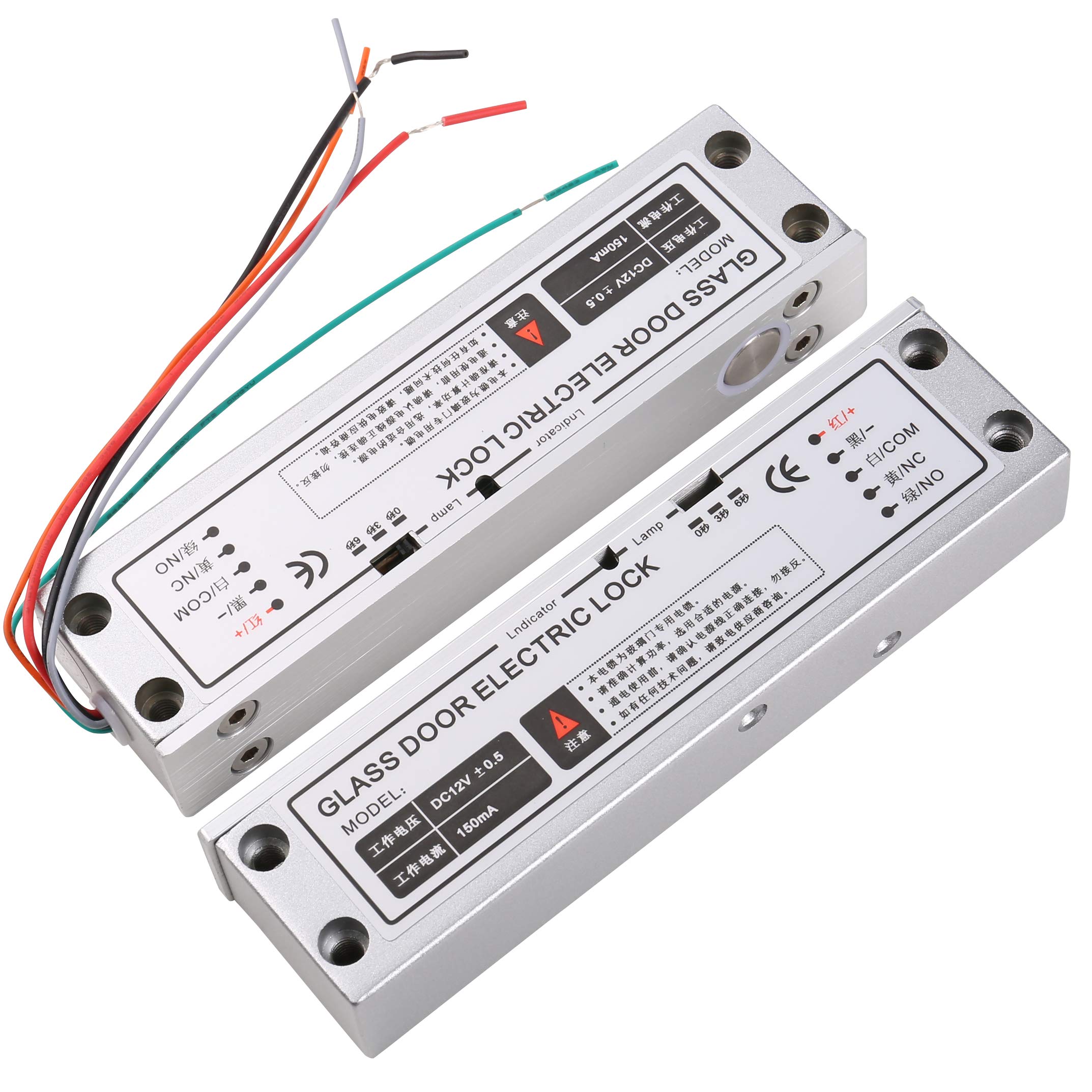

UHPPOTE Fail Safe Sturdiness Electric Bolt Plug Lock W/Feedback Signal for Narrow Door

• Low Temperature, safe & Durable
• Special photoelectricity control,three steps current application
• MOV Provides Reverse Current Protection
• Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt
• Door statue signal output contact(NC/COM)

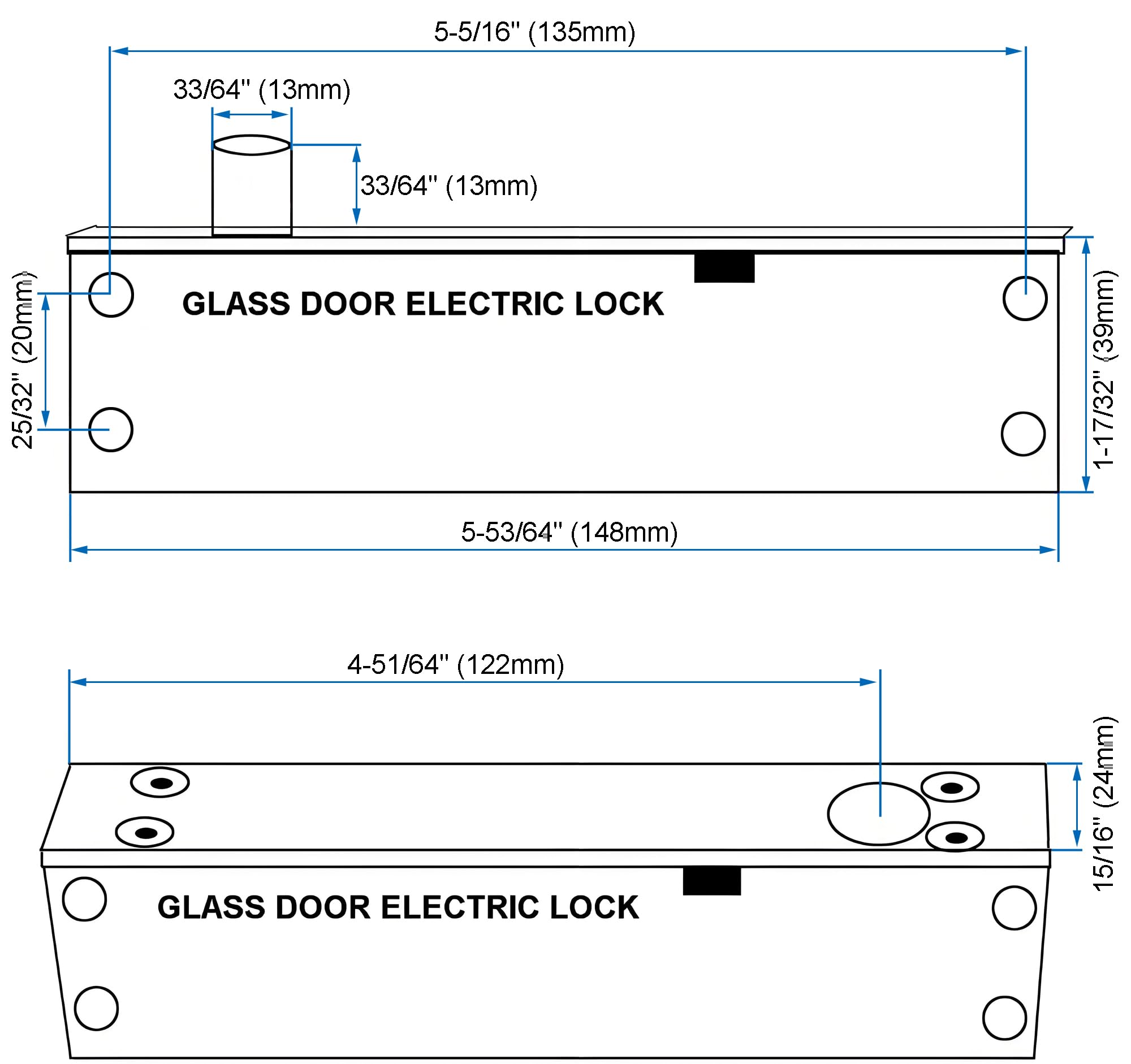

Advantage: Low Temperature, safe & Durable Testing to 500000 cycles MOV Provides Reverse Current Protection Fail safe, NC mode (Unlocked when power is removed) Auto-relock if no Action within 5 secs Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt Low temperature, safe & durable Suitable For: Wooden Door, Metal Door, Fireproof Door Working voltage: 12VDC Door statue signal output contact (NC/COM) Specifications: Lock bolt: 16mmDIA,stainless steel 13mm throw Net weight: 935g Dimension: 148x24x39mm / 5.83x0.94x1.54inch Time: 0 / 3 / 6 second Induction Distance: 8mm Door status Output: NC/COM Face place material: Stainless Steel Coil type:Continuous working Current: 960mA(Start), 130mA(Standby) Package include: 1 x Electric Lock 1 x Screw Kit 1 x Manual
