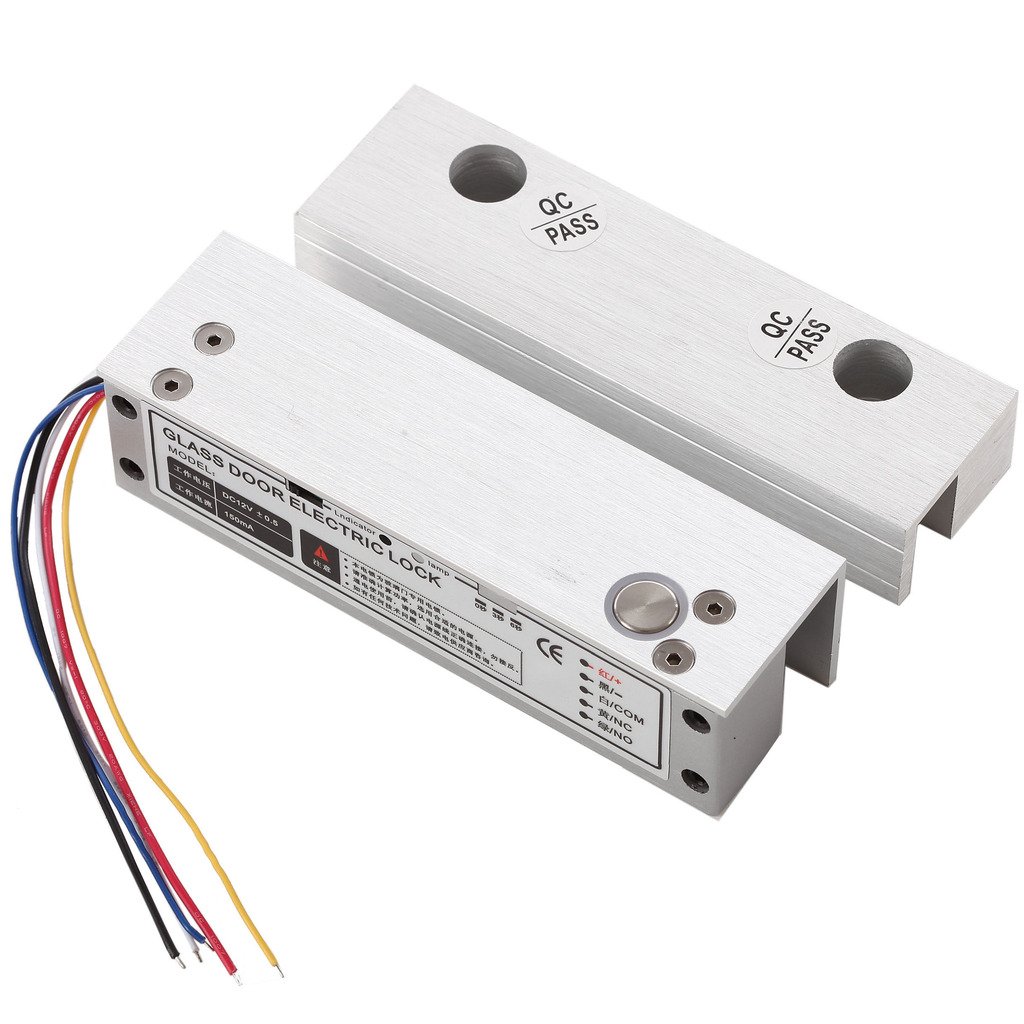

UHPPOTE Electric Bolt Lock with Feedback Signal for Frameless Glass Door

• Low Temperature, safe & Durable
• Low Power, Environmental Protection
• Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt
• Door statue signal output contact NC/COM
• Auto-relock if no Action within 5 secs

Advantage: Low Temperature, safe & Durable Low Power, Environmental Protection Special photoelectricity control,three steps current application Long Life with 500000 cycles MOV Provides Reverse Current Protection Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt Autolock Time Delay: 0/3/6/9 sec Door statue signal output contact NC/COM Double protection for loading current Auto-relock if no Action within 5 secs Certificate: CE&MA Photoelectricity Control,Low Temperature Specifications: Fail Safe: lock when energized Suitable For 10-12mm Fully Frameless Glass Door Face Plate: 148Lx43WX39H(mm) / 5.83Lx1.69Wx1.54H(inch) Bolt: 16mmDIA,stainless steel 13mm throw Voltage: DC12V Start Current: 960mA Standby Current: 130mA Solid Bolt: Polishing housing, 1000Kg Holding Force Autolock Time Delay: 0/3/6/9 sec Signal Output: Door status Output,NC/COM Surface Temp: Low Temperature Induction Distance: 8mm Operating temp: -10C~+55C(14F~131F) Operating Humidity: 0~90%(non-condensing) Special Designed: Tested to 500000 operations Face place material: Stainless Steel Weight: 0.9kg Package include: 1 x Electric Lock 1 x Screw Kit 1 x Manual
