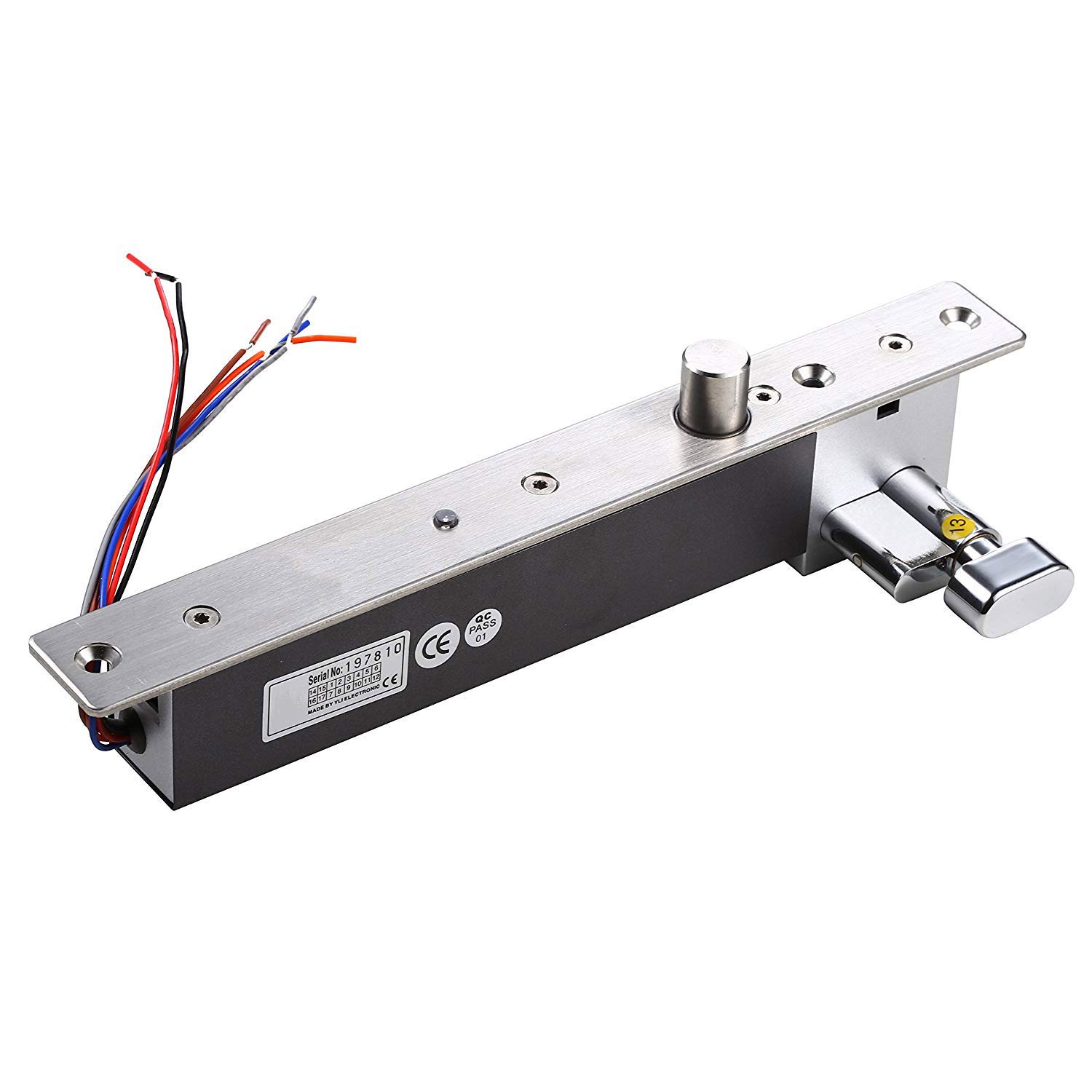

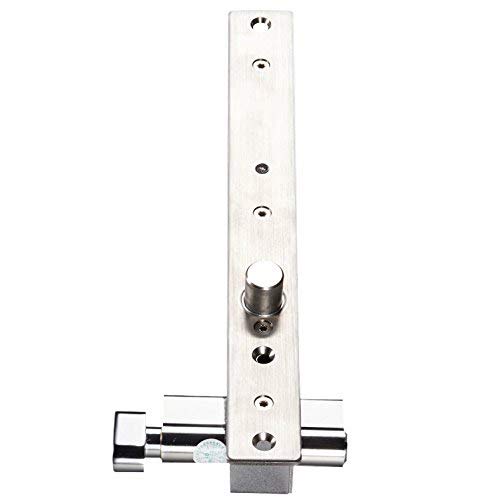

UHPPOTE DC12V Electric Drop Bolt Lock Key Open Fail Secure NO W/Cylinder Time Delay

• Fail Secure: Locked when power is removed
• Solid Bolt: Polishing housing, 2000Kg Holding Force
• Autolock Time Delay: 0/3/6/9 sec
• Signal Output: Lock signal (NO/NC/COM)
• Tips: Default come with single side cylinder with Thumb

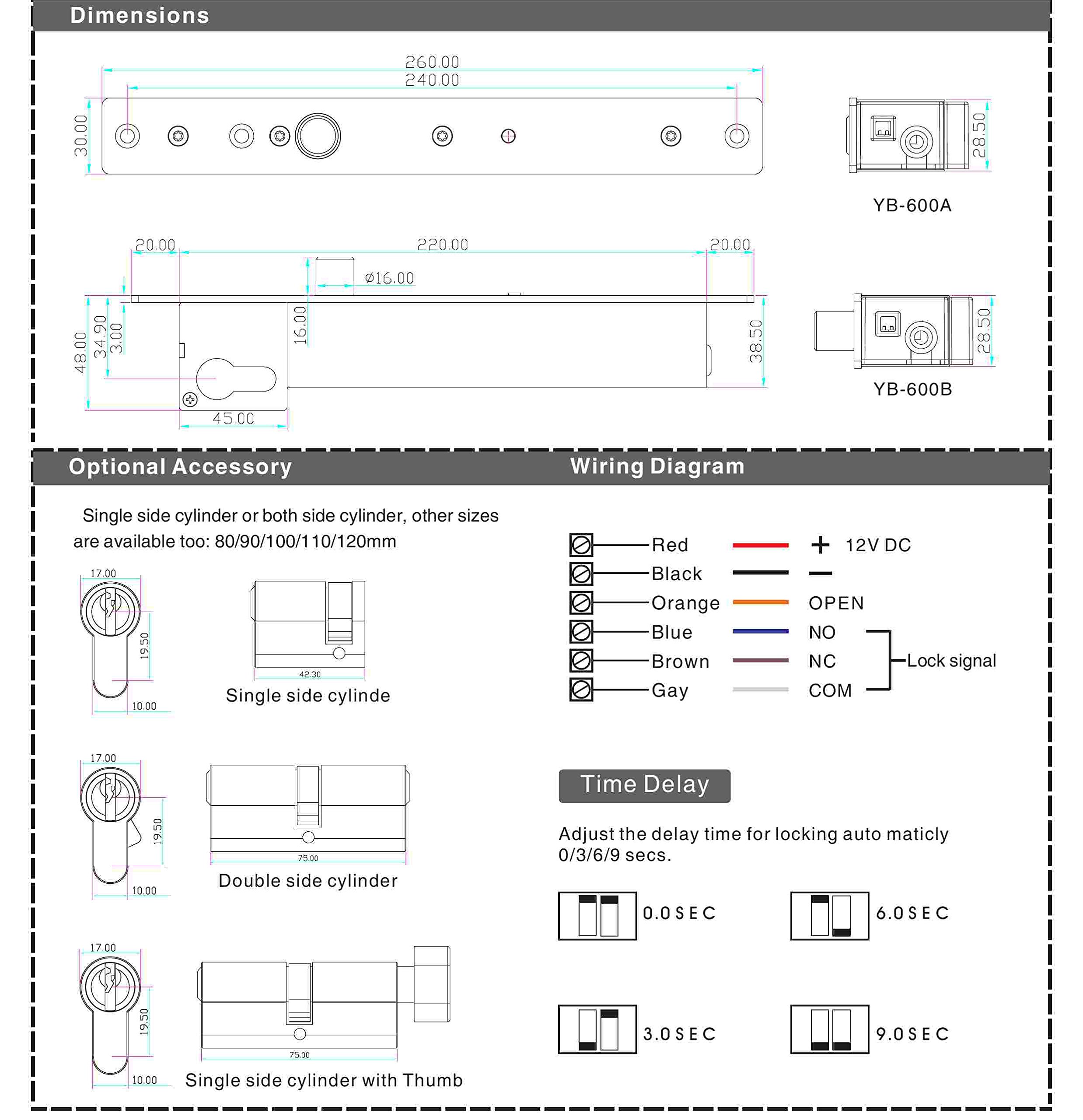

Advantage: Low Temperature, safe & Durable Low Power,Environmental Protection Special photoelectricity control,three steps current application MOV Provides Reverse Current Protection Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt Double protection for loading current Auto-relock if no Action within 5 secs Certificate: CE&MA Photoelectricity Control,Low Temperature A:The Low Current is Changed immediately B:When door frame doesn't coincide with door leaf, door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature C:The Photoelectricity Control Technology,prevent the machanical defect Specifications: Fail Secure: Locked when power is removed Lock body: 260Lx30Wx48H(mm) Magnetic Plate : 100Lx25Wx2.5H(mm) Bolt: 16mm DIA,stainless steel 16mm throw Voltage: DC12V Start Current: 1200mA Standby Current: 200mA Suitable For: Wooden Door,Glass Door,Metal Door,Fireproof Door LED: Light on indicates locked, light off indicates unlocked Autolock Time Delay: 0/3/6/9sec Operating temp: -10~55C(14~131F) Operating Humidity: 0~90%(non-condensing) Special Designed: Tested to 500000 operations Signal Output: Lock signal(NO/NC/COM) Material: 304 stainless steel,wire draw finishing Induction Distance: Within 8mm Weight: 1.6kg Package: 1 x Electric Lock 1 x User manual 1 x Screws and Installation Kit Tips: Default come with single side cylinder with Thumb
