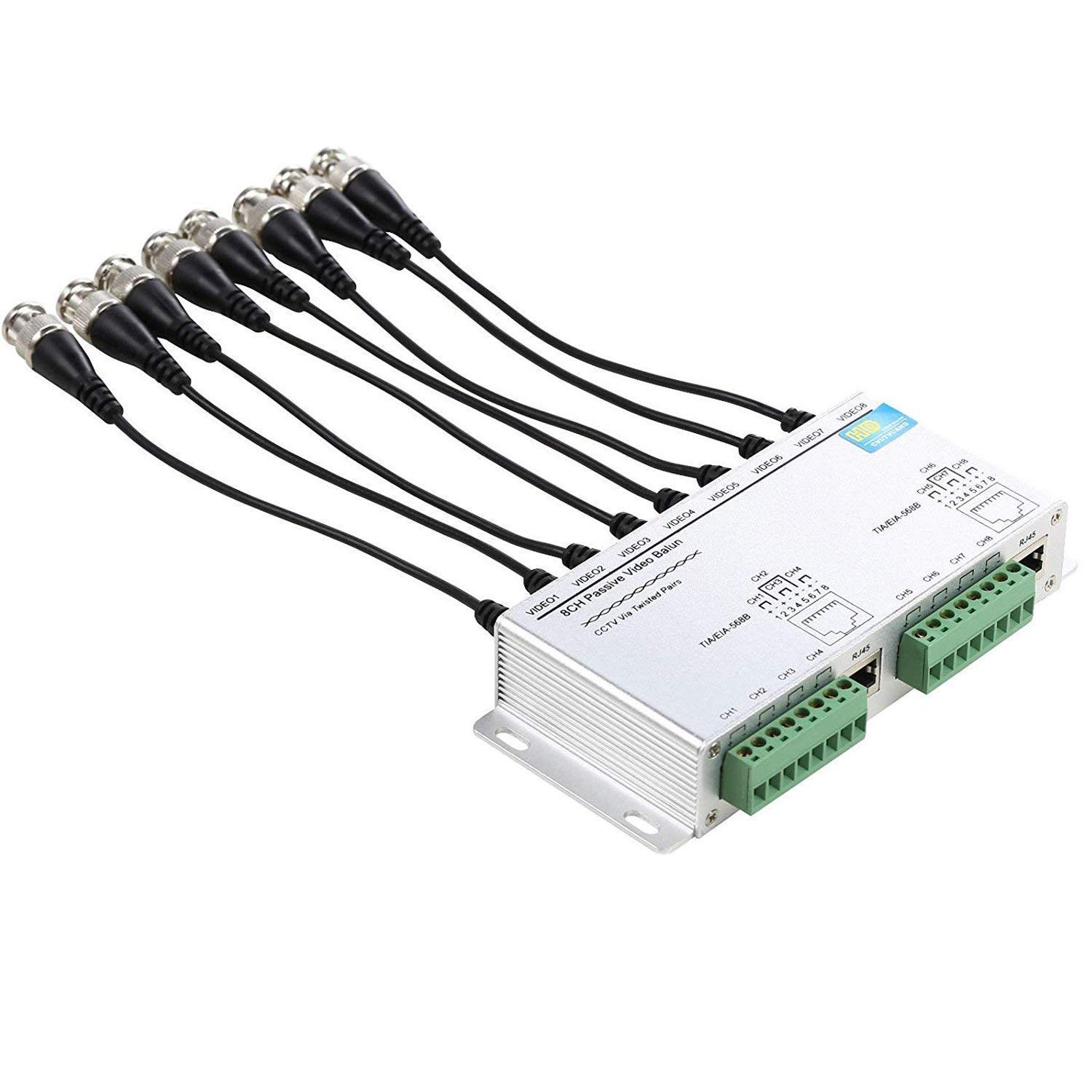

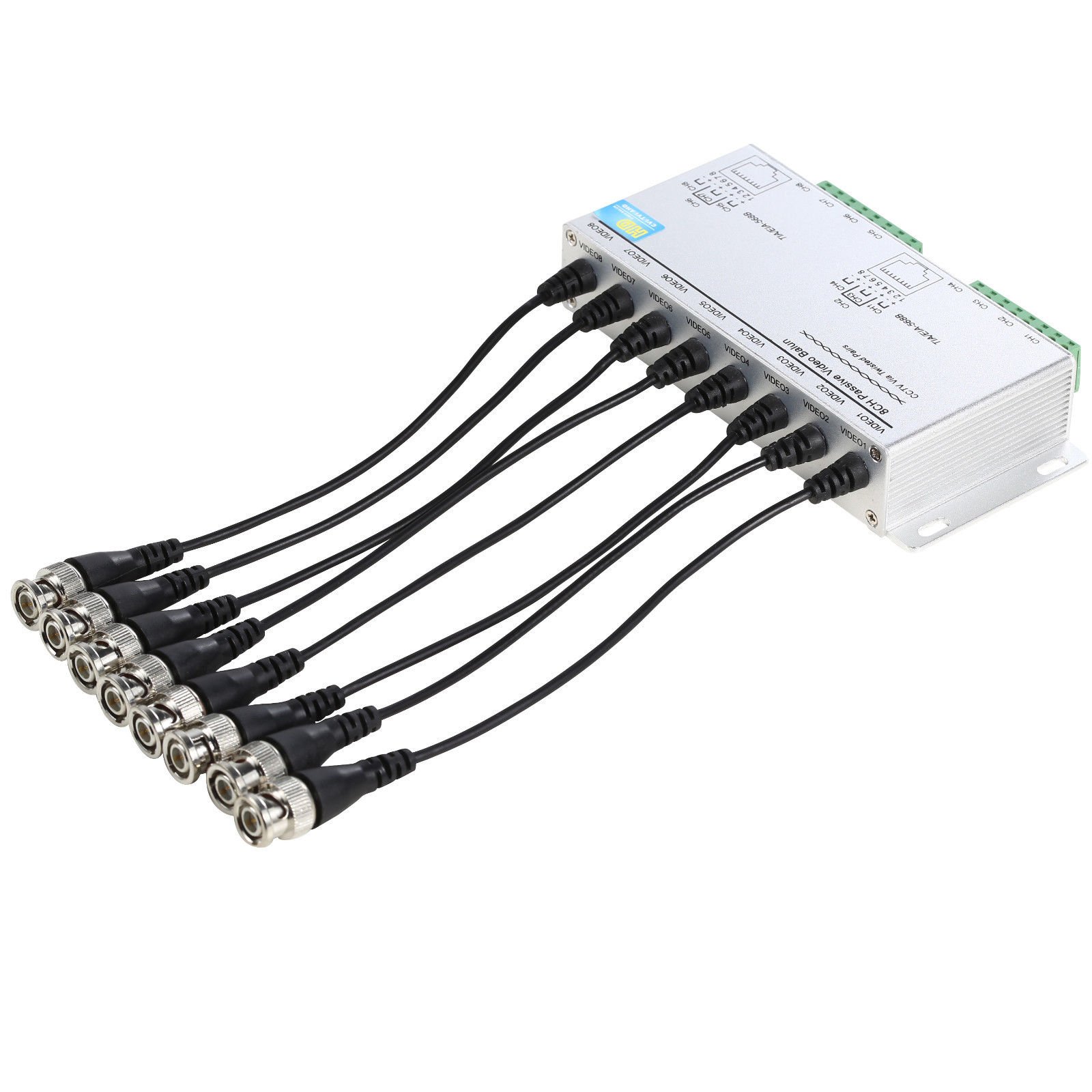

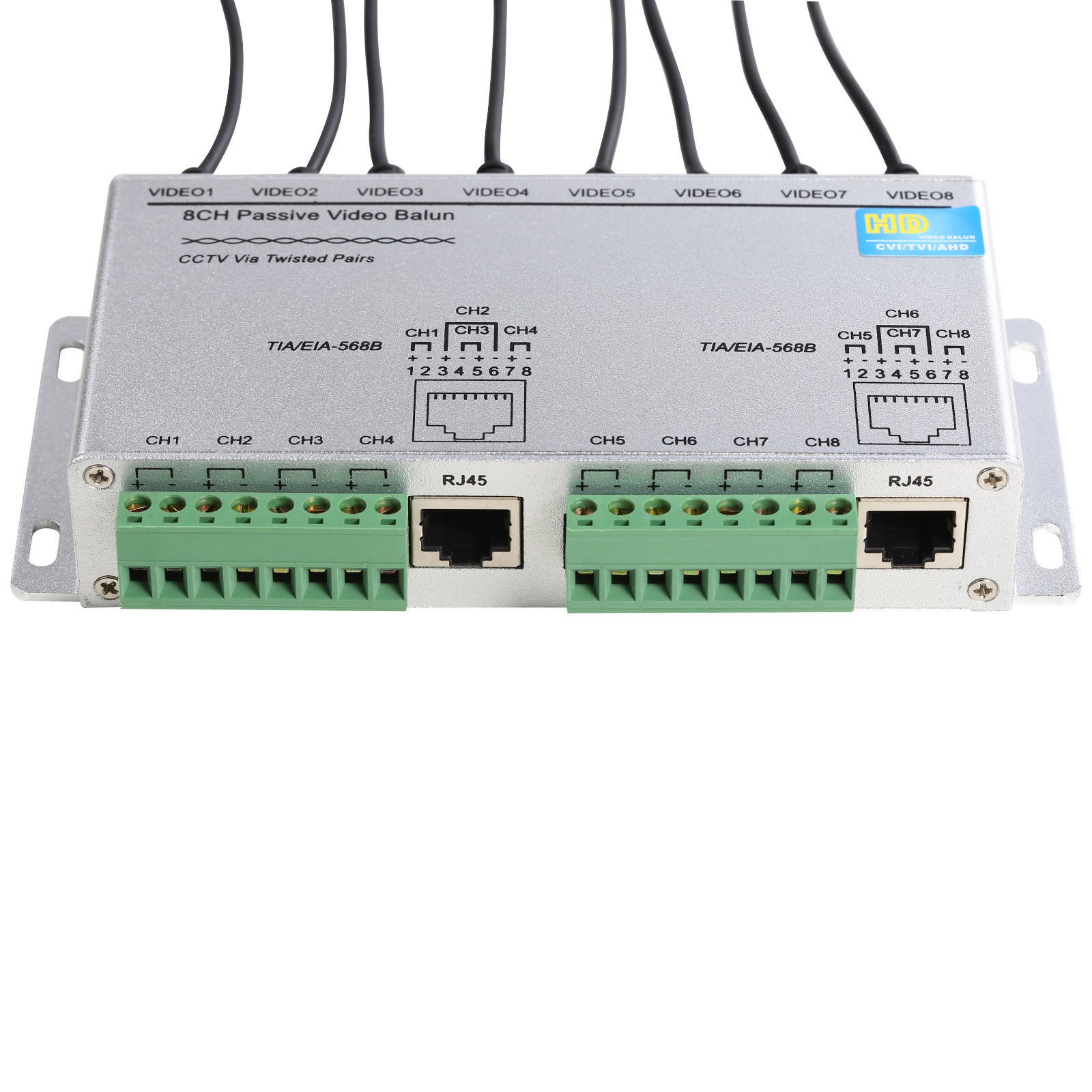

UHPPOTE 8CH HD CVI/TVI/AHD Passive Video Balun BNC Male To UTP Cable For CCTV System

• Compatible with all HD-CVI,HD-TVI,HD-AHD
• No power required
• 60dB cross talk and noise immunity
• NTSC,PAL,and SECAM video formats
• Built-in transient suppression protection

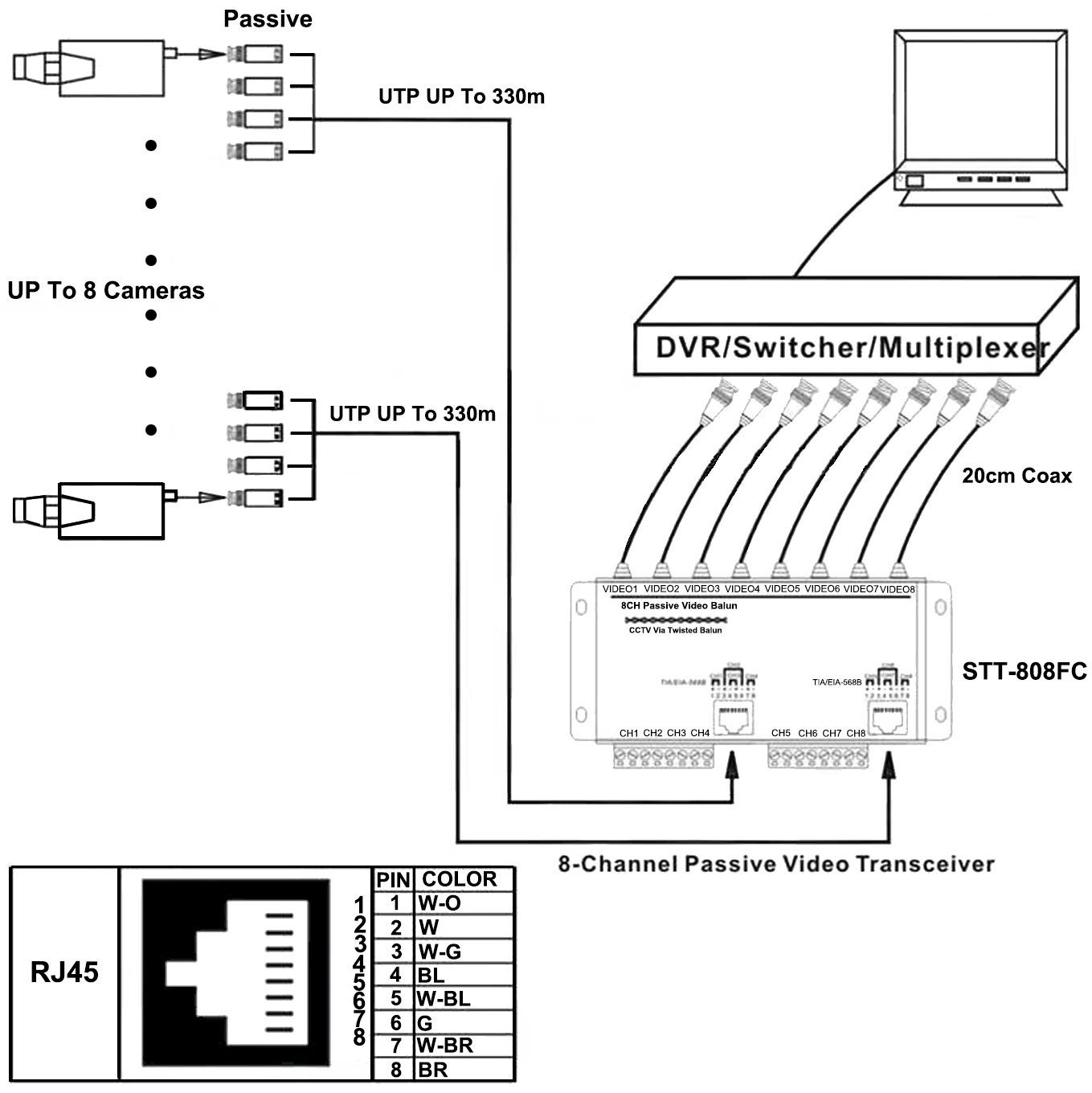

Features: Compatible with all HD-CVI,HD-TVI,HD-AHD Up to 450m for 720P CVI Cameras Up to 250m for 1080P CVI Cameras Up to 250m for 720P/1080P TVI Cameras Up to 320m for 720P AHD Cameras Up to 250m for 1080P AHD Cameras NTSC,PAL,and SECAM video formats No power required 60dB cross talk and noise immunity Built-in transient suppression protection Technical Specifications: Frequency response: DC to 60Mhz Attenuation: 0.5dB type CMRR: 60dB Surge protection: 4KV ESD: 8KV Impedance: BNC: 75ohms, RJ45: 100ohms Working Temperature: -10C to +70C Storage Temperature: -30C to +70C Humidity: 0-95% Dimension(LxWxH): 157x65x29mm / 6.18''x2.56''x1.14'' (excluding connectors) Weight: 430g Type of the required wire: Unshielded Cat-5 or above twisted pair wire(please use standard Cat-5 or above twisted pair wire. The wire quality will directly affect the transmitted image effect and transmission distance.) Characteristic impedance: 100Ω±20Ω DC loop resistance: 18Ω/100m Differential capacitance:62pf(Maximum) Connection method: Clamp modular plugs for a Cat-5 unshield twisted pair wire according to the connection order of TIA-EIA-568B, connect the clamped modular plugs to the RJ45 socket,connect the coax to the BNC. Package: 1 x 8CH Passive Video Balun
