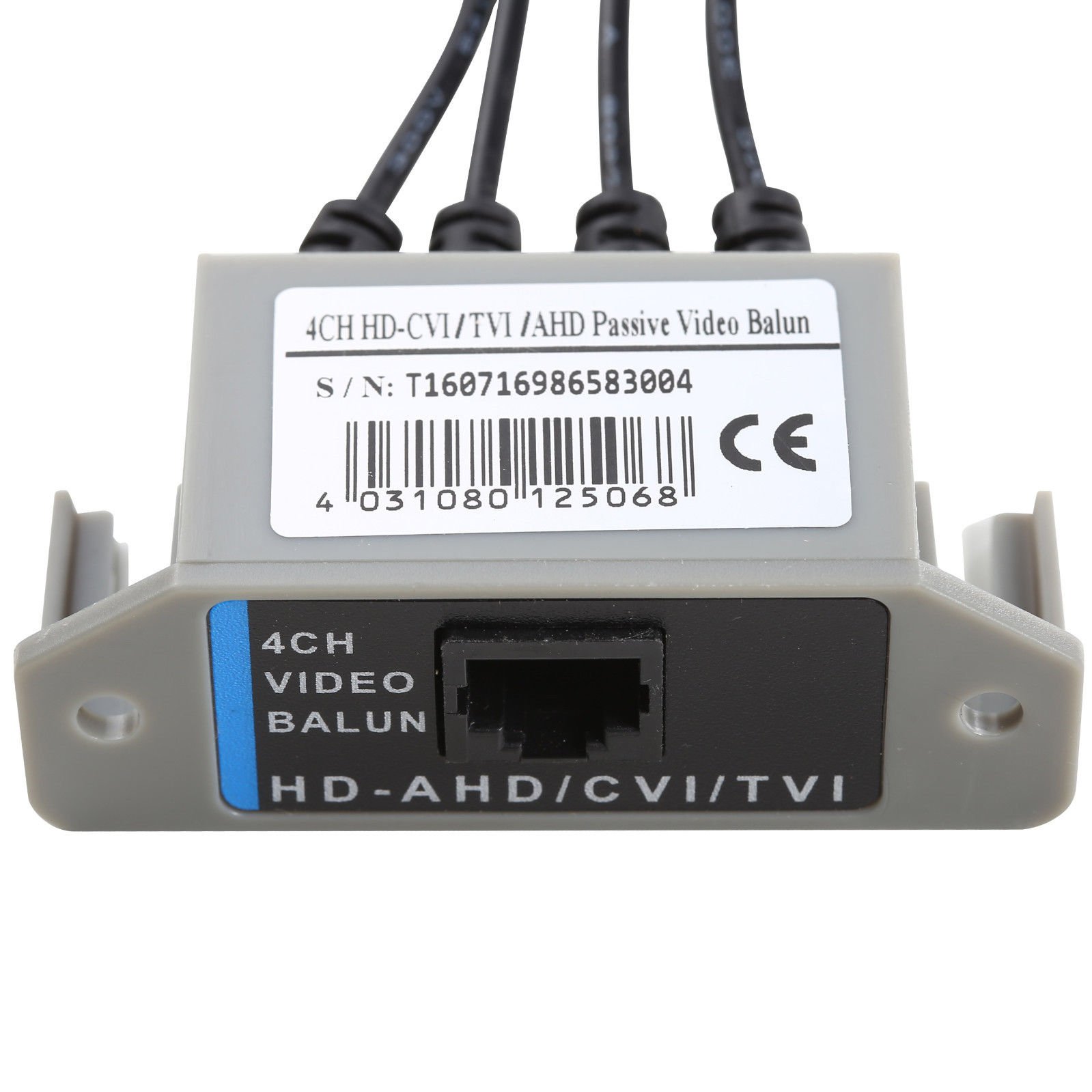

UHPPOTE 4CH HD Passive Video Balun Transceiver BNC To UTP RJ45 CCTV Via Twisted Pairs

• Compatible with all HD-CVI,HD-TVI,HD-AHD
• Frequency response: DC to 60MHZ
• No power required
• NTSC,PAL,and SECAM video formats
• Built-in transient suppression protection

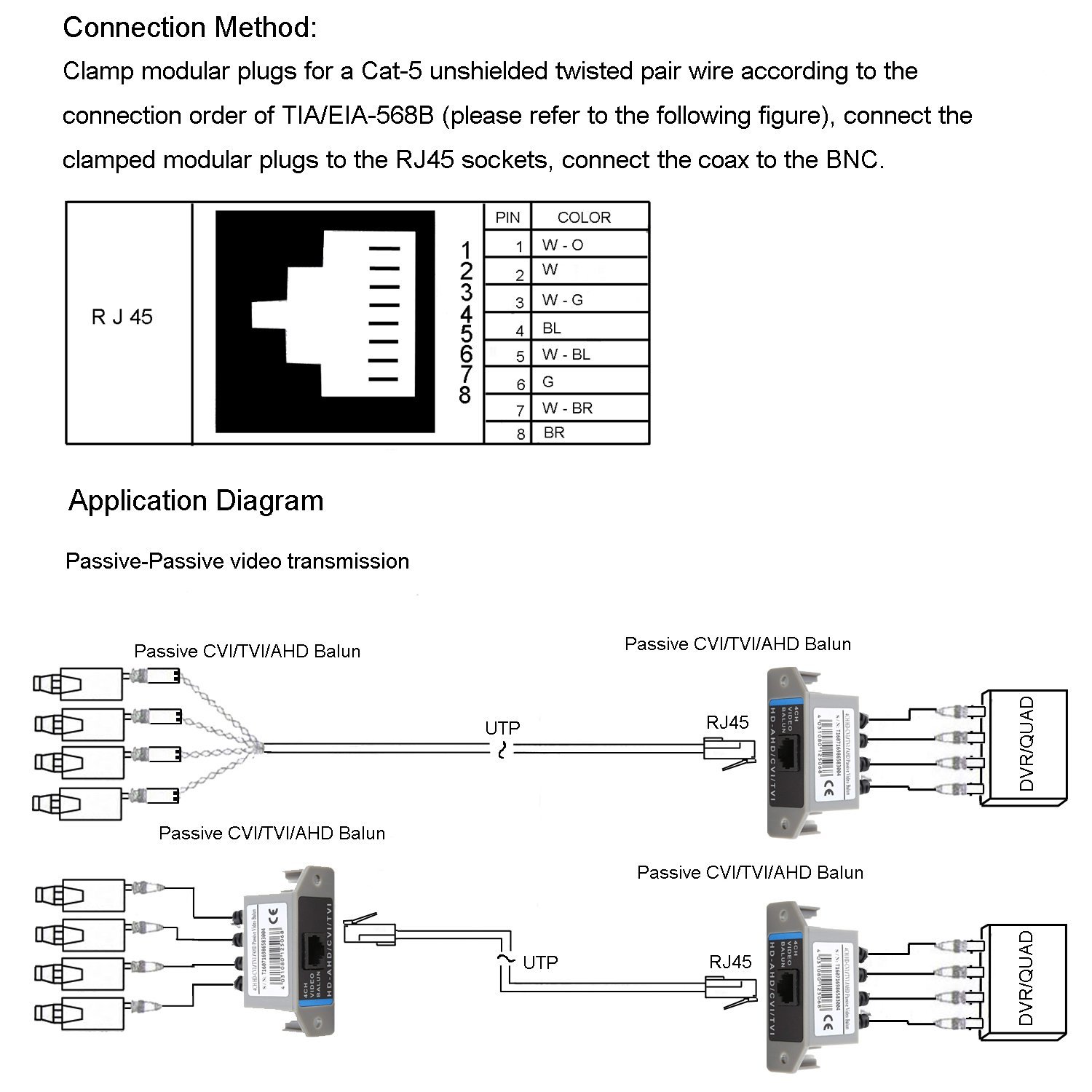

Introduction: HD Video balun is to convert the video signal into the balanced signal applicable to be transmitted on common Cat-5 unshielded twisted pair wire with perfect transmission effect, which can be applied in the occasions such as video monitoring and video meeting and can transmit four channels of video image simultaneously on an 8-core Cat-5 twisted pair wire. It can simplify the wiring project and save wire use quantity. Features: Compatible with all HD-CVI,HD-TVI,HD-AHD Up to 450m for 720P CVI cameras Up to 250m for 1080P CVI cameras Up to 250m for 720P/1080P TVI cameras Up to 320m for 720P AHD camera Up to 250m for 1080P AHD camera NTSC,PAL,and SECAM video formats No power required 60dB cross talk and noise immunity Built-in transient suppression protection Technical specifications: Frequency response: DC to 60MHZ Attenuation: 0.5dB type CMRR (Common Mode Rejection Ratio): 60dB Surge protection: 4KV ESD: 8KV Impedance: BNC: 75Ω; RJ45: 100Ω Working temperature: -10 degree-70 degree Storage temperature: -30 degree-70 degree Applicable to NTSC, PAL, SECAM External dimension: 75x35x5mm / 2.95'' x 1.38'' x 0.98'' (excluding BNC) Weight: 140g Type of the required wire: Unshielded Cat-5 or above twisted pair wire (Please use standard Cat-5 or above twisted pair wire. The wire quality will directly affect the transmitted image effect and transmission distance.) Characteristic impedance: 100Ω± 20Ω DC loop resistance: 18Ω/100m Differential capacitance: 62pf/m (Maximum) Package: 1 x 4CH Balun
