UHPPOTE 2000Kg Holding Force Fail Safe Electric Bolt Lock W/Signal Time & Open Wire

• Fail Safe: Unlocked when power is removed
• Solid Bolt: Polishing housing, 2000Kg Holding Force
• Autolock Time Delay: 0/3/6/9 sec

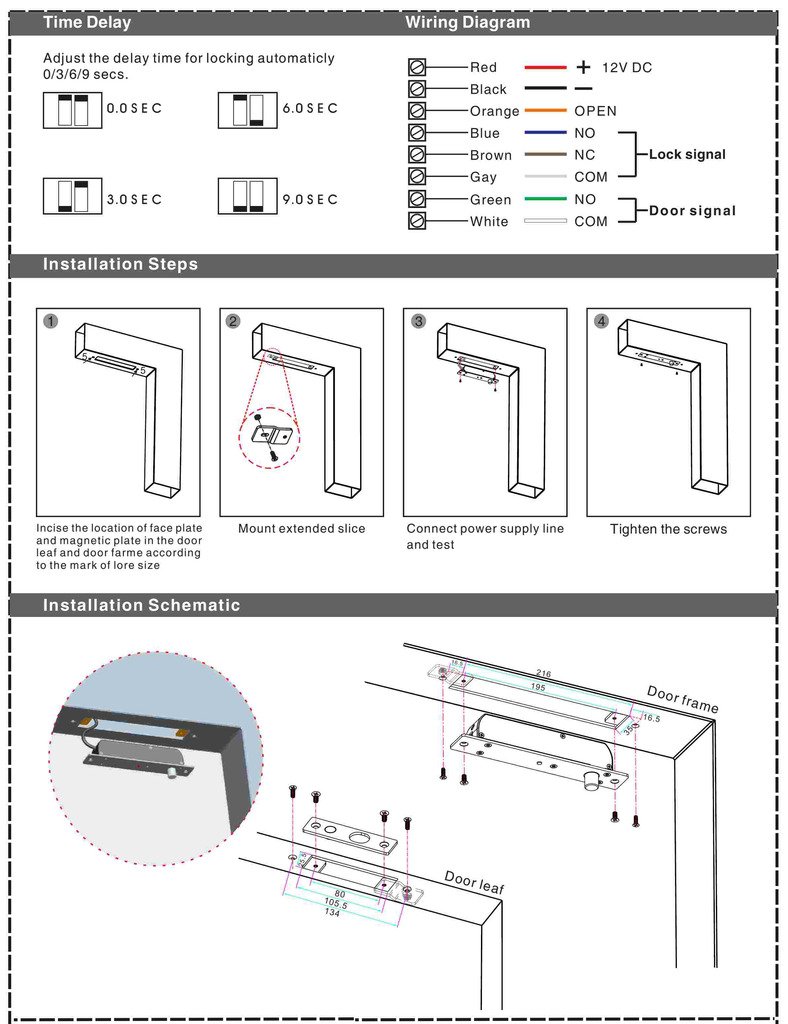

• Signal Output: Lock signal(NO/NC/COM); Door signal: NO/COM
• Suitable For: Wooden Door,Glass Door,Metal Door,Fireproof Door

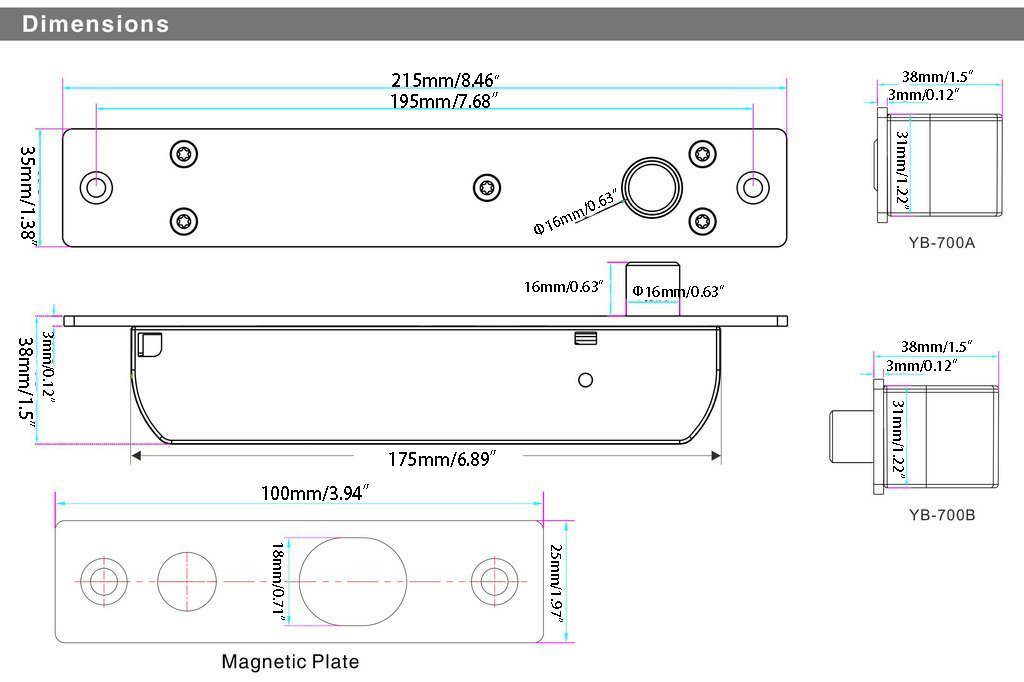

Advantage: Low Temperature, safe & Durable Low Power, Environmental Protection Special photoelectricity control,three steps current application MOV Provides Reverse Current Protection Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt Double protection for loading current Auto-relock if no Action within 5 secs Certificate:CE&MA Photoelectricity Control,Low Temperature A:The Low Current is Changed immediately B:When door frame doesn't coincide with door leaf, door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature C:The Photoelectricity Control Technology,prevent the machanical defect Specifications: Fail Safe: Unlocked when power is removed Lock Body: 215Lx35Wx38H(mm) Magnetic Plate: 100Lx25Wx2.5H(mm) Bolt: 16(prolongation)*16(diameter)(mm) Voltage: DC12V Start Current: 1000mA Standby Current: 90mA Solid Bolt: Polishing housing, 2000Kg Holding Force Suitable For: Wooden Door,Glass Door,Metal Door,Fireproof Door LED: Light on indicates locked, light off indicates unlocked Autolock Time Delay: 0/3/6/9sec Signal Output: Door status Output,NO/NC/COM Door signal: NO/COM Surface Temp: Low Temperature Induction Distance: Within 8mm Operating temp: -10~55C(14~131F) Operating Humidity: 0~90%(non-condensing) Special Designed: Tested to 500000 operations Face place material: Stainless Steel Weight: 1.0kg Package include: 1 x Electric Lock 1 x User manual 1 x Screws and Installation Kit
