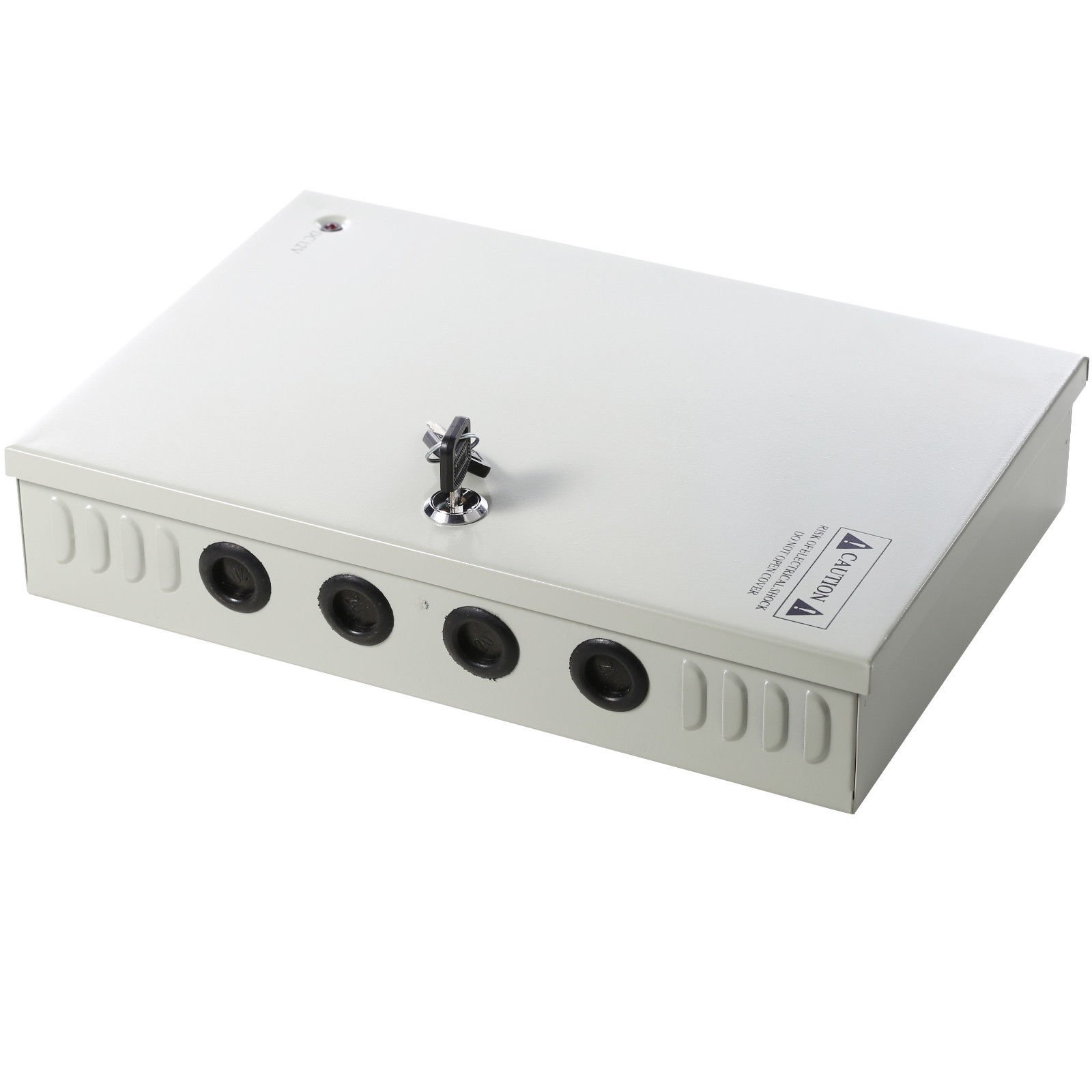

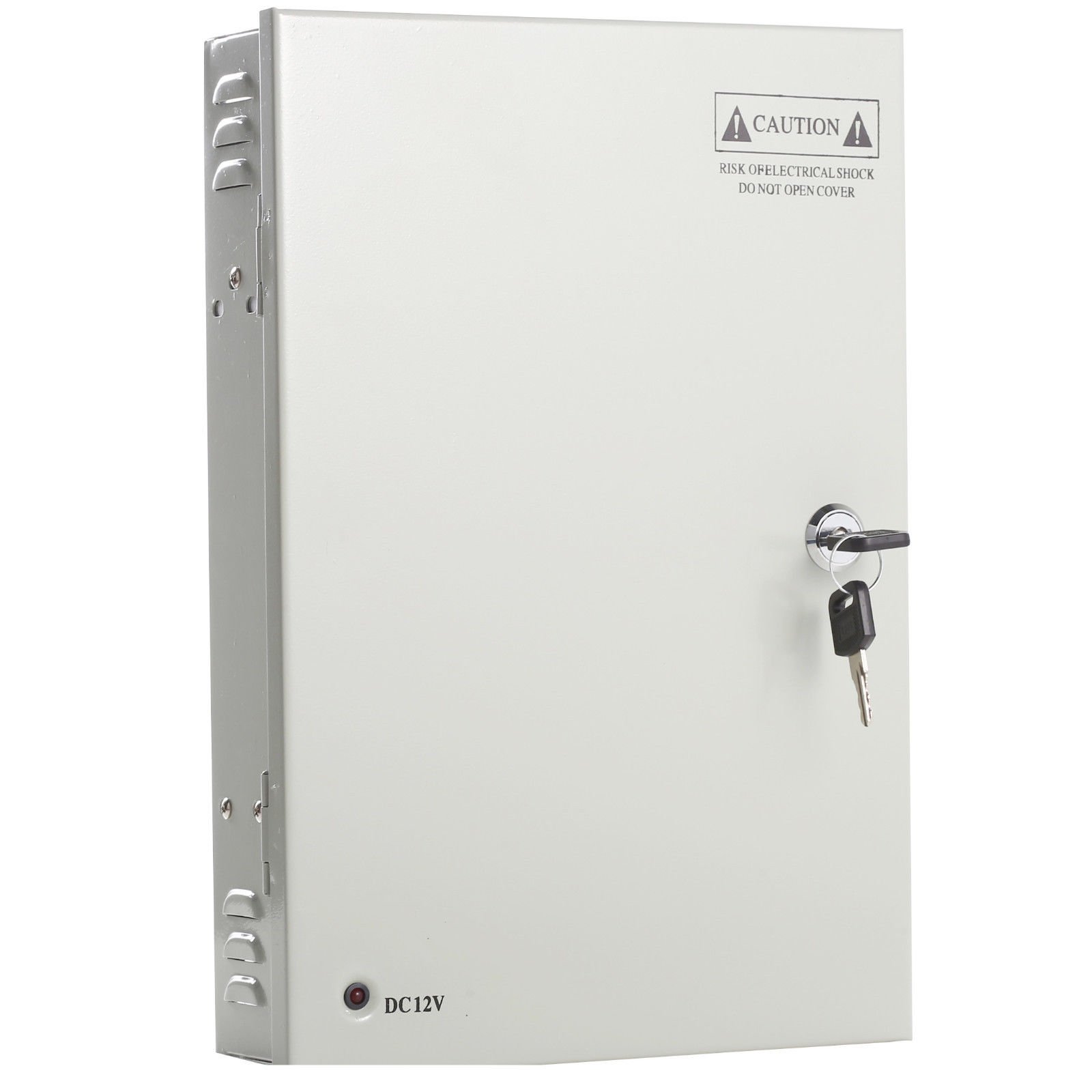

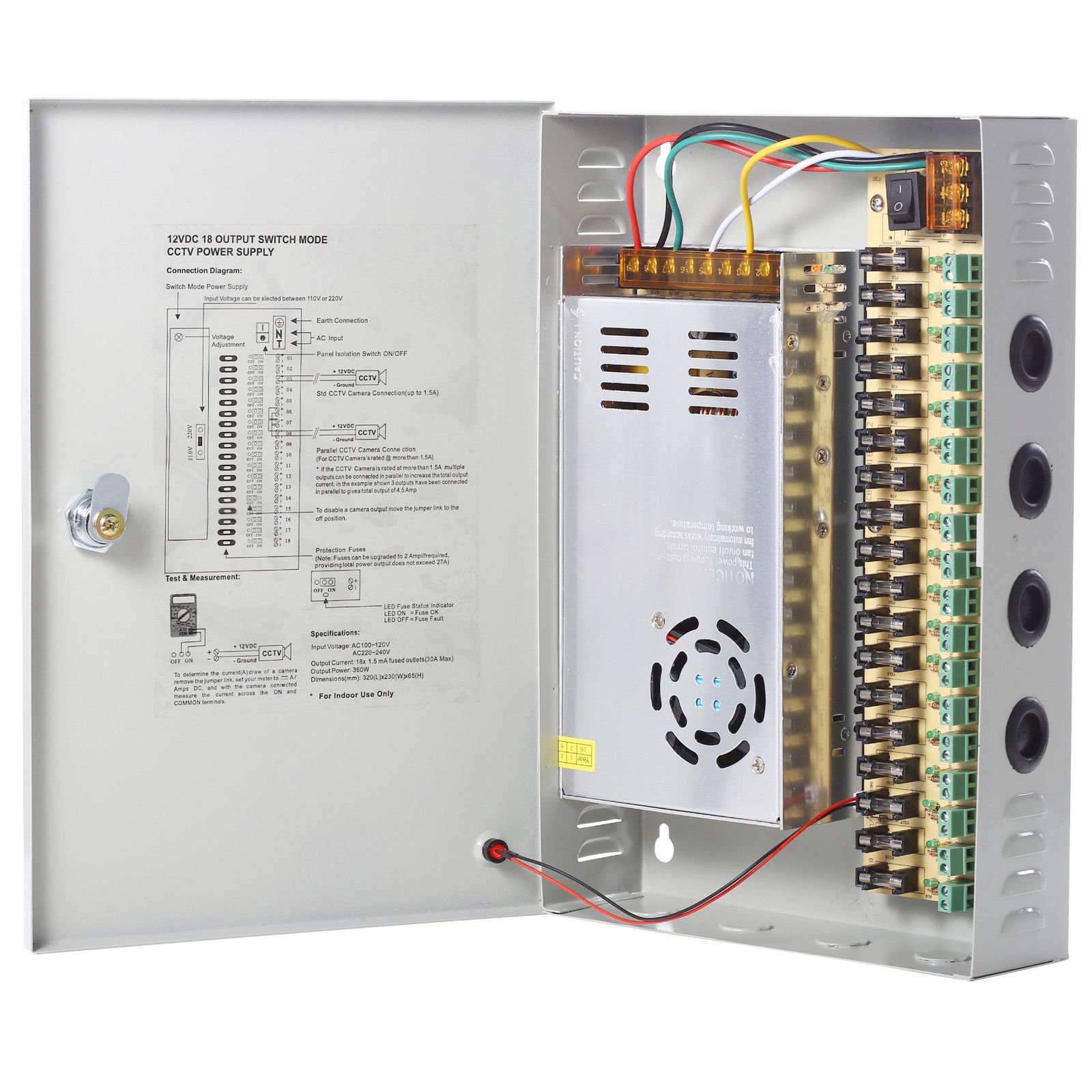

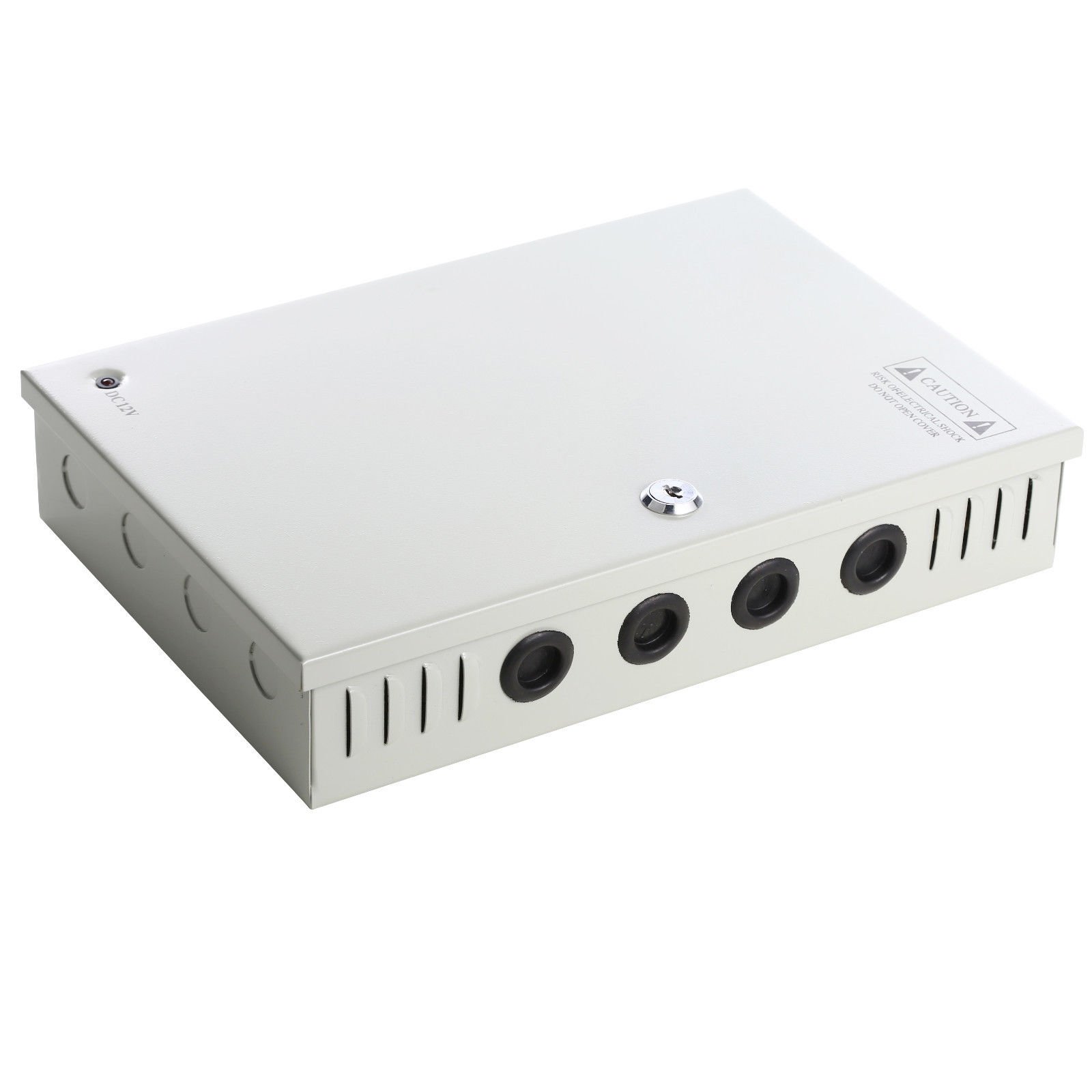

UHPPOTE 18CH Channel Power Supply Switch Box CCTV Camera Distribution DC12V 30A Output

• DC12V regulator CCTV power supply box, 18 channels outputs with 3 spare fuses.
• Max. output 30Amp total, Maxim for each port is 1.5Amp, DC voltage adjusted range -10%~+10%. Good load capacity, over-voltage protection.
• New metal materials, compressive, wear-resisting, reinforcement enclosure structure, convenience, for more safety use.
• Every channel is protected by PTC fuse, lightning protection.
• Switching power supply box as a power splitter, Applicable to a variety of dc electronic products.

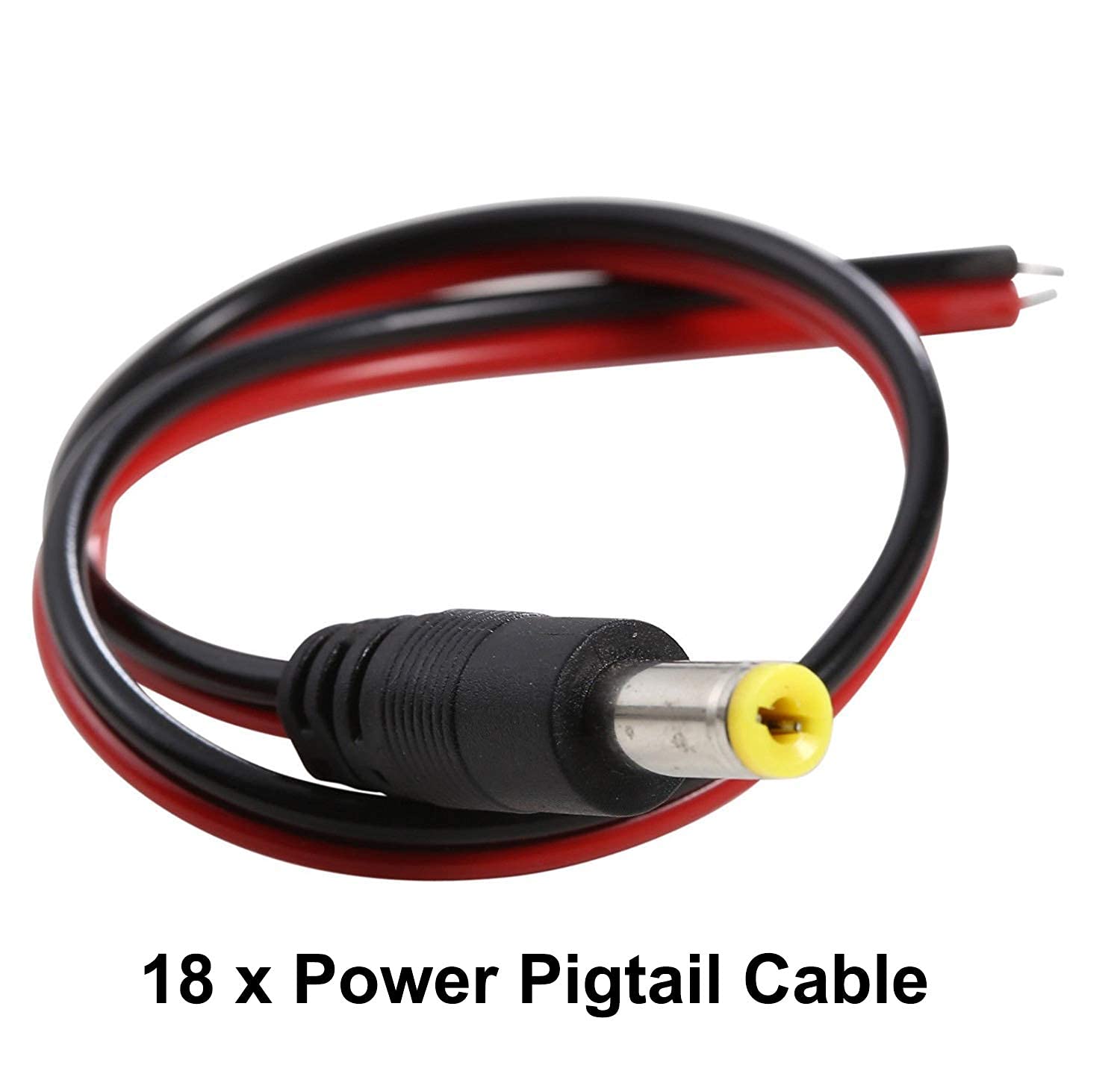

Introduction: Camera Power Box for Security Cameras. New Technology! PTC fuse protection for Circuit Short, High Voltage, and Over Current. Consolidate all cameras power (12V, 18 port, 20A) to one central location. Heavy duty metal case. Features: 12VDC - 30 amp supply current Multiple outputs (18 channel) Default 2A fuse Both type(1A+2A), numerous of fuse provided to fulfill any installation purpose Auto-reset PTC fuse protected output Power on/off switch Key protection DC regulated, over current and voltage protected Individual LED indicator for each output For indoor use only Specifications: Input Voltage: AC100-120V or AC220-240V (Selectable) Output voltage: 12VDC Output current: 18 x 1.5mA fused outlets (30A Max) Output power: 360W Support : Up to 18 Cameras Dimensions: Approx. 315 (W) x 215 (H) x 63 (D) mm / 12.4" (W) x 8.5" (H) x 2.5" (D) inch Weight: 2.3kg / 5.07 pounds Note: AC110V/220V is selected by switch before power on. Please check input voltage avoiding damage. Package: 1 x 18CH 12V/30A Power Box 18 x Power Pigtail Cables 1 x Installation Kit
