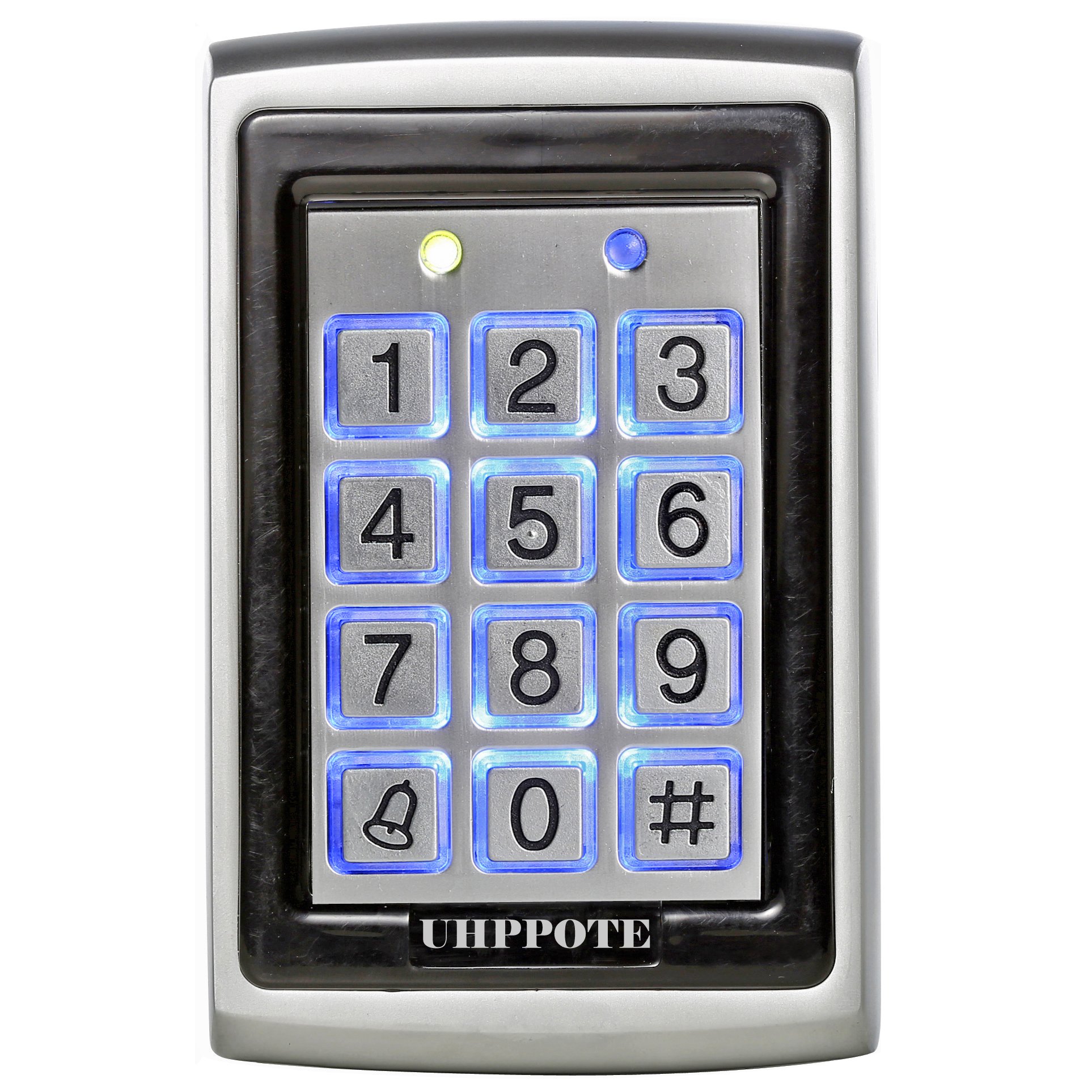

UHPPOTE 125Khz EM-ID Metal Case RFID Access Control Keypad With Back Light Support 500 User

• This is a vandal resistant proximity card and keypad access control unit, suitable for external applications. It accepts up to 500 users and provides entry via the use of proximity cards and/or PIN codes
• Support entry modes: Password Only / ID Card Only / Password + ID Card
• With lock relay output, secure / normal Mode, NO / NC output
• Can add card number and delete card number as your requirement
• Built-in keypad for PIN code entry

Features: Metallic case for better protection. Non-waterproof Support 500 standard users Support entry modes: Password Only / ID Card Only / Password + ID Card Can add card number and delete card number as your requirement Classical appearance with useful function Alarm function With lock relay output, secure / normal Mode, NO / NC output Built-in bell button can connect a external bell Built-in proximity card reader (125KHZ ASK modulation) Built-in keypad for PIN code entry Sensitively and response quickly Auxiliary input & auxiliary output 8 Auxiliary Modes including: door ajar, forced door, shunt, door monitor, normal / secure Internal buzzer 2 status/programming interface LED'S 3 user levers: normal user, secure user, master user Code search feature that helps make maintaining user codes easier Built-in case and back tamper bell, chime, siren, battery backup, tamper output features available with IBA power supplies Programmable siren time Programmable lock strike release time Specifications: Input Voltage: DC12V Frequency: 125kHz PIN Digits Capacity: 4-digits Compatible Cards: All 26-bit EM cards (Can't support some encrypted cards,such as HID, Cobra, APCiK etc) Operation Temperature: -31℃ ~ 63℃ / -23.8℉~145.4℉ Net Weight: Approx. 410g / 0.9lbs Package: 1 x Metal Door Access Control 1 x User Manual
