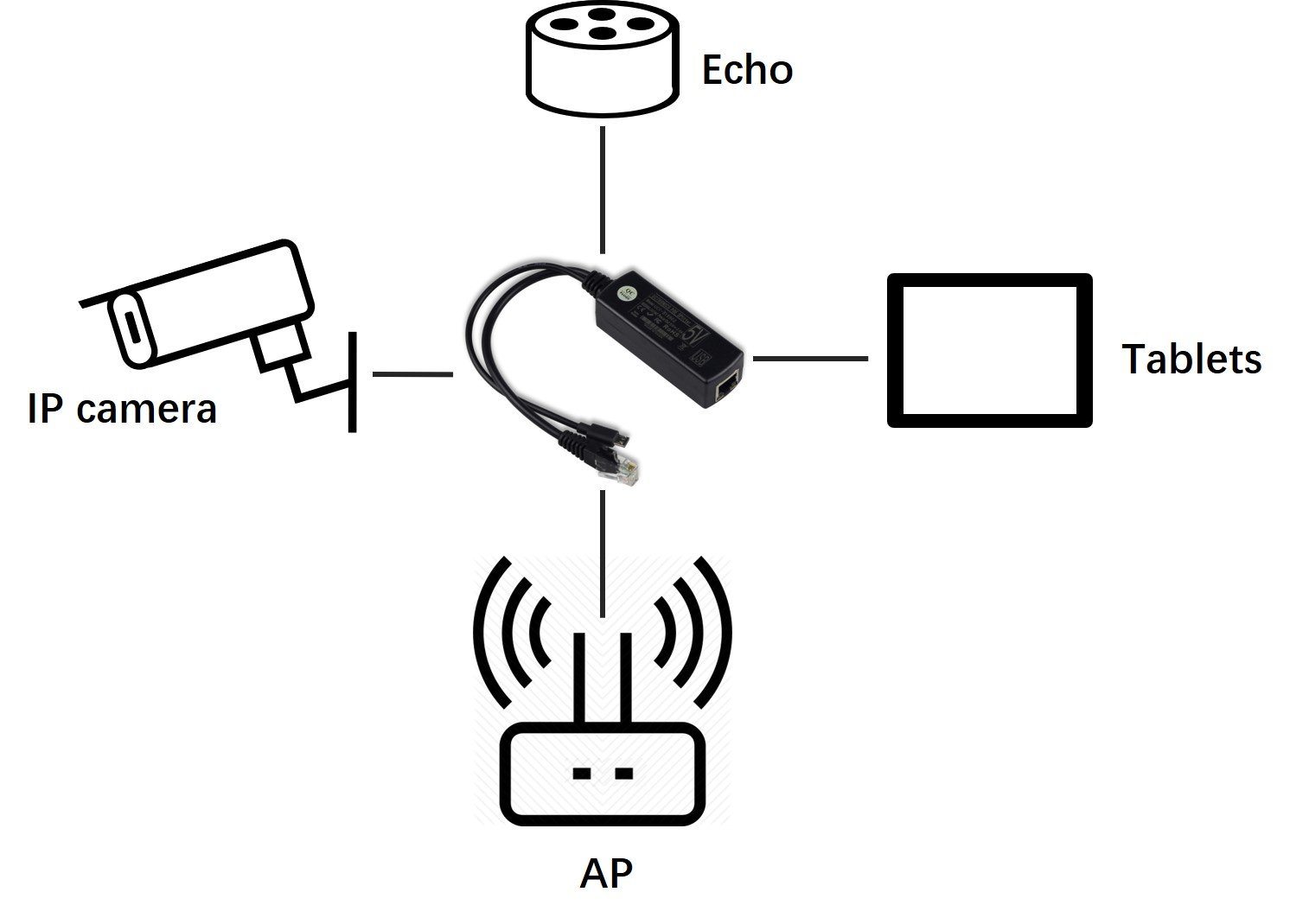

UCTRONICS PoE Splitter Gigabit 5V - Micro USB Power and Ethernet to Raspberry Pi 3B+, Work with Echo Dot, Most Micro USB Security Camera and Tablet - IEEE 802.3af Compliant

• 5V/2.4A & 1000Mbps - Power micro-USB devices via an Ethernet cable, along with gigabit data transfer (which you can put aside if you only need power)

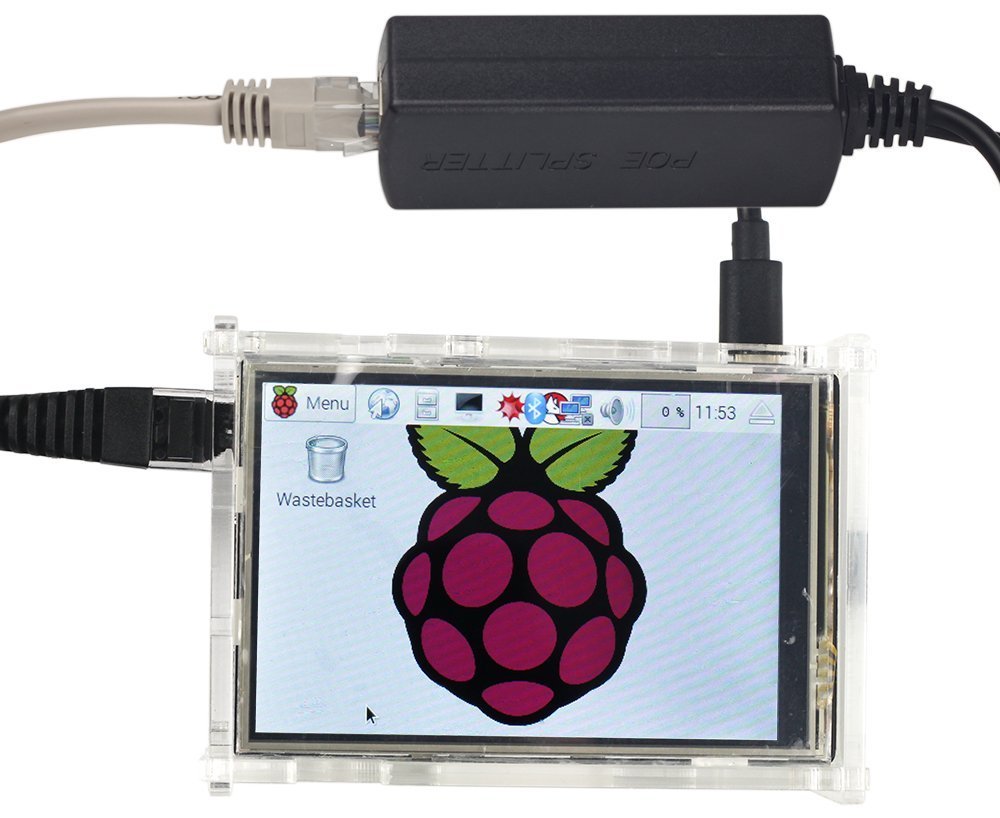

• PoE HAT Alternative - Use no GPIO pins. Compatible with Raspberry Pi case with fan or add-on screen. Support Raspberry Pi 3b+ and previous models
• Extend Powerline - Deliver power to micro USB devices without nearby AC outlets and upgrade them to PoE (Power over Ethernet) from up to 400 feet
• ************************************************************* Power Supply - Remove the need for a separate power supply if the Ethernet cable is a must-have for your micro USB devices
• Save Your Time - Plug and play compatibility and quick seller response. NOTE: an 802.3af compliant PoE injector/switch is required to use this device (not included).Non-Standard PoE Risk This splitter requires IEEE 802.3af/at PoE. Non-standard (passive) PoE switches deliver power without negotiation, which can Overvolt and damage connected devices

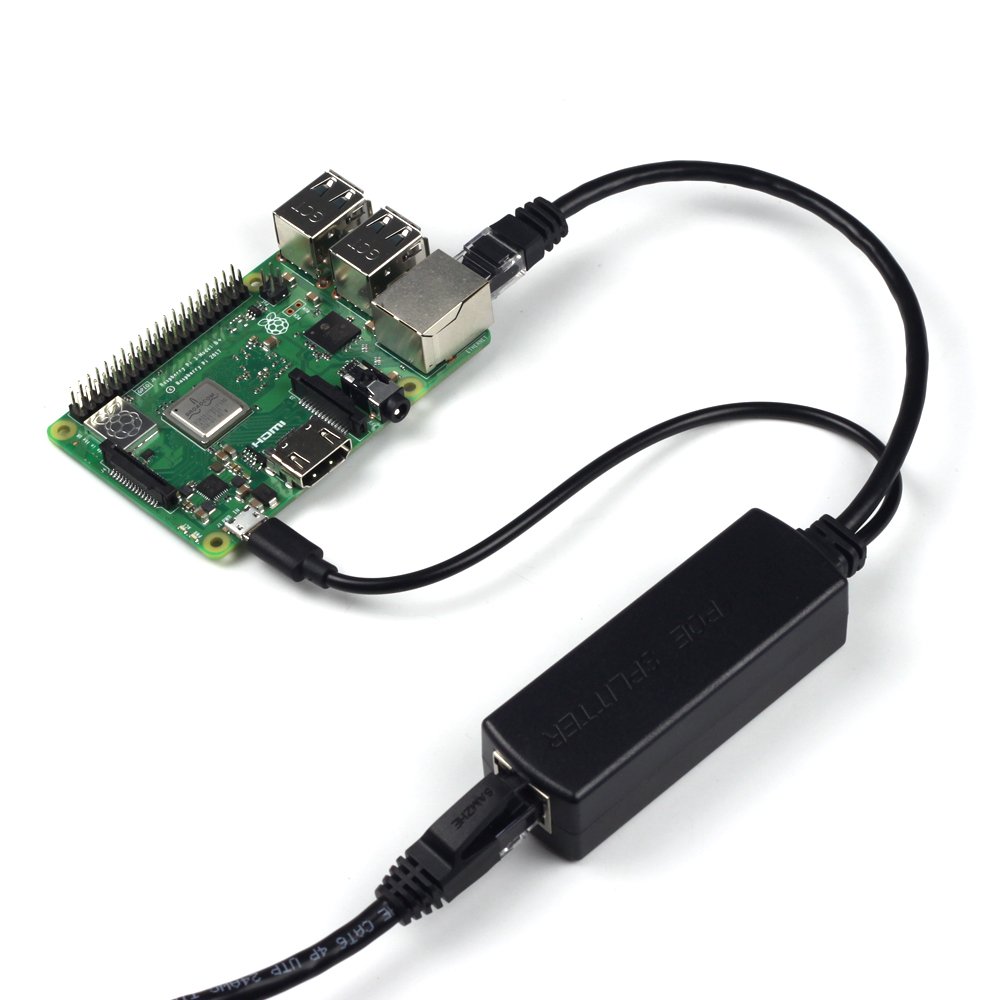

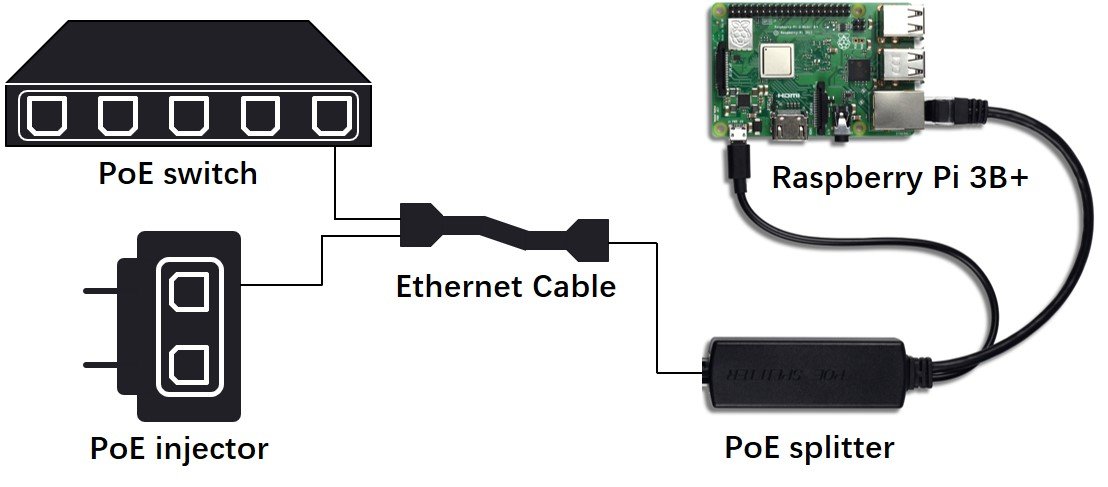

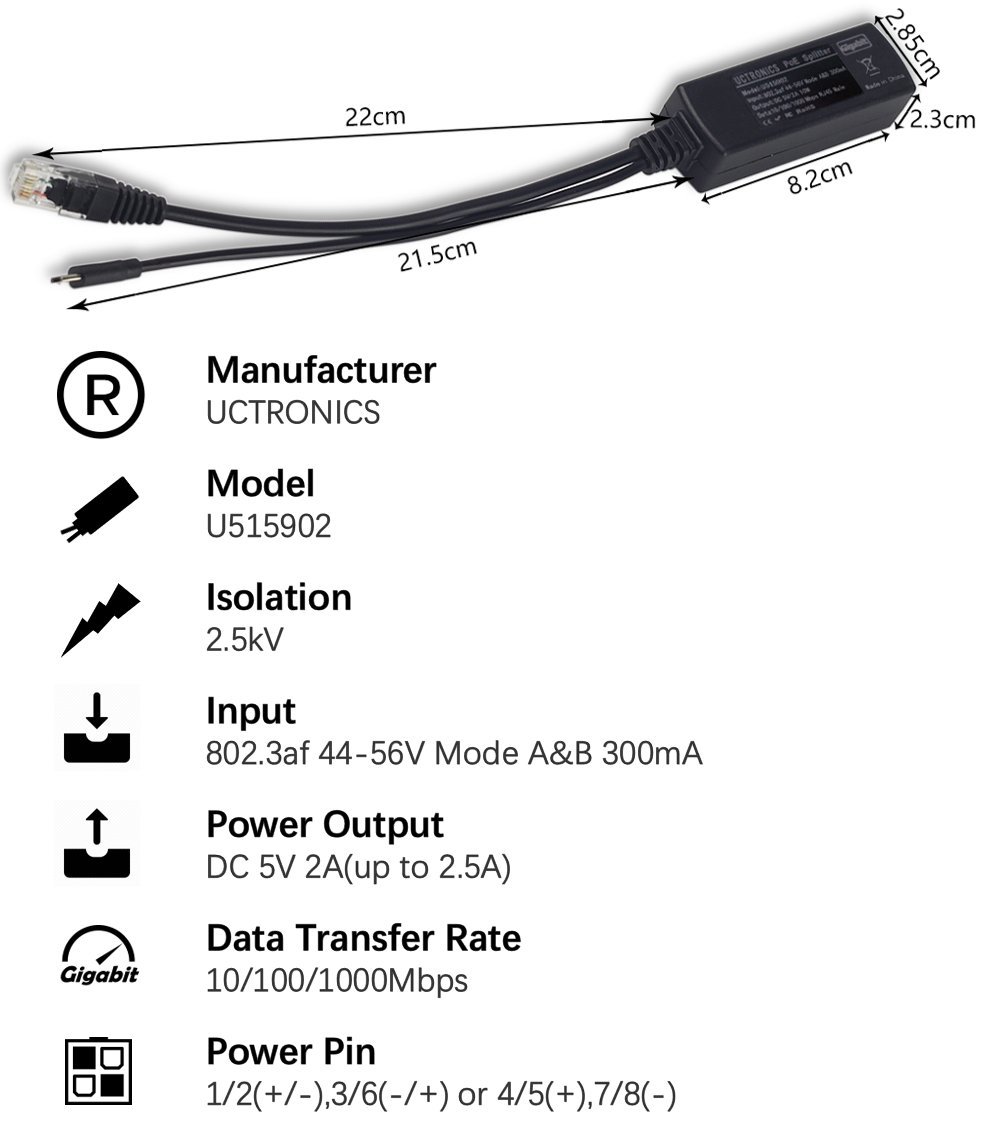

Product description This gigabit PoE splitter is used to supply power and transfer data to micro USB devices like RPi 3B+ via a single Ethernet cable with the help of an IEEE 802.3af compliant switch or injector. You don't need a separate power supply anymore. It uses no GPIO pins and is thus compatible with any 3b+ case with a fan or add-on 3b+ screen. It has plug-and-play compatibility with 3B+ and makes it easier for deployment, operation and maintenance in embedded projects. uctronics poe splitter u515902 Specifications: Compliant with IEEE 802.3af Isolation: 2.5kV Input: 802.3af 44-56V Mode A&B 300mA Power Output: DC 5V/2A(up to 2.5A) 10W Data Transfer rate: 10/100/1000 Mbps Devices will be detected before poe input Power Pin: support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-) Package including: 1pcs 48V to 5V Active PoE Splitters Micro USB Power Plug The gigabit version update of UCTRONICS U5159 PoE splitter- uctronics ieee 802.3af micro usb active poe splitter (ASIN:B01MDLUSE7) Legal Disclaimer Require an 802.3af compliant PoE switch or injector to use this device (not included)
