Ubiquiti airFibre AF-5XHD WISP PtP Point to Point Radio 1Gbps+ AF-5XHD

• Programmable Transmit Power- The radio's transmit power level can be programmed up to +29 dBm.
• Configurable GPS Synchronization- The AF-5XHD offers configurable support for 2, 2.5, 4, and 5 ms frames. Timing is compatible with all other synchronous systems
• Split TX and RX Frequency- The radio can operate on different frequencies for TX and RX, allowing great flexibility for interference avoidance.

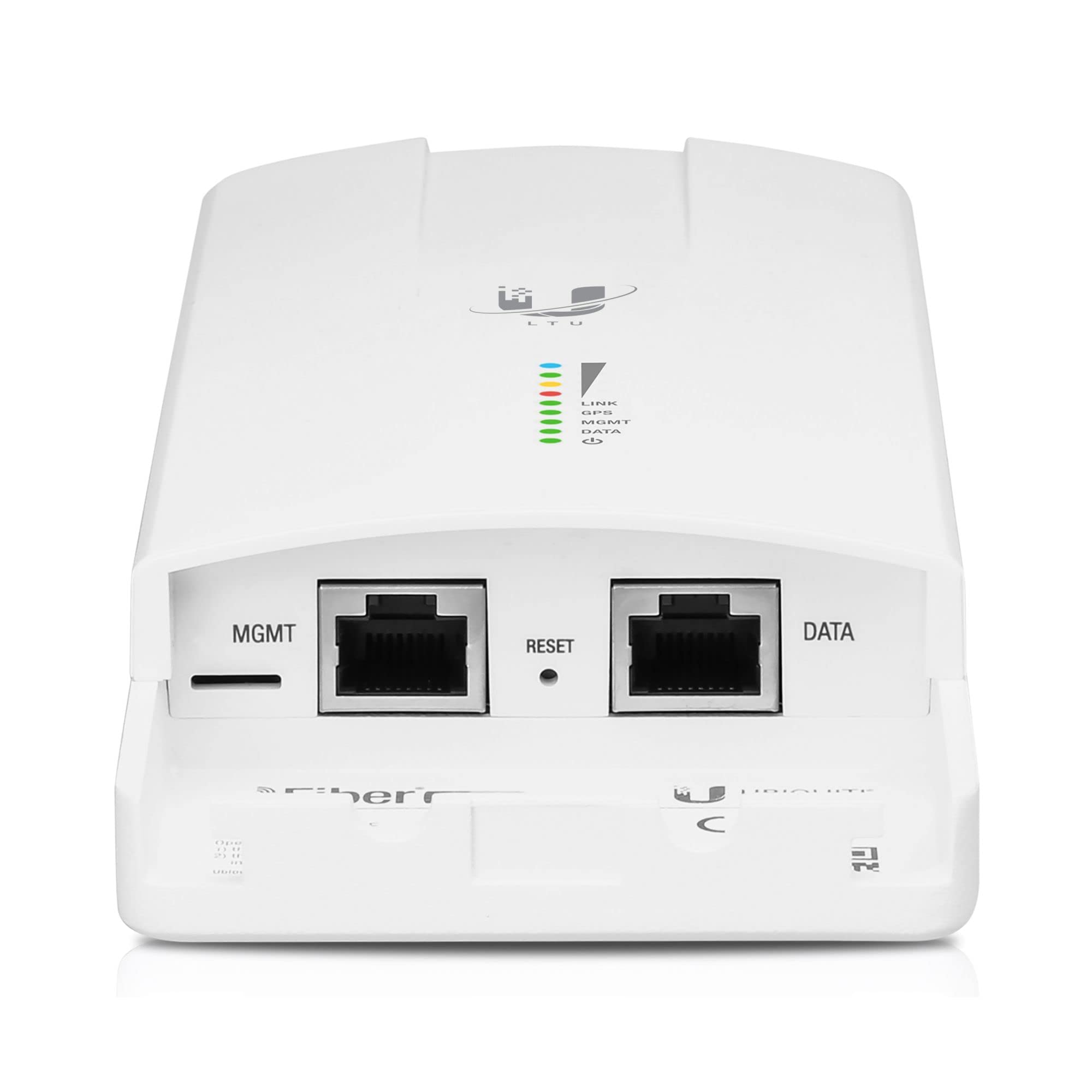

• Dual Redundant Gigabit Ethernet Ports with PoE- The AF-5XHD has two Gigabit Ethernet ports that can be used to provide redundant PoE power.
• Wide Voltage Range, Enhanced Surge Protection- The AF-5XHD has an operating voltage range of 19 - 50VDC and provides enhanced surge protection.

he airFiber 5XHD is designed specifically for the Wireless ISP industry from the ground floor up, it has custom LTU silicon and radio architecture to provide breakthrough performance. The Ubiquiti airFiber Point to Point Link core communications processing engine surpasses the limitations inherent to generic WiFi chips to provide low latency, long range capability, DFS flexibility, higher constellations, and better power output, along with improved receive sensitivity. The AF-5XHD features industry leading 21.2 bps/Hz spectral efficiency, line-rate data packet processing for up to 1.34Gbps of real data throughput, and innovative xtreme Range Technology (xRT).
