U.S. Solid Motorized Ball Valve- 1" Brass Ball Valve with Manual Function, Standard Port, 9-24V AC/DC and 2 Wire Auto Return Setup

• G THREADING- 1” quality brass threading, manufactured and measured according to British Standard Pipe Thread.
• 9V-24V AC/DC- Works effectively over entire voltage range; Will open or close valve in 6~8 seconds.
• 2 WIRE AUTOMATIC RETURN SETUP- Simple two wire connection, limit switch minimizes power after valve is fully open, and the valve returns to fully closed if power is removed, Ideal for projects where an automatic return is necessary.
• ALTERNATIVE TO SOLENOID VALVES- Automatically minimizes power after valve is fully open, this reduces likelihood of overheating, making it a great alternative to solenoid valve for projects where a valve needs to be open for an extended period of time.
• RELIABLE- Lifespan of 80,000-100,000 cycles means a valve that will last.

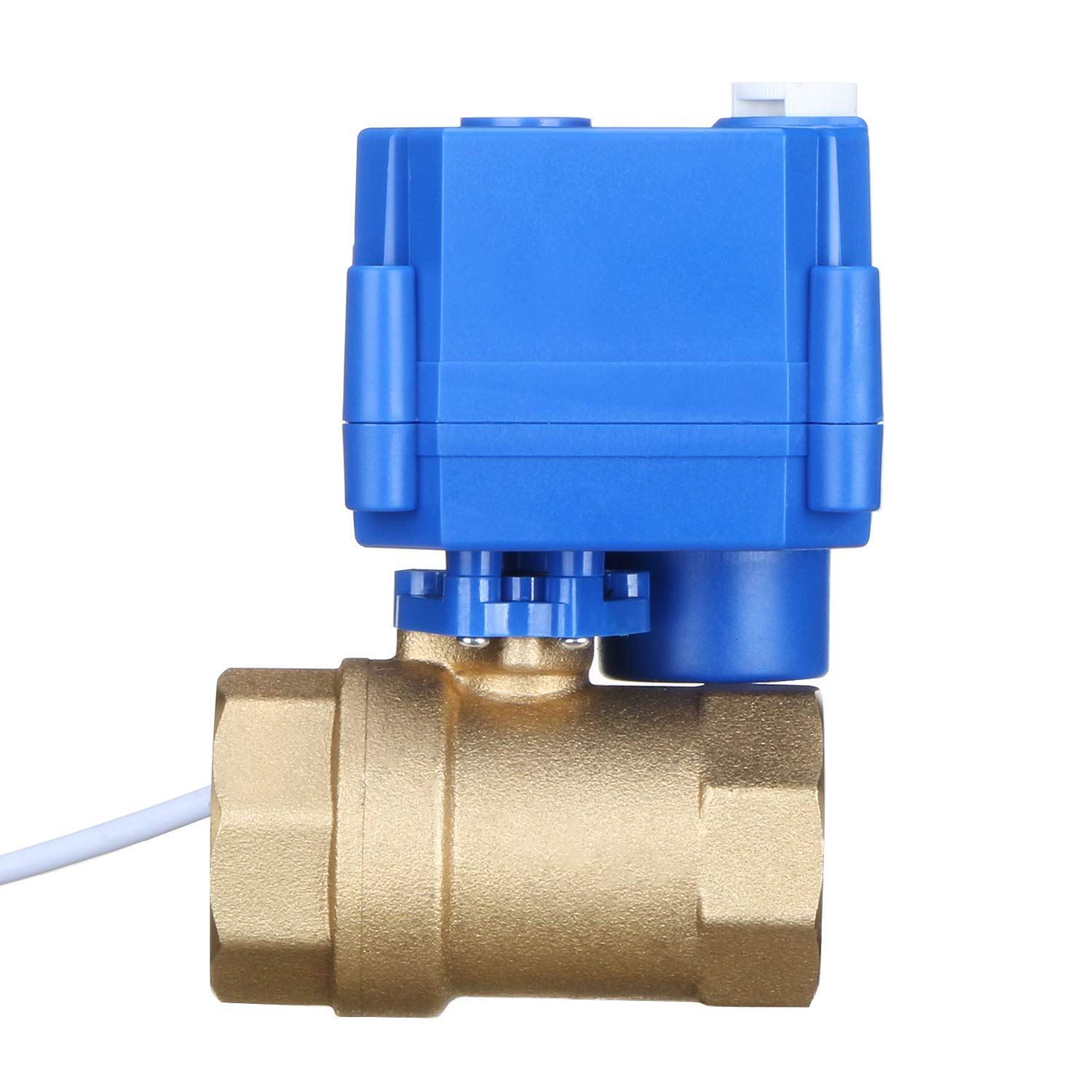

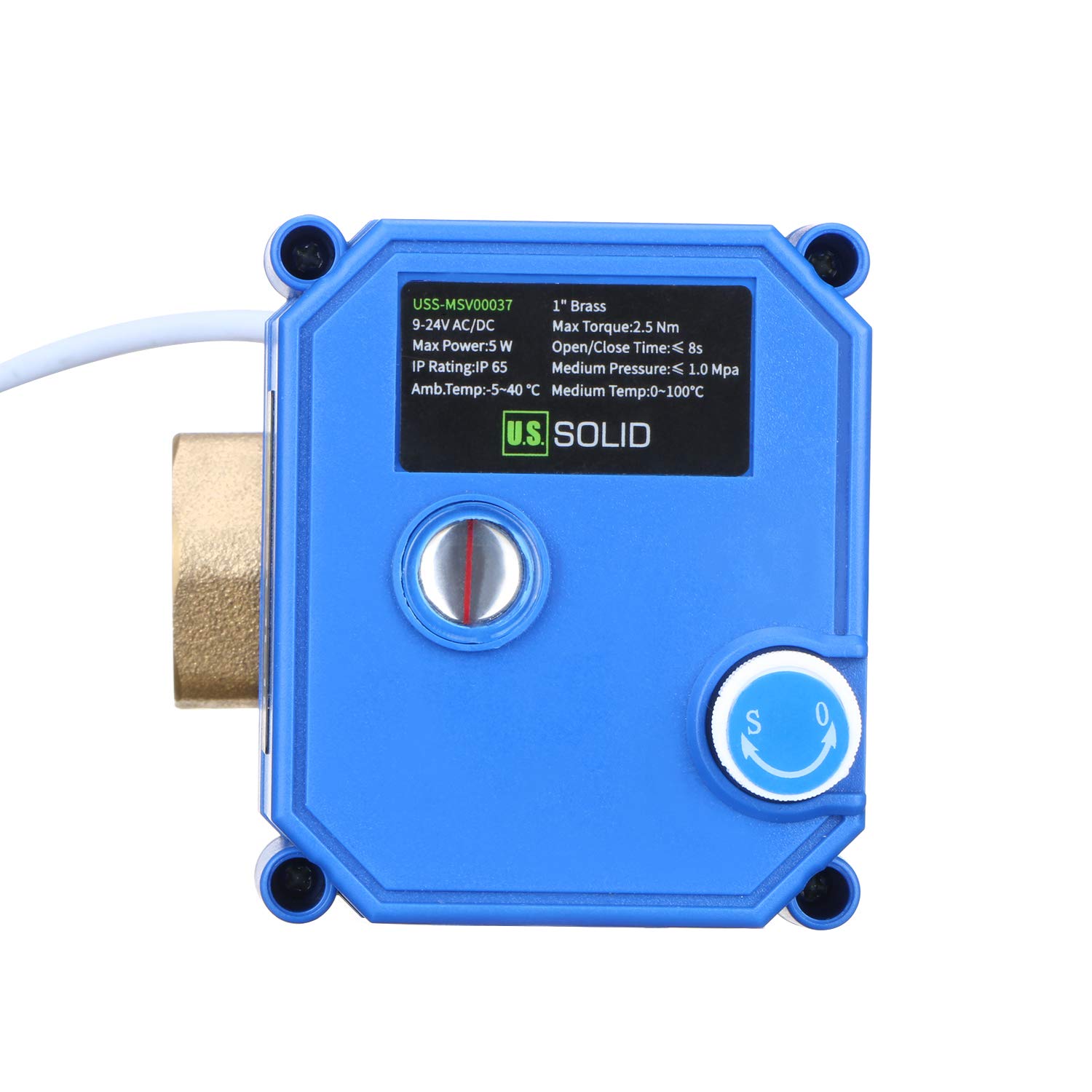

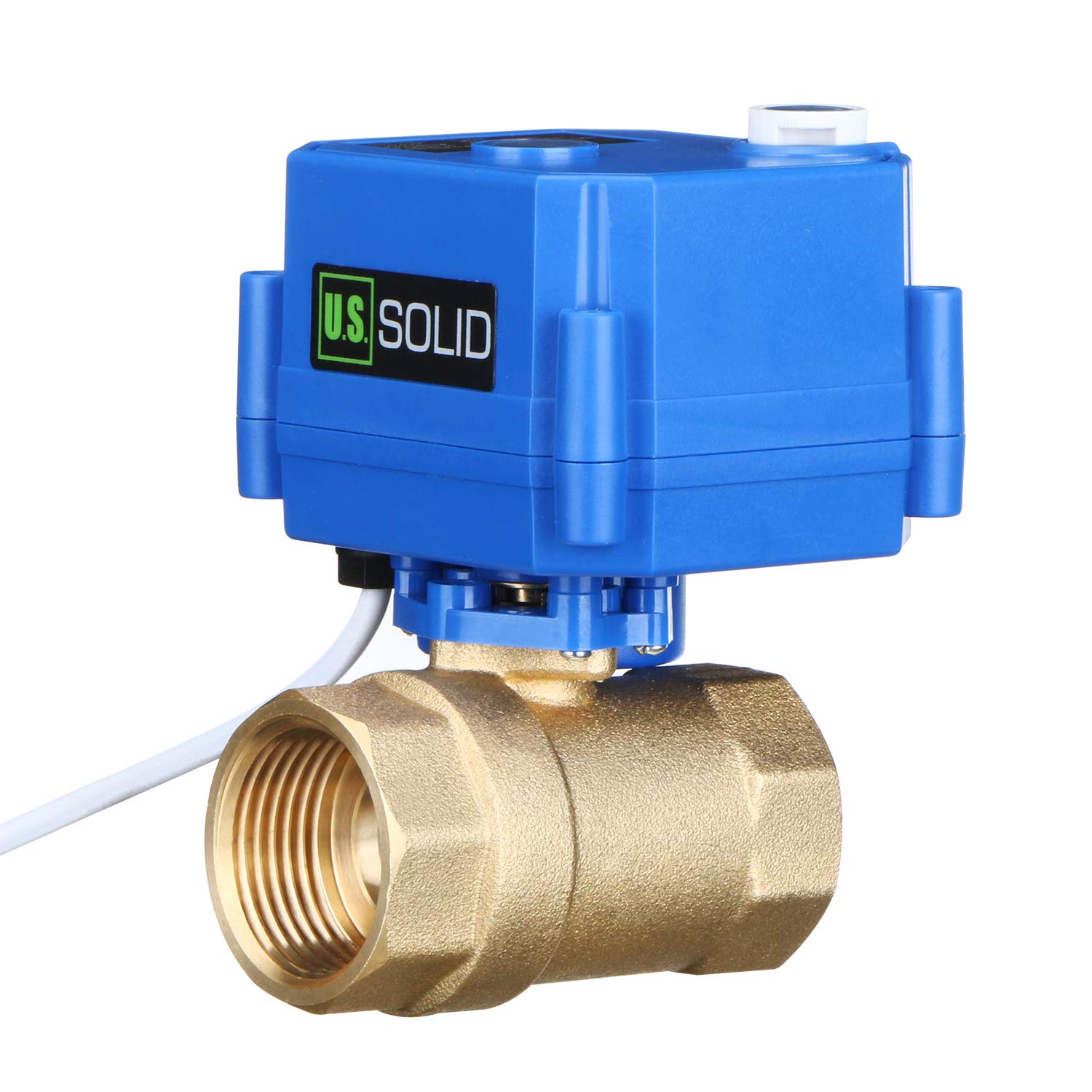

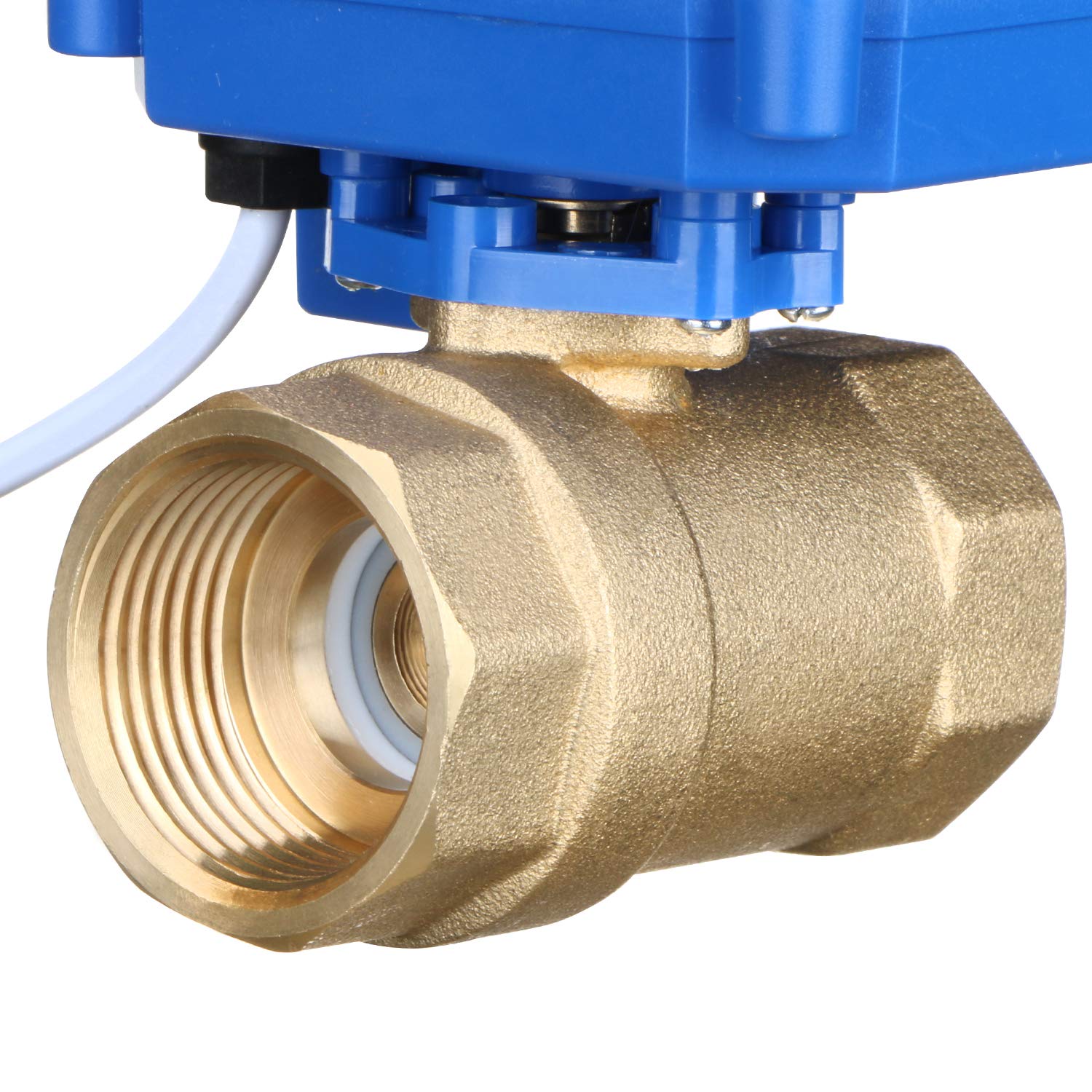

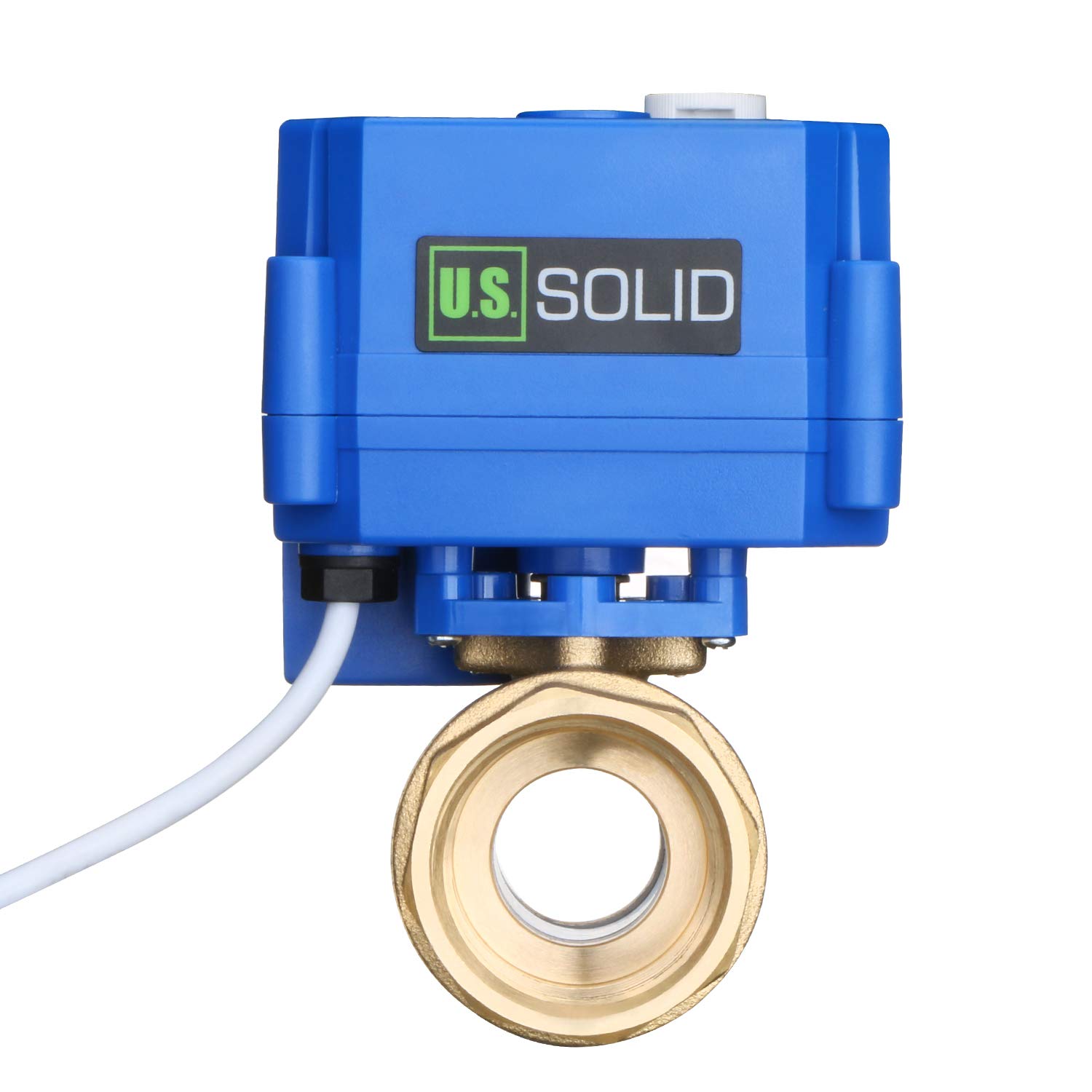

This 1 inch motor ball valve made of brass automatic return is a blessing for many DIY enthusiasts. The body and shaft of this valve are made of brass. The valve is activated when 9V to 24V AC/DC power is supplied. The valve is normally closed. When activated, it will open in 6-8 seconds. After that, the limit switches keep the energy output at a negligible level. When the power supply is interrupted, the valve returns to a closed position. Most solenoid valves are fully energized when open, which can lead to overheating. This valve absorbs so little energy after being fully opened that it never overheats. The position indicator at the top of the actuator can help you detect the on/off state of the valve. In addition, the valve has a manual function that can be manually adjusted when the valve is locked. Or if the power supply is interrupted, the valve can be opened manually if necessary. Specifications Material: brass. Ball seat: PTFE. Seal: silicone rubber. Closing / opening time: 6-8 seconds. Voltage: 9-24V AC/DC. Max. Power: 5W Max. Torque: 2.5 N m. Max. Pressure: 1.0 MPa. Temperature range for flow medium: 0 °C to 100 °C. Ambient temperature range: -5 °C to 40 °C. Housing rating: IP65. Life expectation: 80,000-100,000 cycles. Thread: G Bore Type: Standard Cannot be used in strong acid, strong base, sewage, industrial gas and other media with many impurities. Warning: Lead content ~ 3.05% It cannot be used on drinking water.
