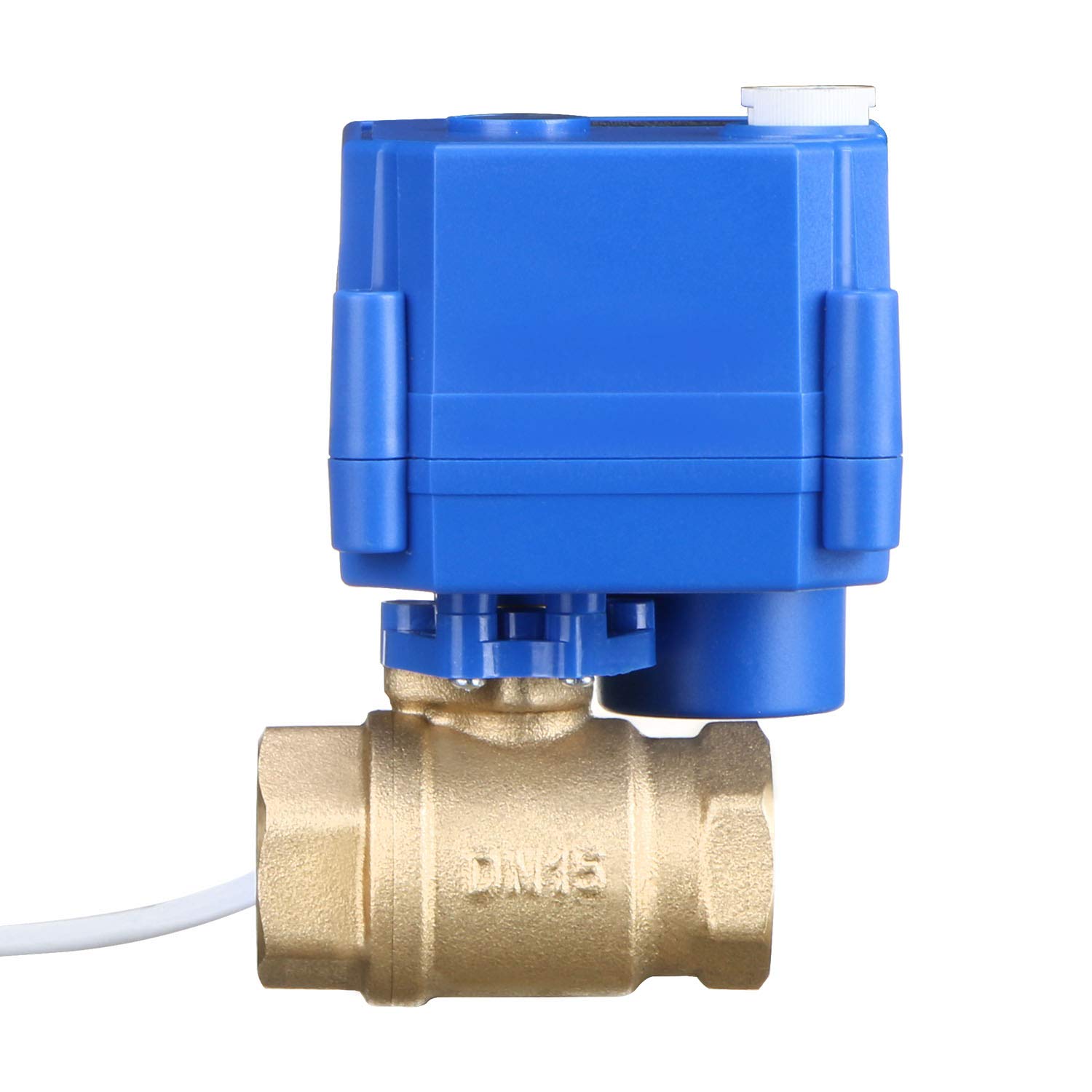

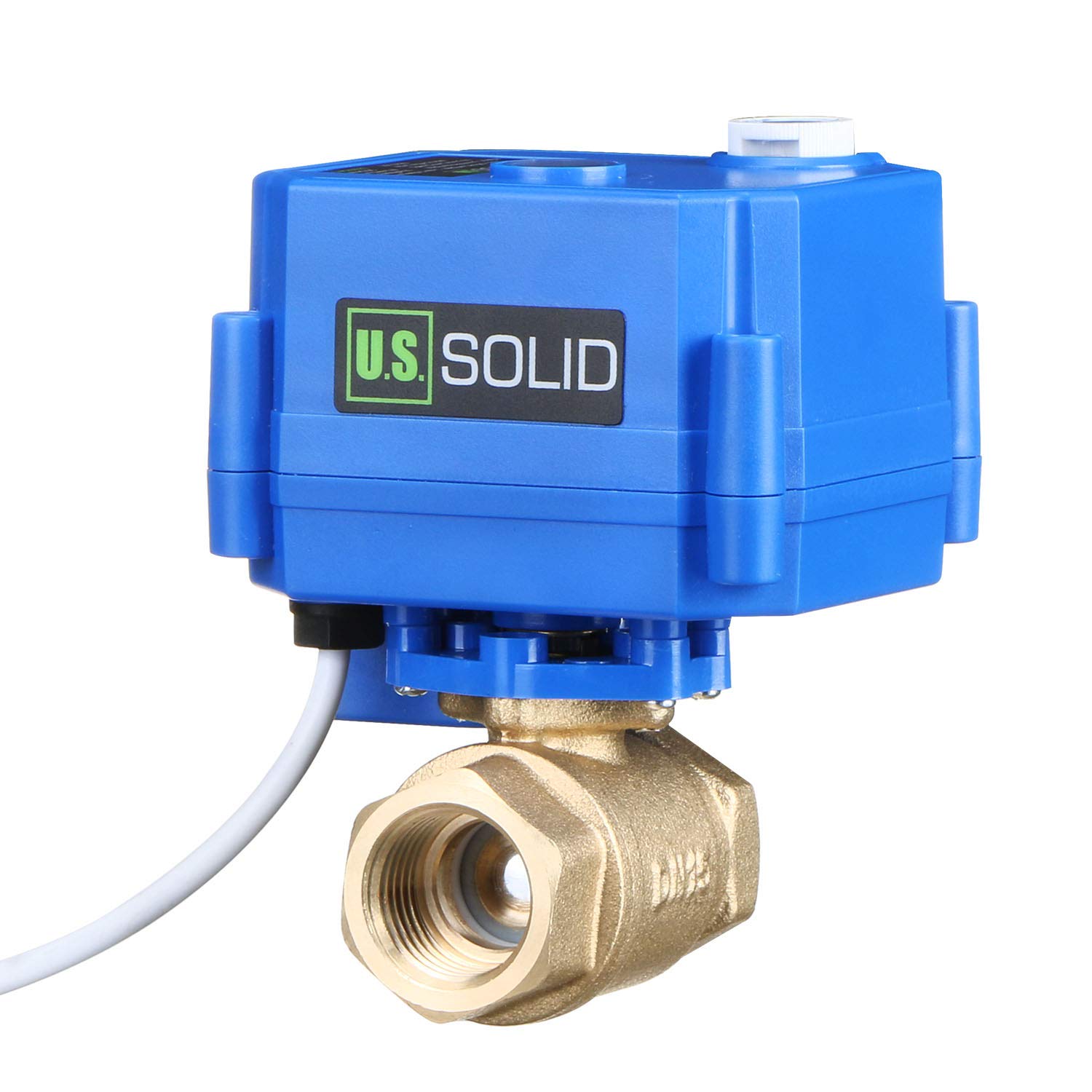

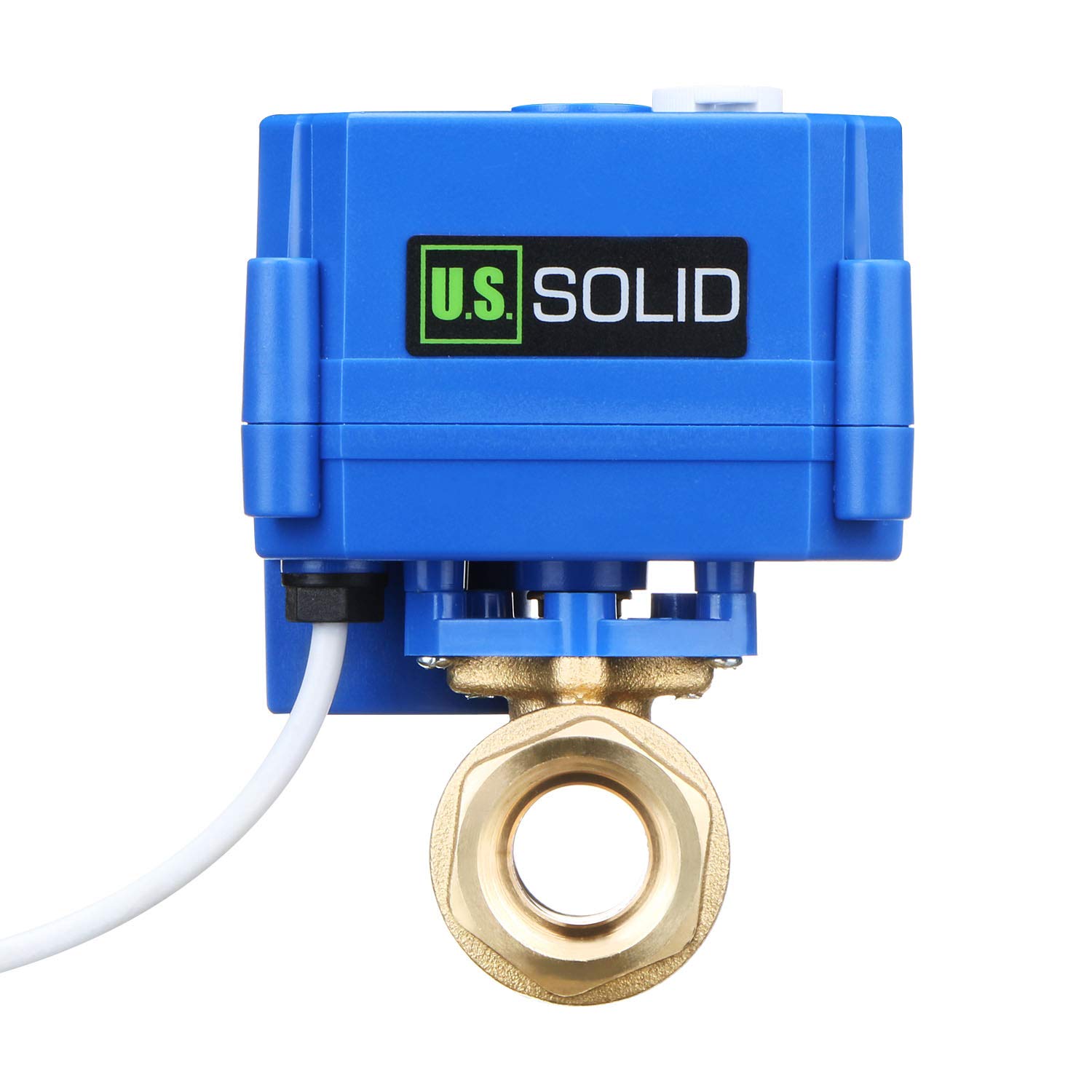

U.S. Solid Motorized Ball Valve- 1/2" Brass Ball Valve with Manual Function, Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup

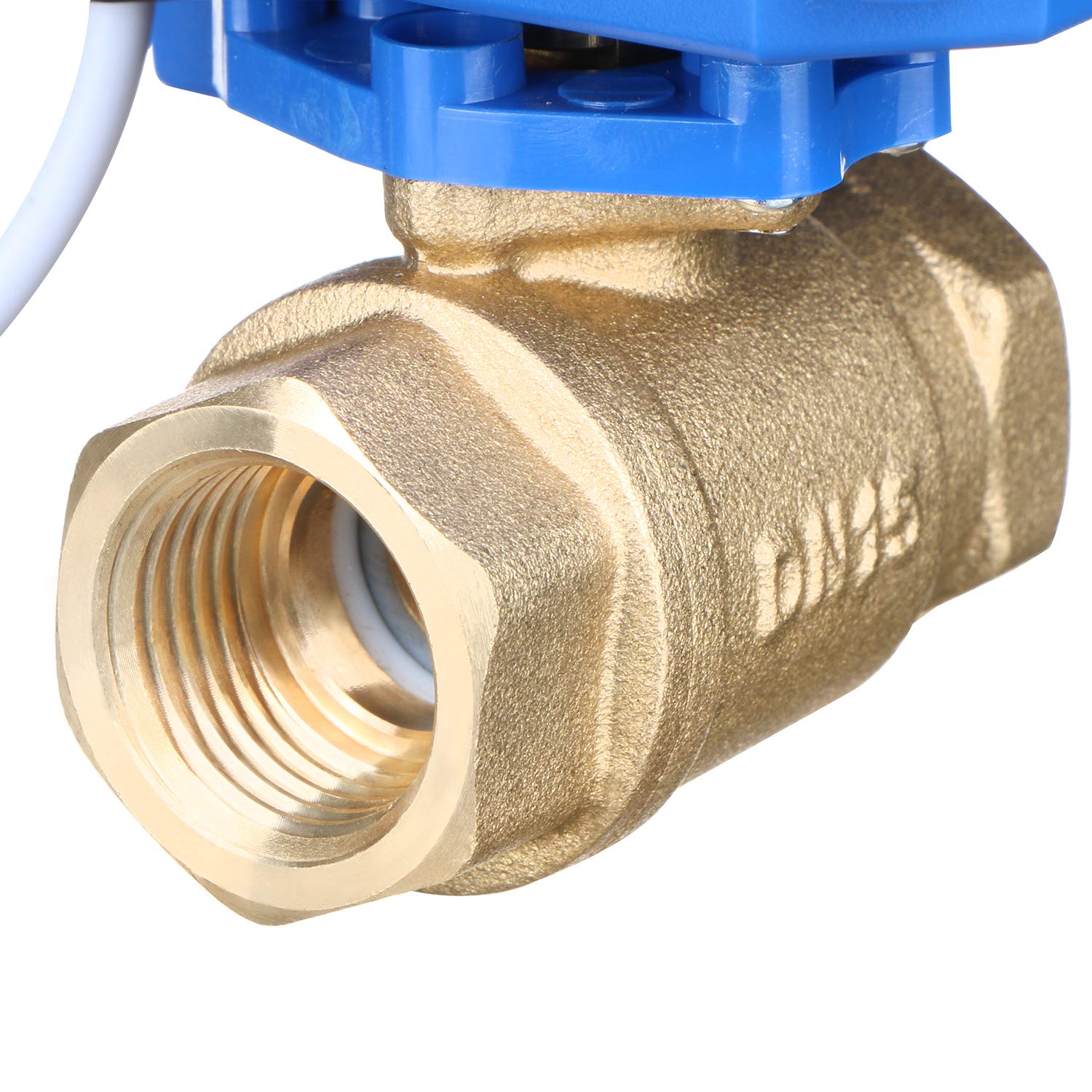

• G THREADING- 1/2” quality brass threading, manufactured and measured according to British Standard Pipe Thread. This electrical ball valve is full port, meaning the bore in the ball is a full 1/2”(15mm).
• 9V-24V AC/DC- Works effectively over entire voltage range; Will open or close valve in 6~8 seconds.
• 2 WIRE AUTOMATIC RETURN SETUP- Simple two wire connection, limit switch minimizes power after valve is fully open, and the valve returns to fully closed if power is removed, Ideal for projects where an automatic return is necessary.
• ALTERNATIVE TO SOLENOID VALVES- Automatically minimizes power after valve is fully open, this reduces likelihood of overheating, making it a great alternative to solenoid valve for projects where a valve needs to be open for an extended period of time.
• RELIABLE- Lifespan of 80,000-100,000 cycles means a valve that will last.

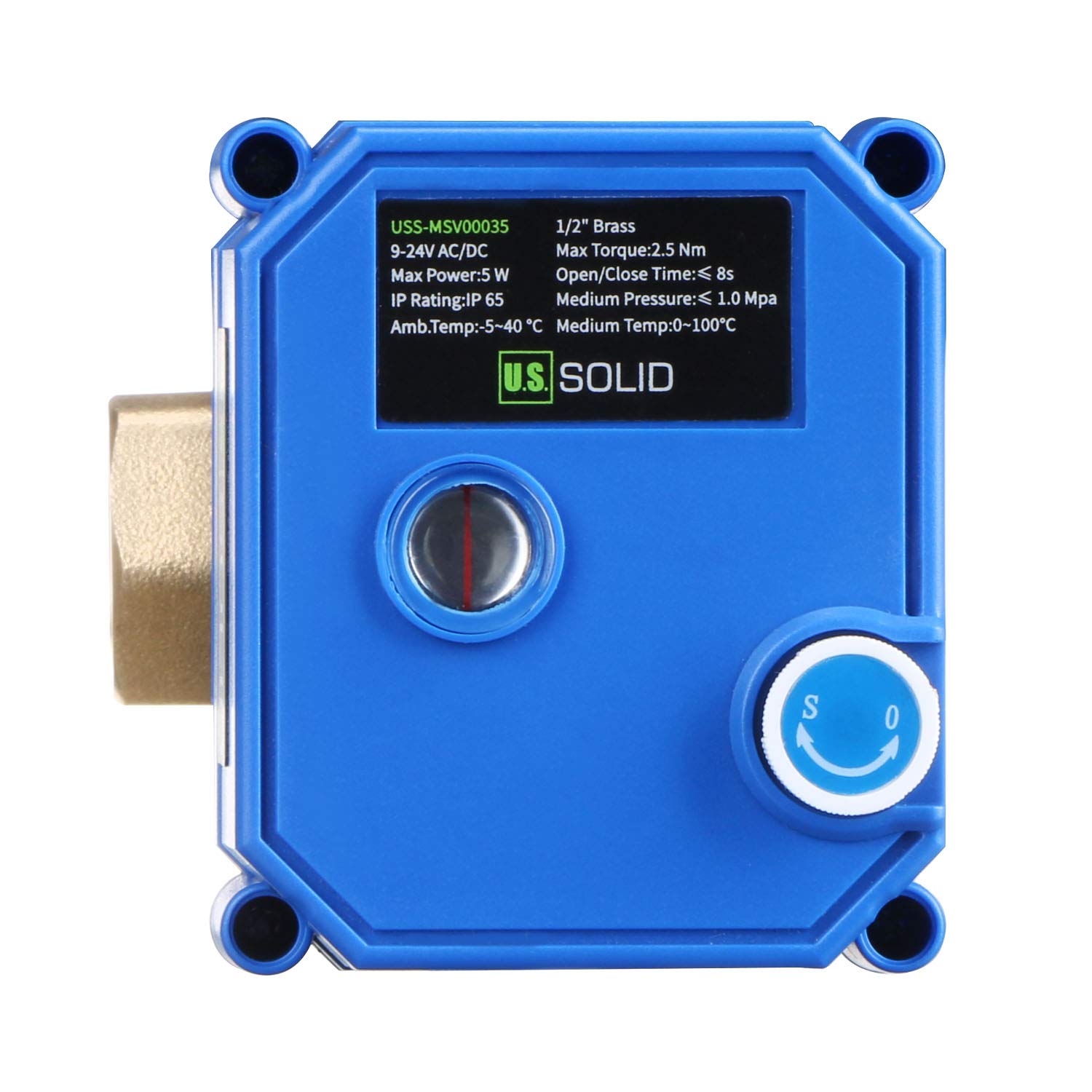

The U.S. Motorized Ball Valve Solid 1/2" Brass with automatic return is a blessing for many DIYers. The body and stem of this valve are made of brass. The valve will activate when AC/DC 9V to 24V power is brought to it. The valve is normally closed, when powered on, it opens in 6-8 seconds. Then the limit switches will keep the power production at a negligible level. If the power is turned off, the valve will return to a closed position. Most solenoid valves are fully powered on when opened, which can lead to overheating. This valve takes so little energy once fully opened, so it will never be overheated. The position indicator on the top of the actuator can help you see the on/off status of the valve. In addition, the valve comes with a manual function, it can be adjusted manually if the valve is locked. Or when the power is turned off, the valve can be opened manually if necessary. Specifications Valve Material: Brass Ball Seat: PTFE Seals: silicone rubber Close/Open time: 6-8 seconds. Working voltage: 9-24 V AC/DC Maximum power: 5 W Max torque: 2.5 N m Max Pressure: 1.0 MPa Temperature range for medium: 0°C - 100°C Ambient temperature: -5°C - 40°C Housing classification: IP65 Life expectancy: 80,000-100,000 cycles Thread Type: G Cannot be used in strong acids, strong bases, wastewater, industrial gases and other media containing many impurities. Warning: Lead content ~ 3.05%. It can not be applied to drinking water.
