U.S. Solid 3/4" Electric Solenoid Valve 220V AC Brass Body Normally Open G Thread VITON Water Air Oil

• 3/4" G Thread, Solid brass body, AC 230V.
• The solenoid with directly move the plunger and close the orifice for any fluid or gas flow. Only closed while energized.
• Can not be used in strong acid, strong base, waste water, industrial gas and other media containing many impurities.

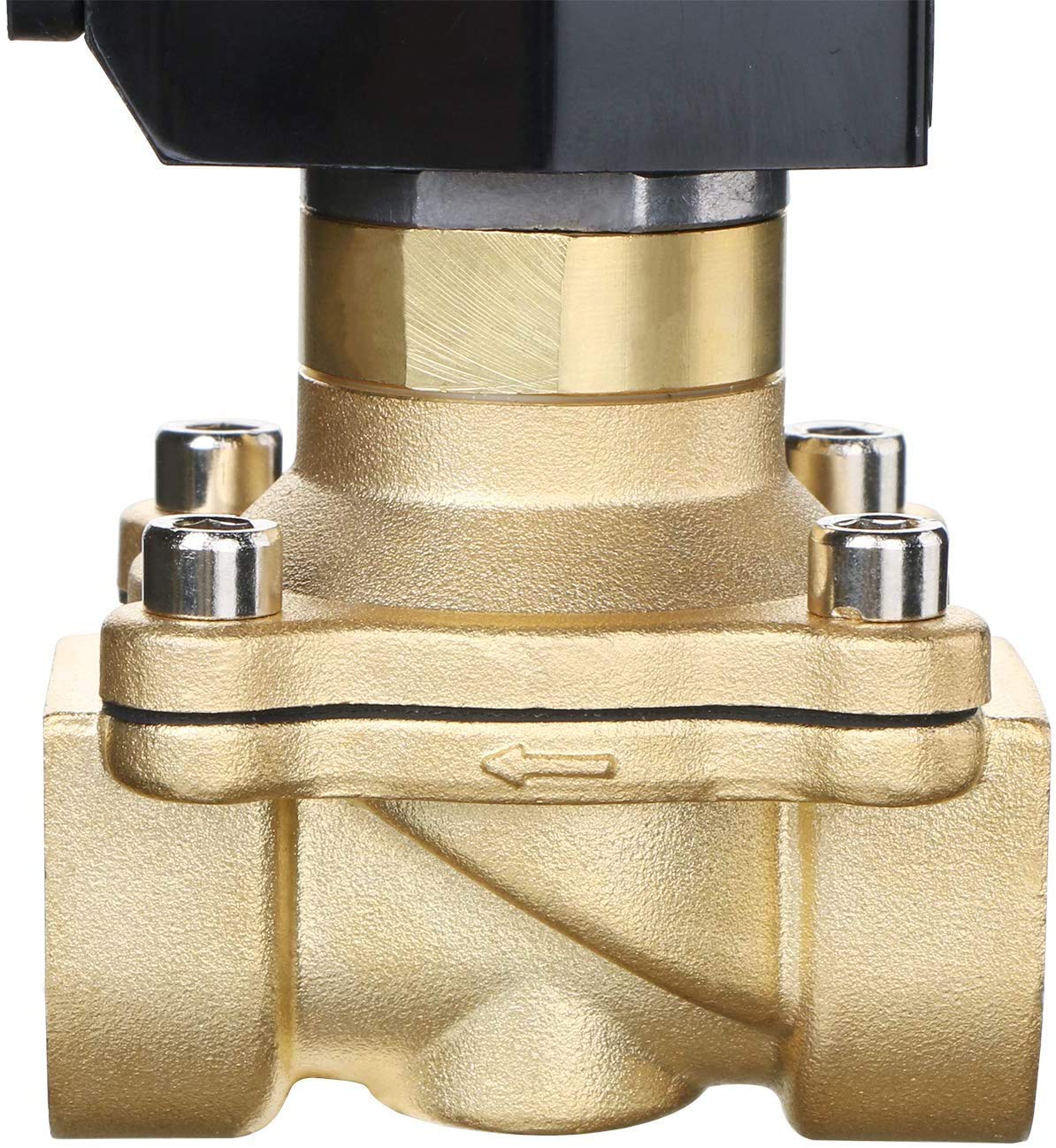

• The arrow indicates the flow direction (horizontal mounting please).
• VITON GASKET- Viton is space age material that is very chemically inert. As such it is commonly used with gasoline, kerosine and other organic solvents. Some companies sell solenoid valves with NBR gasket and advertise gasoline use. DO NOT USE NBR gasket for gasoline (it will corrode the gasket and can cause serious gasoline leak and accident).

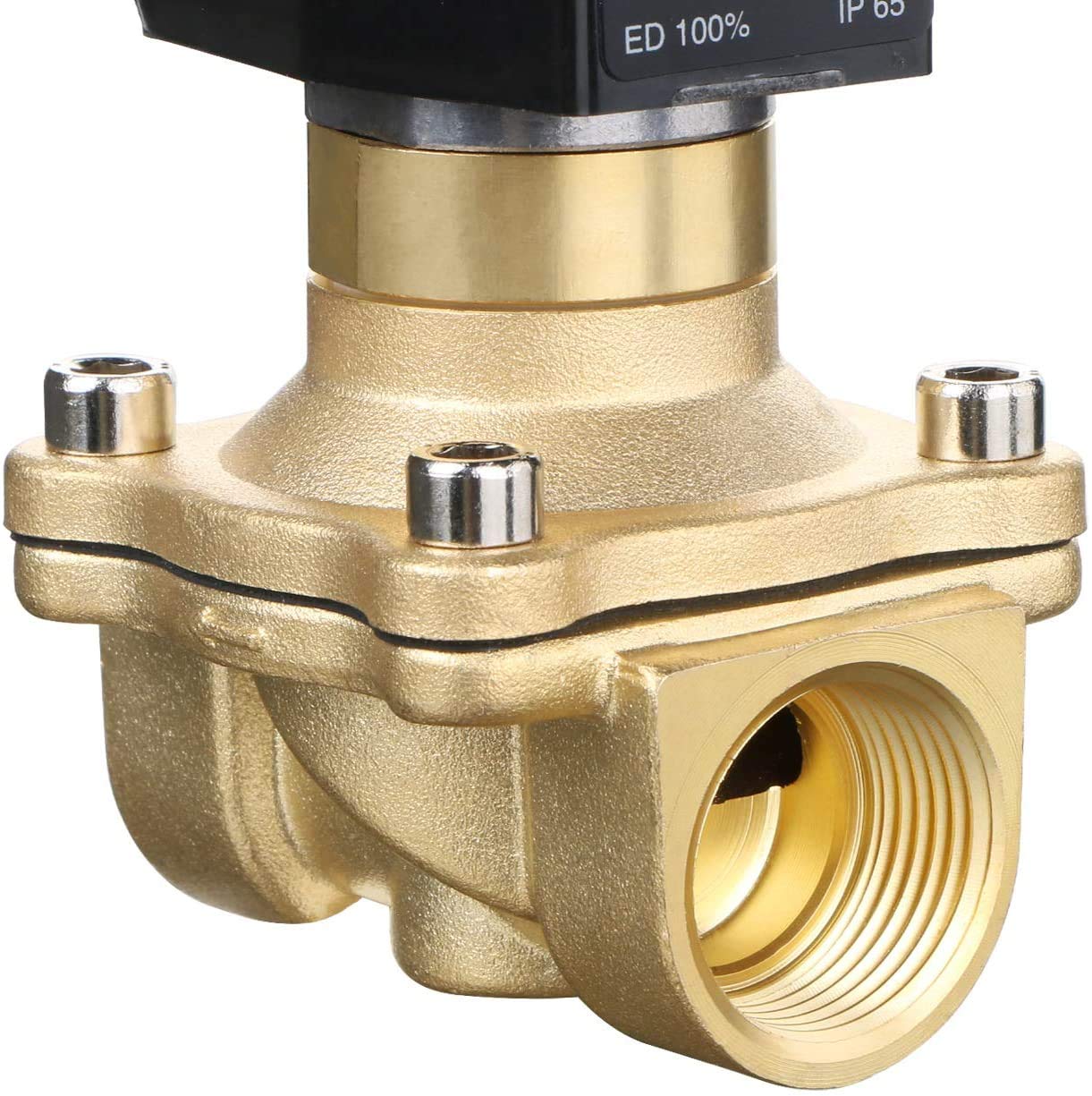

The solenoid valve is a semi-direct-operated solenoid valve, with an internal wire inlet with G 3/4" seal and Viton (heat and oil resistant). Suitable for hot or cold water, oils, very low viscous liquids (<20cst), petrol, kerosene or diesel fuel, etc. Solenoid valves have an IP65 protection rating, which means they can withstand splashing water. However, in case of permanent installation outdoors, it is recommended to place the valves in a protective case. Not suitable for underwater use No minimum pressure or differential pressure required. Customers chose this all-purpose valve for additional gas containers, sprinkler systems and much more. Specification Model: USS2-00089 Body Material: Brass Thread size: G 3/4" female inner Hole: 20 mm. Type: Normally Open "NO", Direct Solenoid Valve Sealing material: Viton Rated voltage: 220V AC, ± 10% Rated power: 33 VA Current: 0.15 A Operating pressure: 0 - 7 bar (0 - 101 psi) (For Water, Air, Gas); 0-5 bar (0 - 72 psi) (for Oil) Operating temperature: -10°C to +120°C Flow rate: 7.6 gallon per minute (GPM) of water at 60℉ with a pressure drop of 1 psi (7.6 Hp). Quality assurance: CE certified OVERHEATING WARNING Not designed for continuous operation (not a 100% work cycle). Under normal operating conditions, the solenoid valve will be HOT when powered on. The coil will reach a maximum temperature of about 80°C. It fully complies with the national standard: JB/T7352-2010. If it is continuously powered for more than 8 hours, the coil may burn. Warning: Lead content ~ 2.82%. It can not be applied to drinking water.
