U.S. Solid 1" Motorized Ball Valve Normally Open DN25 Stainless Steel Electrical Ball Valve, 9-24V AC/DC, 2 Wire Auto Return Setup, Standard Port

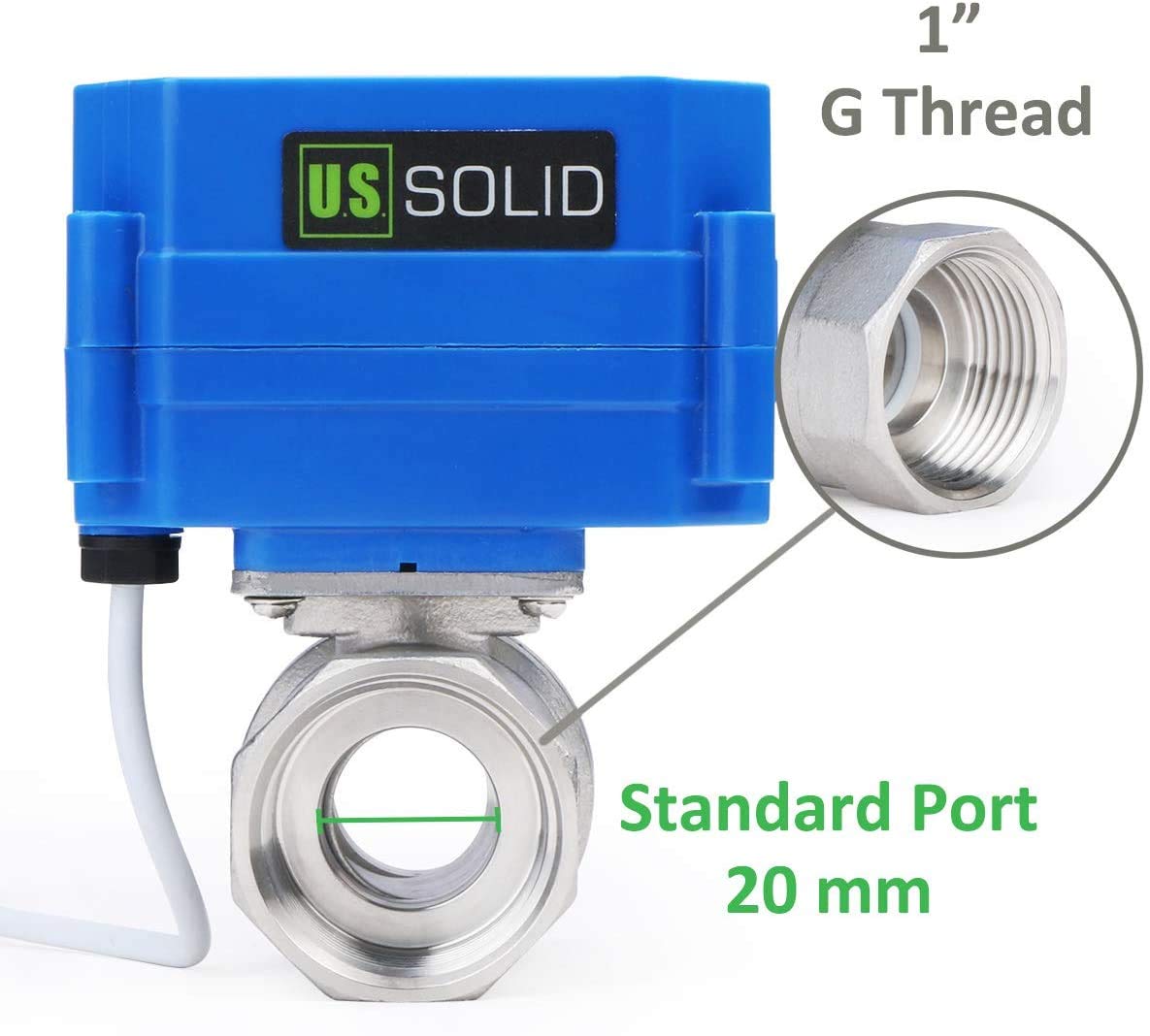

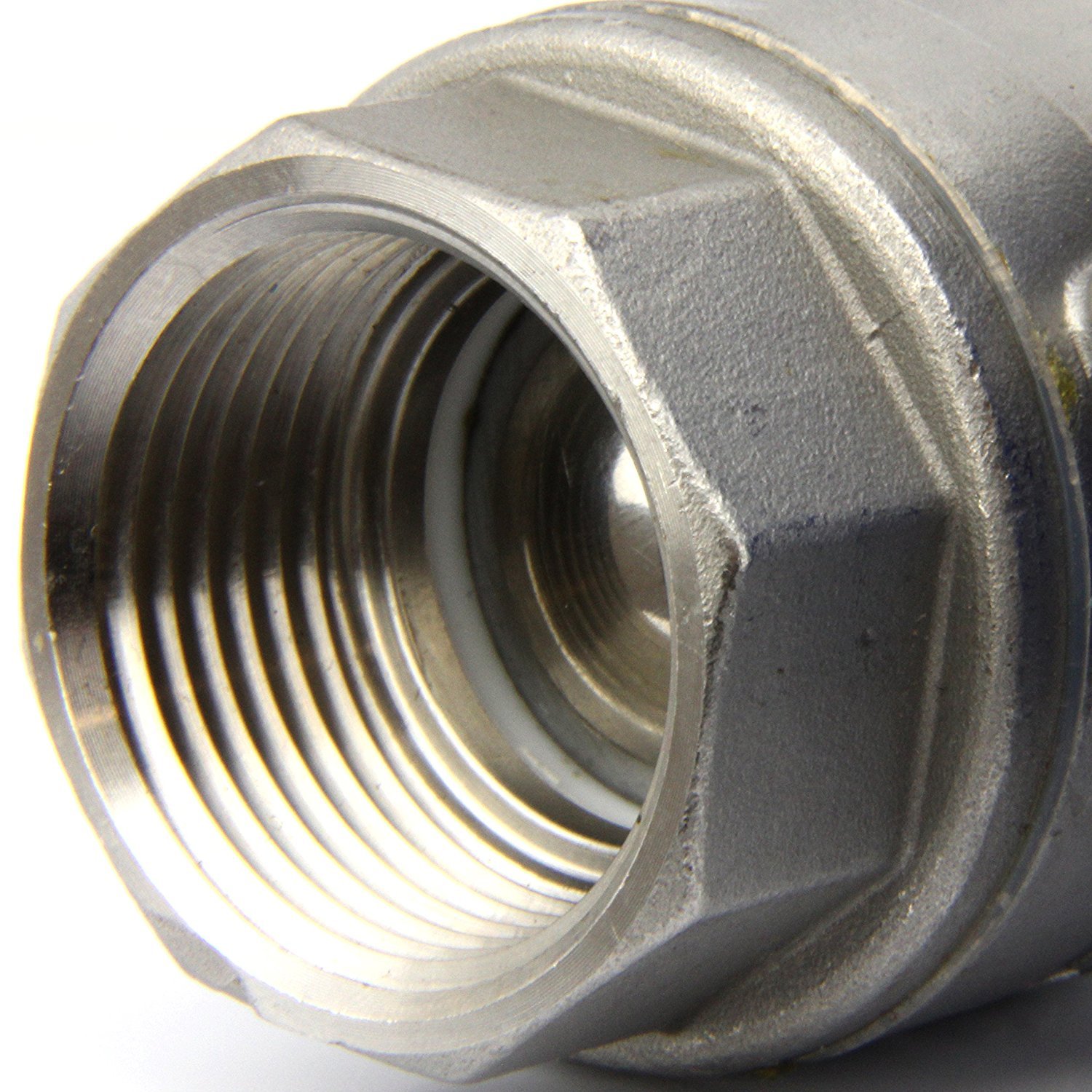

• G THREADING- 1” Stainless steel threading, manufactured and measured according to British Standard Pipe Thread.
• 9V-24V AC/DC- Works effectively over entire voltage range; Will open or close valve in 6-8 seconds; No power expended once fully open or fully closed.
• 2 WIRE AUTOMATIC RETURN SETUP- Simple two wire connection, valve largely de-energized after closing; Returns to fully open if power is removed.
• ALTERNATIVE TO SOLENOID VALVES- Automatically cuts off power once fully open or fully closed; This reduces likelihood of overheating, making it a great alternative to solenoid valves for projects where a valve needs to be open for an extended period of time.
• RELIABLE- Lifespan of 80,000-100,000 cycles means a valve that will last.

The U.S. Solid 1” motorized ball valve in stainless steel with automatic return is a blessing to many a home tinkerer. The body and stem on this valve are made of SS304 stainless steel. The valve will actuate when 9V to 24V of AC or DC power are brought to it. In this automatic return valve, the valve is Normally Open. When energized, it will close in 6-8 seconds. Afterwards, limit switches will keep the energy output to a negligible amount. If power gets cut out, the valve will again return to a open position. Most solenoid valves are fully energized whilst close, which can lead to overheating. This valve takes in such little energy once fully closed, that it will NEVER overheat. Auto return valves are an important option. If being used to control your water system, it is important that it opens automatically in case of a power outage. This can prevent leaks and flooding. Additionally, this valve comes with an IP rating of 65. This ingress protection level means the casing will keep the electronics free of any dust, and is safe even when being sprayed with water from any direction. Specifications Valve Material: SS304 Ball Seat: PTFE Seal: EPDM Close/Open Time: 6-8 Seconds Working Voltage: 9-24V AC/DC Max Power: 5 W Max Torque: 6 N m Max Pressure: 1.0 MPa Temperature range for Flow Medium: 0°C to 100°C Ambient Temperature Range: -5°C to 40°C Enclosure Rating: IP65 Life Expectancy: 80,000-100,000 Cycles Thread Type: G Standard Port, 20 mm Can not be used in strong acid, strong base, waste water, industrial gas and other media containing many impurities.
