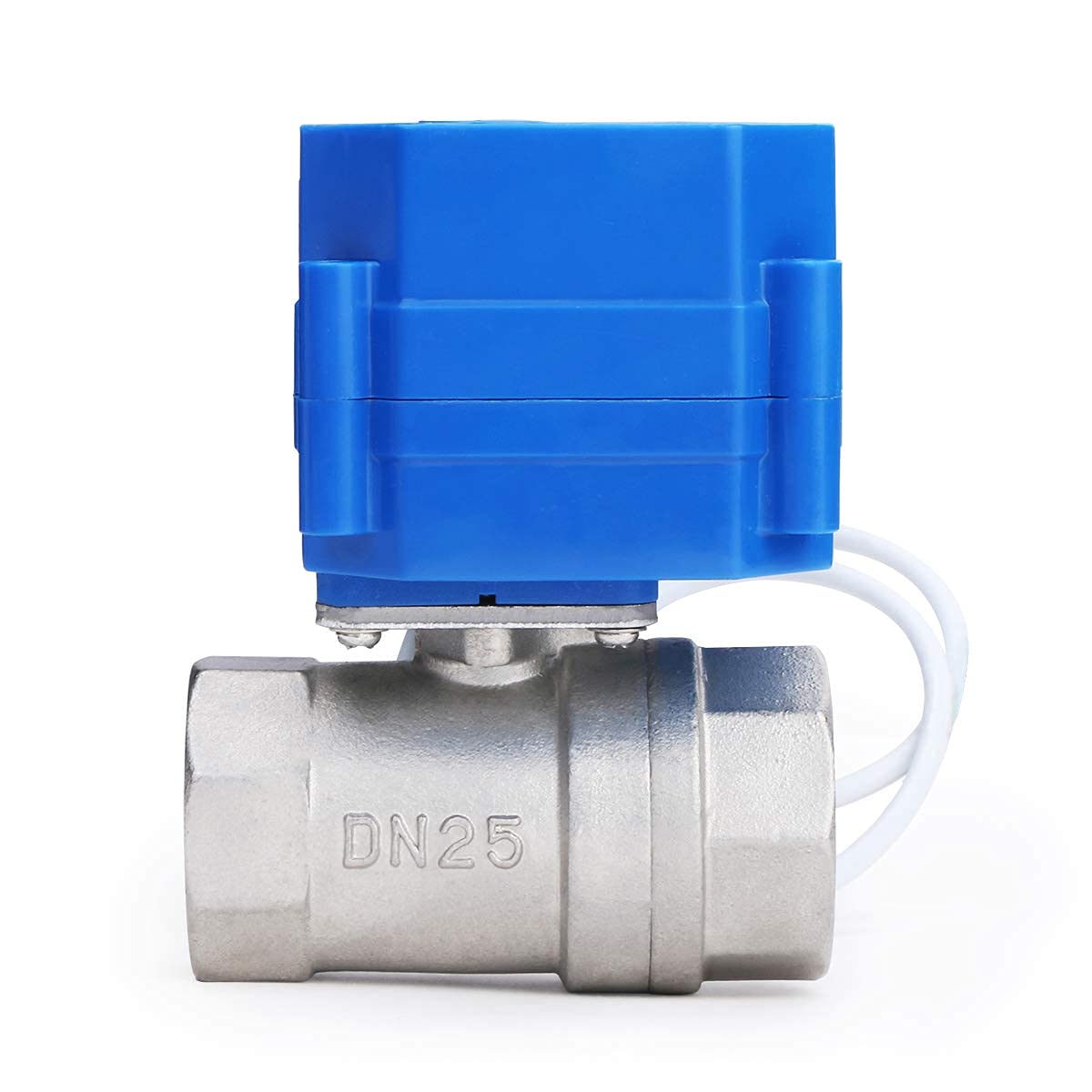

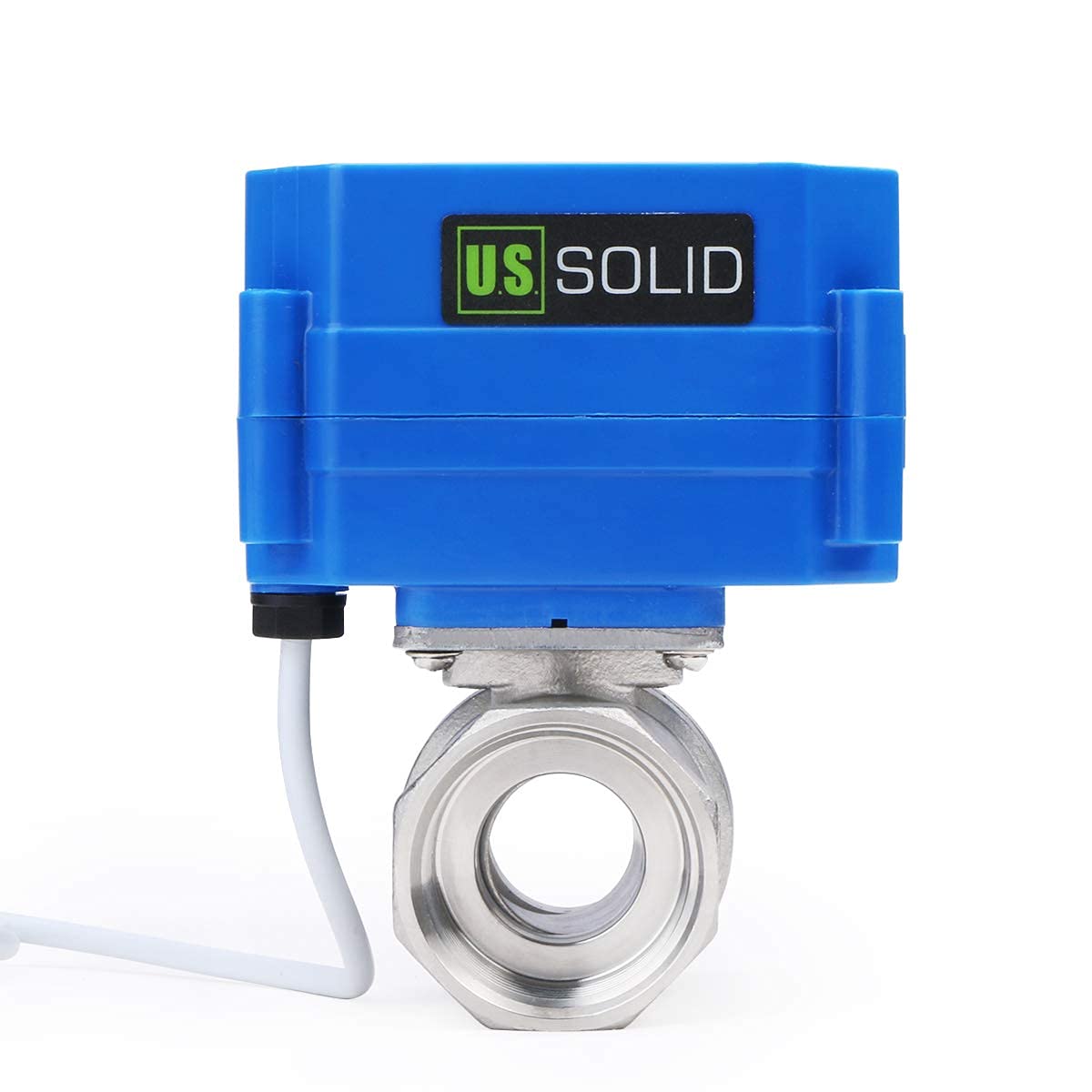

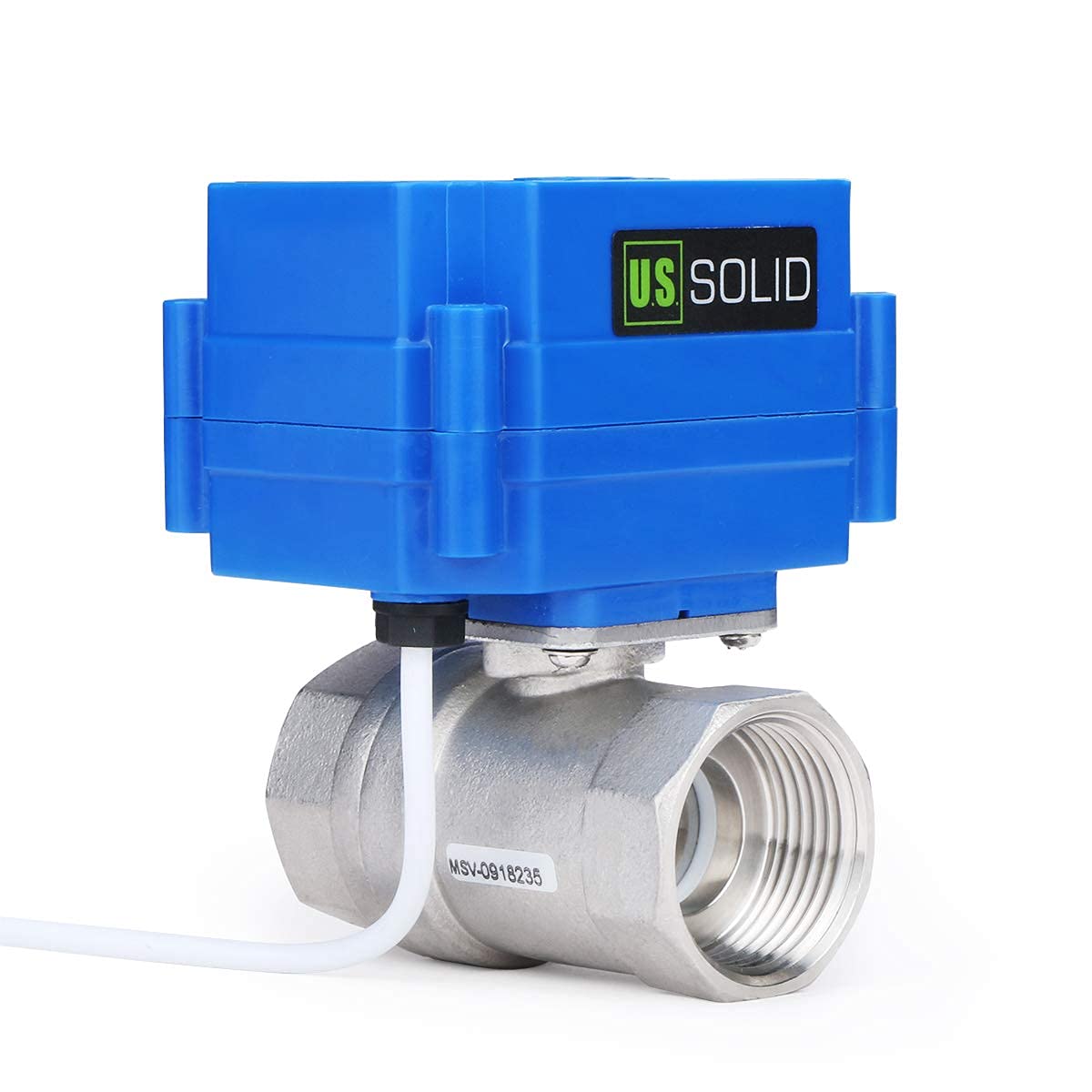

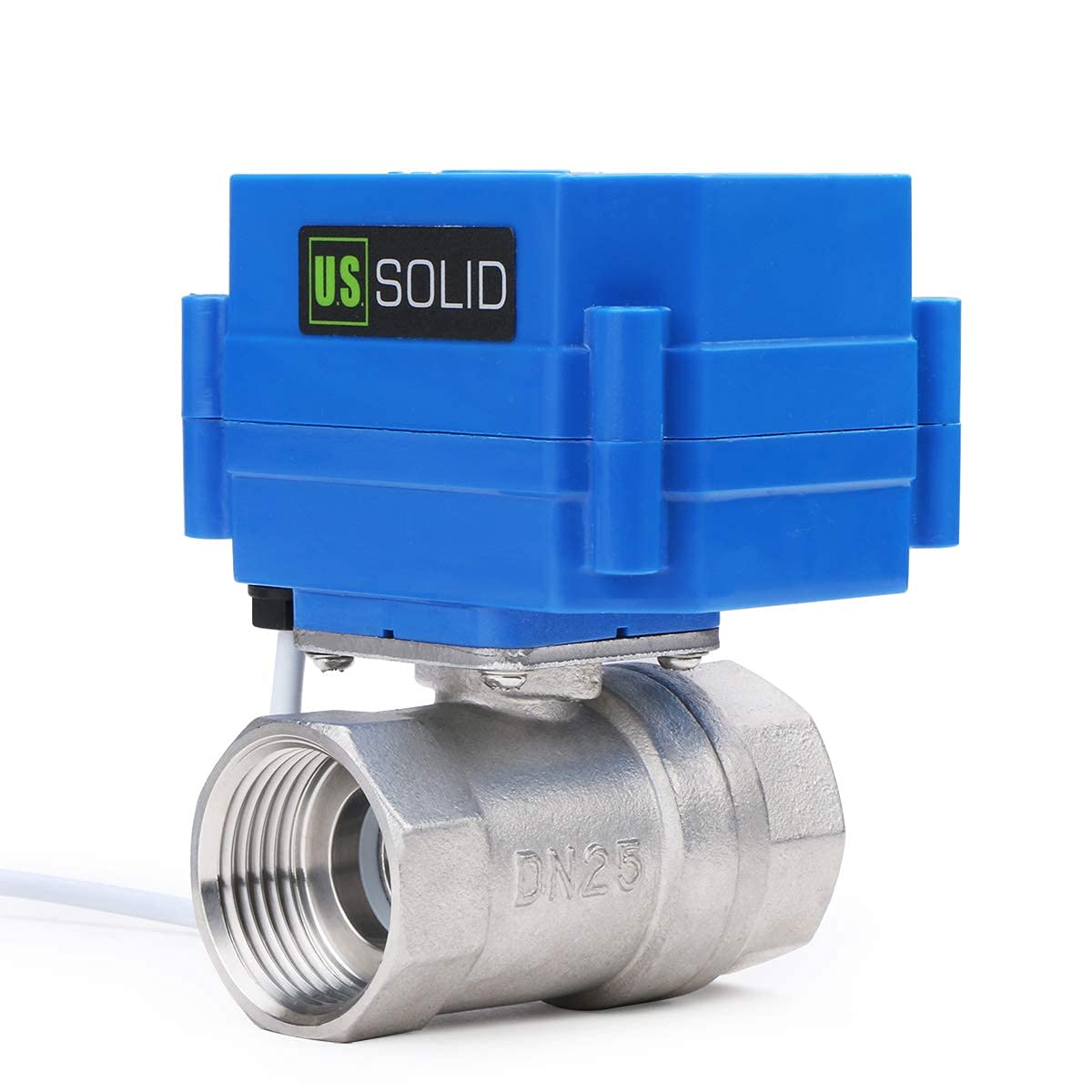

U.S. Solid 1" Motorized Ball Valve DN25 Stainless Steel Electrical Ball Valve, 9-24V AC/DC, 3 Wire Setup

• G THREADING- 1” Stainless steel threading, manufactured and measured according to British Standard Pipe Thread.
• 9V-24V AC/DC- Works effectively over entire voltage range; Will open or close valve in 6-8 seconds; No power expended once fully open or fully closed.

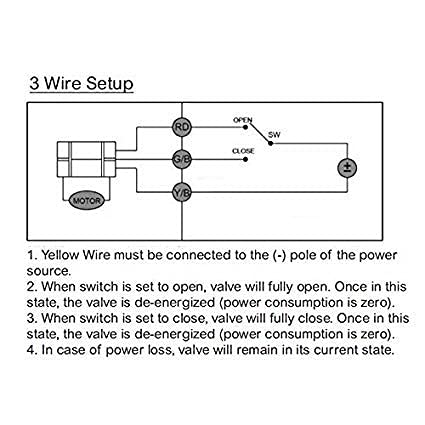

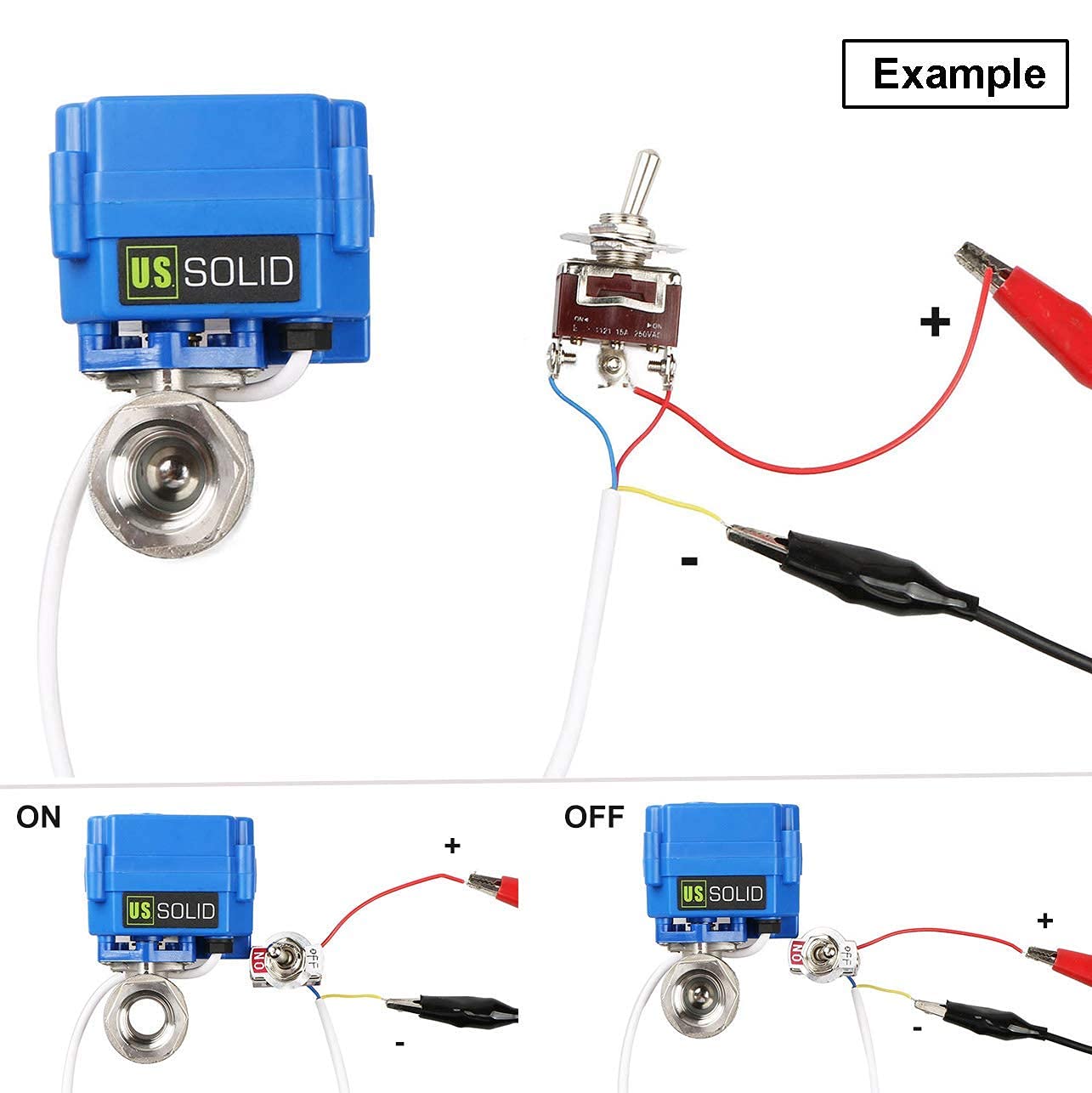

• 3 WIRE, 2 POINT CONTROL SETUP- Simple three wire connection, with two points of control; No energy expended once in position.
• ALTERNATIVE TO SOLENOID VALVES- Automatically cuts off power once fully open or fully closed; This reduces likelihood of overheating, making it a great alternative to solenoid valves for projects where a valve needs to be open for an extended period of time.
• RELIABLE- Lifespan of 80,000-100,000 cycles means a valve that will last.

This motorized ball valve is affordable enough for the home hobbyist, and durable enough for the industry. The valve body and stem are made of SS304. It works using 9V to 24V AC/DC, and will be fully opened or closed in 6-8 seconds. Once in position, it stops using energy automatically. This is important because it will not overheat. it is a key difference between motorized ball valves and solenoid valves. Most solenoid valves are constantly energized, but these electric ball valves are not, making them a safer and more environmentally friendly option. Specifications Valve Material: SS304 Ball Seat: PTFE Close/Open time: 6-8 seconds. Working voltage: 9-24 V AC/DC. Maximum power: 5 W Max torque: 6 N m Max Pressure: 1.0 MPa Temperature range for medium: 0°C - 100°C Ambient temperature: -5°C - 40°C Housing classification: IP65 Life expectancy: 80,000-100,000 cycles Thread Type: G Standard Port, 20 mm
