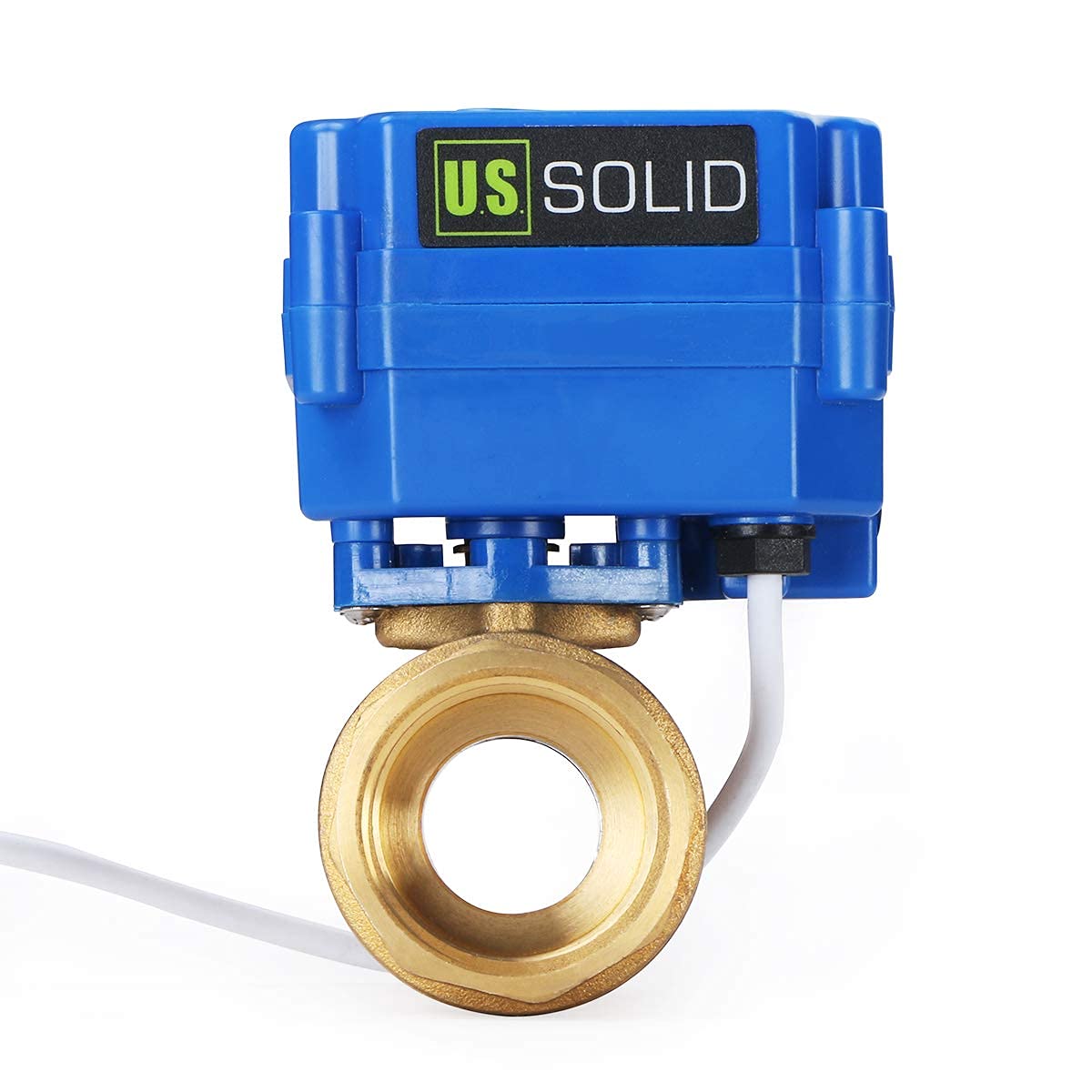

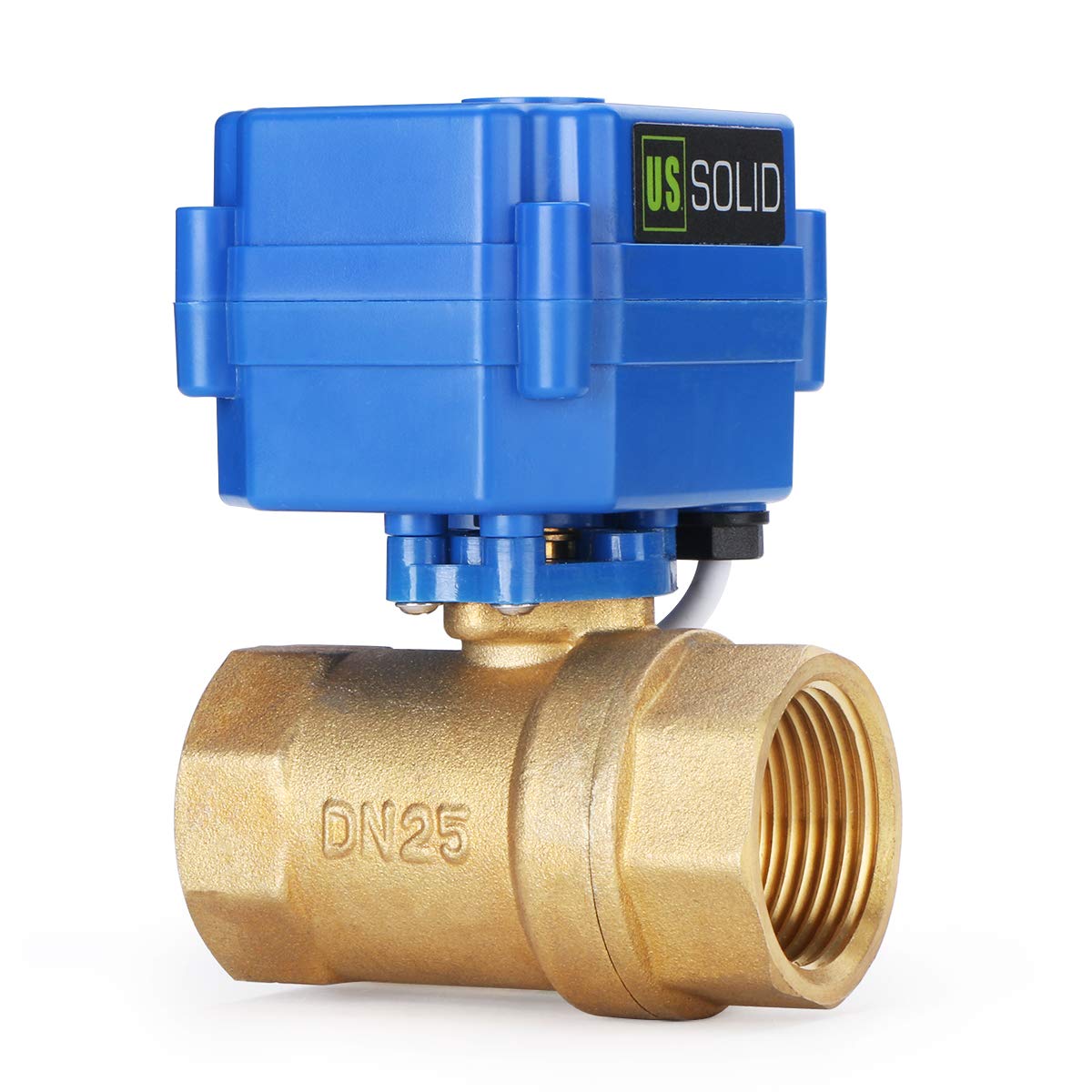

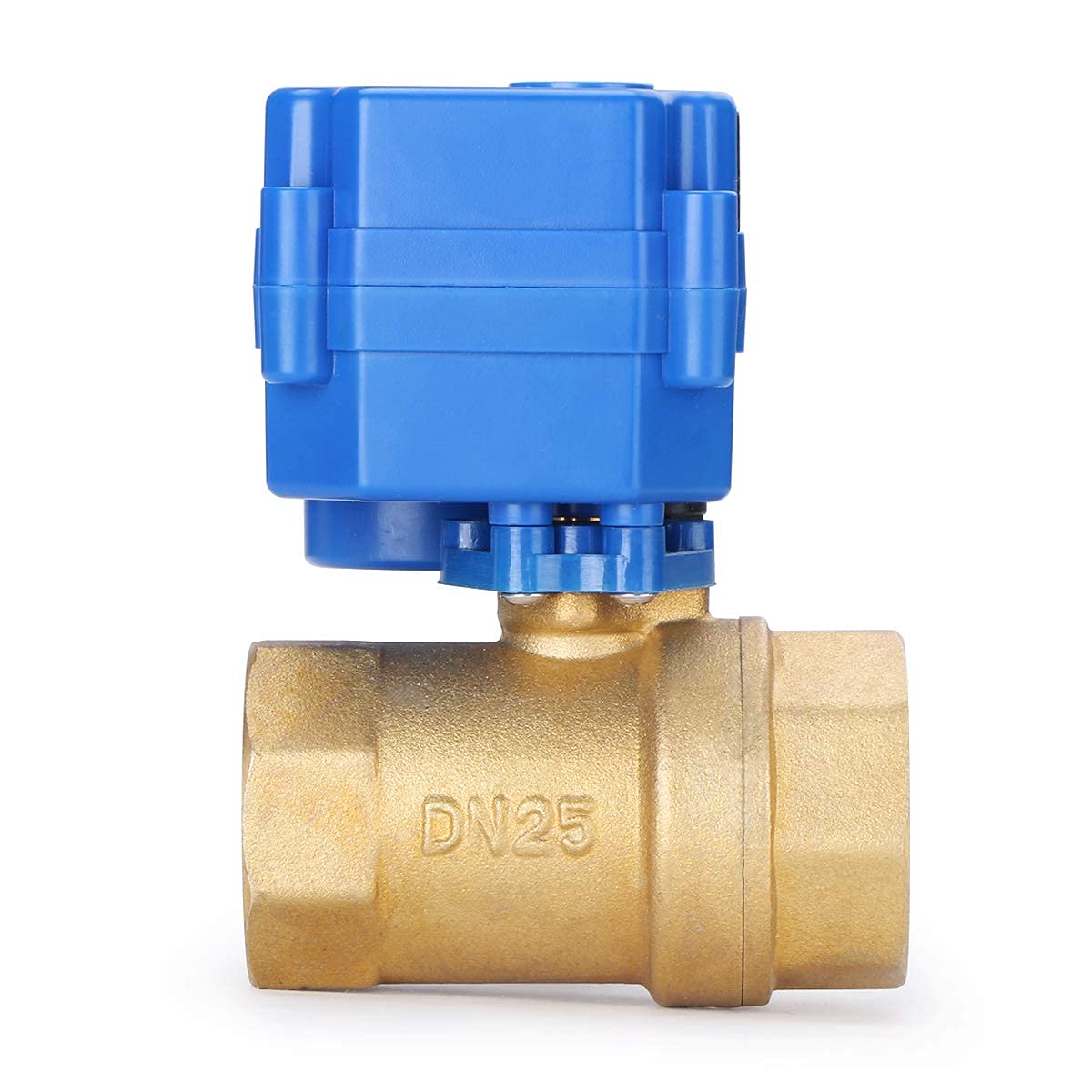

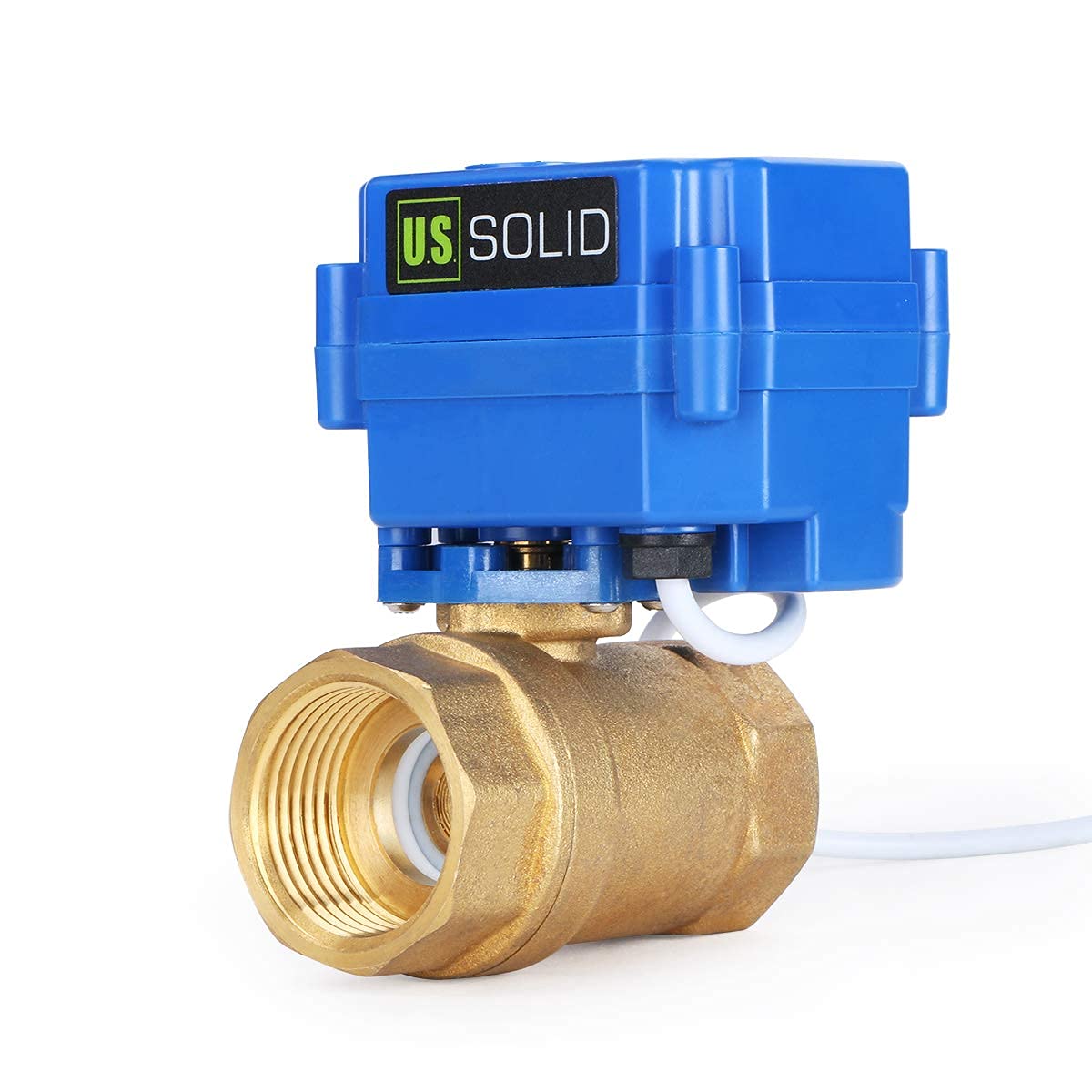

U.S. Solid 1" Motorized Ball Valve Brass Electrical Ball Valve, 9-24V DC, 2 Wire Reverse Polarity Setup

• G Threading- 1” Brass threading, manufactured and measured according to British Standard Pipe Thread.
• 9V-24V DC- Works effectively over entire voltage range; Will open or close valve in 3-5 seconds; No power expended once fully open or fully closed.

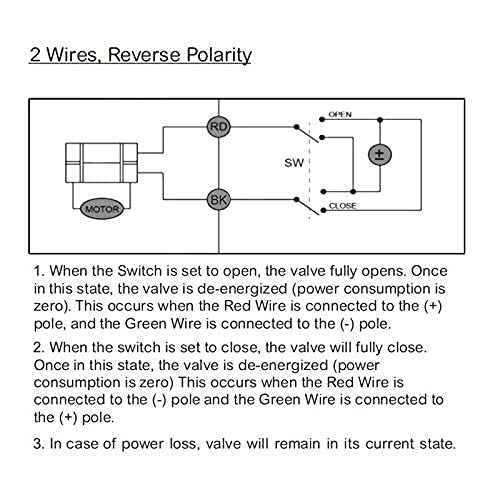

• 2 Wire Reverse Polarity Setup- Simple two wire connection, valve completely de-energizes after opening or closing.
• Alternative to Solenoid Valve- Automatically cuts off power once fully open or fully closed; This reduces likelihood of overheating, making it a great alternative to solenoid valves for projects where a valve needs to be open for an extended period of time.
• Reliable- Lifespan of 80,000-100,000 cycles means a valve that will last.

This 1" motorized brass ball valve from the USA. Solid delivered in sturdy and durable brass. This is a great option for the DIY project, but strong enough for large companies. The valve stem and body are made of reliable, safe but durable brass. This is the key, as many people use these valves in their domestic water systems. The valve works with 9-24V DC power supply, when powered on, it opens fully within 3-5 seconds. Once in position, it automatically stops using energy. This is important because it will never overheat. This is a key difference between motorized ball valves and solenoid valves. Most solenoid valves are constantly powered, while these electric ball valves are not, making them a safer and more environmentally friendly option. The stem of this valve comes with a robust clamping torque of 2N m, which is important, although often overlooked. The stem is a frequent point of failure for valves, and having a strong stem helps ensure quality performance for life. There are many possible uses for this motorized ball valve. Although it does not act quickly, it is sturdy and durable once energized. They can also work efficiently even with gravity flow operations, such as those used in some auxiliary fuel tank configurations. Features: Valve Material: Brass Ball Seat: PTFE Gasket: silicone rubber. Closing/opening time: 3-5 seconds. Working Voltage: DC 9-24V Maximum power: 2W Max Torque: 2N m Maximum pressure: 1.0 MPa Temperature range for flow medium: 0°C to 90°C. Ambient temperature range: -10°C to 40°C. Housing Rating: IP65 Service life: 80,000 to 100,000 cycles. Thread Type: G Warning: This product may expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive damage. And it is not allowed to be installed in drinking water pipes.
