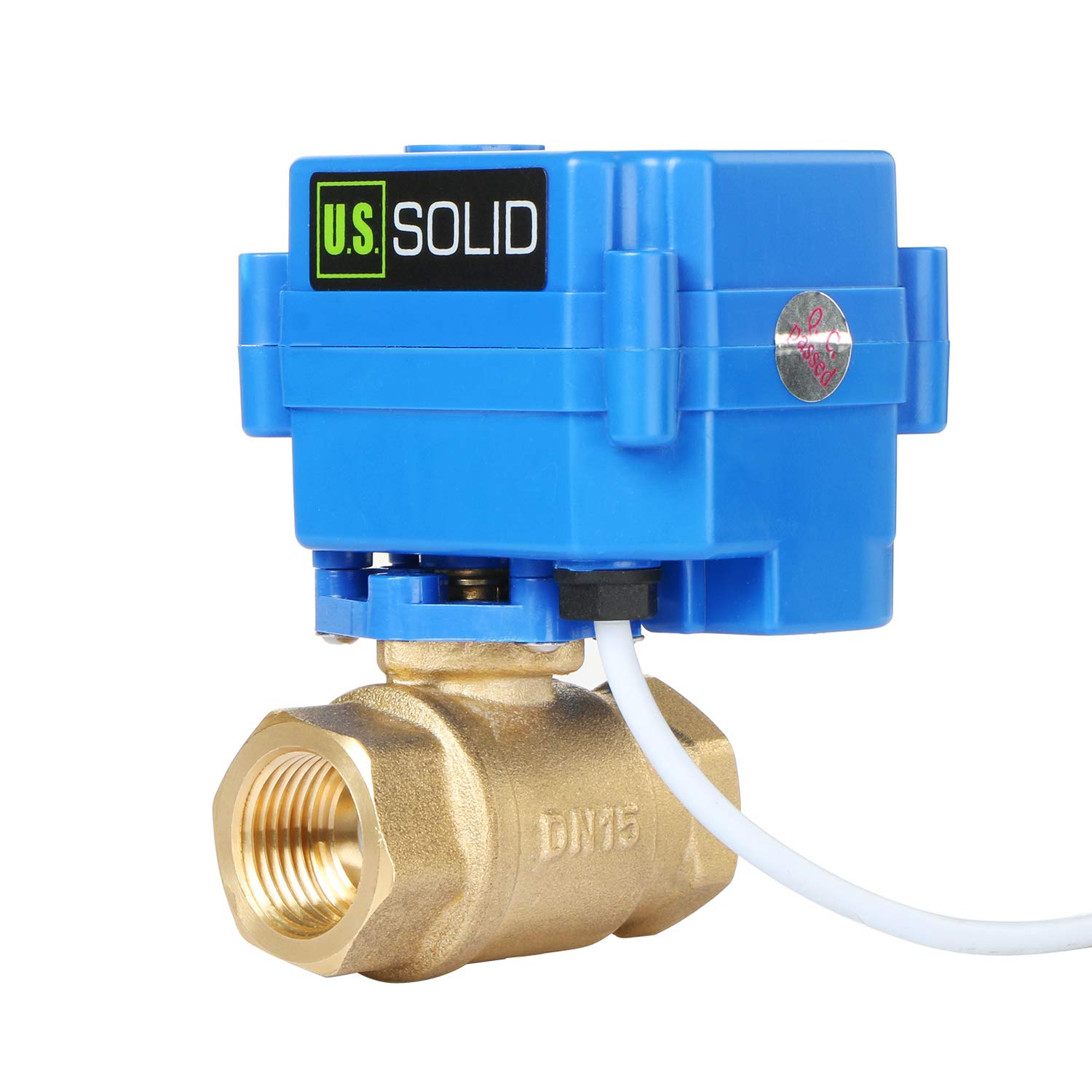

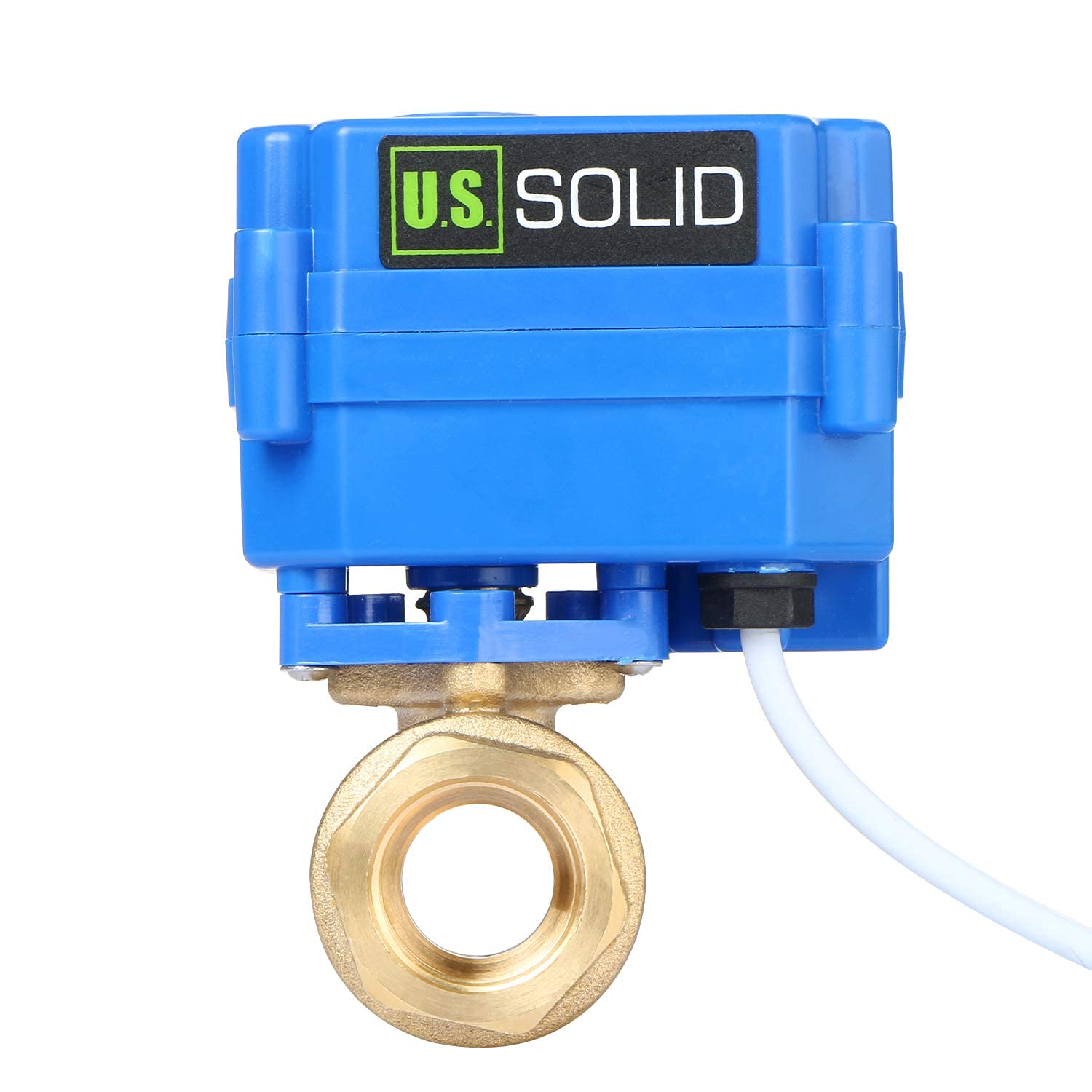

U.S. Solid 1/2" Motorized Ball Valve Brass Electrical Ball Valve, 9-24V DC, DN15 2 Wire Reverse Polarity Setup, Full Port

• G Threading- 1/2” Brass threading, manufactured and measured according to British Standard Pipe Thread.
• 9V-24V DC- Works effectively over entire voltage range; Will open or close valve in 3-5 seconds; No power expended once fully open or fully closed.

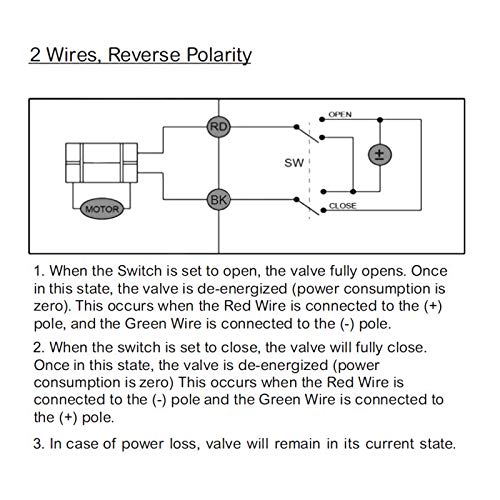

• 2 Wire Reverse Polarity Setup- Simple two wire connection, valve completely de-energizes after opening or closing.
• Alternative to Solenoid Valve- Automatically cuts off power once fully open or fully closed; This reduces likelihood of overheating, making it a great alternative to solenoid valves for projects where a valve needs to be open for an extended period of time.
• Reliable- Lifespan of 80,000-100,000 cycles means a valve that will last.

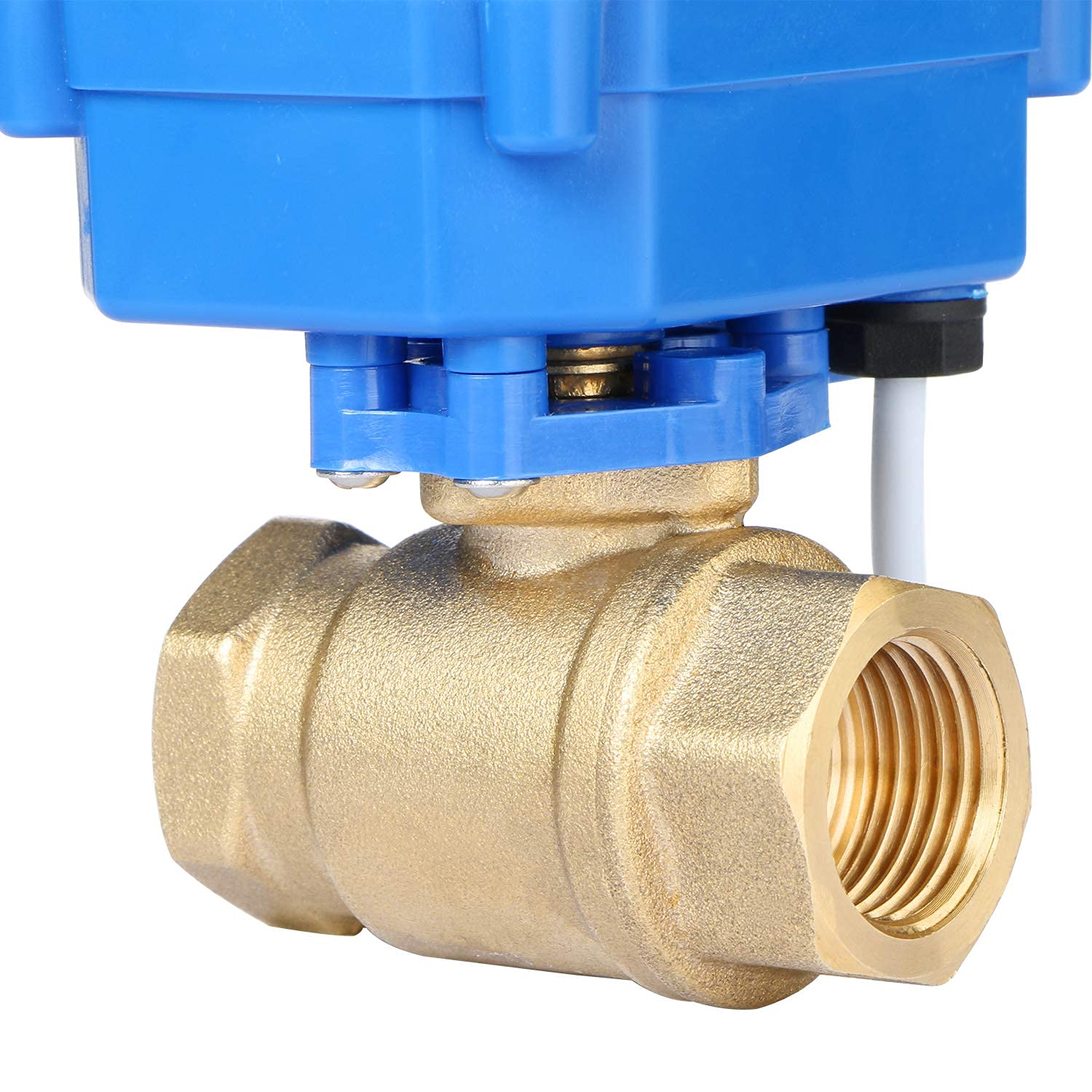

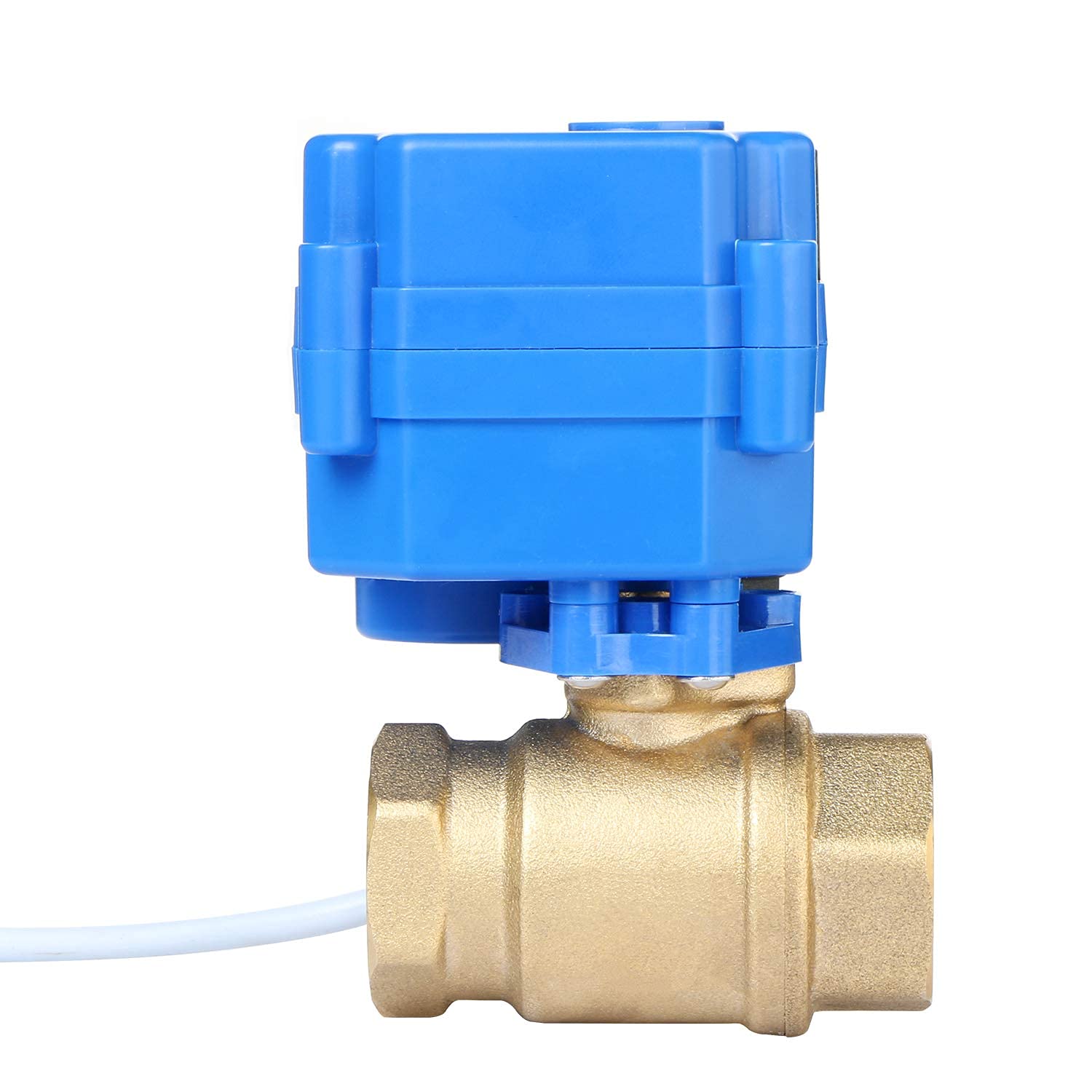

This 1/2'' brass motorized ball valve from U.S. Solid comes in a sturdy, durable brass. It is a great option for the DIY project, but strong enough for big businesses. The stem and body of the valve are comprised of trusty brass, which is safe but resilient. The valve actuates with 9-24V DC power. When energized, it will open fully in 3-5 seconds. Once in position, it automatically stops using energy. This is important as it will never overheat.This is a key difference between motorized ball valves and solenoid valves. Most solenoid valves are constantly energized, while these electrical ball valves are not, making them a safer and more eco-friendly option. The stem on this valve comes with a robust torque rating of 2 N m. This is important, though often overlooked. The stem is a frequent point of failure for valves, and having a strong stem helps to ensure a lifetime of quality performance. There are many different potential uses for this motorized ball valve. While not quick acting, it is sturdy and resilient once energized. They can also work effectively even with gravity flow operations, such as those used in some auxiliary fuel tank setups. Specifications Valve Material: Brass Ball Seat: PTFE Seal: Silicone Rubber Close/Open Time: 3-5 Seconds Working Voltage: 9-24V DC Max Power: 2 W Max Torque: 2 N m Max Pressure: 1.0 MPa Temperature range for Flow Medium: 0°C to 90°C Ambient Temperature Range: -10°C to 40°C Enclosure Rating: IP65 Life Expectancy: 80,000-100,000 Cycles Thread Type: G Full Port, 15 mm WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. And it is not allowed to be installed in potable water pipelines.
