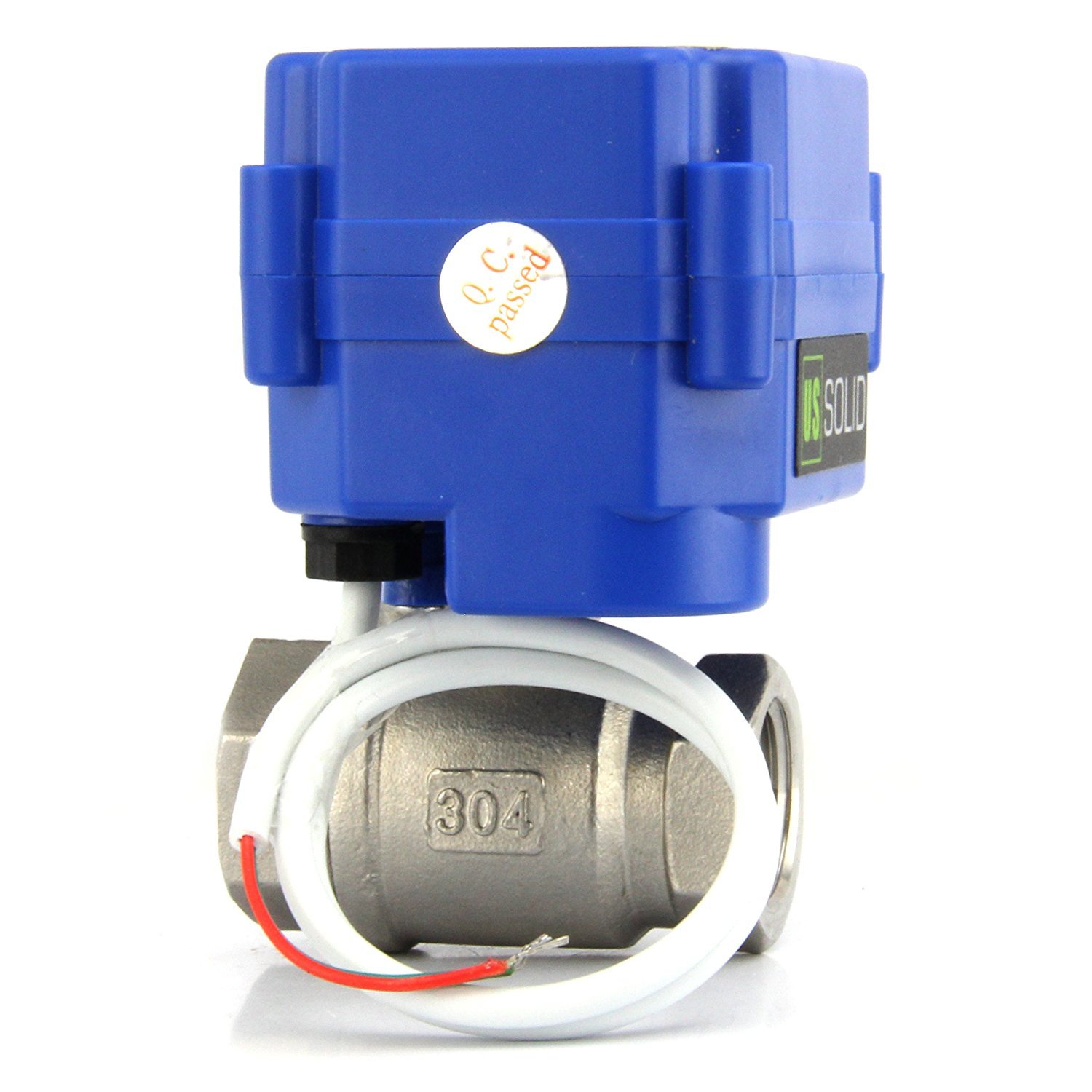

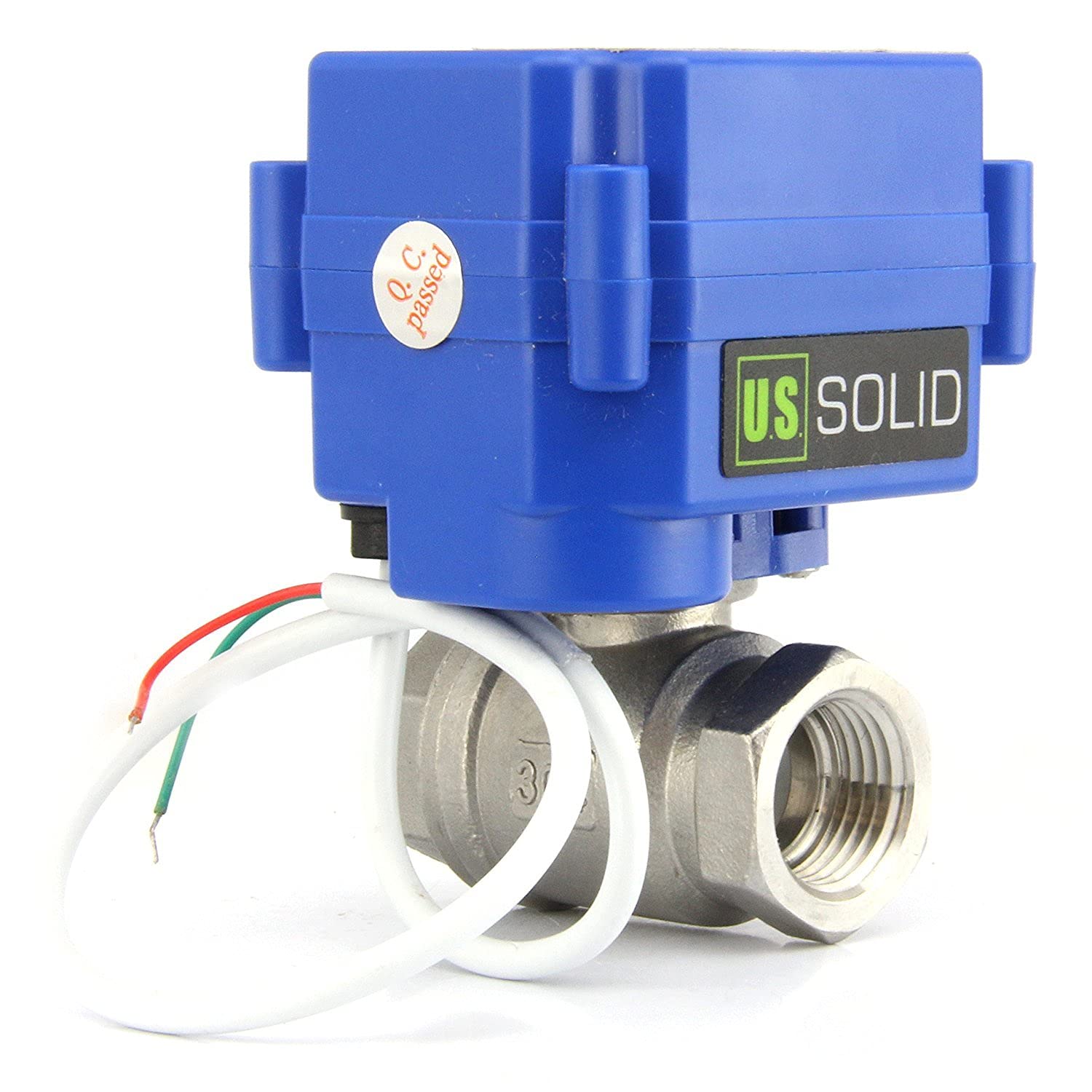

U.S. Solid 1/2" Motorized Ball Valve 220V AC (85-265 V AC) Stainless Steel Electrical Ball Valve DN15 BSP with Full Port, 2 Wire Auto Return Setup

• G THREADING- 1/2” Stainless Steel threading, manufactured and measured according to British Standard Pipe Thread.
• 85-265V AC- Works effectively over entire voltage range; Will open or close valve in 3-5 seconds; No power expended once fully open or fully closed.
• 2 WIRE AUTOMATIC RETURN SETUP- Simple two wire connection, valve largely de-energizes after opening; Returns to fully closed if power is removed.
• ALTERNATIVE TO SOLENOID VALVES- Automatically cuts off power once fully open or fully closed; This reduces likelihood of overheating, making it a great alternative to solenoid valves for projects where a valve needs to be open for an extended period of time.
• RELIABLE- Lifespan of 80,000-100,000 cycles means a valve that will last.

U.S. Solid SKU: JFMSV00053 UPC: 888107088806 Condition: New Availability: Usually ships within 24 hours size: 1/2" google product category: Hardware > Plumbing > Plumbing Fittings & Supports > Plumbing Valves Motorized ball valves are a vital piece of equipment in numerous applications. This 1/2” stainless steel model opens and closes in 6-8 seconds, and remains in its new position while expending no energy. This is a key difference between motorized ball valves and many solenoid valves. Most solenoid valves are energized continuously when in a new position, while motorized ball valves expend energy only when changing from open to close, or vice versa. Motorized ball valves are used in various home automation systems. They can be used as emergency backups for water systems, and they are a favorite of home brewers across the country. U.S. Solid motorized ball valves combine industry quality construction with affordability for the individual purchaser. SpecificationsU.S. Solid Model: USS-MSV00053Valve Material : SS304Ball Seat: PTFE Seal: EPDM Operating Time : 3-5 Seconds Working Voltage : 85-265 V ACMax Power : 5 W Max Torque : 2 N m Max Medium Pressure : 1.0 Mpa Temperature Range for Flow Medium : 0°C to 100°C Ambient Temperature Range : -5°C to 40°C Enclosure Rating : IP65 Life Expectancy : 80,000 to 100,000 Cycles Bore Type: Full Thread Type : NPT Wiring Type : 2 Wire Auto Return Video
