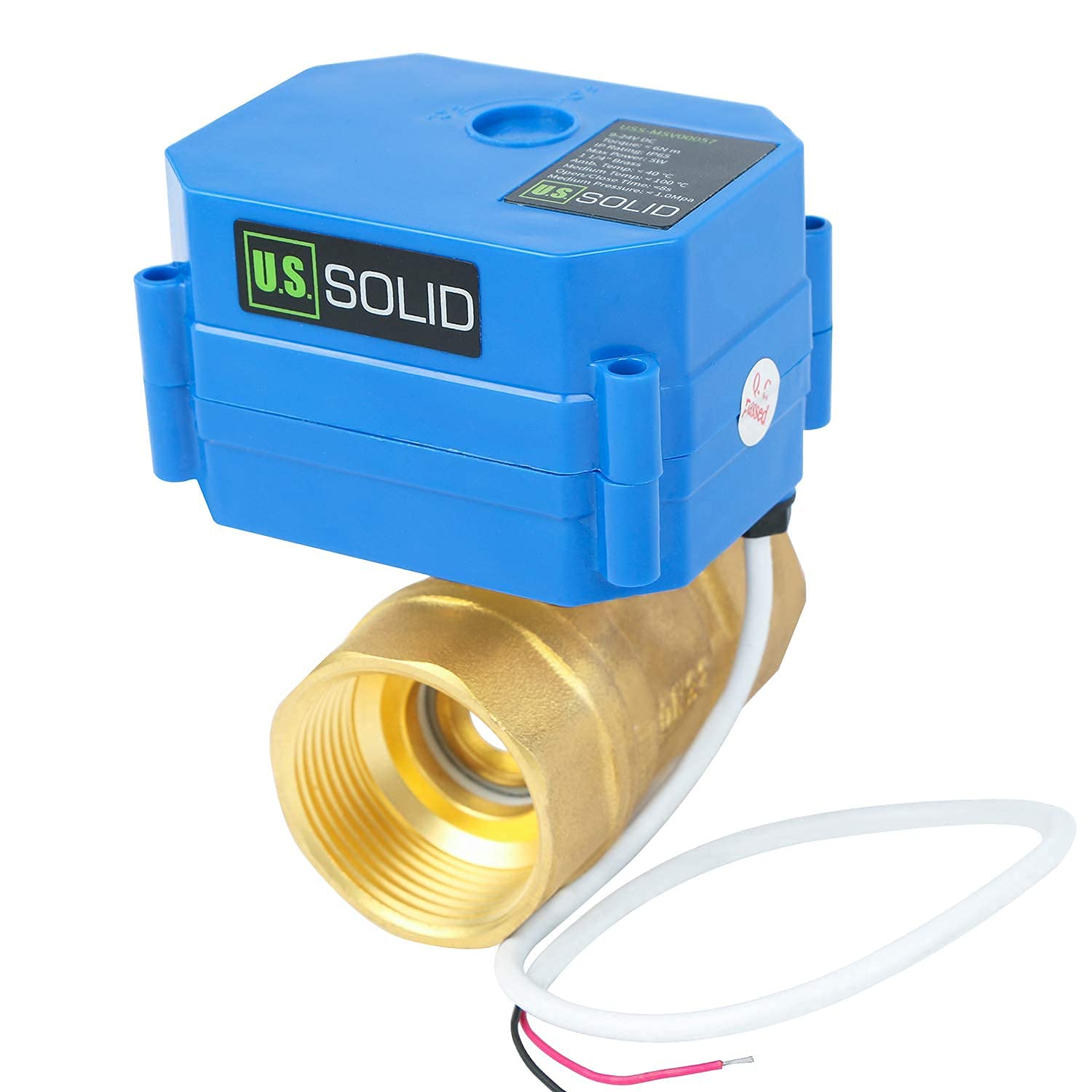

U.S. Solid 1 1/4" Brass Motorized Ball Valve 9-24V AC/DC DN32 Electrical Ball Valve, 2 Wire Auto Return Setup

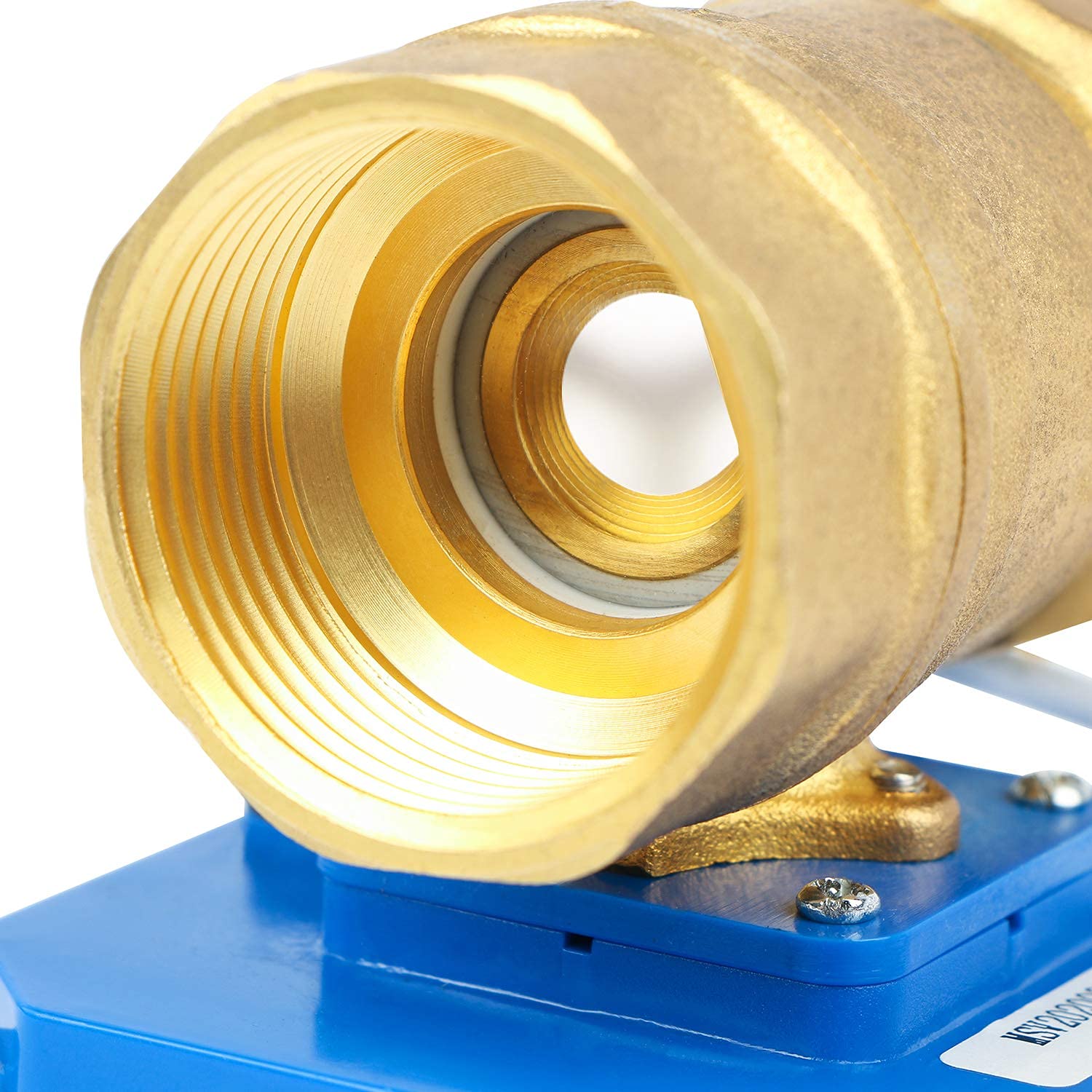

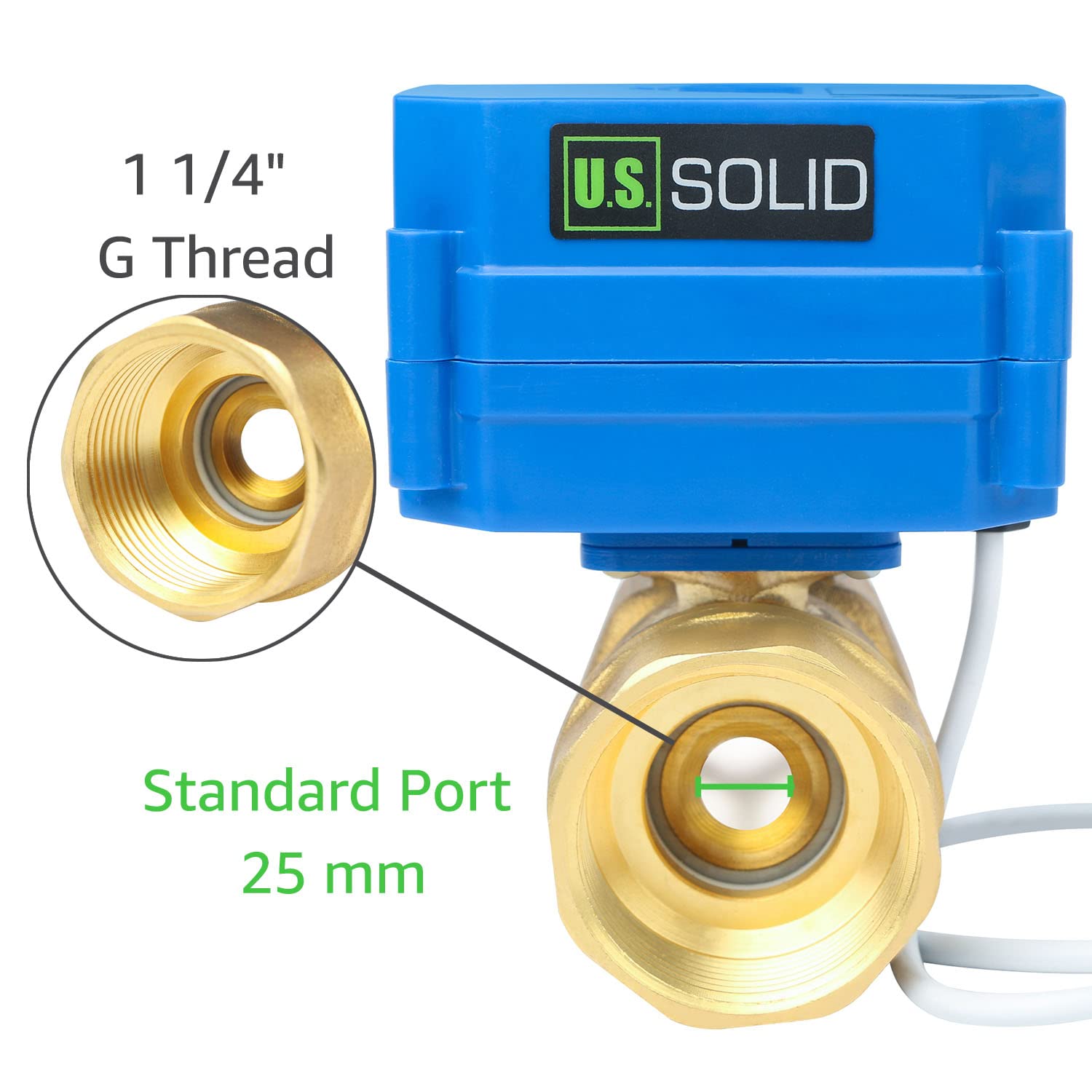

• G THREADING- 1 1/4" Brass threading, manufactured and measured according to British Standard Pipe Thread.
• 9-24V AC/DC- Works effectively over entire voltage range; Will open or close valve in 6-8 seconds; No power expended once fully open or fully closed.

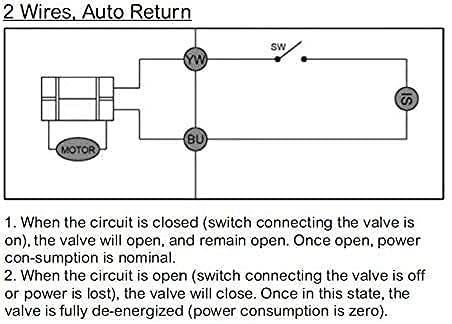

• 2 WIRE AUTOMATIC RETURN SETUP- Simple two wire connection, valve largely de-energizes after opening; Returns to fully closed if power is removed.
• ALTERNATIVE TO SOLENOID VALVES- Automatically cuts off power once fully open or fully closed; This reduces likelihood of overheating, making it a great alternative to solenoid valves for projects where a valve needs to be open for an extended period of time.
• RELIABLE- Lifespan of 80,000-100,000 cycles means a valve that will last.

The U.S. Motorized Ball Valve Solid 1 1/4" Brass with Auto Return is a blessing for many DIYers. The body and stem of this valve are made of brass. The valve will activate when the DC 9V to 24V power is brought to it. The valve is normally closed, when powered on, it opens in 6-8 seconds. Then the limit switches will keep the power production at a negligible level. If the power is turned off, the valve will return to a closed position. Most solenoid valves are fully powered on when opened, which can lead to overheating. This valve takes so little energy once fully opened, so it will never be overheated. Specifications Valve Material: Brass Ball Seat: PTFE Seals: silicone rubber Close/Open time: 6-8 seconds. Working voltage: 9-24V DC. Maximum power: 5 W Max torque: 6 N m Max Pressure: 1.0 MPa Temperature range for medium: 0°C - 100°C Ambient temperature: -5°C - 40°C Housing classification: IP65 Life expectancy: 80,000-100,000 cycles Thread Type: G Standard Port, 25mm Cannot be used in strong acids, strong bases, wastewater, industrial gases and other media containing many impurities. WARNING: This product may expose you to chemicals, including lead, which is known to the State of California to cause cancer and birth defects or other reproductive disorders. And it is not allowed to be installed in drinking water pipes.
