U.S. Solid 1 1/4" Brass Motorized Ball Valve 220V AC (85-265 V AC) DN32 Electrical Ball Valve, 2 Wire Auto Return Setup

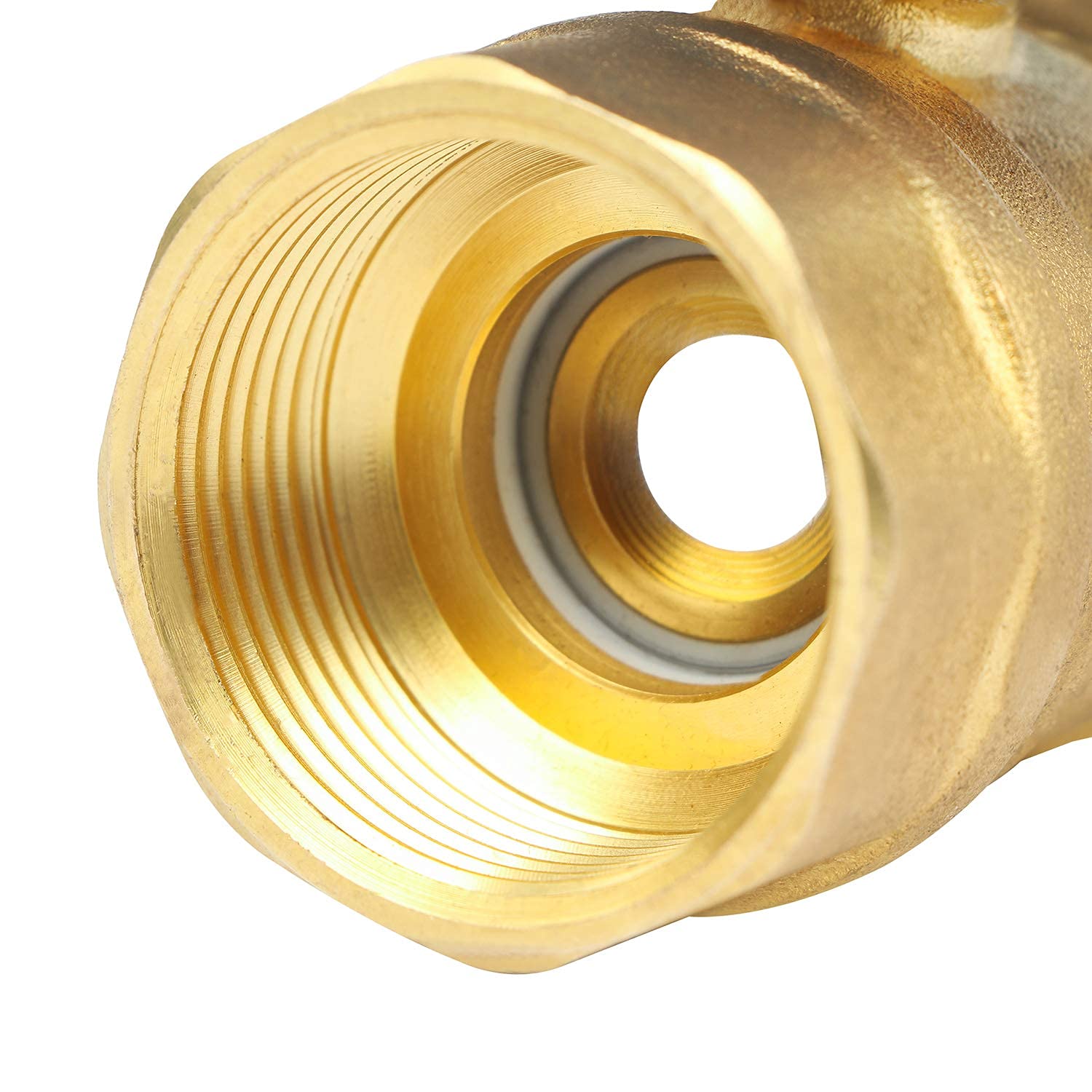

• G THREADING- 1 1/4" Brass threading, manufactured and measured according to British Standard Pipe Thread.
• 85V-265V AC- Works effectively over entire voltage range; Will open or close valve in 6-8 seconds; No power expended once fully open or fully closed.
• 2 WIRE AUTOMATIC RETURN SETUP- Simple two wire connection, valve largely de-energizes after opening; Returns to fully closed if power is removed.
• ALTERNATIVE TO SOLENOID VALVES- Automatically cuts off power once fully open or fully closed; This reduces likelihood of overheating, making it a great alternative to solenoid valves for projects where a valve needs to be open for an extended period of time.
• RELIABLE- Lifespan of 80,000-100,000 cycles means a valve that will last.

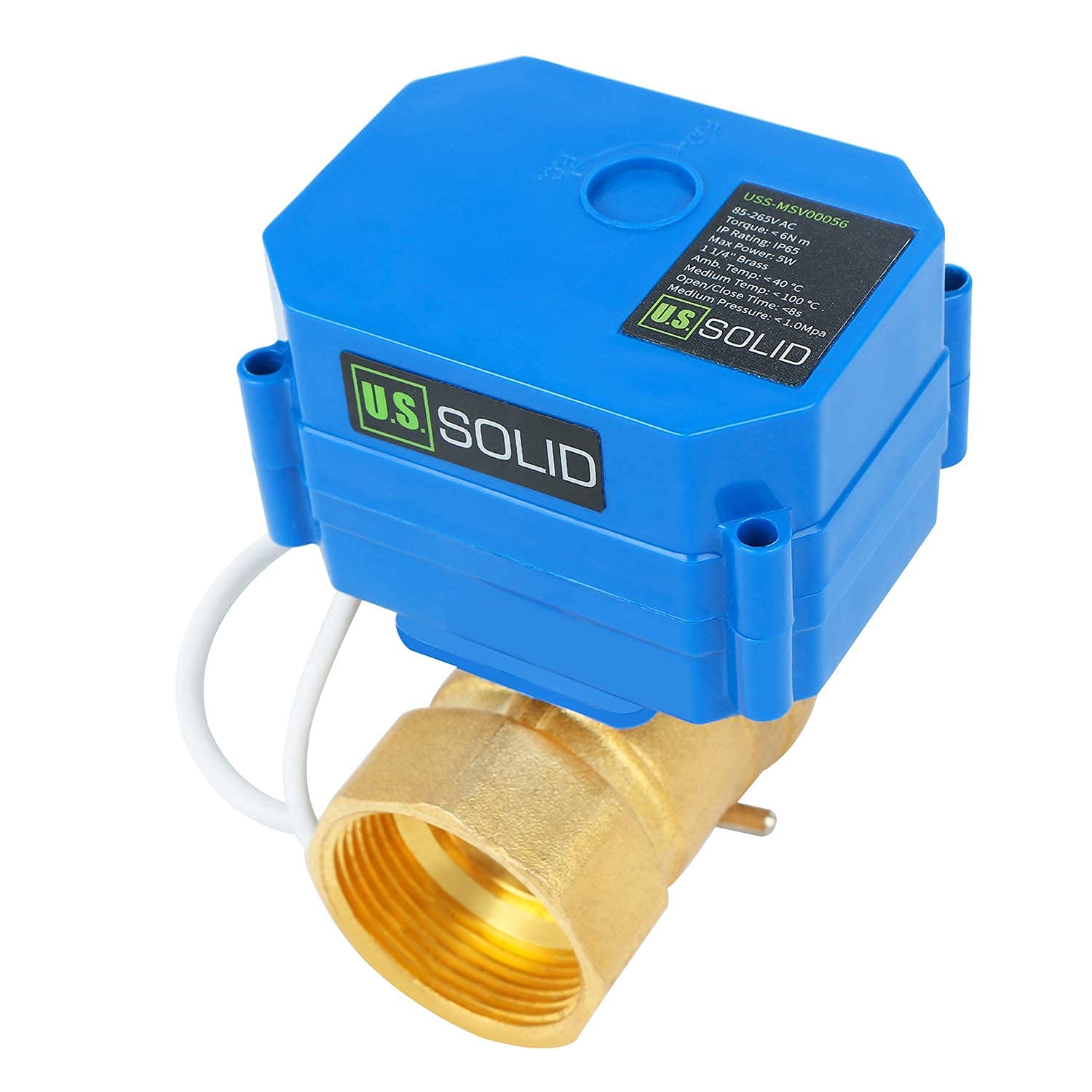

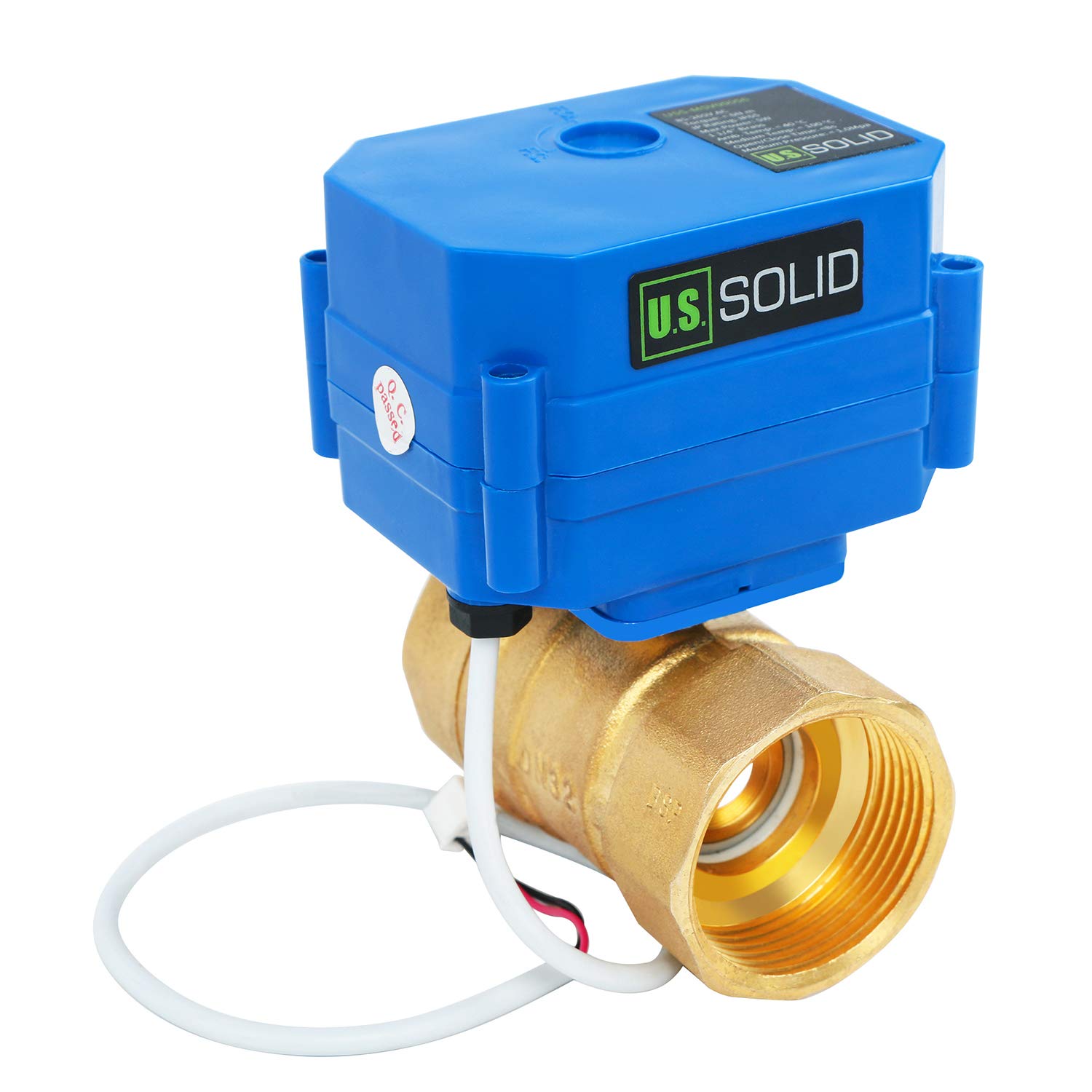

This 1 1/4" brass motorized ball valve from U.S. Solid comes in a sturdy, durable brass. It is a great option for the DIY project, but strong enough for big businesses. The stem and body of the valve are comprised of trusty brass, which is safe but resilient. The valve actuates with 85-265V of AC power. When energized, it will open fully in 6-8 seconds. Since this valve is a normally closed (N/C) ball valve, it will automatically return to a closed position when the power source is eliminated. When fully opened, a limit switch keeps the amount of power used by the valve to a miniscule levels. This makes it a much more environmentally friendly option than most solenoid valves. Most solenoid valves are fully energized when opened, which can lead to problems and overheating when run continuously. This valve draws such low levels of power once fully opened that it can be run continuously and never overheat. The stem on this valve comes with a robust torque rating of 6 Nm. This is important, though often overlooked. The stem is a frequent point of failure for valves, and having a strong stem helps to ensure a lifetime of quality performance. Specifications Valve Material: Brass Ball Seat: PTFE Seal: Silicone Rubber Close/Open Time: 6-8 Seconds Working Voltage: 85-265V AC Max Power: 5 W Max Torque: 6 N m Max Pressure: 1.0 MPa Temperature range for Flow Medium: 0°C to 100°C Ambient Temperature Range: -5°C to 40°C Enclosure Rating: IP65 Life Expectancy: 80,000-100,000 Cycles Thread Type: G Standard Port, 25 mm Can not be used in strong acid, strong base, waste water, industrial gas and other media containing many impurities. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. And it is not allowed to be installed in potable water pipelines.
