Tubular Air Trap Siphon with Connection for Bathroom Sinks

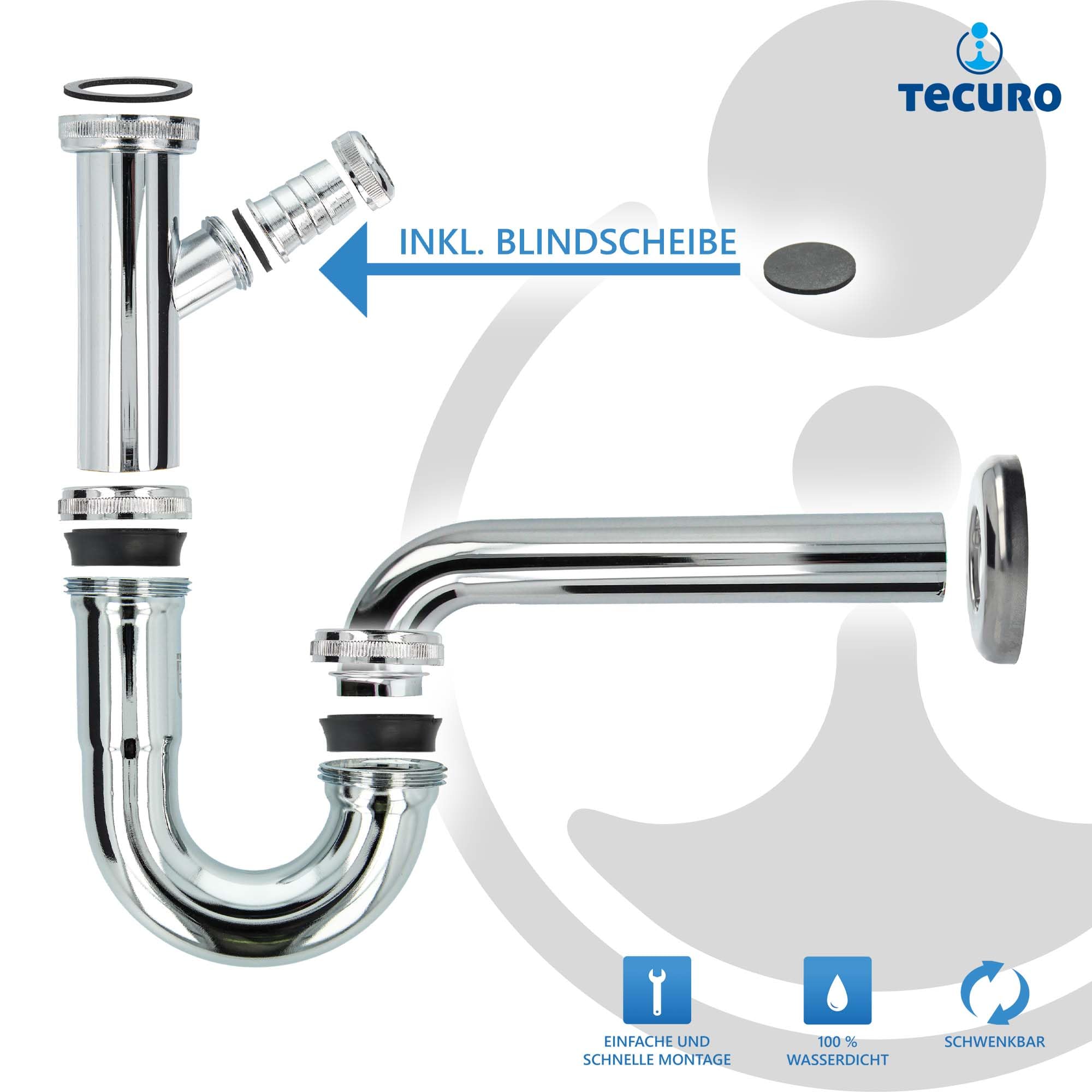

• R hrensiphon odour trap. Design: With connection for mounting a wash or dishwasher drain hose
• 1 1/4 inch connection (standard) for washbasin. Ger connection nozzle with 19 mm. Pipe diameter: 32 mm. Includes Rosette 65 mm
• Tested according to DIN 16545 + EN 274
• Material: Outlet bend: Stainless steel // Immersion pipe and outlet pipe: Chrome-plated br, can be shortened

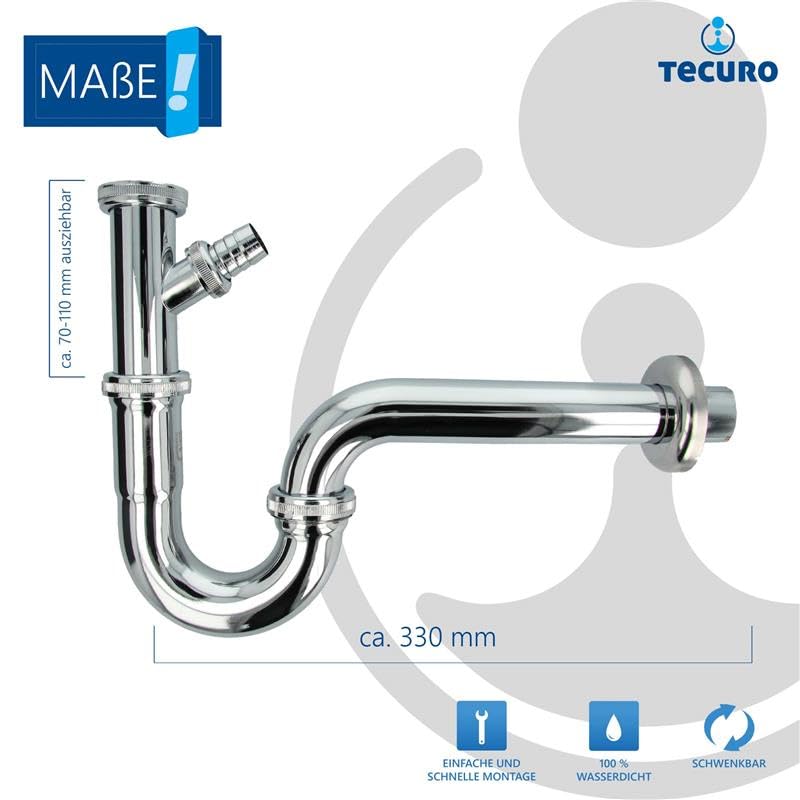

• Conversions for the measurements in inches can be seen in the conversion chart in the pictures

Tube siphon - odour trap. Design: With device connection for mounting a washing machine or dishwasher drain hose, 1 1/4 inch connection (standard) for sinks, device connection nozzle with diameter 19 mm, pipe diameter: 32 mm including Rosette diameter 65 mm, tested according to DIN 16545 + EN 274. Other dimensions in the pictures. Material: Outlet bend: Stainless steel immersion pipe and outlet pipe: Chrome-plated brass, can be shortened. For conversion of the inch dimensions, please refer to the conversion chart in the pictures.
