trueCABLE Cat6/6A RJ45 Pass Through Modular Plugs, Shielded (STP) External Ground Connector, UL Listed, EZ Crimp, Gold Plated 3 Prong 8P8C, 50 Pieces

• [Pass Through Design] No more load bars means less waste and frustration. The ability to see the conductors come through the front of the plug allows you to verify the correct TIA 568A or 568B color sequence which minimizes bad terminations.
• [Maximum Performance] Ensuring the best cable to plug combination, pass through plugs allow a push-pull method to seat the cable jacket as far into the plug as possible, minimizing crosstalk. Triple prong gold plated contacts. Staggered conductor design. Shielded (External Ground). Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
• [Versatile] Compatible with 23AWG stranded or solid conductors. Suitable for cable jacket diameters up to ∅8.00mm and conductor insulation diameters from ∅1.05 - 1.25mm. Terminate and crimp external ground tab with the trueCABLE all in one V2 tool.
• [Premium Quality] ANSI/TIA 568 2.D Certified and Validated with trueCABLE F/UTP Ethernet cable. ETL, UL, SGS (RoHS REACH / SVHC) Verified and Tested. FCC compliant.

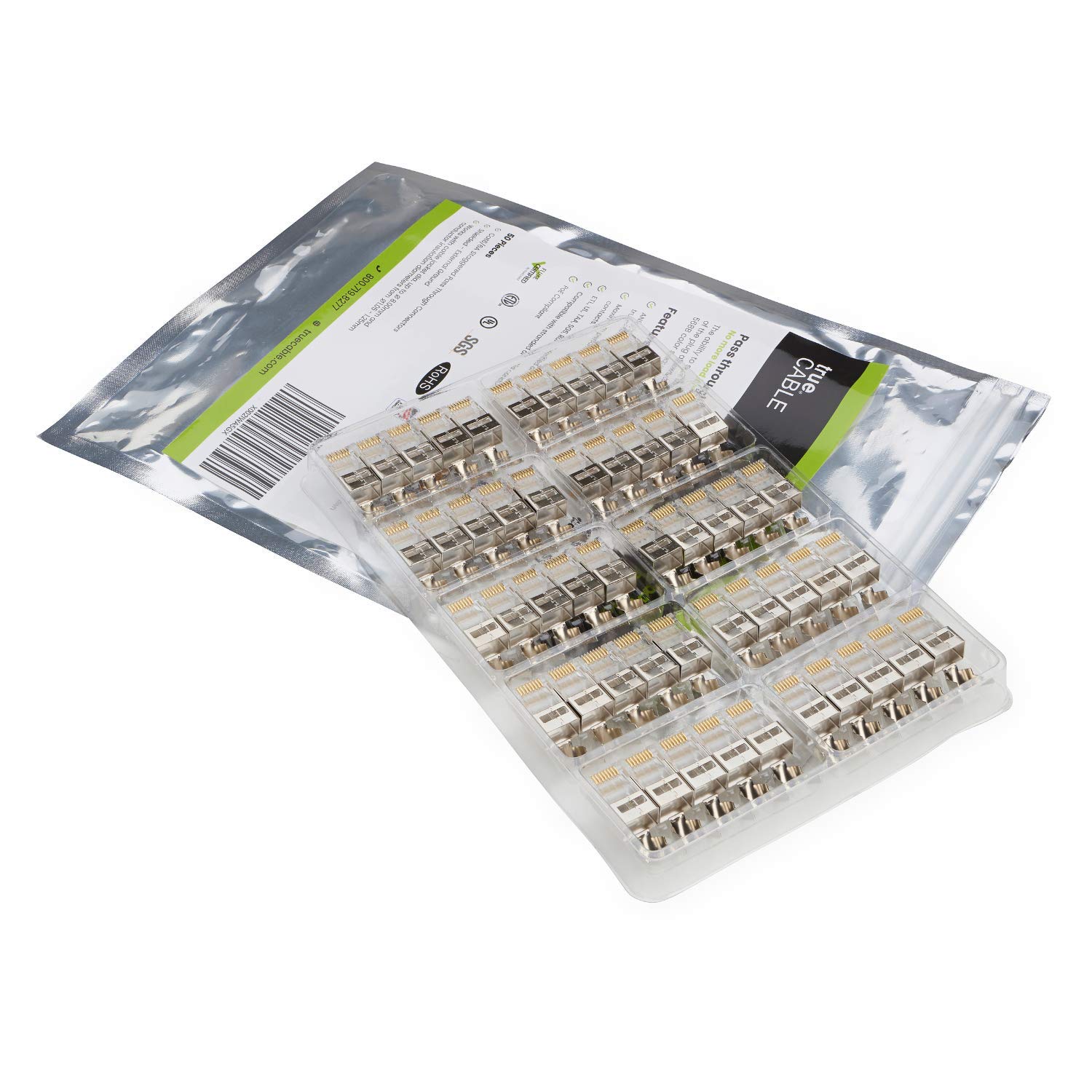

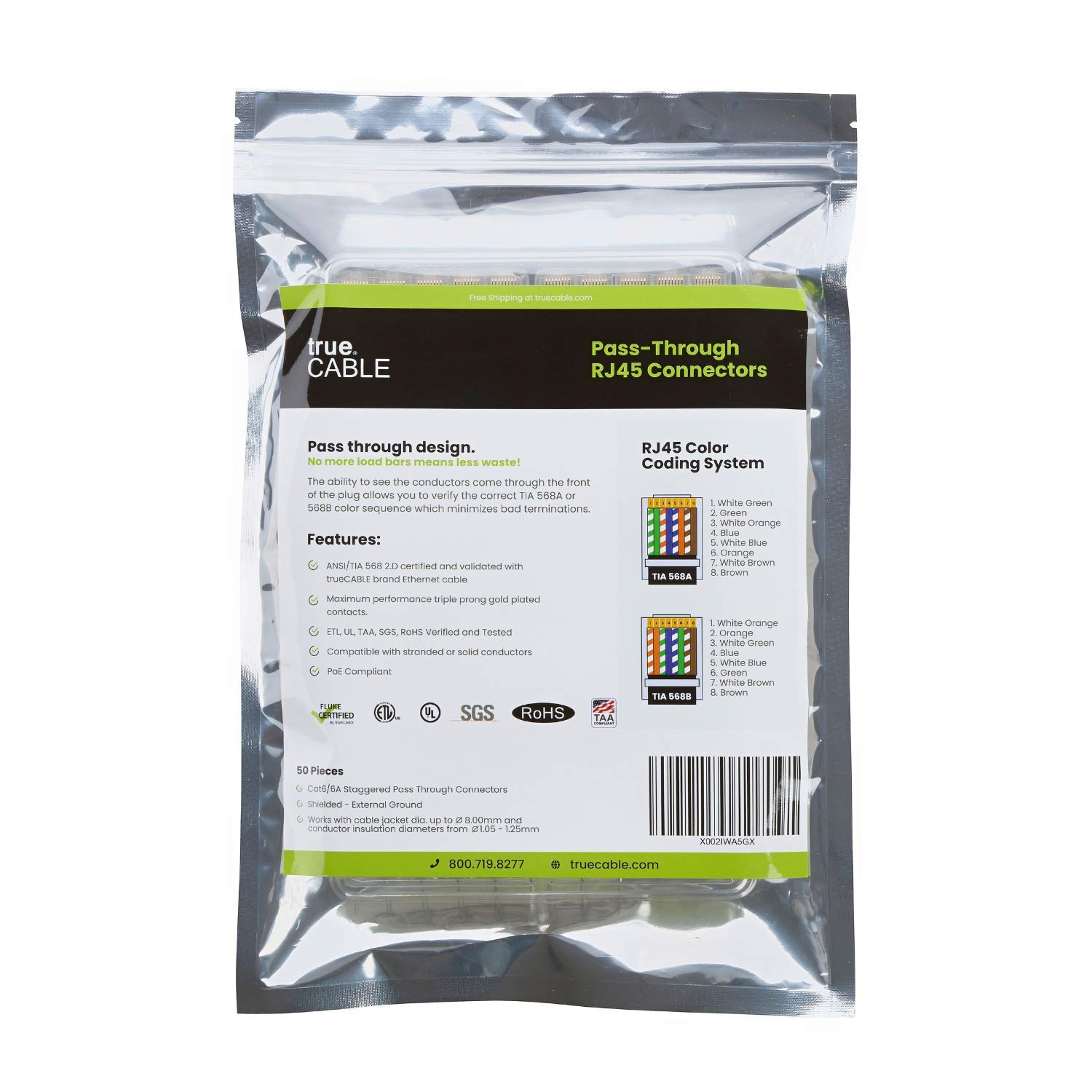

• [Resealable Bag] These shielded pass through RJ45 ends are sure to make your install hassle free.

Looking for a Cat6 or Cat6A shielded RJ45 plug that is: Hassle-Free Well documented ANSI/TIA 568 Certified ...tested with cable in the real world by installers? Look no further, as you just found your plug! Our shielded Cat6/6A RJ45 plugs are designed to be used with shielded (F/UTP) Ethernet cables, both stranded and solid conductors, but can also be used on unshielded (U/UTP) cable. The pass through design is where your frustration level will come down and success rate will increase. If you’ve ever dealt with the old style push-in or push-in with load bar plugs, then you know what we mean. Designed for maximum cable shield electrical contact. The inside rear of the plug is metal, so there’s no need to remove the foil. After stripping the cable jacket off, wrap the drain wire around the cable jacket and fold the cable shield backward over it. Untwist and comb out the individual conductors. Line up the conductors into the correct T568A or T568B color sequence and push them through the nose of the connector. Everything look good? If the wiring sequence is still correct, now pull. Use the push-pull method to help eliminate kinking of the conductors inside the plug and get the cable jacket up as far as possible into the rear of the connector. The further up you can get the cable into the plug, the more crosstalk is reduced. Using our V2 all in one crimp and termination tool, terminate the plug and then crimp the external ground tab. Excess conductors are shaved off automatically. Remove excess foil shielding at the rear of the plug. Onto the next one. With heavy duty thick outdoor shielded cable exceeding ∅7.30mm OD, you will need to gently “ovalize” the end of the cable for the last 0.75” using the oval cutout in small/standard lineman’s electrical pliers. This is to size the end of the cable to fit inside the plug. Don’t crush the cable flat.
