Tridonic LCA 15W 180-350mA flexC PH-C SR ADV LED Driver 87500627, Dimmable Constant Current SELV, 220-240V, 180/250/350mA Selectable, Phase Cut, IP20, 15W Max

• DIMMABLE CONSTANT CURRENT LED DRIVER: Designed as a SELV constant current driver with phase-cut dimming via both leading edge and trailing edge dimmers.
• SELECTABLE OUTPUT CURRENT: Choose between 180mA, 250mA or 350mA to suit compatible LED modules and luminaire designs.
• 5 TO 100% DIMMING RANGE: Supports a 5-100% dimming range depending on the dimmer used, giving better control over light output.

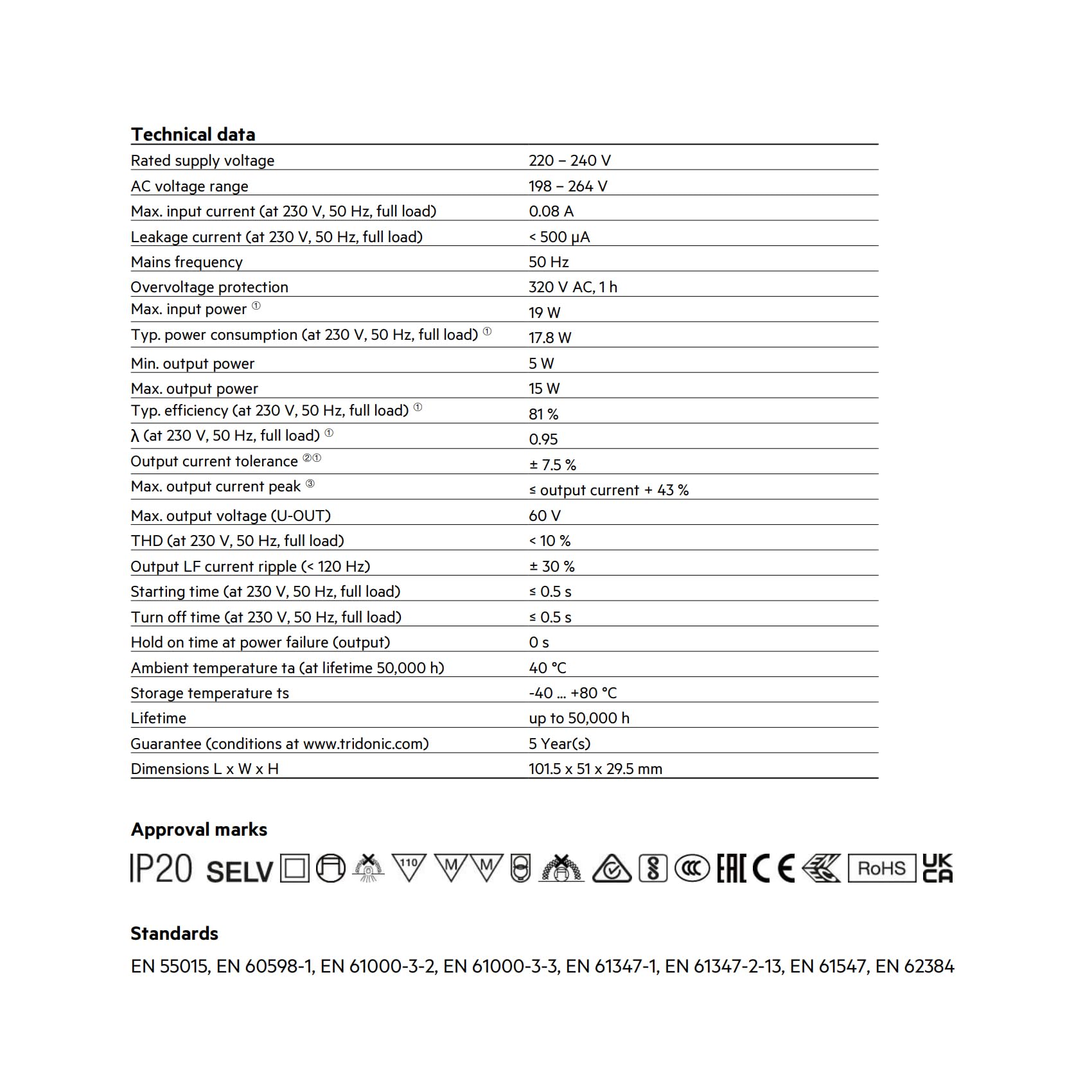

• 220-240V INPUT, UP TO 15W OUTPUT: Rated for 220-240V mains input with up to 15W max output power and 28-42V output across the selectable current settings.

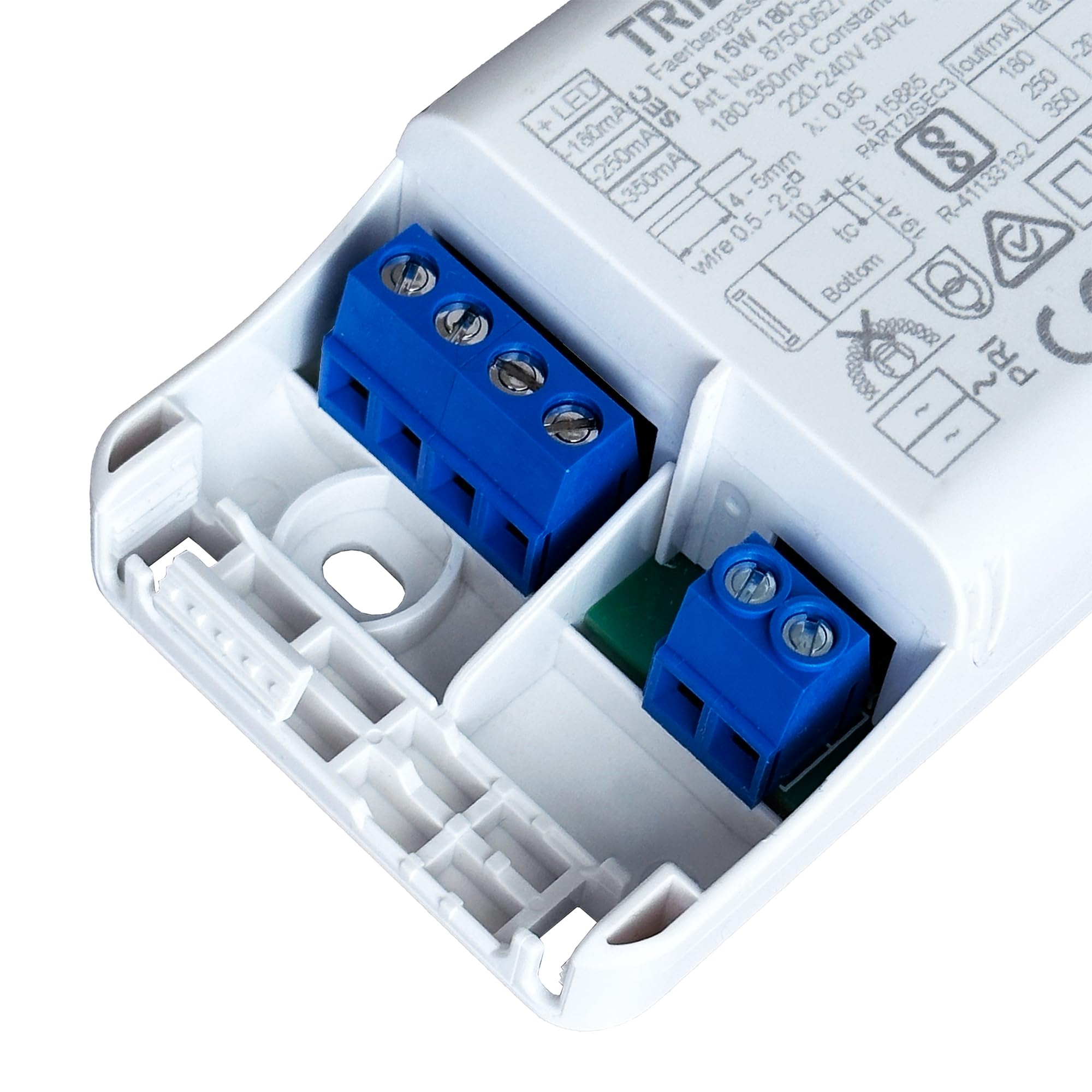

• INDEPENDENT IP20 HOUSING: Independent driver with cable clamps, white polycarbonate casing, and IP20 protection for internal luminaire use.
• BUILT-IN PROTECTION FEATURES: Includes overload, short-circuit, no-load and overtemperature protection for safer operation.
• SURGE PROTECTED DESIGN: Features 1kV burst protection, 1kV surge protection L to N, and 2kV surge protection L/N to earth.

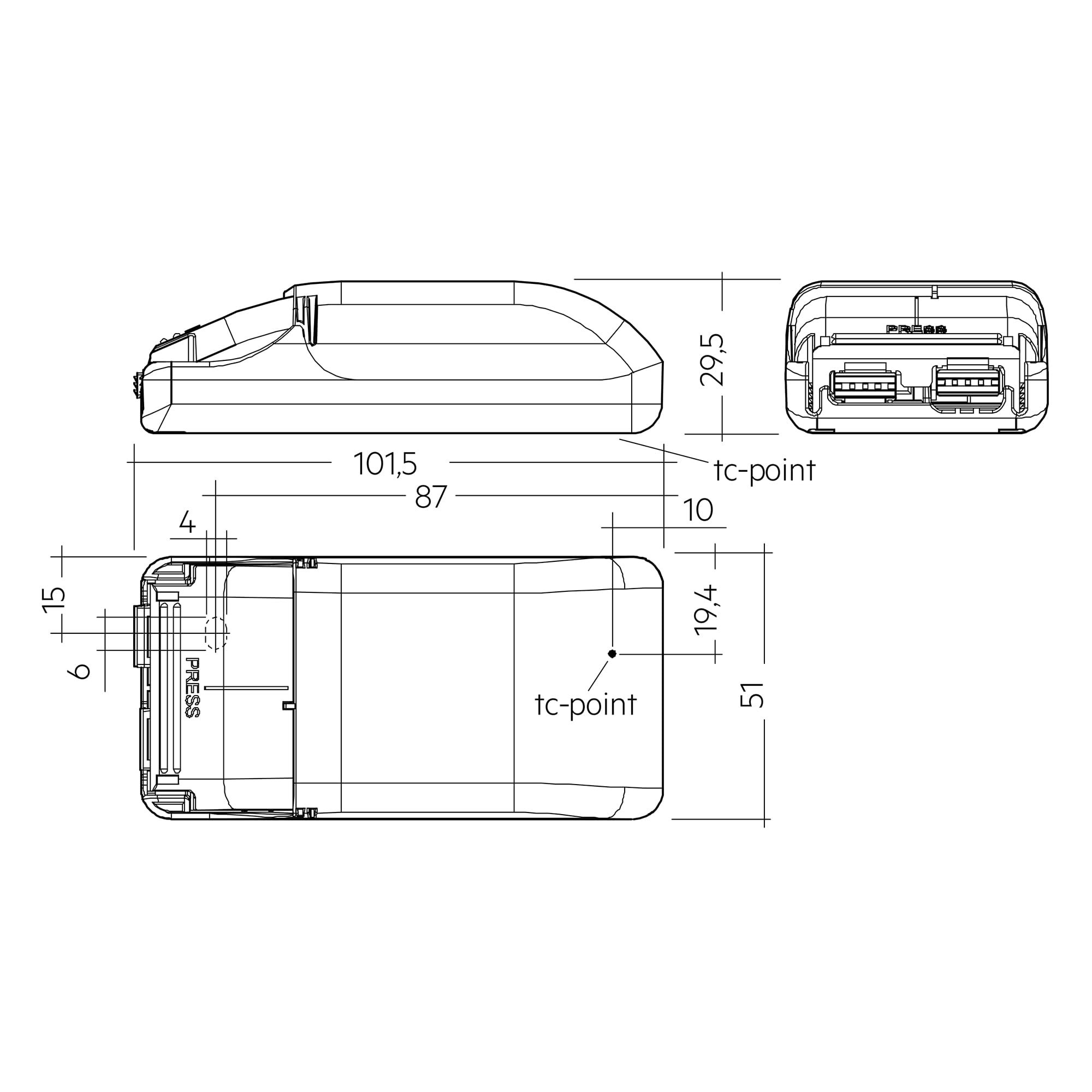

• COMPACT, LONG-LIFE DRIVER: Compact size 101.5 x 51 x 29.5mm, stated lifetime up to 50,000 hours, 5-year guarantee, and compliance with standards including EN 55015, EN 61347-1, EN 61347-2-13, EN 61547 and EN 62384.

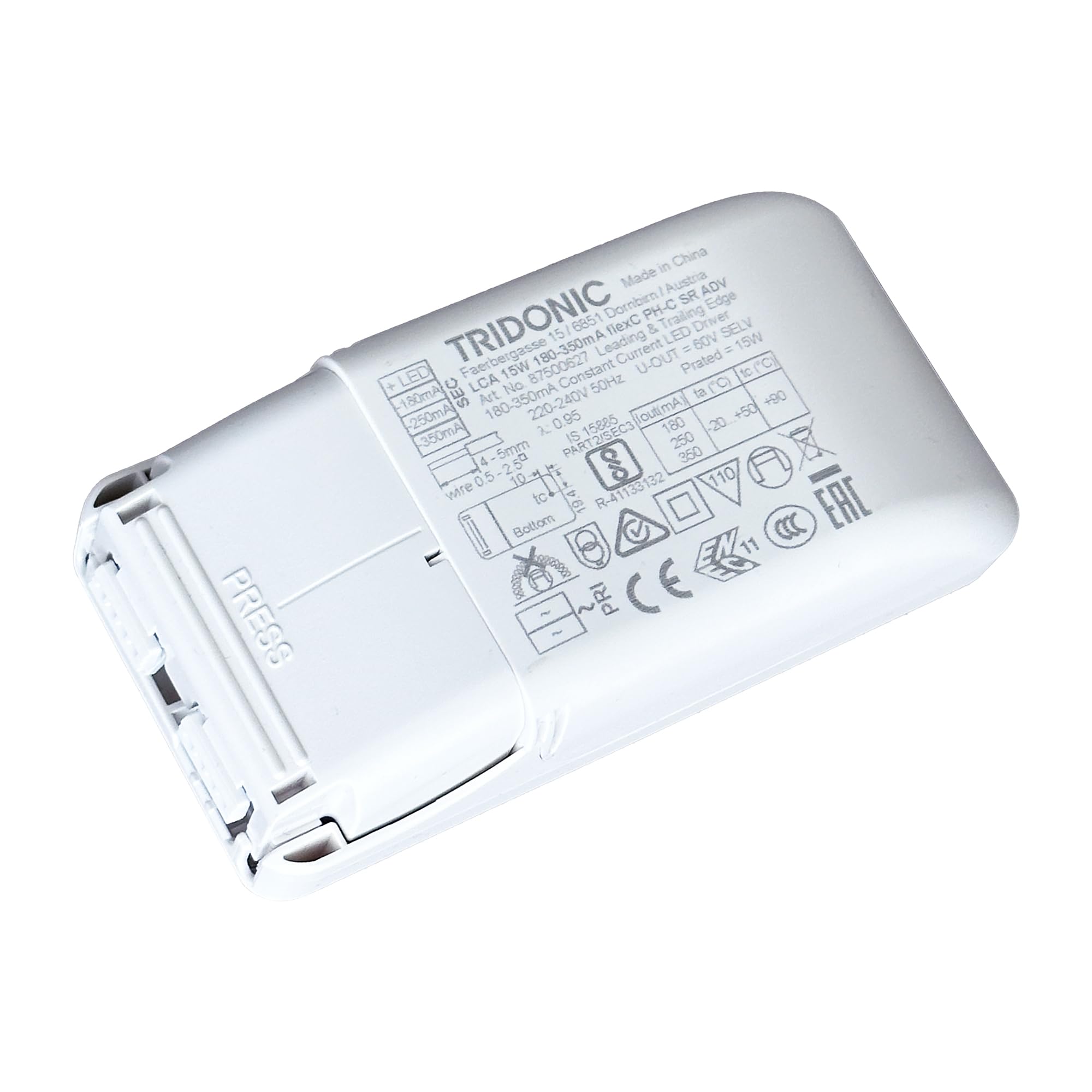

The Tridonic LCA 15W 180-350mA flexC PH-C SR ADV is a compact dimmable constant current LED driver designed for professional luminaire applications. It is SELV, supports leading edge and trailing edge phase dimmers, and offers a 5 to 100% dimming range depending on the dimmer used. With selectable output current settings of 180mA, 250mA or 350mA, it gives installers more flexibility when matching the driver to compatible LED modules. This driver is rated for 220-240V input, delivers up to 15W output, and is suitable for luminaires in protection class I and II. Tridonic also lists overload, short-circuit, no-load and overtemperature protection, along with 1kV burst / surge protection and 2kV surge protection from L/N to earth. The housing is white polycarbonate, IP20, and compact at 101.5 x 51 x 29.5mm, with a stated lifetime of up to 50,000 hours and a 5-year guarantee.
