Trident Inline 22mm Central Heating 3 Port Mid-Position

• Compatible replacement for: Honeywell Valve.
• Max. Differential Pressure: = 1Bar
• Max. Static Pressure: 10.0 Bar
• Max. Ambient Temperature: 52°C
• Can be vertically or horizontally mounted

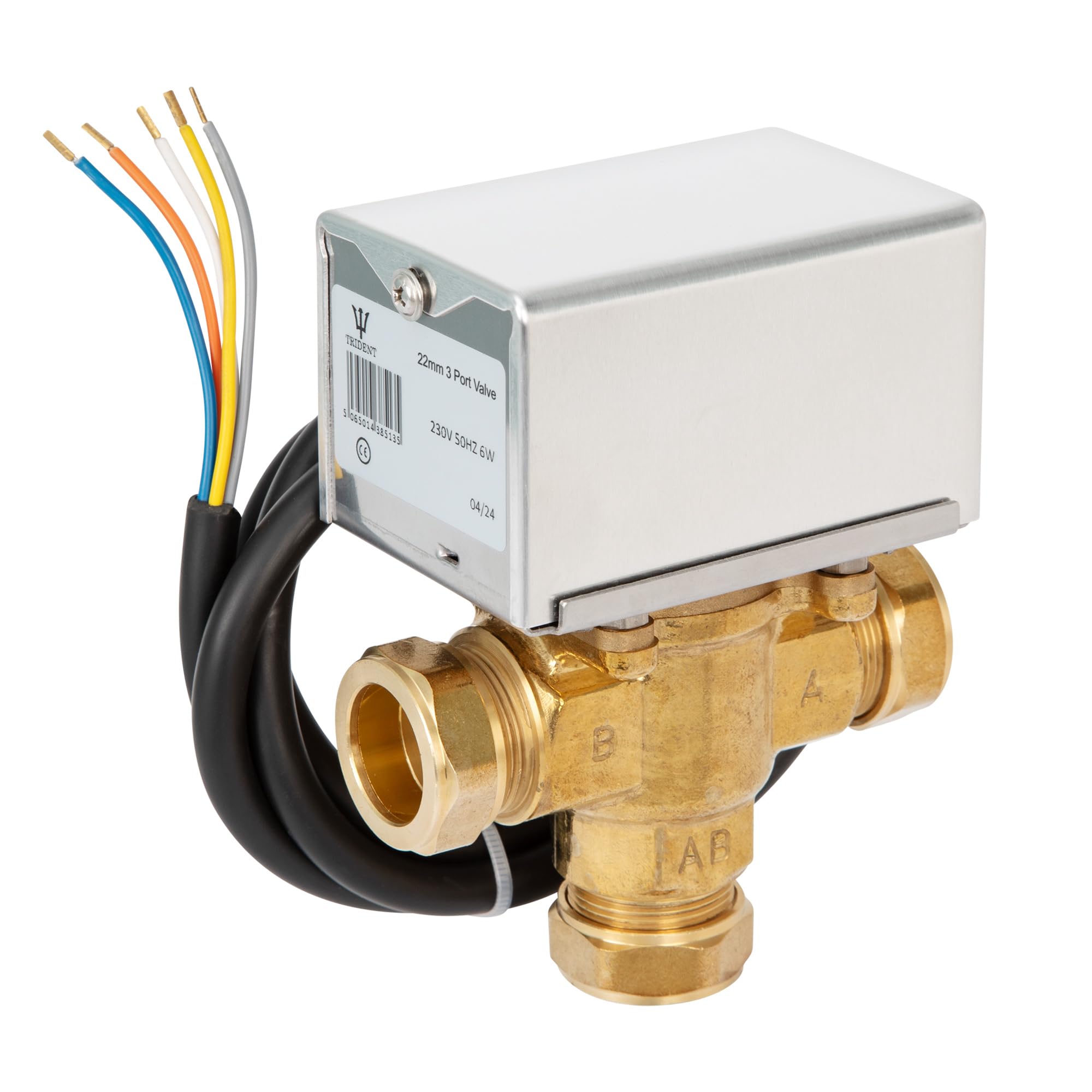

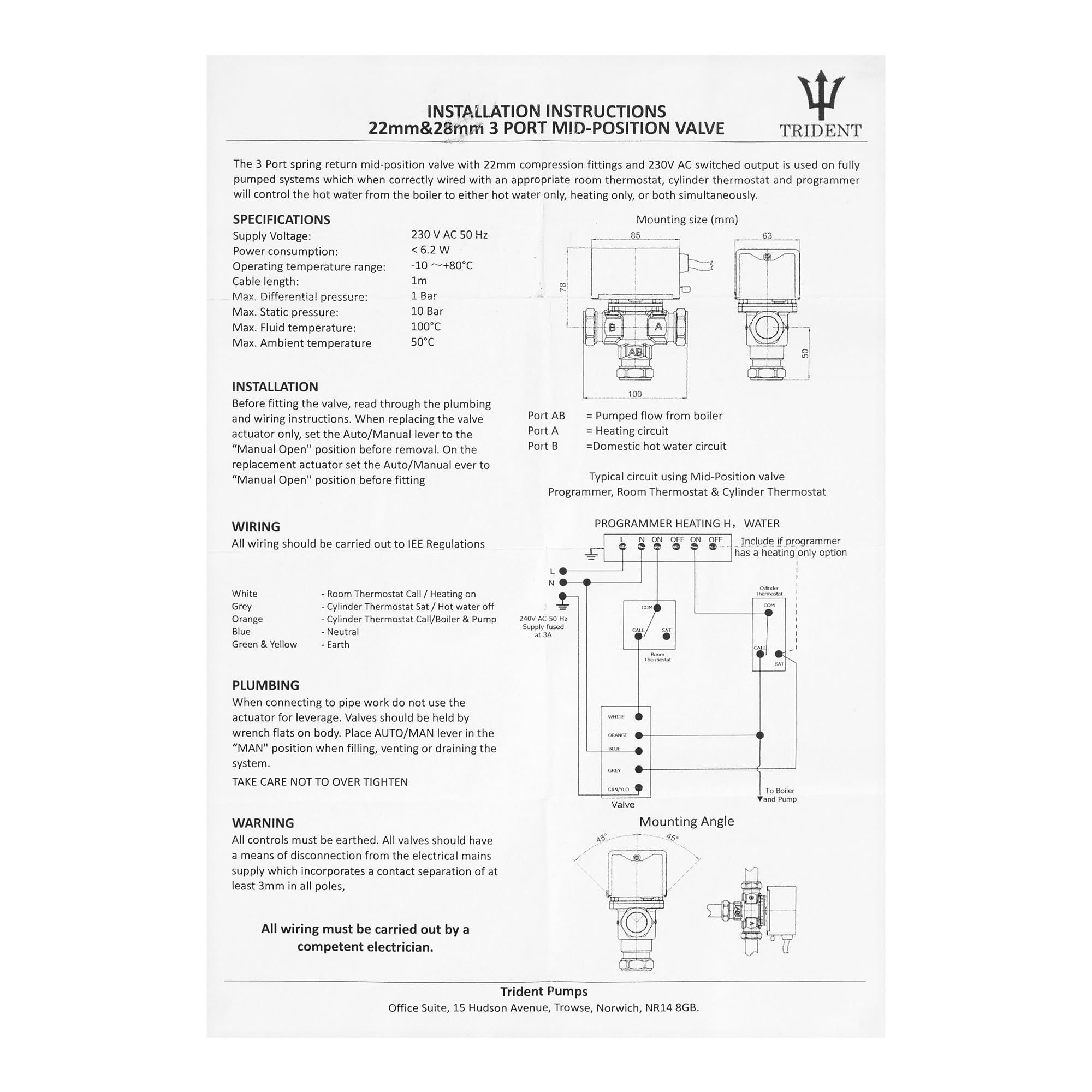

Trident Inline 22mm Central Heating 3 Port Mid-Position Brand new, Trident branded quality compatible 3 port spring return mid-position valve with 22mm compression fittings and 230V AC switched output, for fully pumped systems. When correctly wired with an appropriate room thermostat, cylinder thermostat and programmer will control the water flow from the boiler to either to hot water only, heating only, or to both simultaneously. Compatible replacement for: Honeywell Valve replacement. Features: Supply Voltage: 240V AC 50Hz Power Consumption: 6W Operating Temperature Range: +5 to +88°C Cable Length: 1 Metre Differential Pressure: = 1Bar Static Pressure: 10.0 Bar Ambient Temperature: 52°C Can be vertically or horizontally mounted Compression fittings included Auxiliary switch Switch rating 3A resistive Integrated manual lever for commissioning purposes Installation instructions included Arrives boxed Installation: Before fitting the valve, read through the included plumbing and wiring instructions. When replacing the valve actuator only, set the Auto / Manual lever to the “Manual Open” position before removal. On the replacement actuator set the Auto / Manual lever to “Manual Open” position before fitting. Wiring: All wiring should be carried out to IEE Regulations. White: Room Thermostat Call / Heating On Grey: Cylinder Thermostat Sat / Hot Water Off Orange: Cylinder Thermostat Call / Boiler and Pump Blue: Neutral Green & Yellow: Earth
