Waveshare Tri-color 2.13 Inch E-Ink Display Module, Three-color Resolution 212x104, 3.3v E-paper Electronic Screen Panel, SPI Interface, Raspberry Pi/Arduino/STM32/Jetson Nano

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing; Onboard voltage translator, compatible with 3.3V/5V MCUs

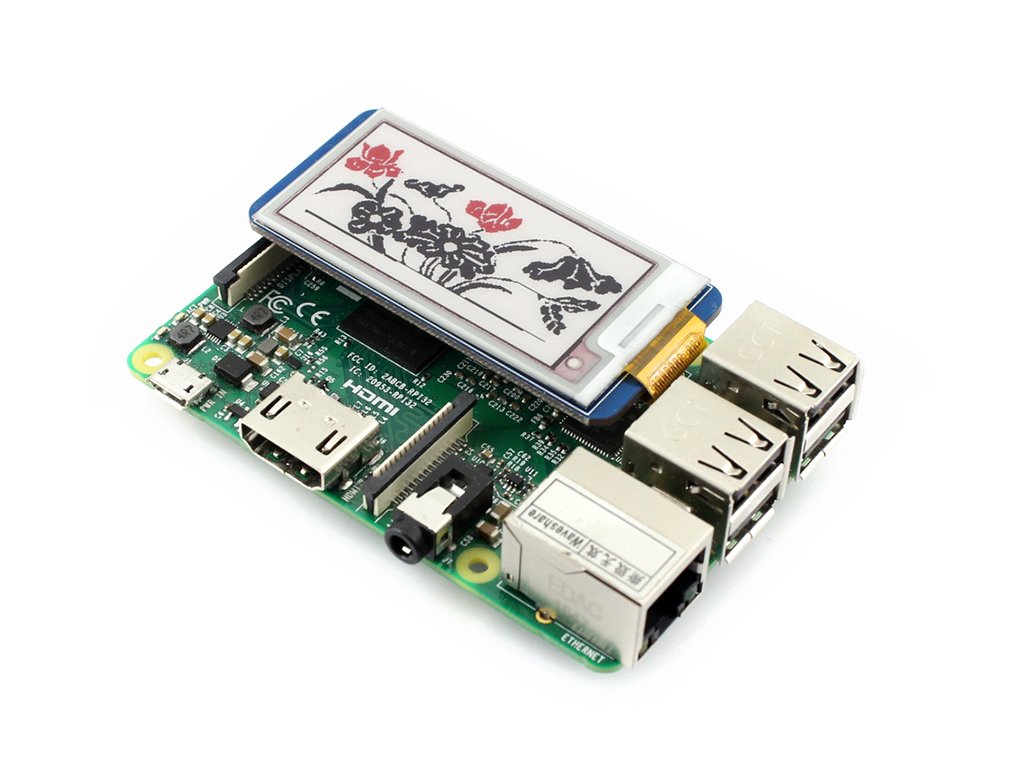

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

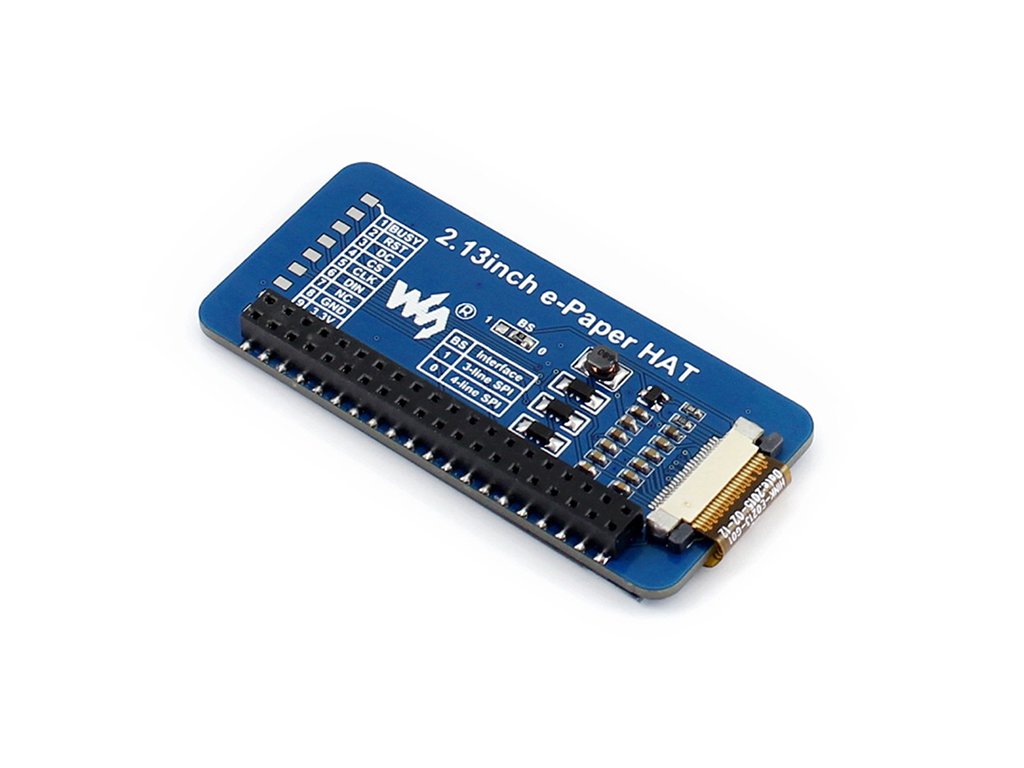

• Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32), download link: www.waveshare.com/wiki/2.13inch_e-Paper_HAT_(B)

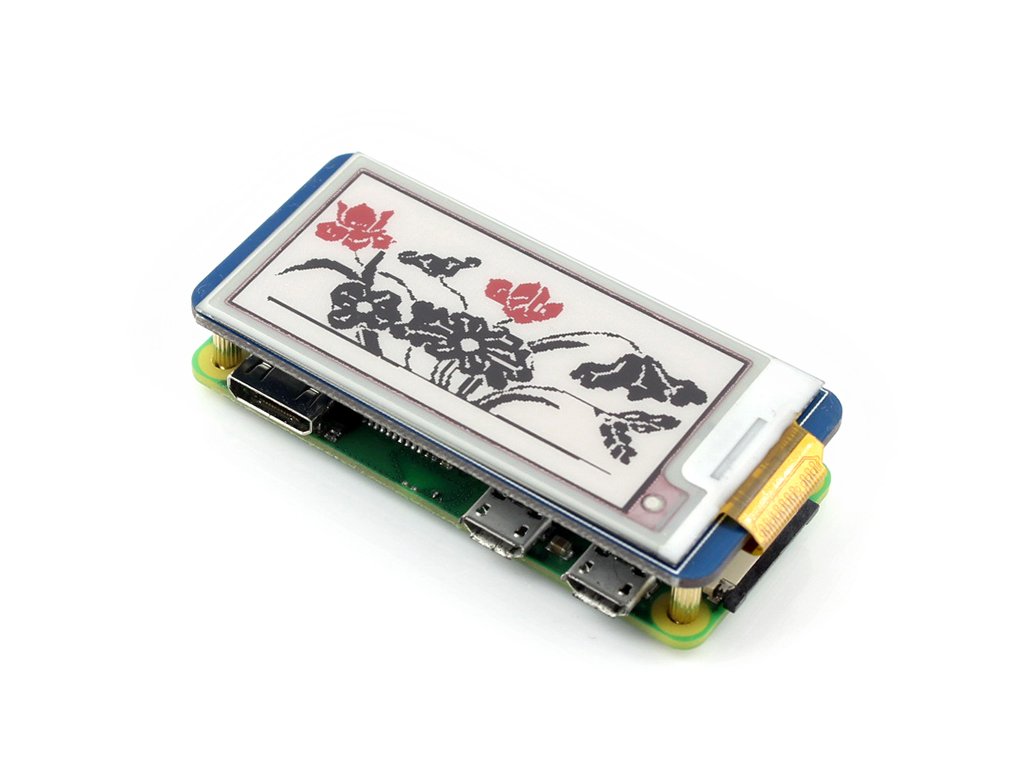

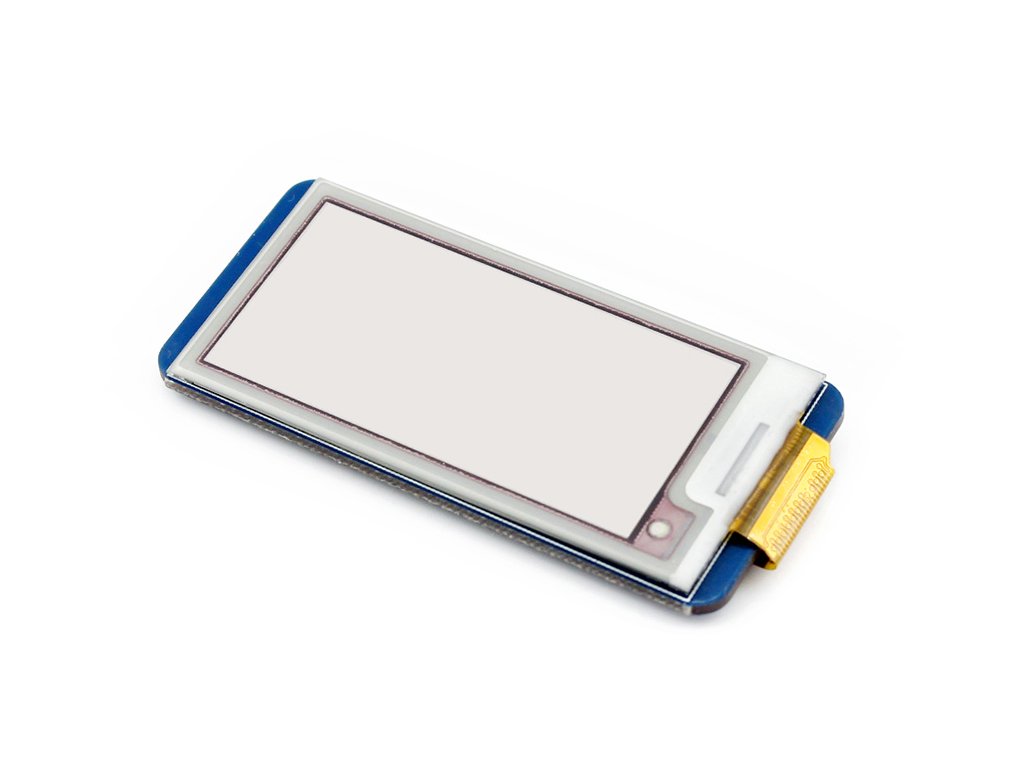

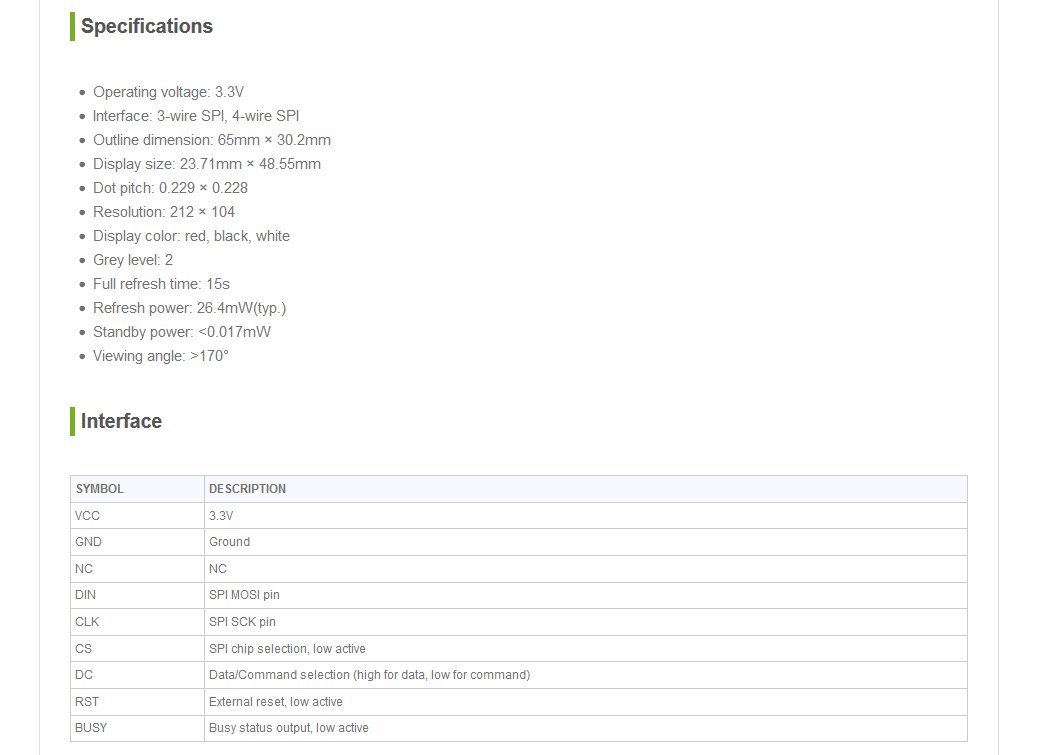

Overview This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display. Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Specifications Operating voltage: 3.3V/5V Interface: 3-wire SPI, 4-wire SPI Outline dimension: 65mm × 30.2mm Display size: 23.71mm × 48.55mm Dot pitch: 0.229 × 0.228 Resolution: 212 × 104 Display color: red, black, white Grey level: 2 Full refresh time: 15s Refresh power: 26.4mW(typ.) Standby power: <0.017mV Viewing angle: >170° Package Content 1. 2.13inch e-Paper HAT (B) x1 2. RPi screws pack (2pcs) x1 3. 9-pin 2.54 pitch SMD pinheader x1 Development Resources Wiki : www.waveshare.com/wiki/2.13inch_e-Paper_HAT_(B) 100% original,offer technical support!
