Treedix 3pcs Universal Board Solderable BreadBoard PCB Prototype Shield Board Double Sided Tinned Gold Plated Holes for Arduino Kit Raspberry Pi Shield Prototyping and Testing (Model 1)

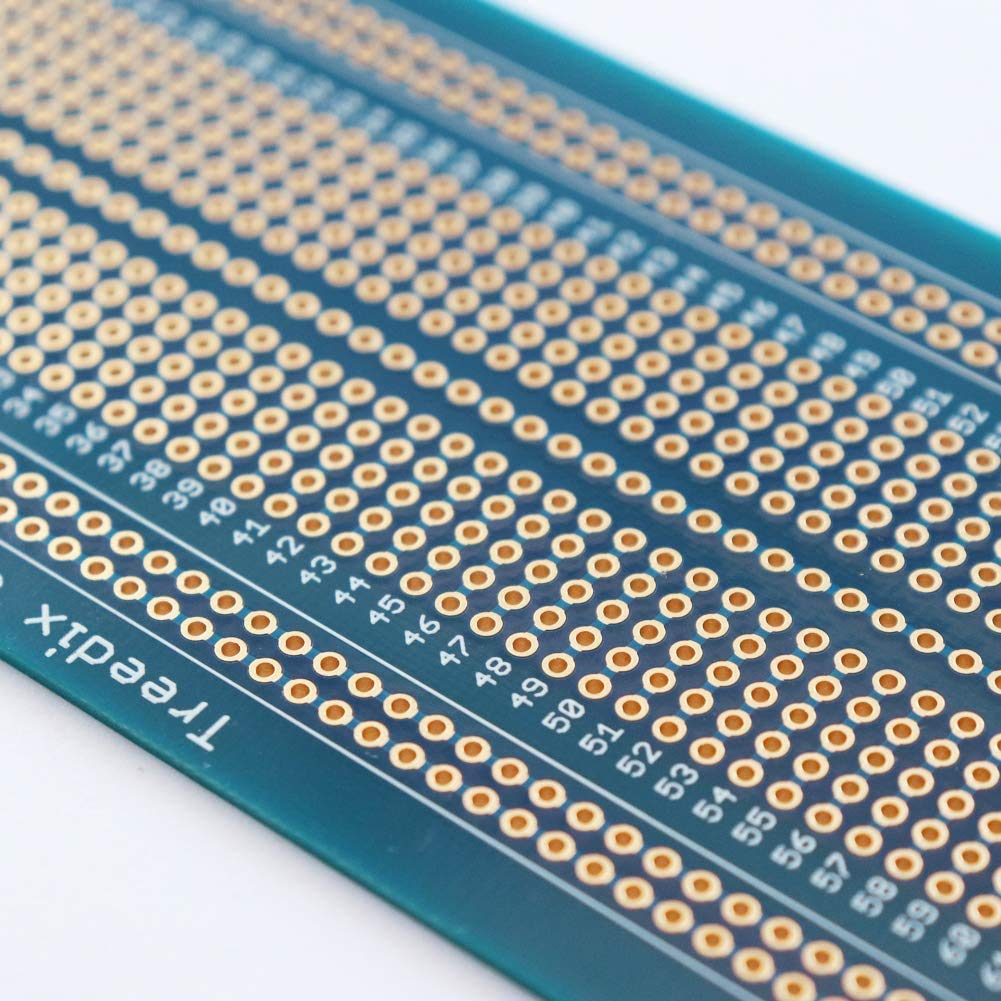

• Electroless Nickel Gold finished prevent the copper on PCB from being oxidized and corroded and is good for soldering and touching.

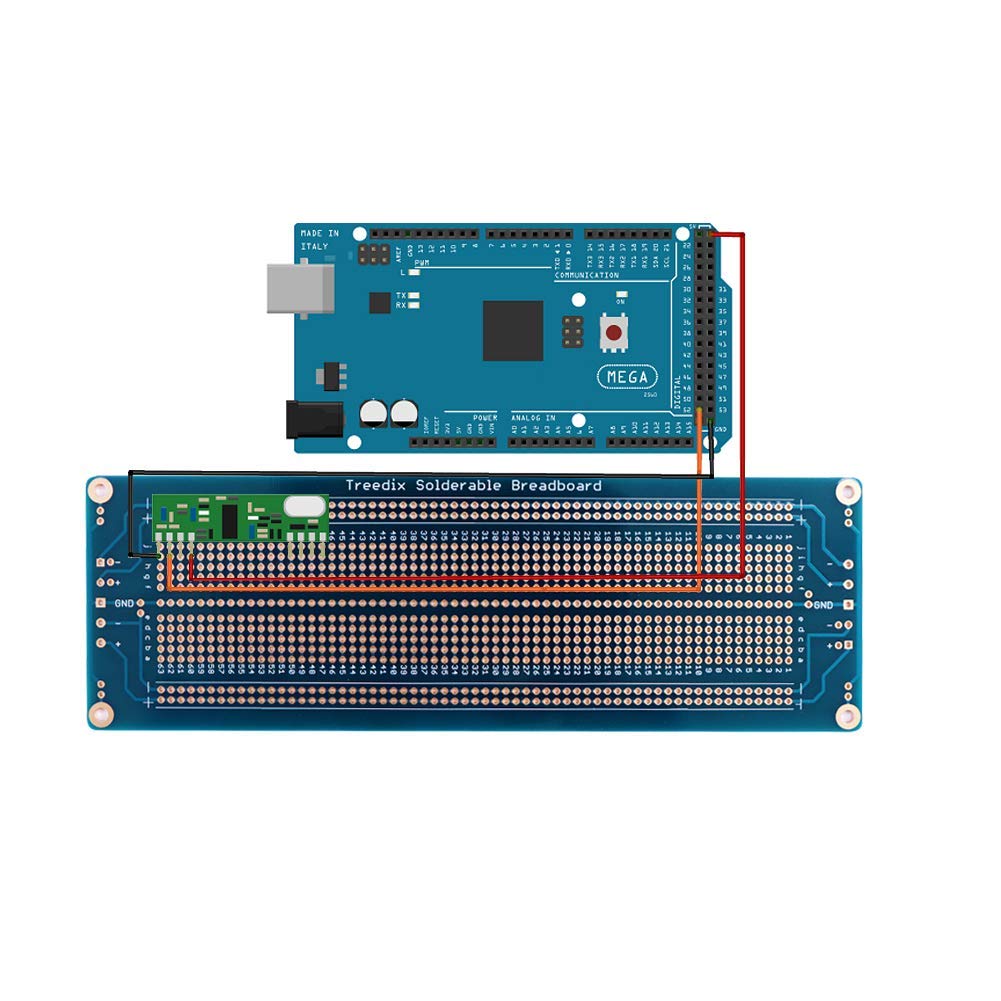

• Used among electronic experiments and point-to-point DIY soldering projects, can be expandable with pin header and female header, designing your own Arduino kits. The Breadboard Kit is convenient for the prototypes and circuit design experiment and other DIY projects. Perfect for Arduino, Raspberry Pi, and other programming boards.

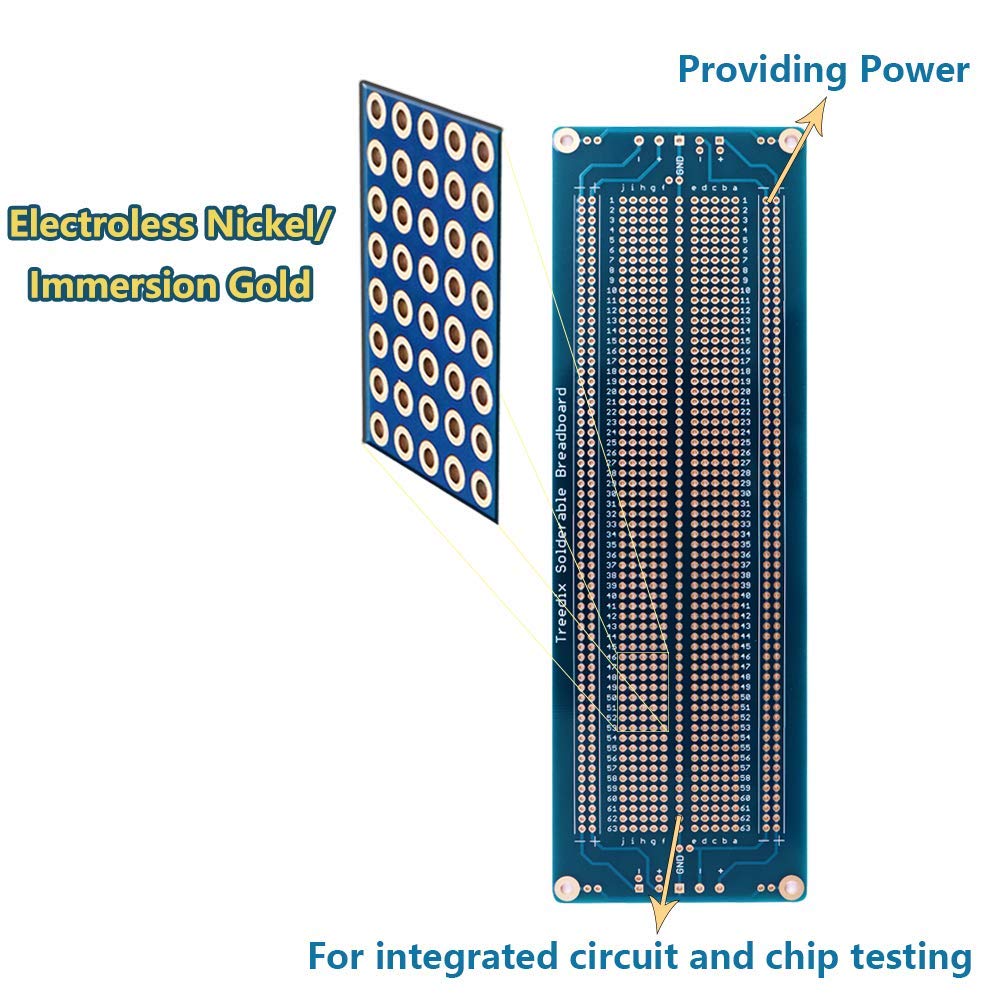

• Ground bus down the center channel was designed specially for integrated circuit and chip testing. The hole in lengthways on two sides was used providing power for the components on the breadboard.
• Made of glass fiber FR-4 material, having the ability of high heat resistance, corrosion resistance, mechanical strength, insulation.
• Standard IC spacing 2.54MM hole plated through among the pad, Components and stuff can be mounted variously on your will.

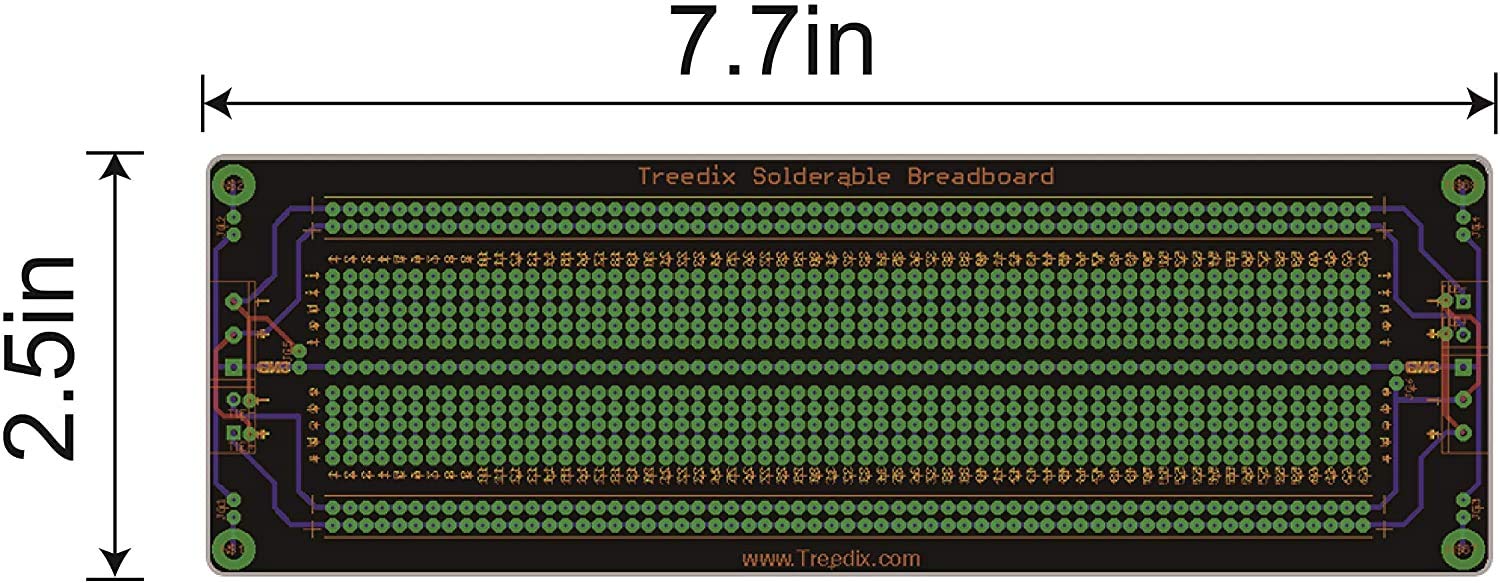

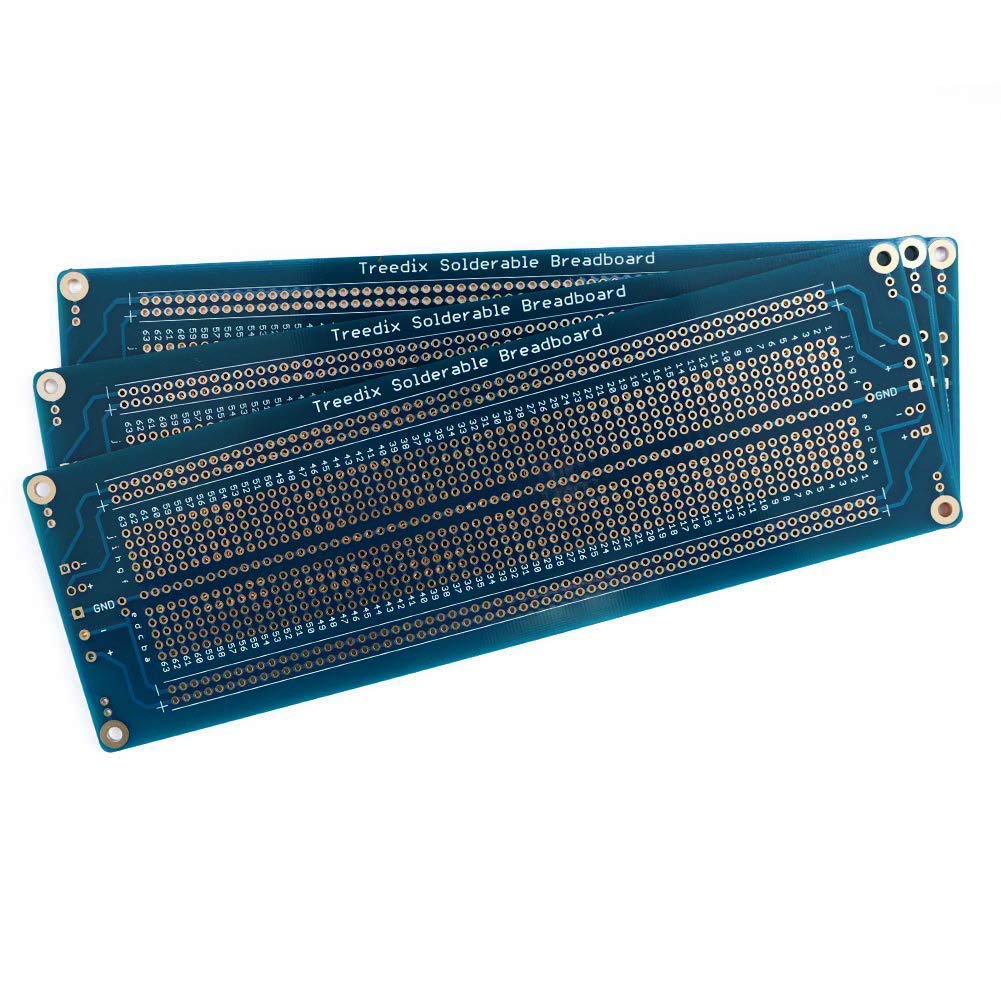

Specification： Board Material: Glass Fiber FR4 Color: Blue, Gold Hole pitch: 2.54mm Hole diameter: 1mm Thickness: 1.5mm Size: 7.72 x 2.52 inch Extension Clips: Yes (Can extend with other boards) Input voltage: 6.5-12V (DC) or USB power supply Output voltage: 3.3V/5V (Switchable) Maximum output current: <700 mA 860 tie points total: 630 tie-point IC-circuit area plus 230 tie-point power rails Two roads are of independent control and can be switched to 0V, 3.3V or 5V. Packages Includes: 3 x 860 tie-points Solderable Breadboard Note: Before use,to know that which pin of the components should be connected together,then insert the pin in the group of holes.And so on.
