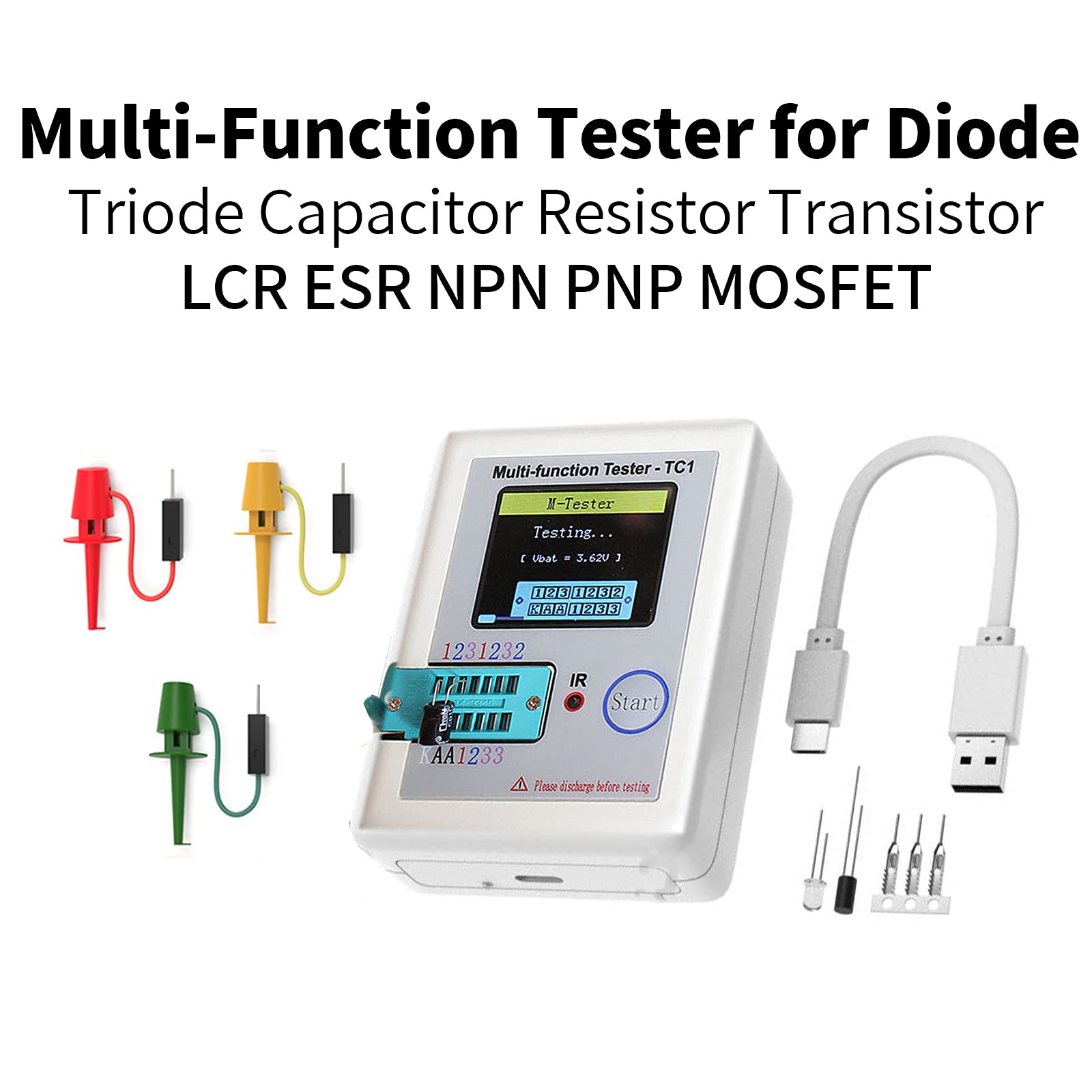

Transistor Tester Diode Triode Capacitance Inductor Meter Multi-Function Tester TFT LCR-TC1 Transistor Tester for Diode Triode Capacitor Resistor Transistor NPN PNP MOSFET

• Multifunction Tester: It can be widely used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc.
• Automatic calibration: It also can detect zener diode and has the function of self-calibration. After disconnecting the short-circuit according to the prompt during the calibration process, no other operations are required.

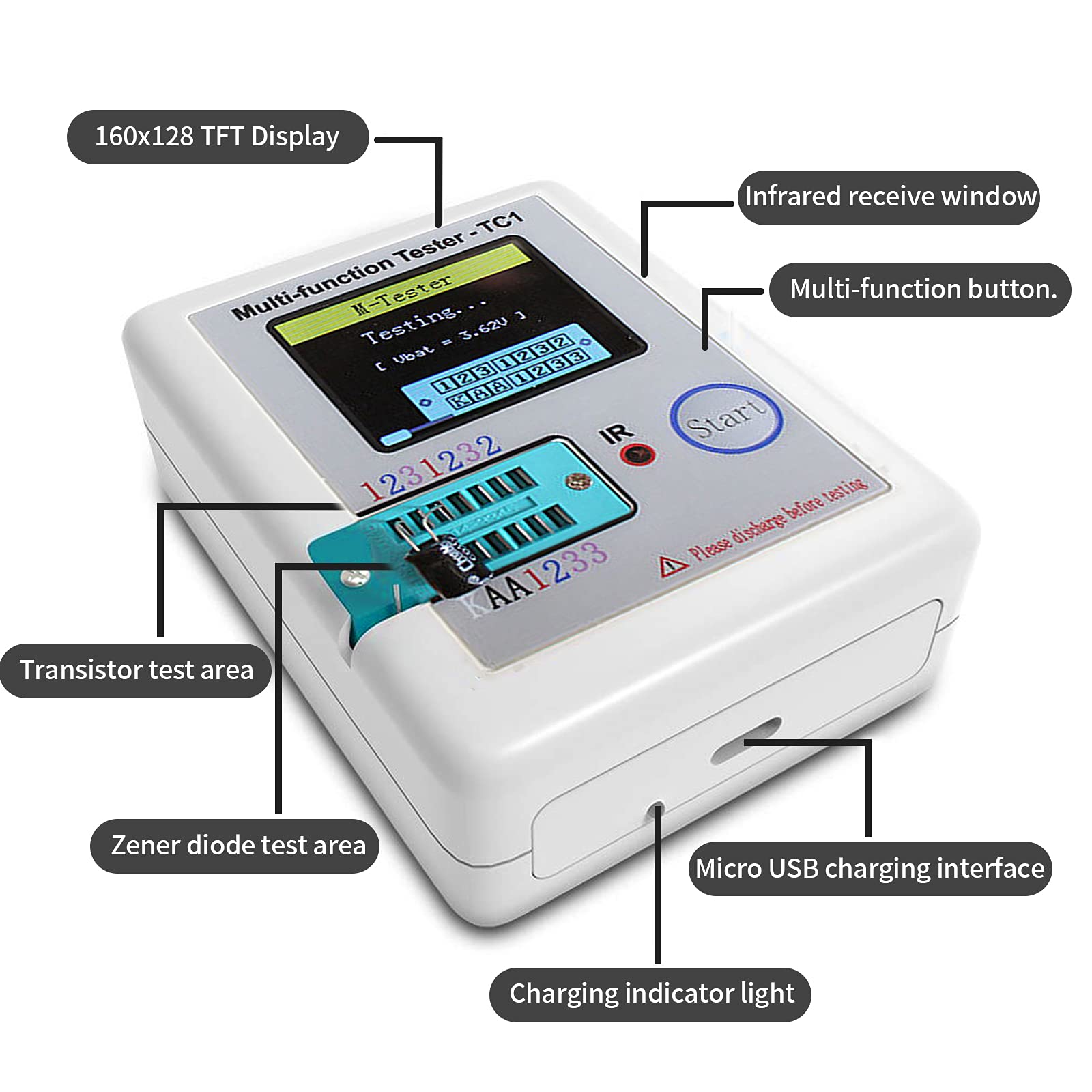

• IR decoder: After detection, align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.

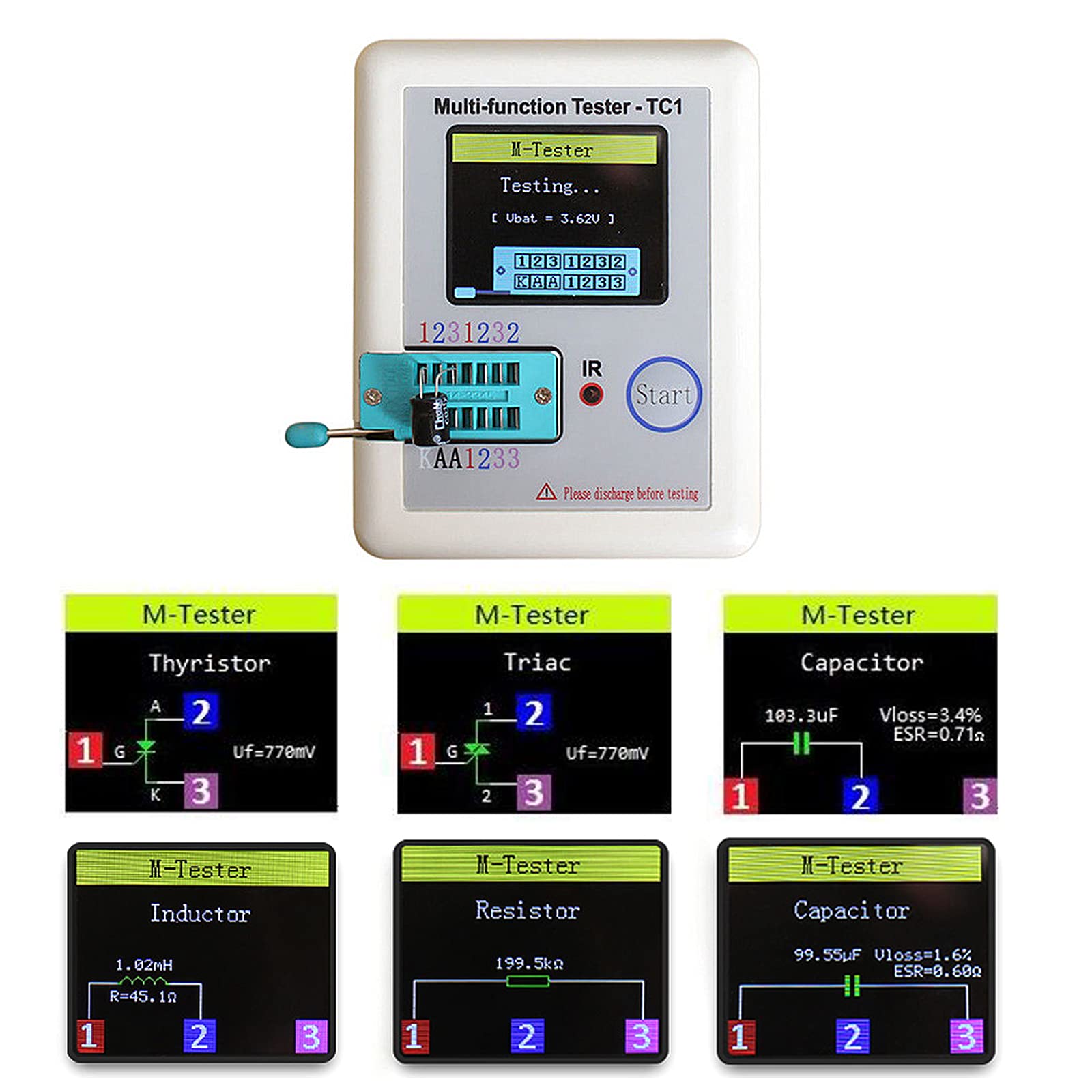

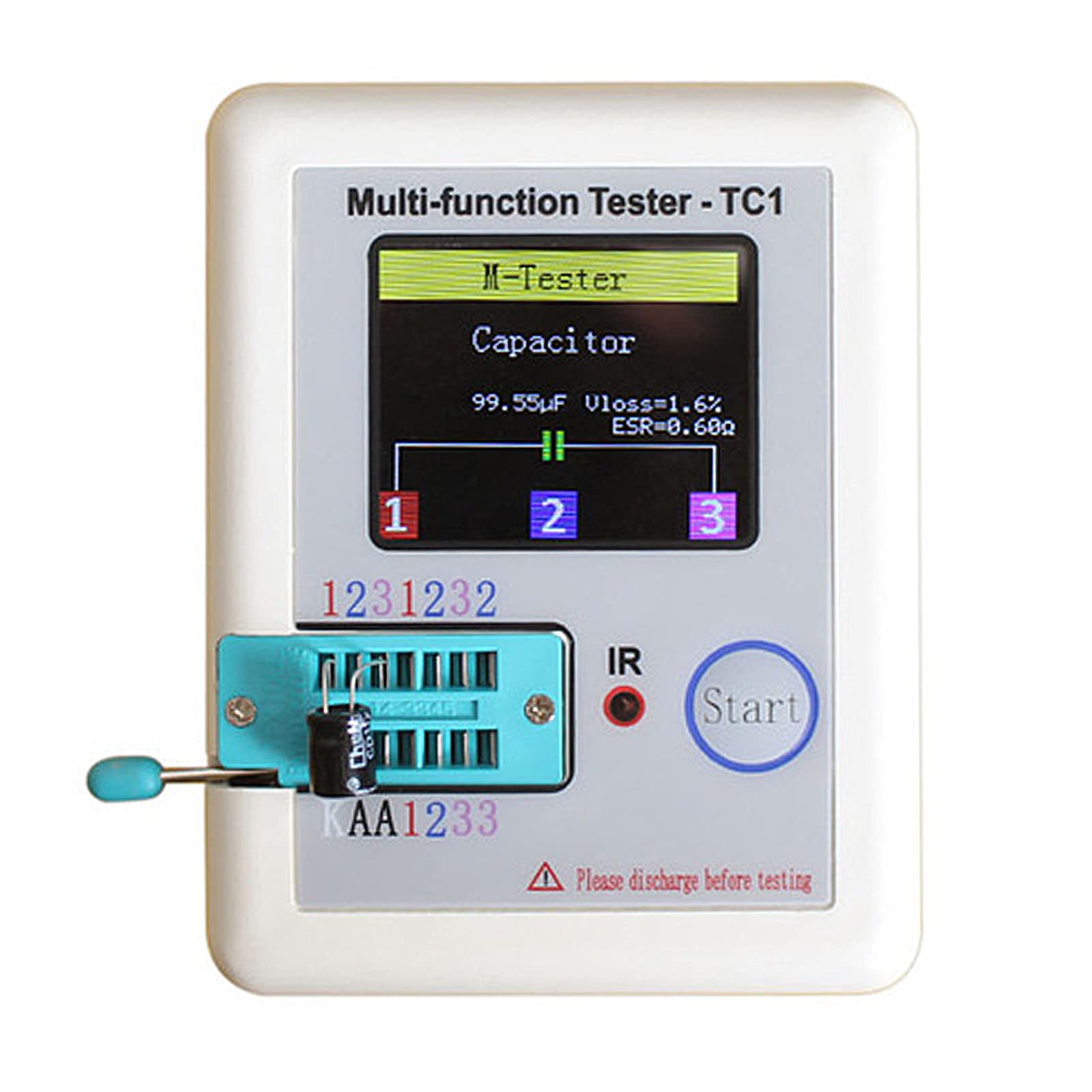

• Colorful Display: Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly.
• One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector too. Tips: The charging input voltage is 4.5V, please do not use it under overpressure, otherwise the tester will be damaged.

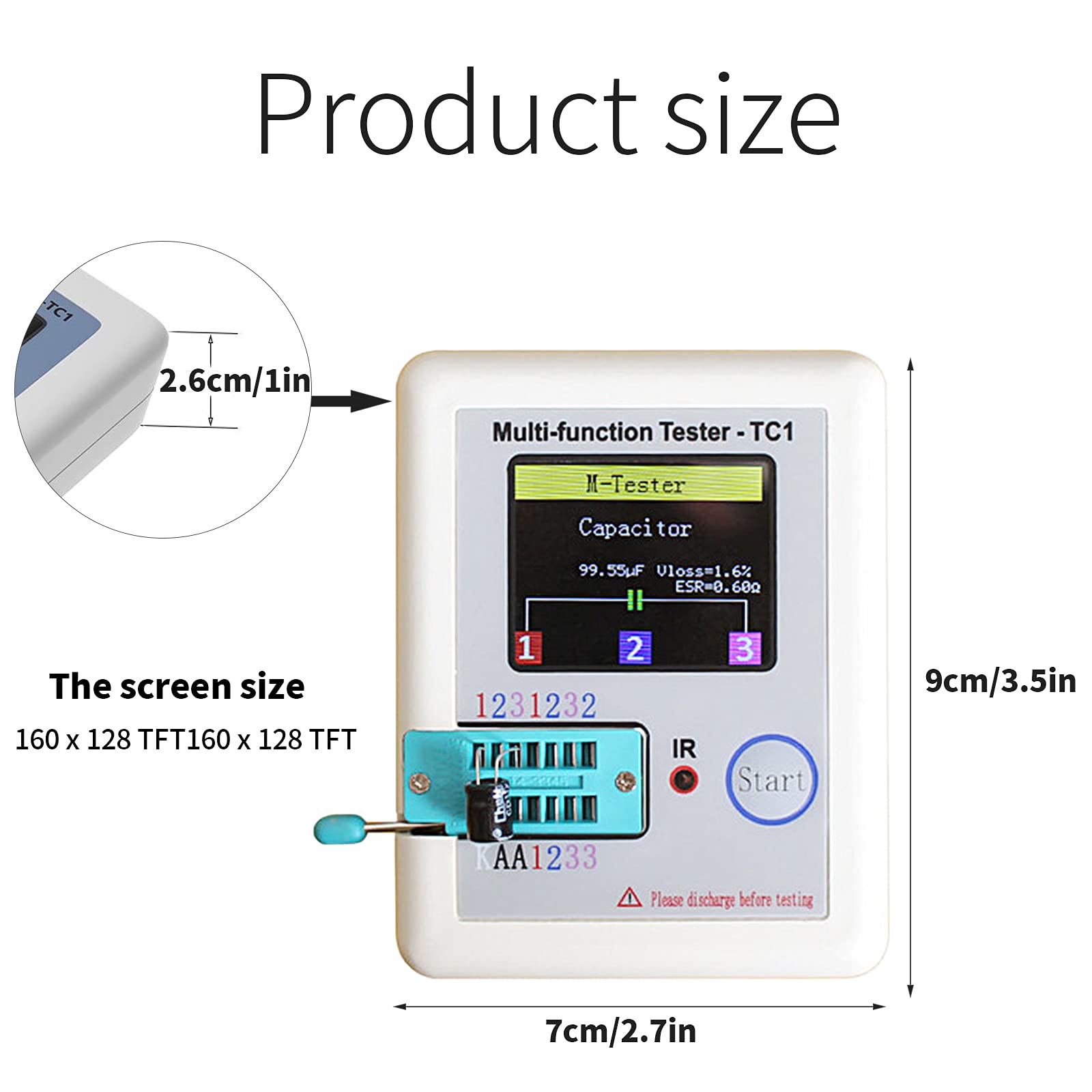

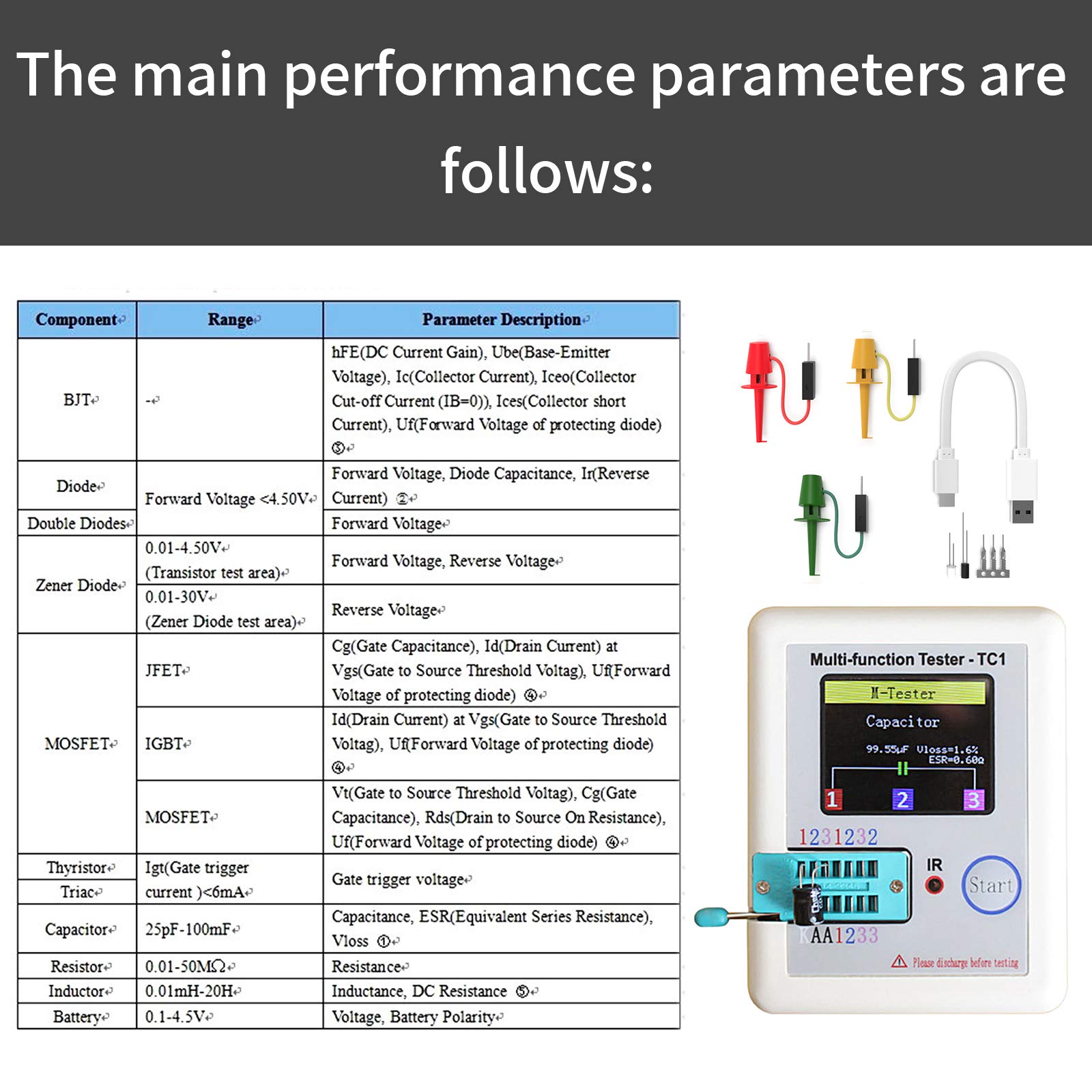

Features: It can also be used to detect infrared wave forms. It also can detect zener diode and has the function of self-calibration. It can be widely used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc. One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector too. Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly. After detection, align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form. Not like the usual black and white display, this detector will show results in color. Specifications: Display: 1.8 inch TFT Screen Diode Range: <4.5V Zener Diode:Transistor Detect Area: 0.01-4.5V Zener Diode Detect Area: 0.01-30V Triac Range: IGT <6mA Capacitance: 25pF-100mF Resistor: 0.01-50MΩ Inductance: 0.01mH-20H Battery: 0.1-4.5V Power Mode: Rechargeable Lithium Battery ( INCLUDED) Item Size: 8.8 x 8 x 2.8cm / 3.47 x 3.15 x 1.10in Item Weight: 111.5g / 3.94oz Package Size: 14.5 x 12 x 2.7cm / 5.71 x 4.73 x 1.06in Package Weight: 114g / 4.02oz Packing included: 1 x Multi-functional TFT Transistor tester 1 x Electronic component set(Send Randomly)
