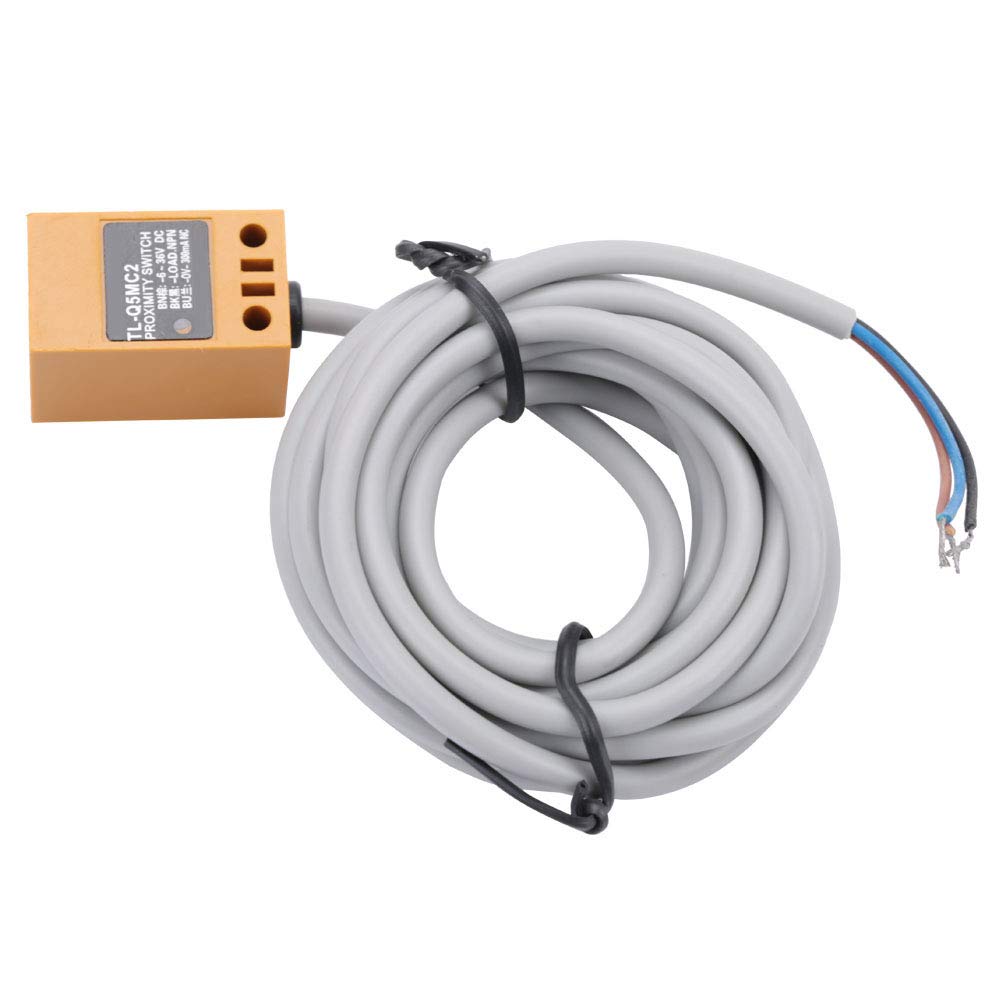

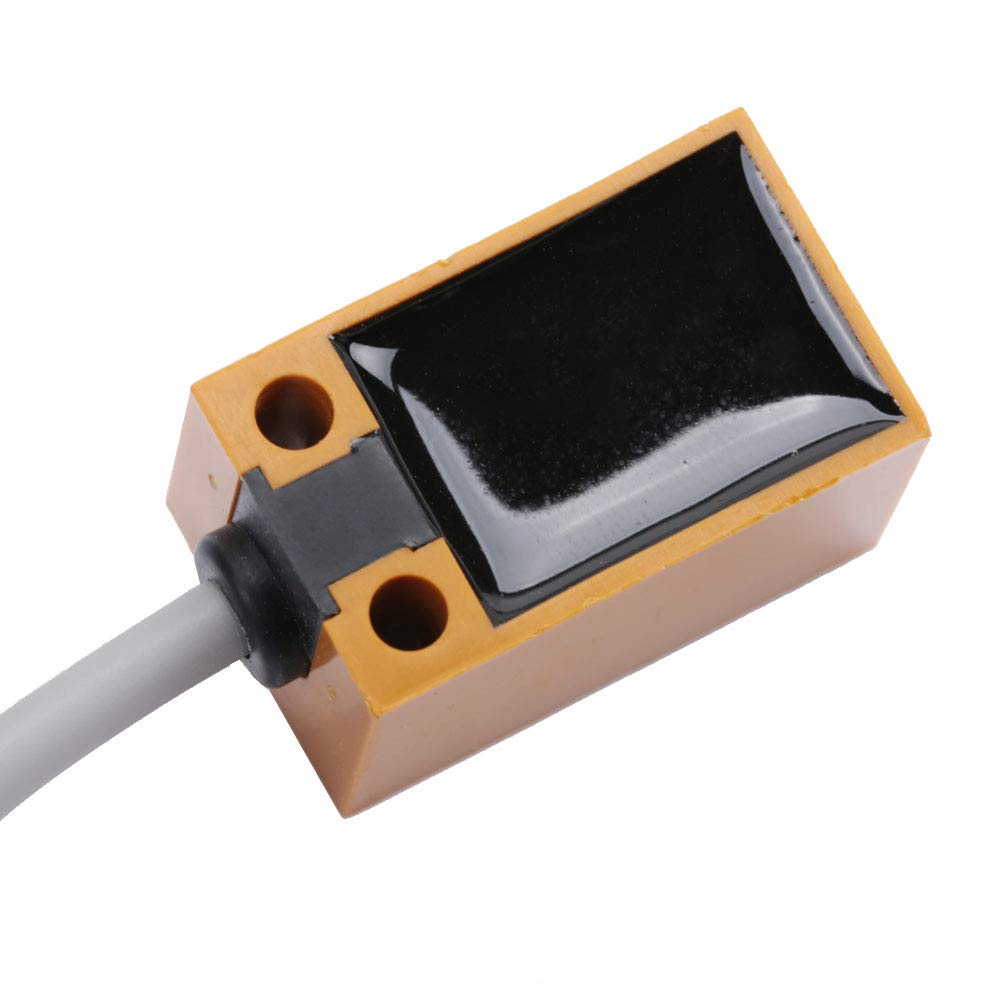

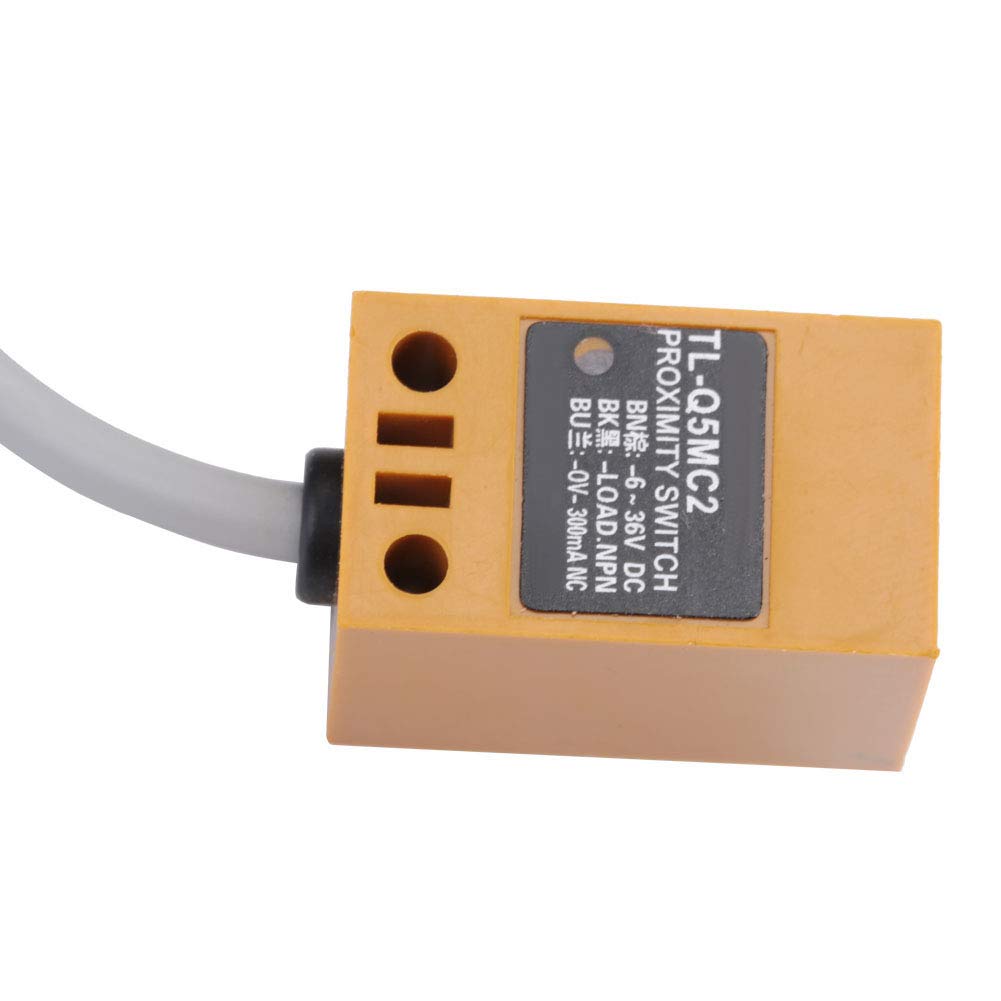

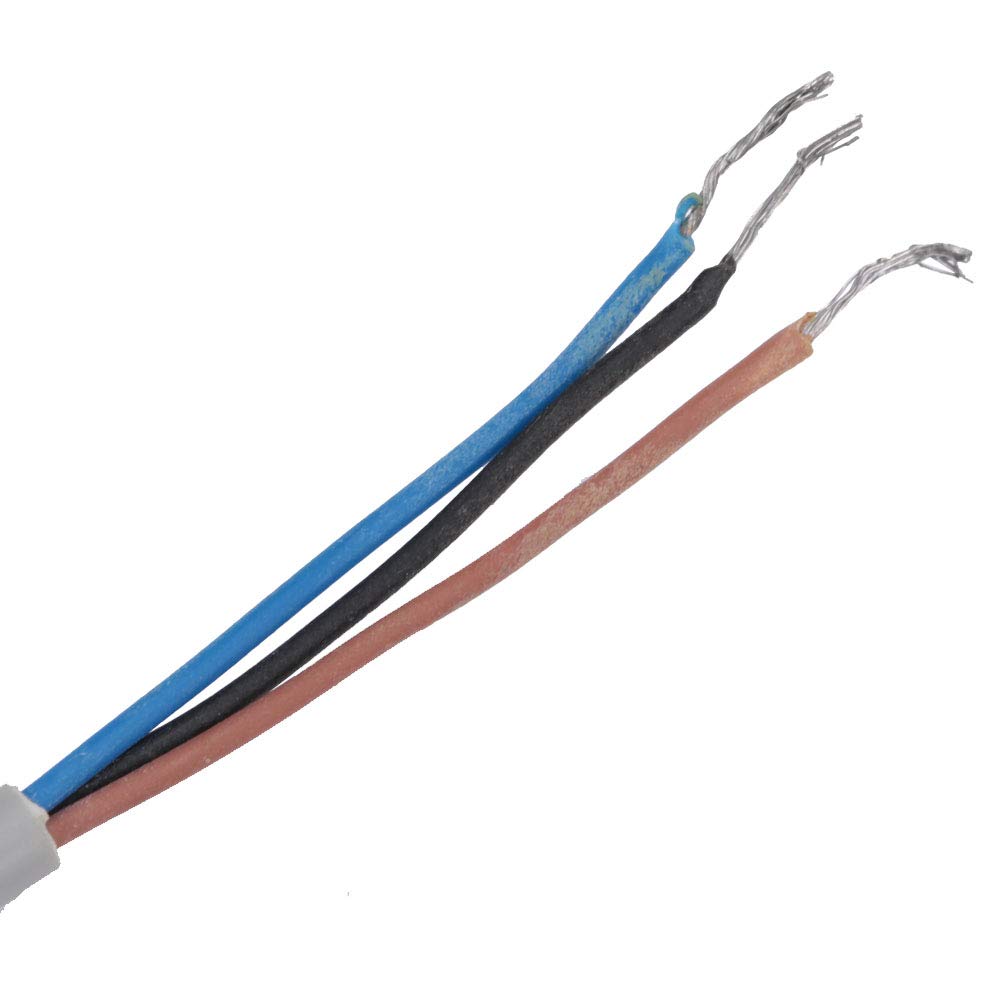

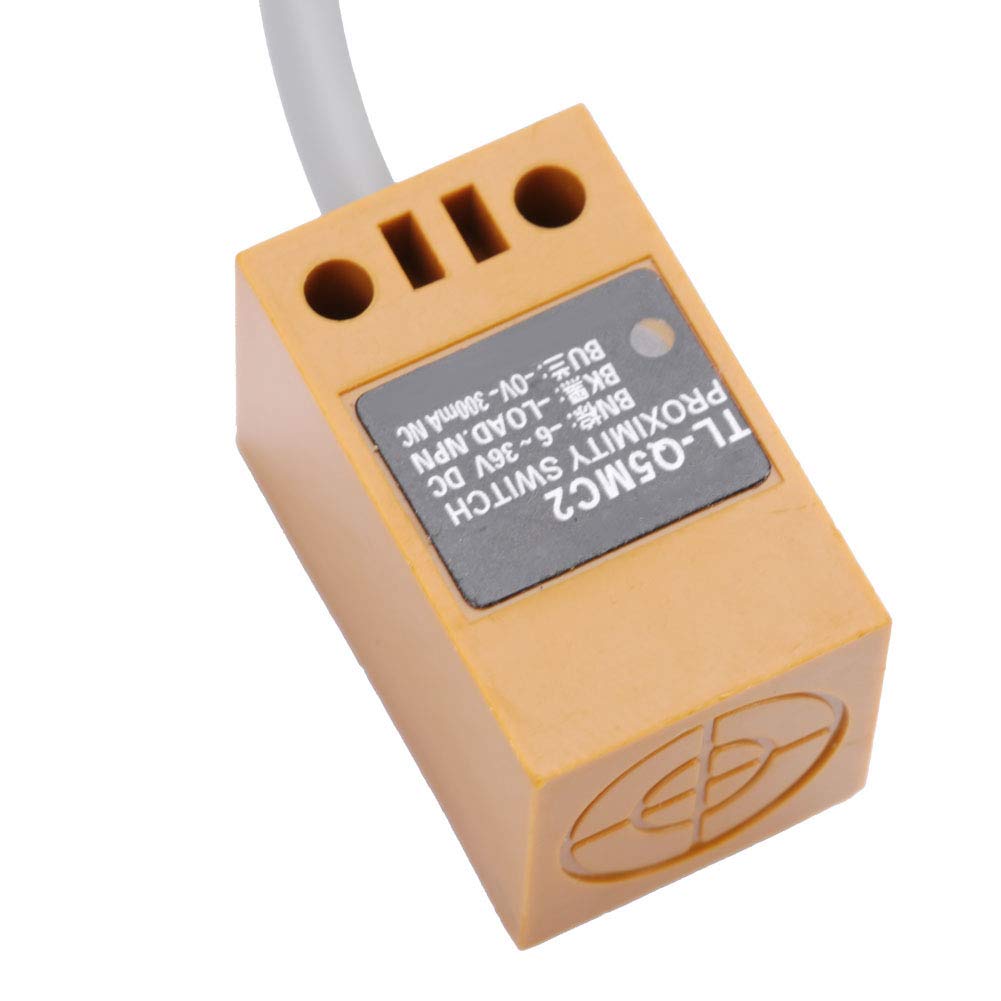

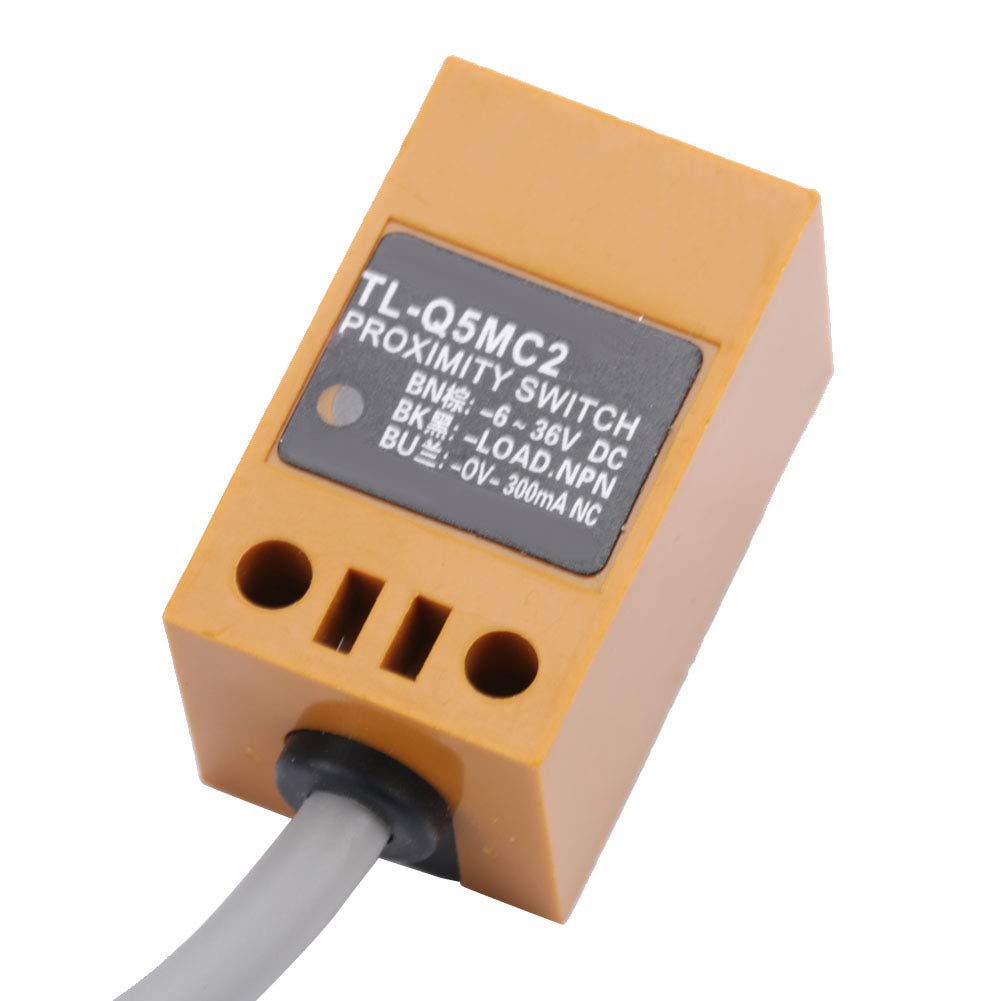

Transducer Switch Sensor Switch SN04-N2 NPN Proximity Inductive Sensor 3 Wire Normally Close Proximity Sensor Switch Distance 5mm

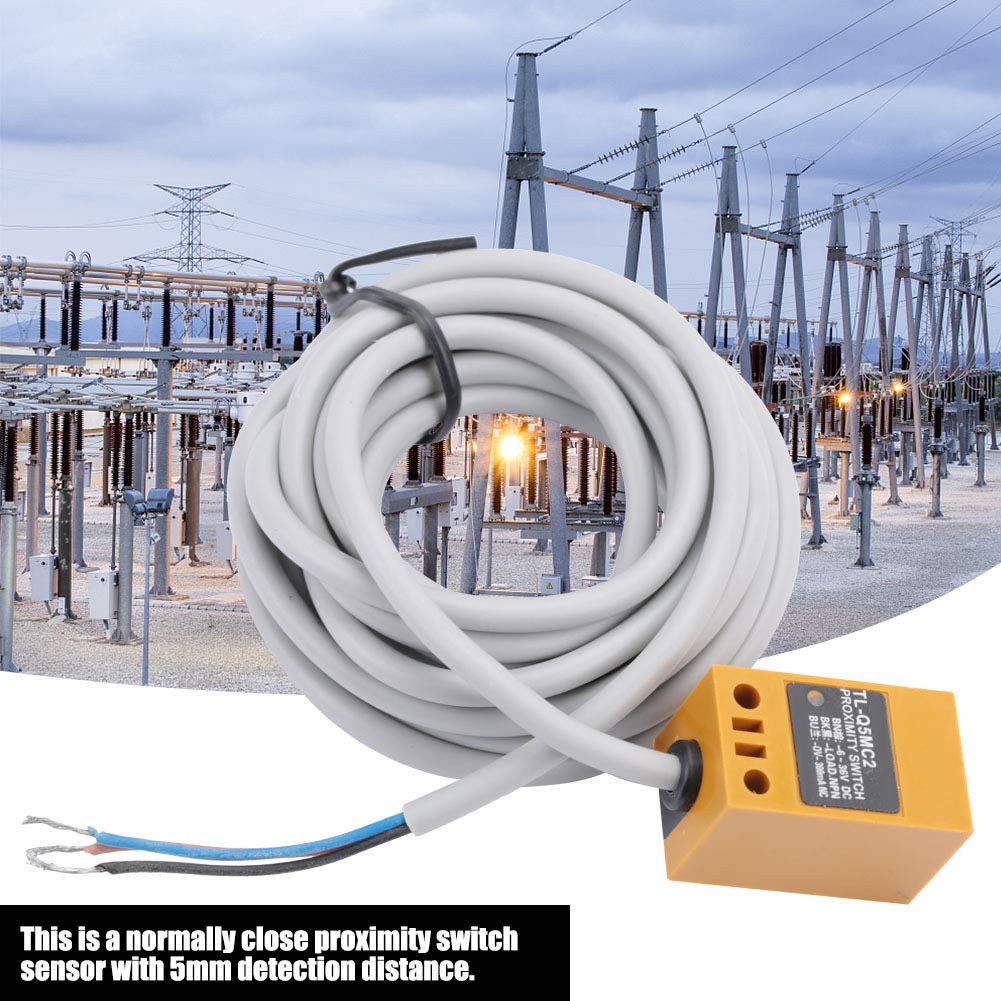

• [High-Sensitivity] This is a normally close proximity switch sensor with 5mm detection distance.
• [Instantly transfer] When proximity switch is close to some target object, it will send out control

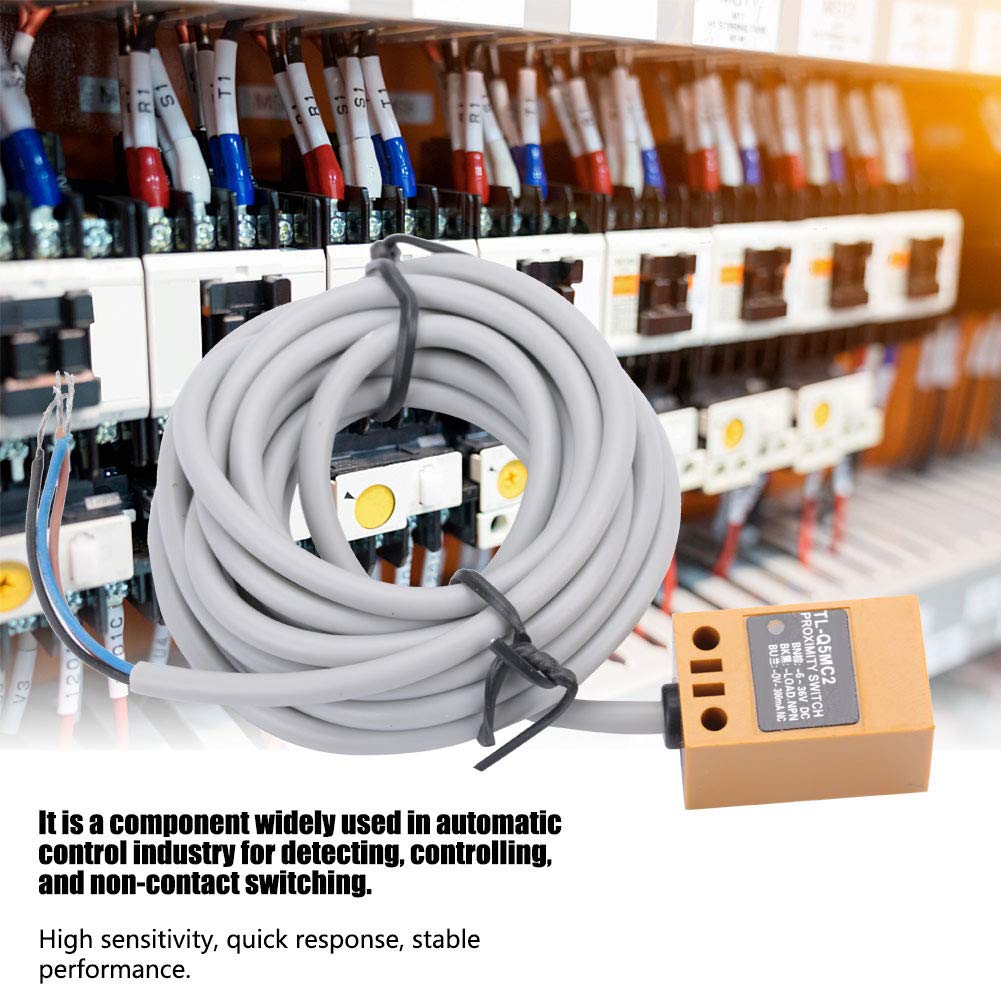

• [Widely Use] Automatic control industry for detecting, controlling, and non-contact switching.
• [Efficiency] High sensitivity, quick response, stable performance.
• [Good Protection] Non-contact detection avoids the sensor and the target object from damages.

Description: This is a normally close proximity switch sensor with 5mm detection distance. When proximity switch is close to some target object, it will send out control signal. It is a component widely used in automatic control industry for detecting, controlling, and non-contact switching. High sensitivity, quick response, stable performance. Non-contact detection avoids the sensor and the target object from damages. Specification: Model:SN04-N2 2 Detection distance 5mm ± 10% Set distance 0 - 4mm Delay distance <10% Detection distance Standard object Magnetic metal(Detection distance decreases for nonmagnetic metals) Detect object Iron 18*18*1mm Response frequency DC:0.5kHz AC:25Hz Power DC12 - 24V(6-36V); AC110 - 220V(36 - 250V)50/60Hz Withstand voltage AC1000V 50/60Hz Effect of Voltage ±15% Rated voltage, Impulse (P-P) below 10% Consumption current N.P: <13mA, D: <0.8mA, A:<1.7mA Control Output N.P: <300mA, D:<200mA, A:<400mA Circuit A: protection N.P.D: protection, Reverse Connection Protection Temperature range -25 -+60℃ Isolation Resistance >50MΩ Material ABS Storage and use temperature -30 - +65℃(No ice, no frost) Storage and use humidity 35 - 95%RH Package list: 1 × Inductive Proximity Switch Note: The actual product color may deviate from the photo due to light. There may be a slight deviation in the measurement of product.
