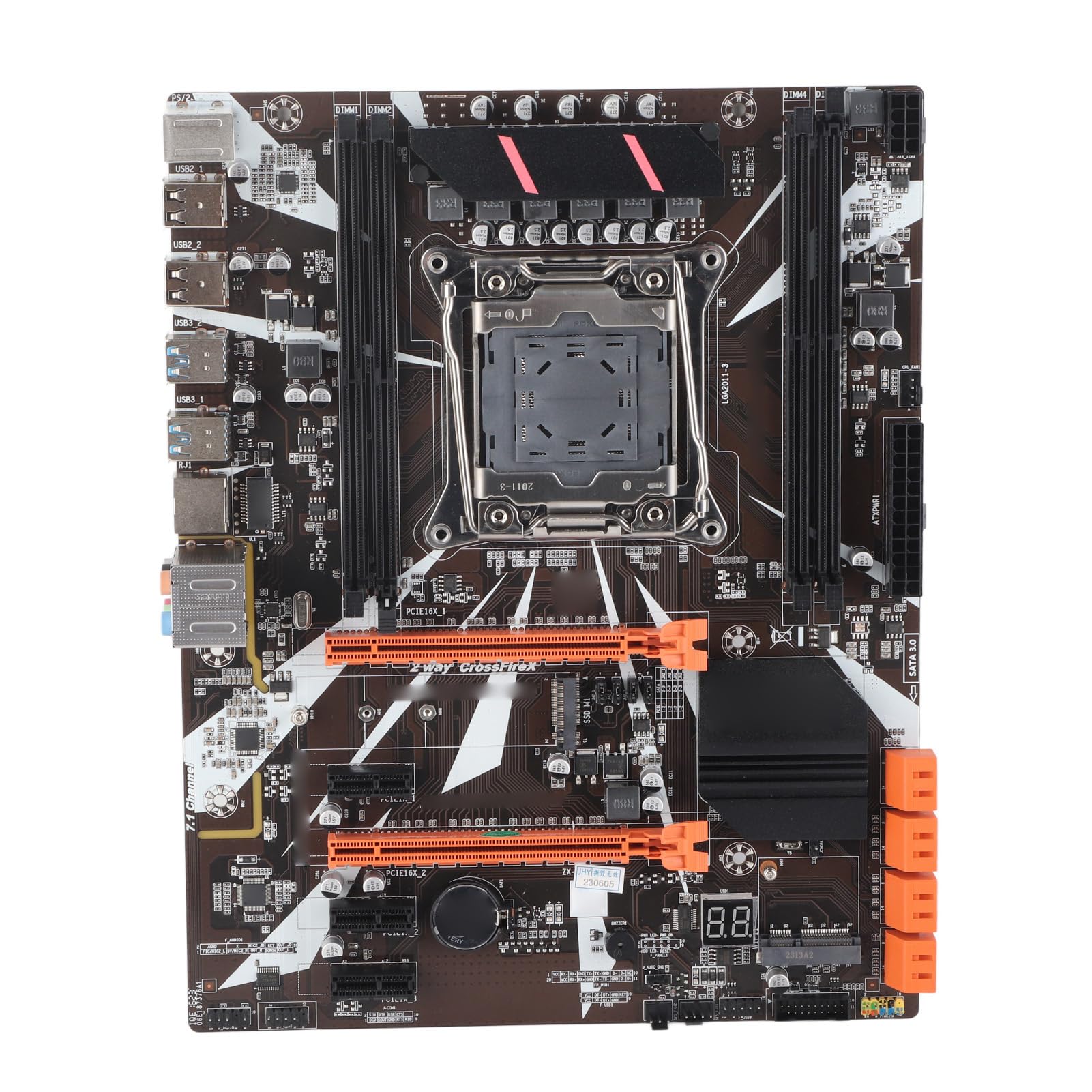

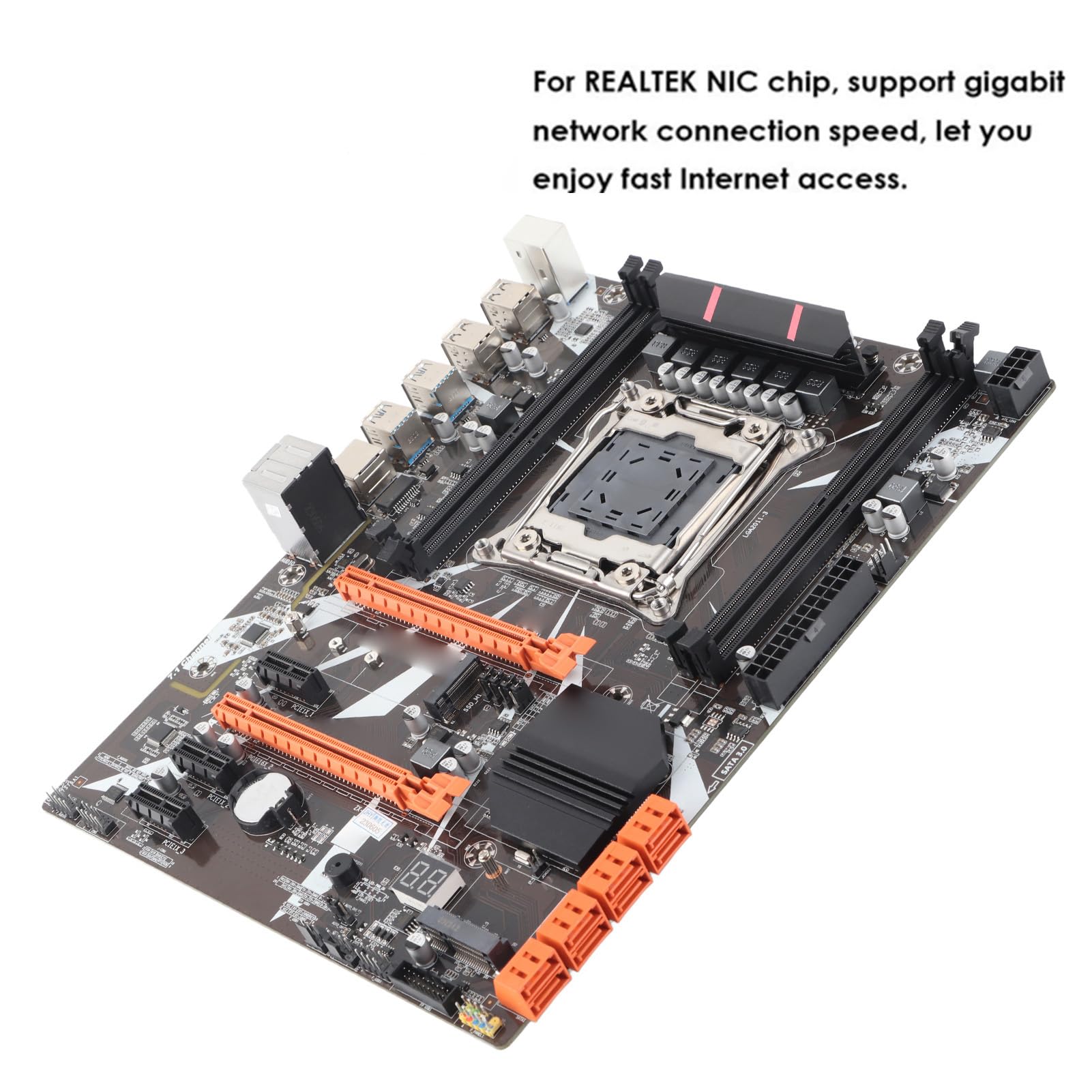

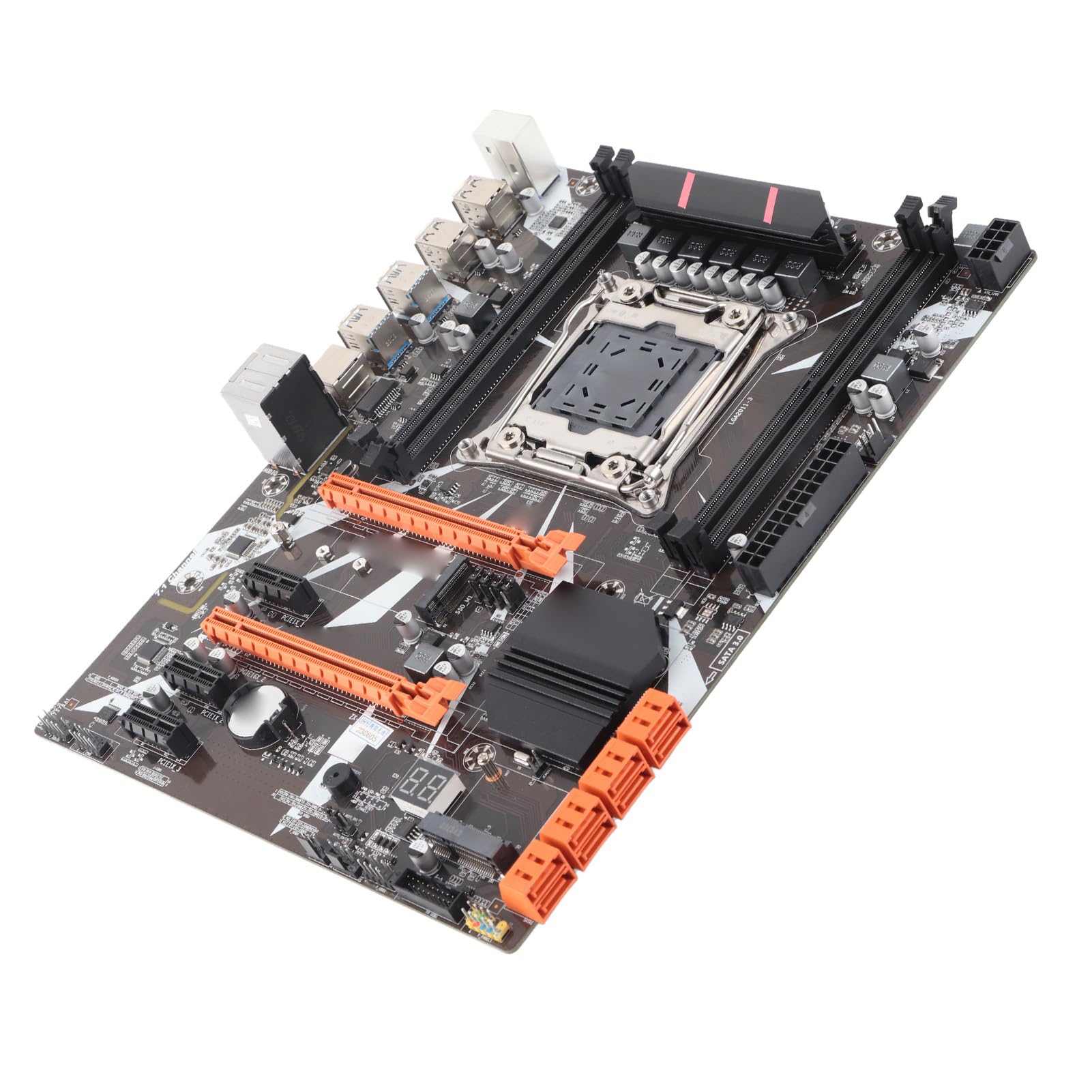

Tosuny Desktop Motherboard for X99, CPU Slot for I7 E5 LGA2011-3 4* DDR4 2133/2400/2800 Mhz Memory, 8 SATA2.0/1*SSD_M.2/2*PCI-E 16X interface PC Motherboard

• This is an M-ATX motherboard, the size of the motherboard is about 220 * 280 mm, the motherboard chip is for Inter x99, and the type supported by the CPU socket is LGA2011-V3, suitable for 6800k, 6850k, 6900k, 5820k, I7 38xx, i7 39xx , V1 16xx, V1 26xx, V1 46xx, V2 16xx, V2 26xx, V2 46xx, i7 58xx, i7 68xx, V3 16xx, V3 26xx, V3 46xx, V4 16xx, V4 26xx, V4 46xx.
• The memory supports 4 DDR4 2133/2400/2800, and the maximum support 32GB memory expansion. The memory interface provides 8 SATA2.0 interfaces and 1 SSD_M.2 interface (supporting PCIE and SATA modes), so the expansion capacity is sufficient. You later update the device to provide more interfaces.
• If you use i7 series processors, please do not use REG ECC at the same time, because they are not compatible with each other. This kind of platform requires at least 500W of power supply. Please make sure that your power supply is sufficient to support this platform.
• This motherboard has built-in components such as sound card and network card, and the color of the slot bottom plate may be different for each batch. The product is continuously optimized and upgraded, and does not affect the normal use of product performance and functions.
• We are to listen to the voice of customers, but after you buy this product, you find that this product does not meet your expectations or you have better suggestions for our products, please feel free to contact us, we will reply in time, let you Satisfaction is our greatest motivation.

Specifications: Material: PCB Battery model: CR2032 Application: office Size: approx. 220 x 280 mm/8.66 x 11.02 inches. Processor support: LGA2011-V3, for Core series: 6800k, 6850k, 6900k, 5820k, I7 38xx, i7 39xx, V1 16xx, V1 26xx, V1 46xx, V2 16xx, V2 26xx, V2 46xx, V2 46xx, XX, I7 58xx, i7 68xx, V316xx, V3 26xx, V3 46xx, V4 16xx, V4 26xx, V4 46xx, for Xeon series: E5-V3/E5-V4 series processor Chipset: for Inter x99 Memory: Support 4 DDR4 2133/2400/2800, maximum support 32GB RAM: ECC/REG/non-ECC HDD: 8 SATA2.0 ports and 1 M.2 SSD interface (supports PCIE and SATA modes) Motherboard name: ZX_99EV3_V1.21 Audio card chip: For Realtek ALC662 5.1 channel audio code NIC: For REALTEK 8106E/8111H 100Mbps/Gigabit Power connector: 1x8 pin, 1x24Pin BIOS: BIOS code settings Other interface socket: 1x for PS/2 interface, 4xUSB3.0 interface, 4xUSB2.0 interface, 2xPCI-E 16X interface, 3xPCI-EX interface, 1xAUDIO2 audio interface, 1xATXPWR interface, 1xPWR12V interface, 1xATX_CPU interface, 1xLAN interface, 1xWiFi interface Expansion pin: 1xF_AUDIO pin, 1xFP_USB3 pin, 1xF_USB pin, 1xJ_AUIO_ON pin (auto power on), 1xJCMOS pin, 1xDEBUG pin, 1xCOM pin Package list: 1 x Motherboard 1 x SATA cable. 1 x baffle Note: The color of the bottom plate of the slot may vary from batch to batch, the product is continuously optimized and upgraded, so it will not affect the use of the product.
