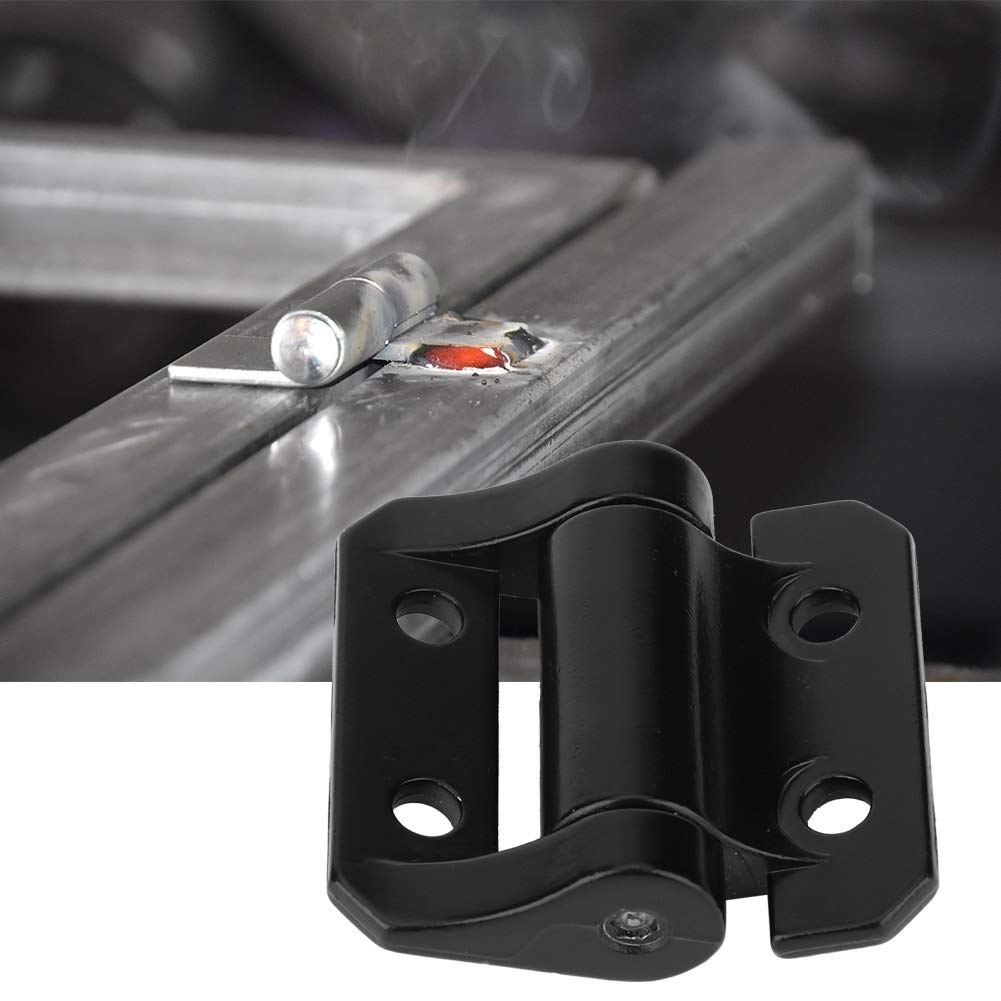

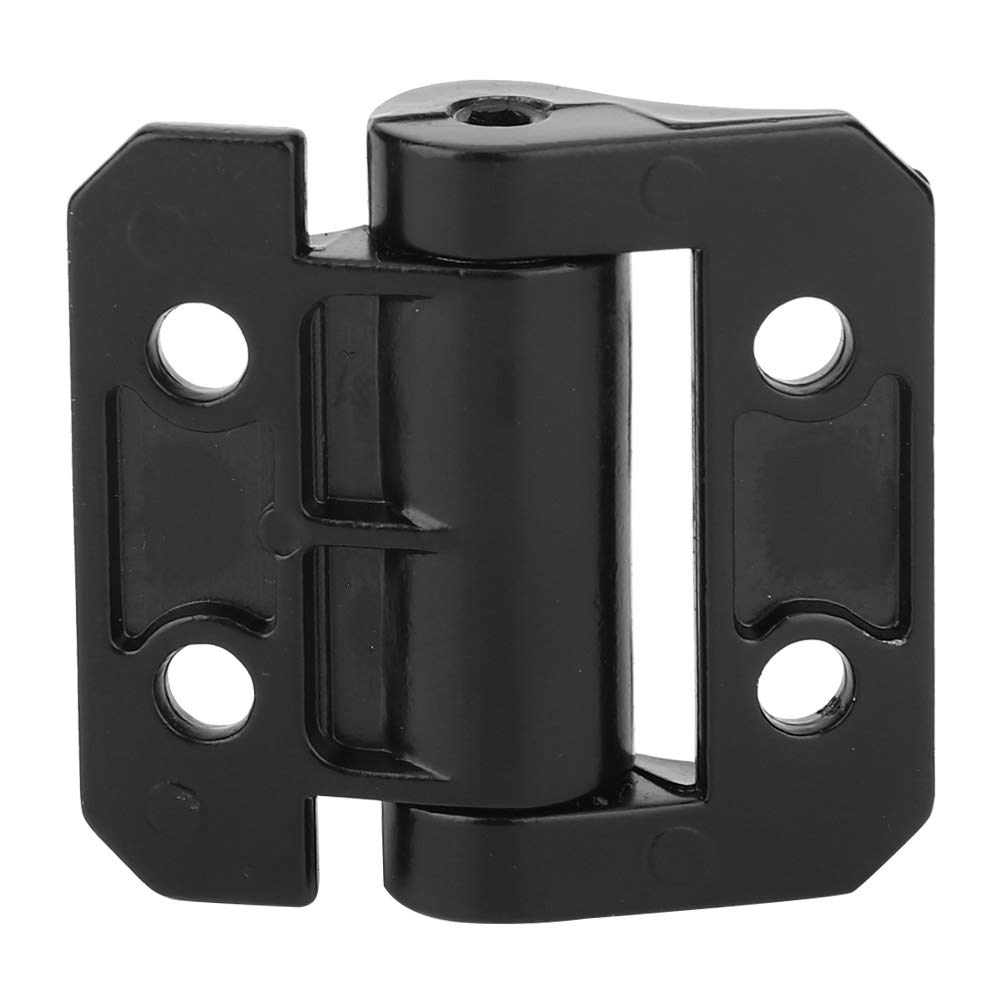

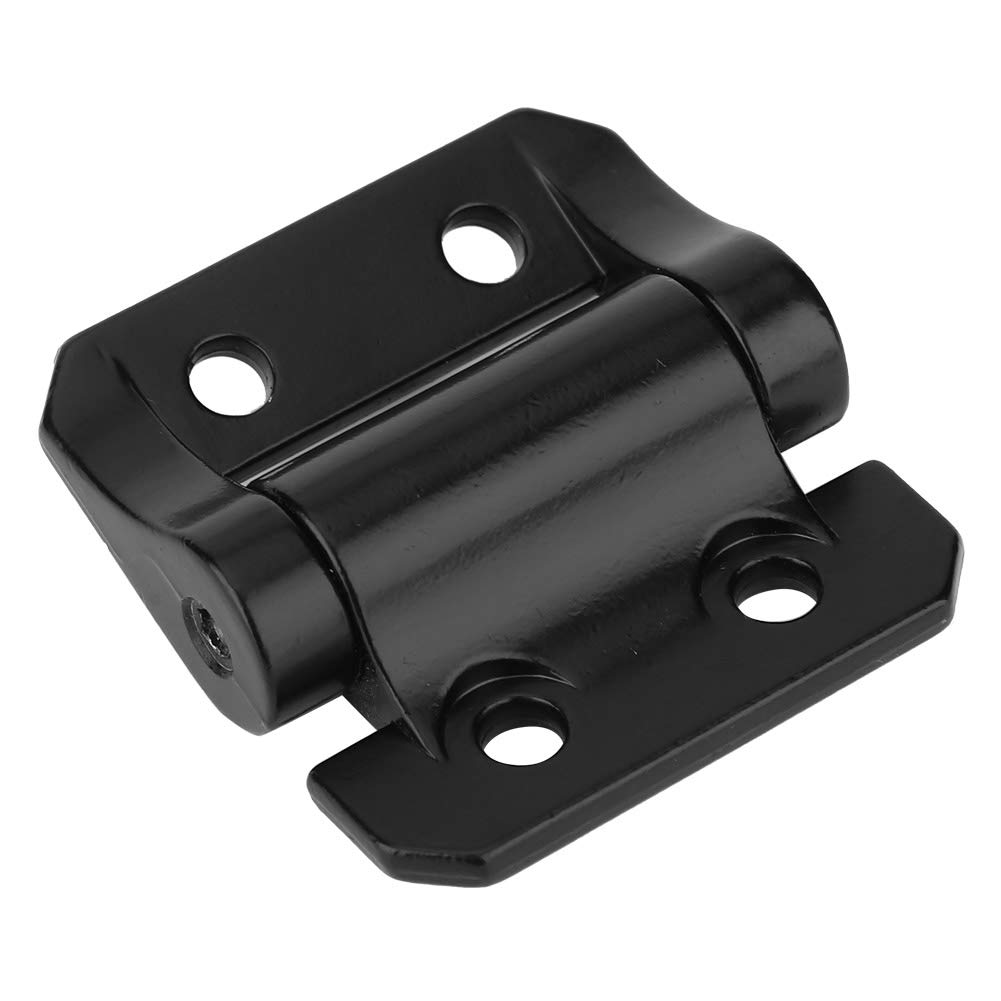

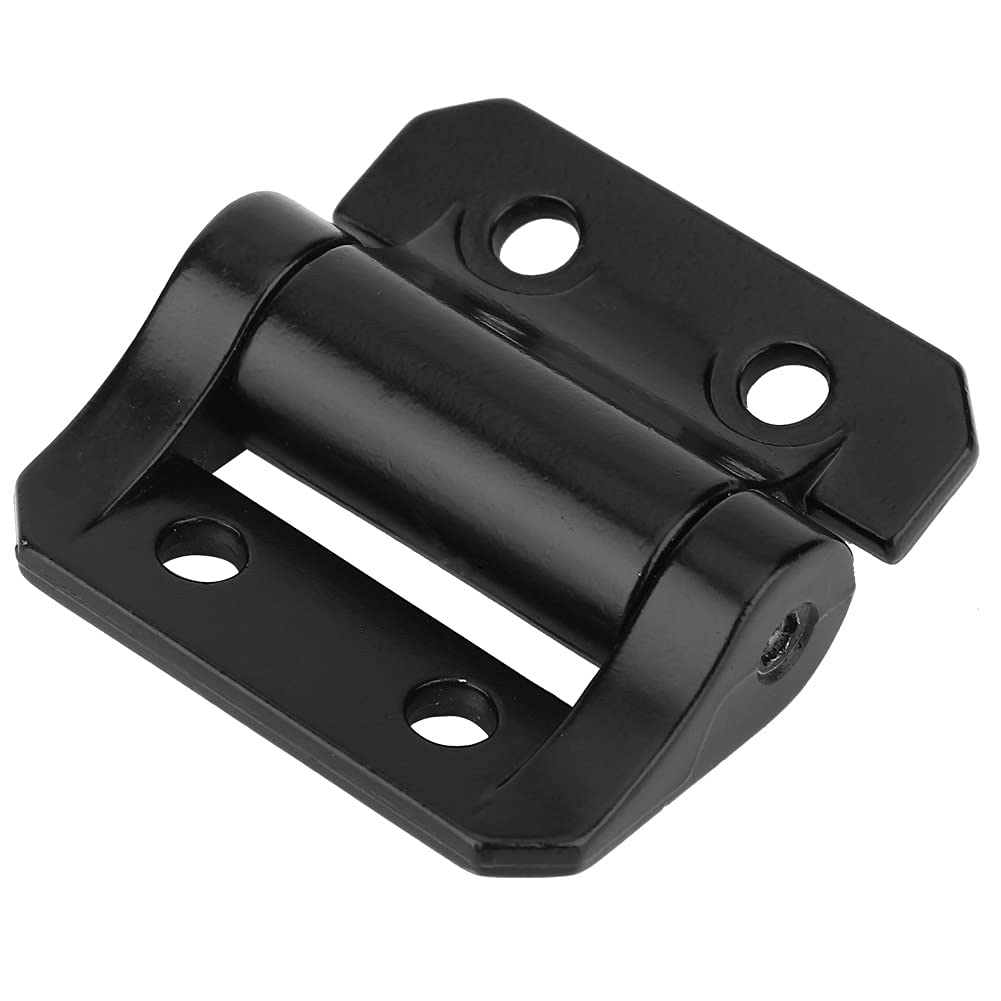

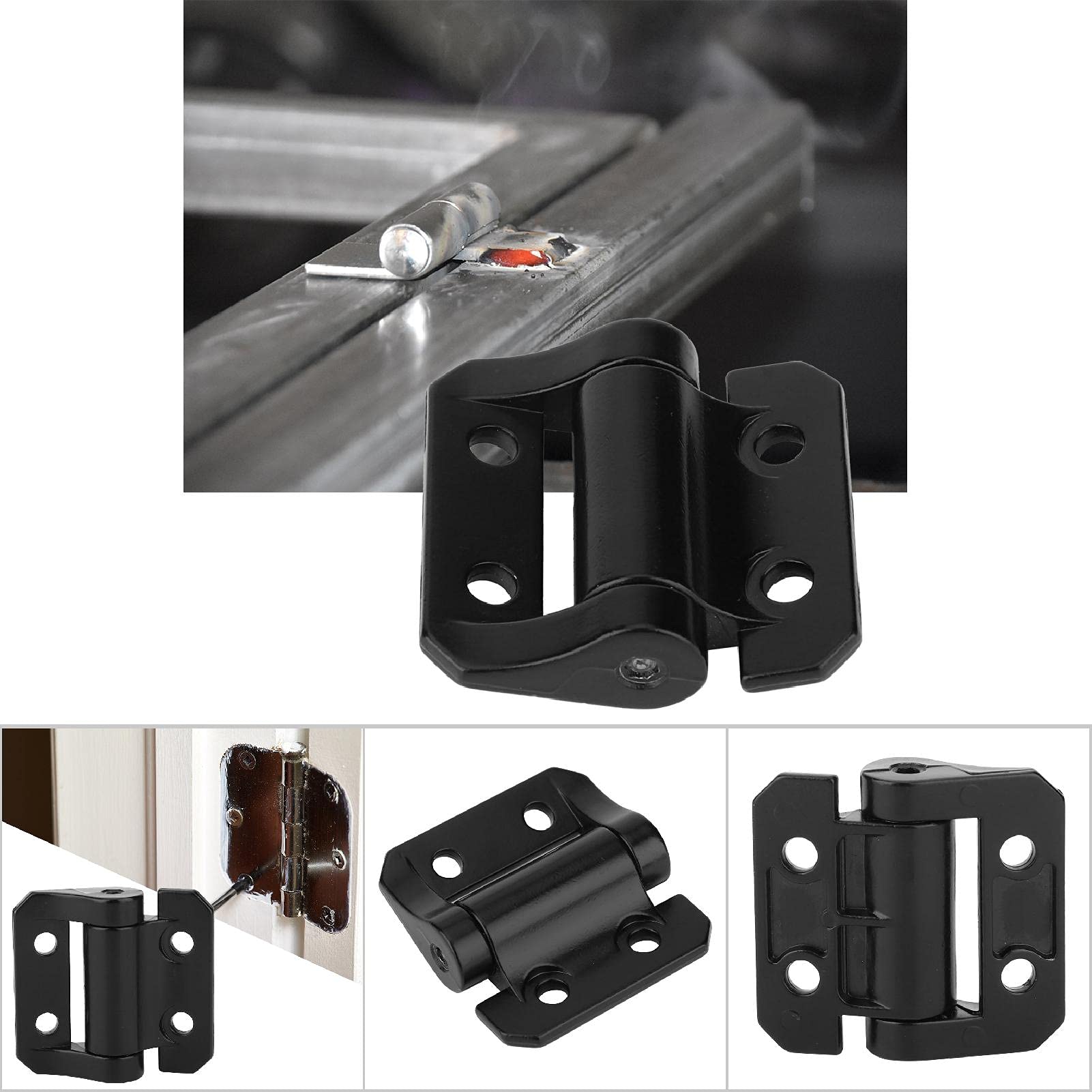

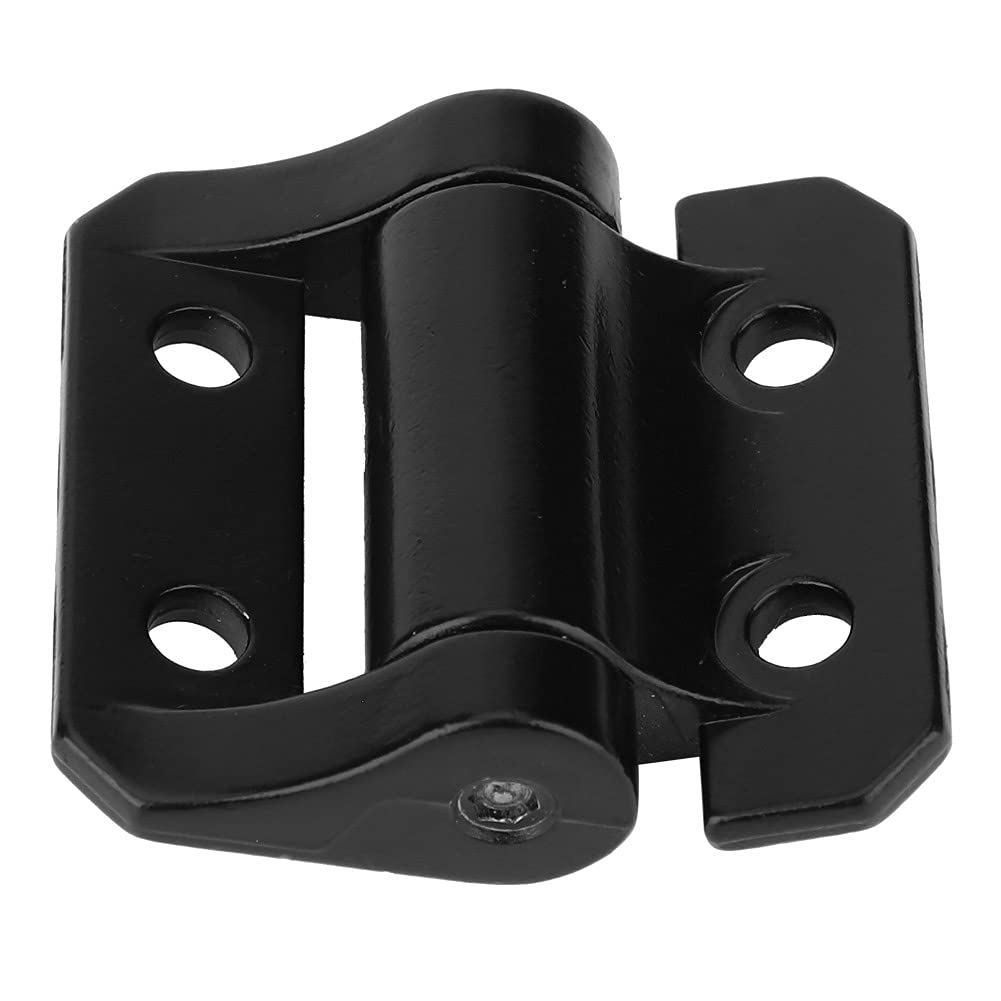

Torsion Hinge, Adjustable Torsion Hinge, Zinc Alloy Steel Electroplated Hinges for Door Glass Cabinet (2.3N.m), Door Hinges (Black 2.3N.m)

• HOW TO CHOOSE SIZE: Torque value (N.m) = length of door (m) divided by 2 * weight of door (kg) * 9.8. Hinge can only be stopped at any angle within the bearing range, please calculate the required torque value by yourself.
• LONG USE TIME: Made of zinc alloy and steel, it has strong stability, strong wear resistance and is not easy to rust.
• ADJUSTABLE ANGLE: The hinge torque can be maintained anywhere from 0 to 180 degrees, and the initial torque is offset from the rated torque by -20% to +40%.
• NOTE: More than 2 hinges shall be used for a door. When using multiple hinges, ensure that there is no deviation between the axes of each hinge.
• PRECISE POSITIONING: Each hole location is scientifically calculated to distribute the weight evenly for a firmer use.

Specification: Item Type: Torsion Hinge Color: Black Material: Zinc Alloy + Steel Torsion Size: 0.9/1.2/1.8/2.3N.m(optional) Mounting Hole Diameter: M4.8 Intermediate Shaft Length: Approx. 40mm / 1.6in Intermediate Shaft Diameter: Approx. 13mm / 0.5in Mounting Hole Distance: Approx. 17.8 x 28mm / 0.7 x 1.1in Edge Length and Width: Approx. 41.5 x 40.5mm / 1.6 x 1.6in Package List: 1 x Torsion Hinge
