TOPPING DX1 Support Up to DSD256 and PCM384 THD+N<0.0002% XMOS XU208 Newest AK4493S 2 Gain Settings Hi-Res Audio DAC & Headphone Amplifier (Black)

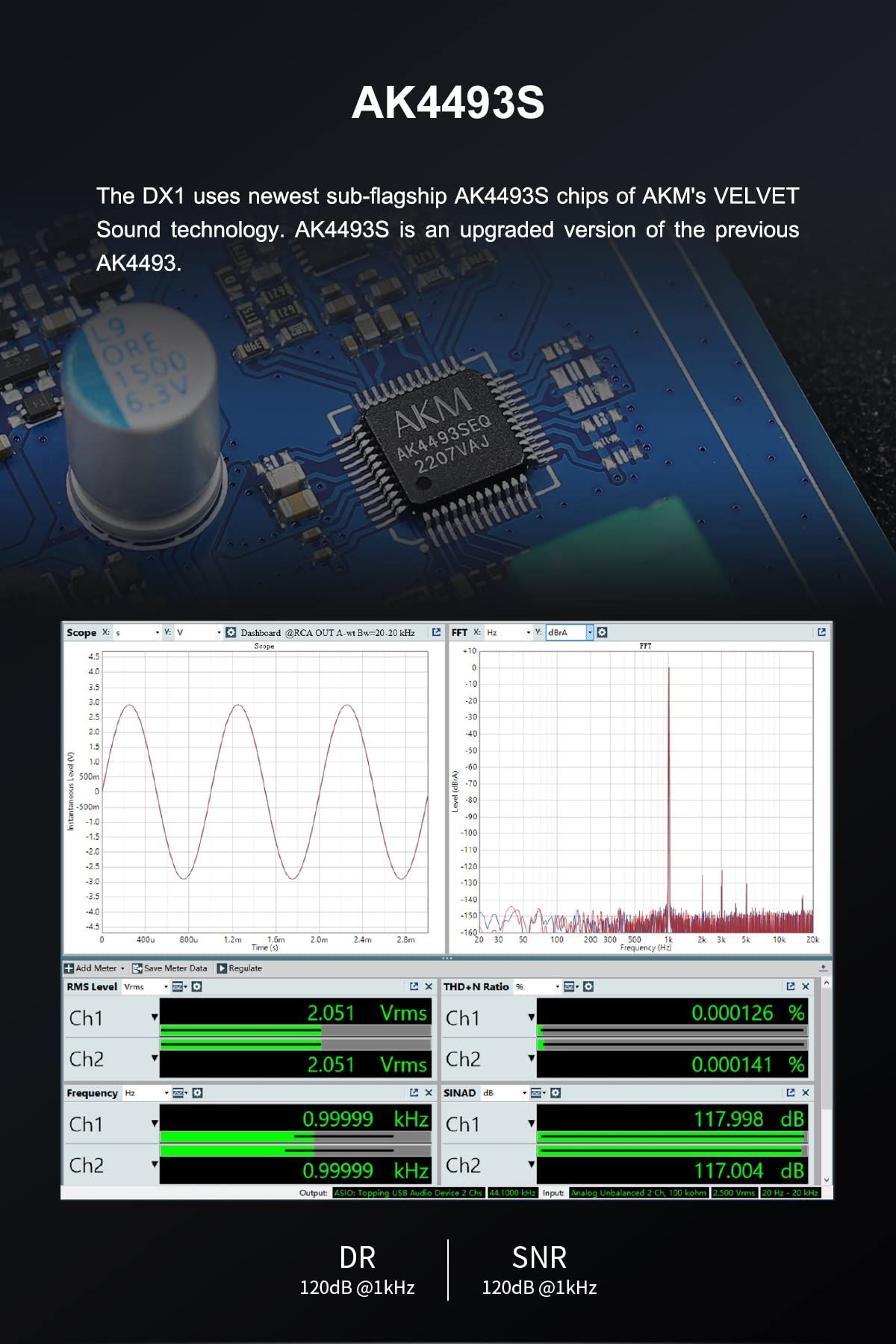

• AK4493S: The DX1 uses newest sub-flagship AK4493S chips of AKM's VELVET Sound technology. AK4493S is an upgraded version of the previous AK4493.

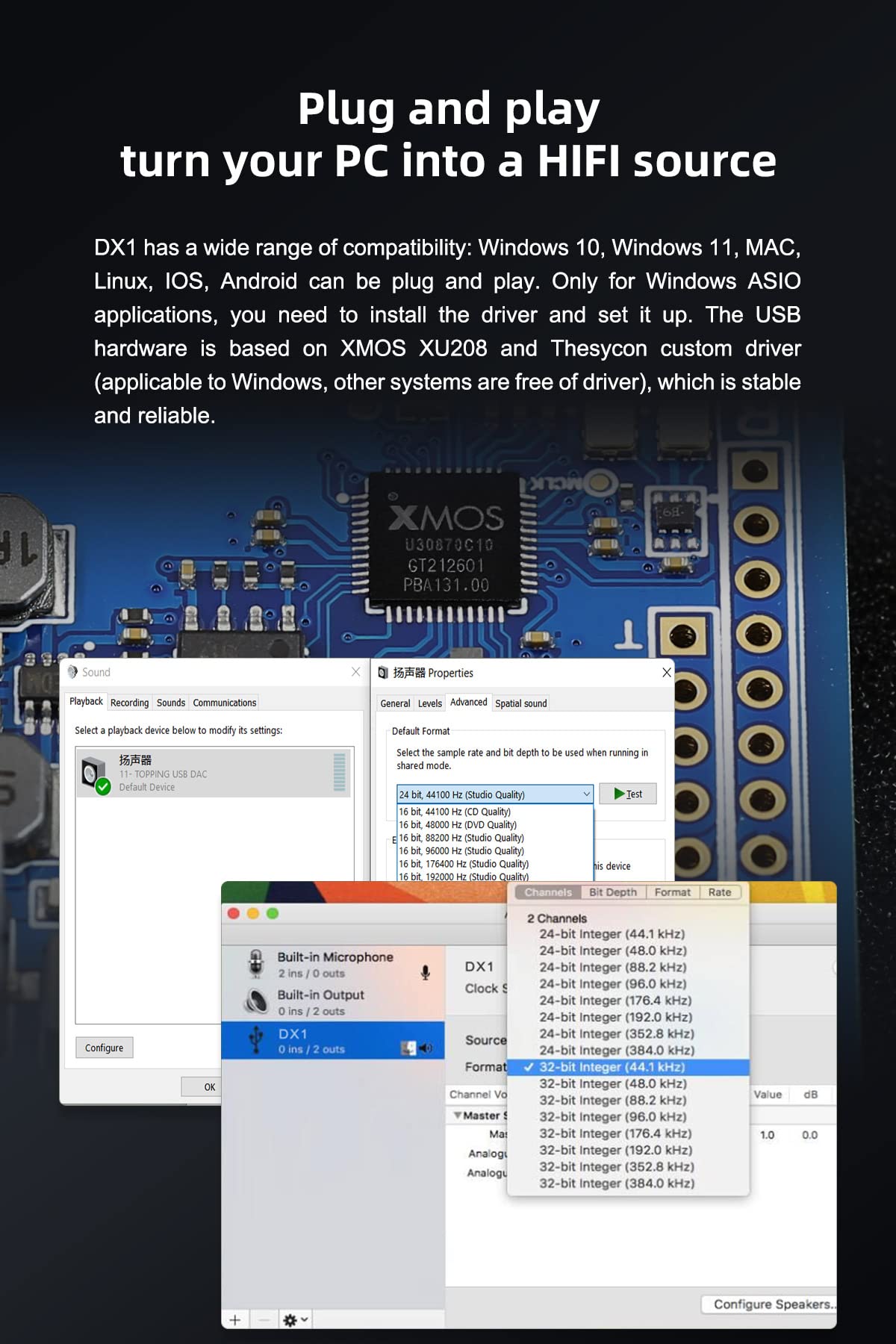

• Plug and play turn your PC into a HIFI source: DX1 has a wide range of compatibility: Windows 10, Windows 11, MAC, Linux, IOS, Android can be plug and play. Only for Windows ASIO applications, you need to install the driver and set it up. The USB hardware is based on XMOS XU208 and Thesycon custom driver (applicable to Windows, other systems are free of driver), which is stable and reliable.
• No adapter required: Like other USB device, the DX1 does not require an additional adapter for power supply. Only one USB cable can complete the power supply and data transmission.

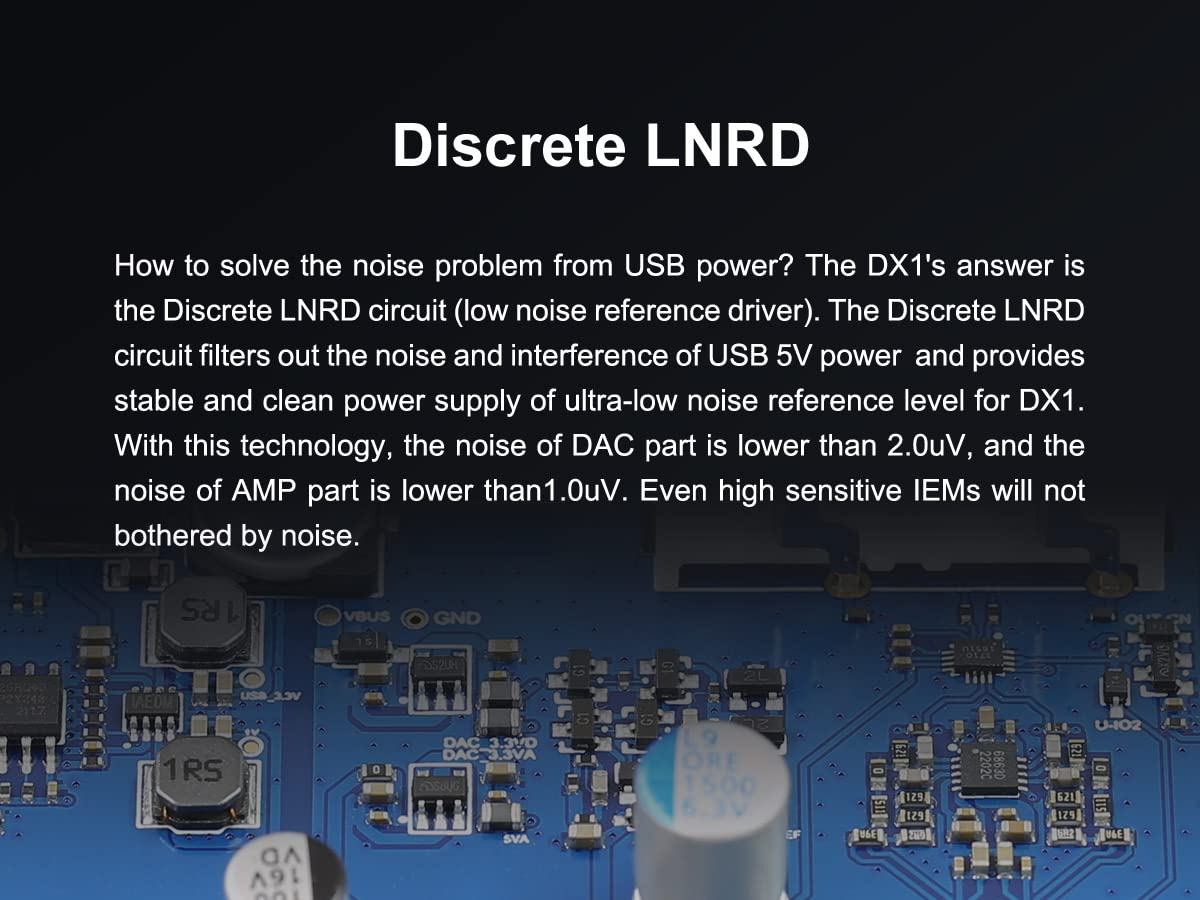

• Discrete LNRD: How to solve the noise problem from USB power? The DX1's answer is the Discrete LNRD circuit (low noise reference driver). The Discrete LNRD circuit filters out the noise and interference of USB 5V power and provides stable and clean power supply of ultra-low noise reference level for DX1. With this technology, the noise of DAC part is lower than 2.0uV, and the noise of AMP part is lower than1.0uV. Even high sensitive IEMs will not bothered by noise.

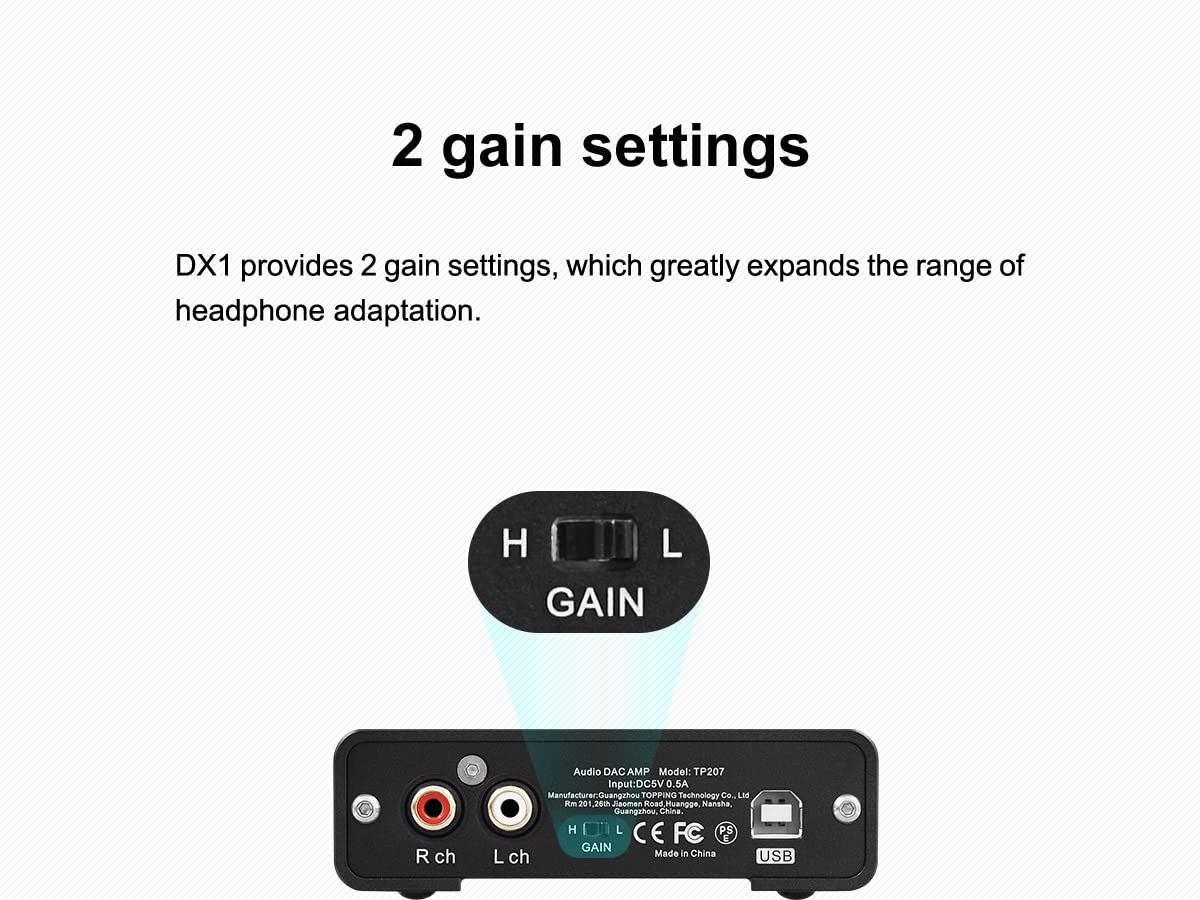

• DX1 has both 6.35mm and 3. 5mm headphone output to meet more needs. 2 gain settings: DX1 provides 2 gain settings, which greatly expands the range of headphone adaptation.

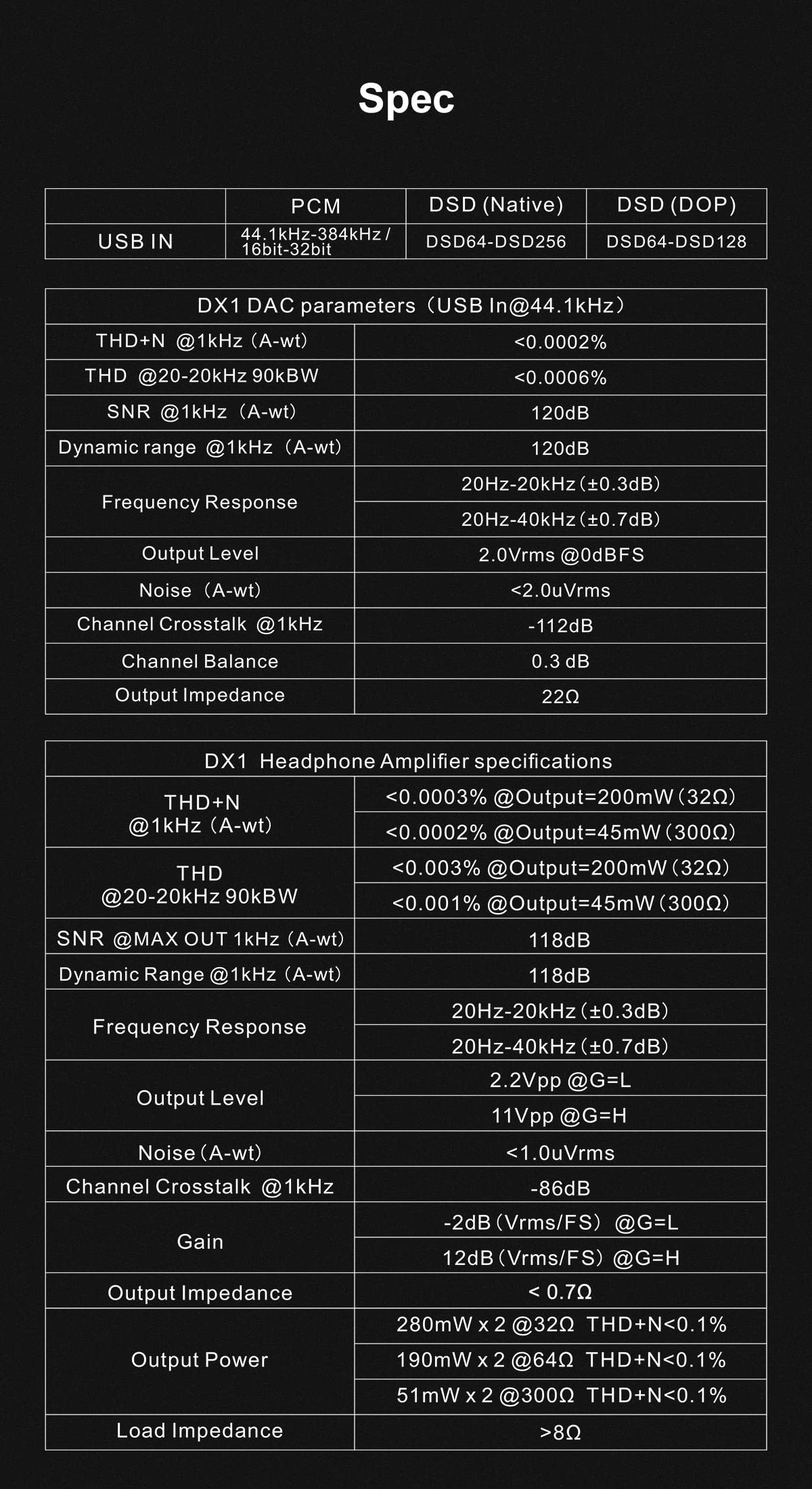

Specifications: USB IN: PCM: 44.1kHz-384kHz/16bit-32bit DSD (Native): DSD64-DSD256 DSD (DOP): DSD64-DSD128 DX1 DAC parameters (USB In@44.1kHz): THD+N @1kHz (A-wt): <0.0002% THD @20-20kHz 90kBW: <0.0006% SNR @1kHz (A-wt): 120dB Dynamic range @1kHz (A-wt): 120dB Frequency Response: 20Hz-20kHz (±0.3dB) 20Hz-40kHz (±0.7dB) Output Level: 2.0Vrms @0dBFS Noise (A-wt): <2.0uVrms Channel Crosstalk @1kHz: -112dB Channel Balance: 0.3 dB Output Impedance: 22Ω DX1 Headphone Amplifier specifications: THD+N @1kHz (A-wt): <0.0003% @Output=200mW (32Ω) <0.0002% @Output=45mW (300Ω) THD @20-20kHz 90kBW: <0.003% @Output=200mW (32Ω) <0.001% @Output=45mW (300Ω) SNR @MAX OUT 1kHz (A-wt): 118dB Dynamic Range @1kHz (A-wt): 118dB Frequency Response: 20Hz-20kHz (±0.3dB) 20Hz-40kHz (±0.7dB) Output Level: 2.2Vpp@G=L 11Vpp@G=H Noise (A-wt): <1.0uVrms Channel Crosstalk@1kHz: -86dB Gain: -2dB (Vrms/FS) @G=L 12dB (Vrms/FS) @G=H Output Impedance: <0.5Ω Output Power: 280mW x 2@32Ω THD+N<0.1% 190mW X 2 @64Ω THD+N<0.1% 51mW x 2 @300Ω THD+N<0.1% Load Impedance: >8Ω
