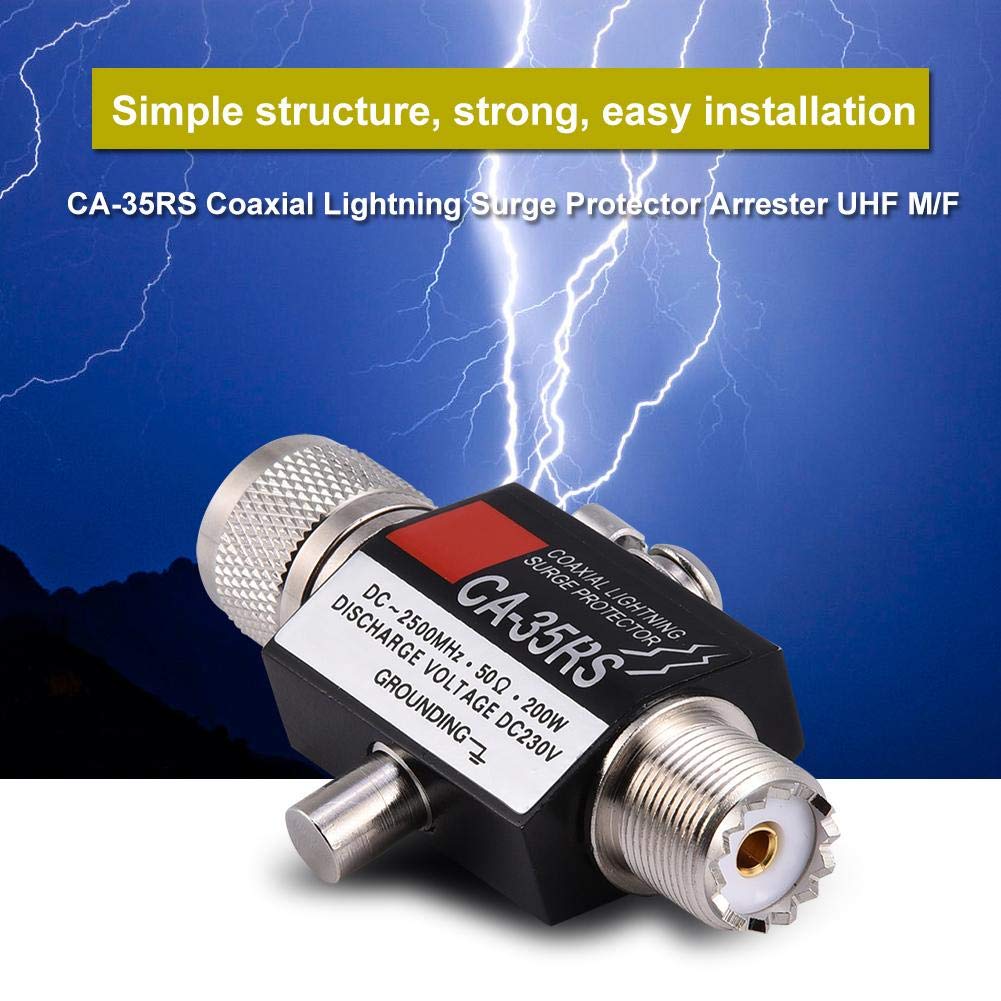

CA-35RS Coaxial Surge Protector UHF Connector Male to Female Full Band Transceivers Receivers Compatible Arrester for Radio Equipment 150cm Cable Adapter

• COMPREHENSIVE arrester can absorb surges from the top of the building antenna shot, and when the surge voltage exceeds the specified level, the surge will be discharged and grounded to provide complete for transceivers, receivers, etc.
• SPECIFICATIONS: arrester support 0-2500MHz frequency range, DC230V rated voltage, 500A current, 400W peak power to avoid voltage surges exceed the specified level and damage appliances.
• SAFETY GUARANTEE: coaxial arrester using 1/4 wavelength short-circuit principle, good protection, built-in inflatable arrester components, designed with high security in mind, with the function of absorbing and releasing surges.
• PERFORMANCE: The coaxial structure of the surge protector ensures excellent high frequency characteristics, wide bandwidth, low losses and VSWR, and is primarily used to protect electrical systems and live electrical equipment from strikes and transient overvoltages.
• CONVENIENT AND PRACTICAL: surge protector made of flame-retardant materials, can be repeated as needed surge discharge and recovery action, the use of safer. Protector structure is simple, very easy to install or replace.

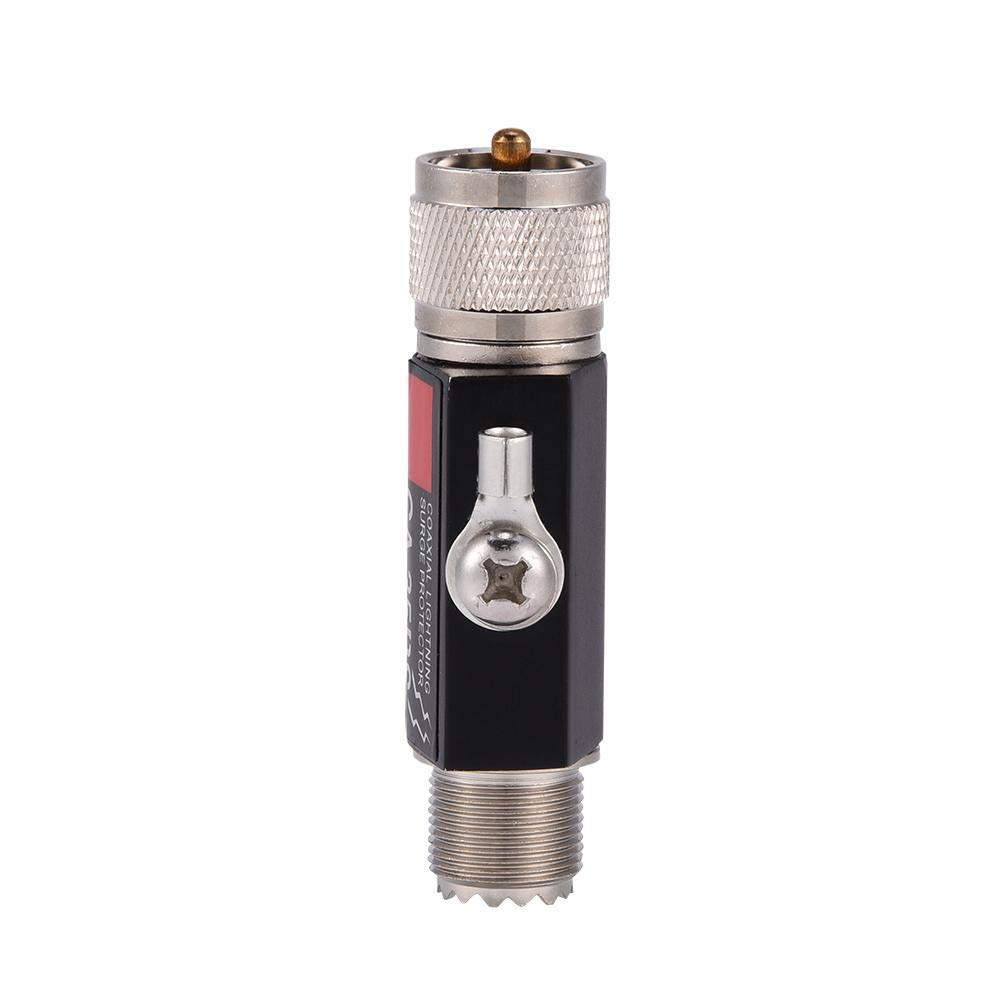

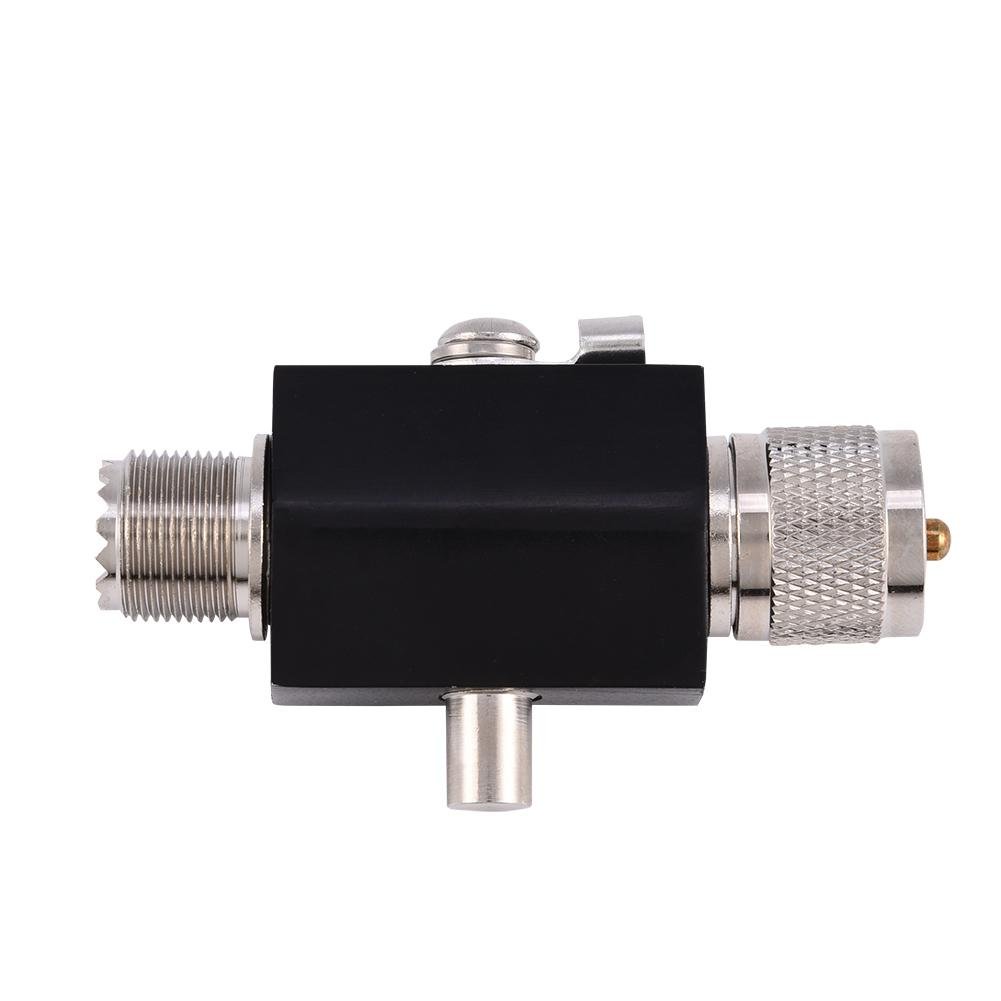

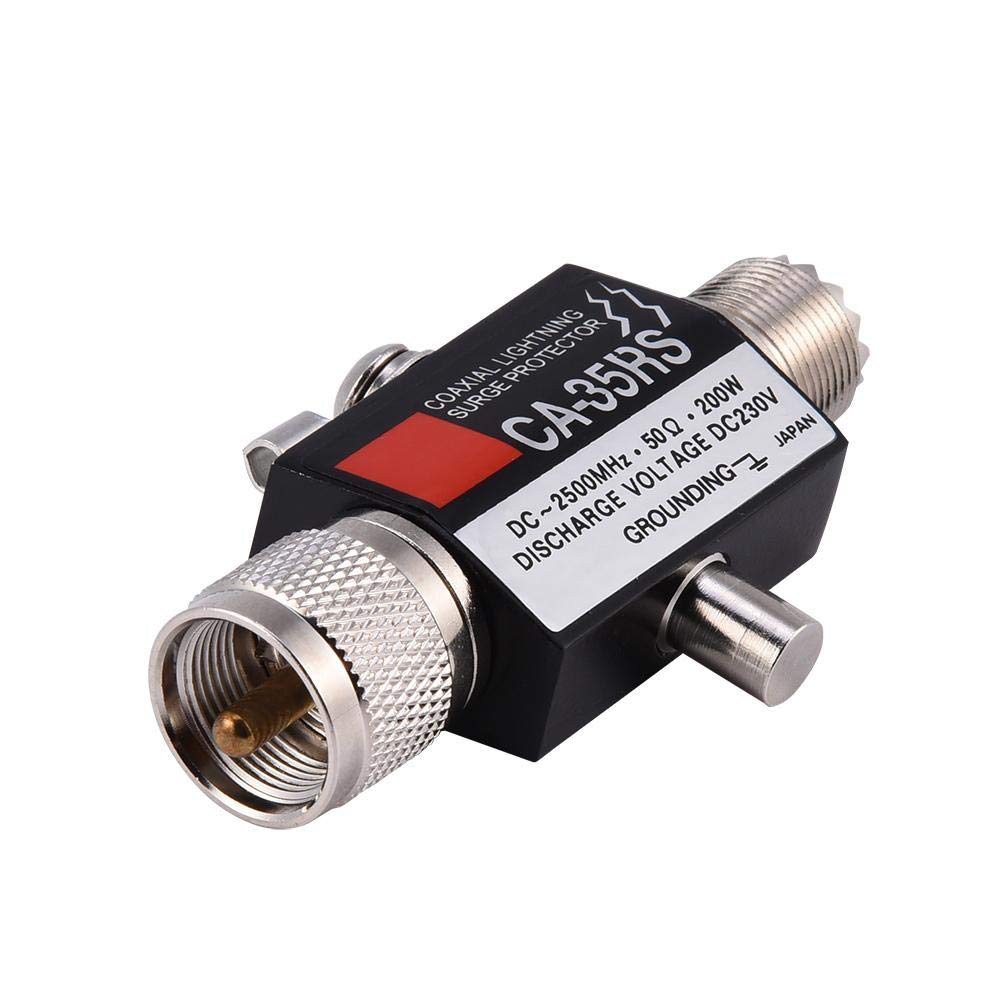

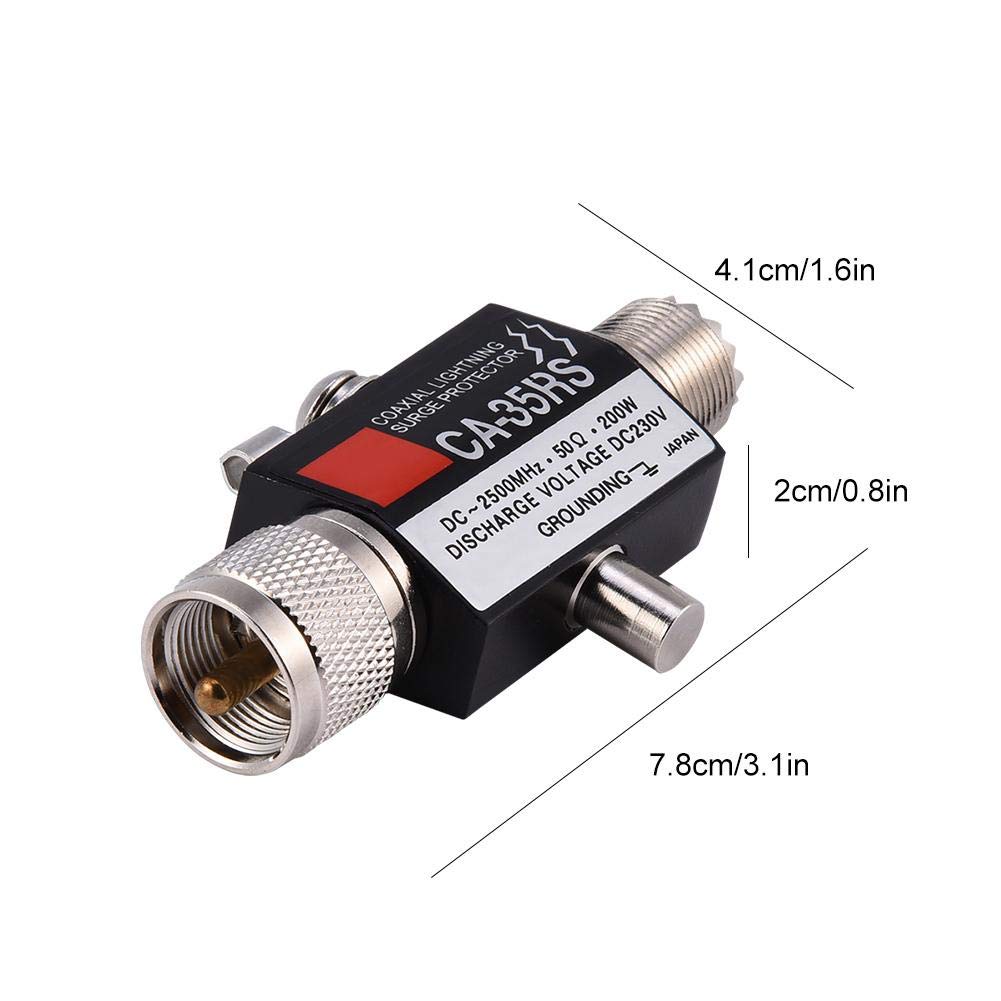

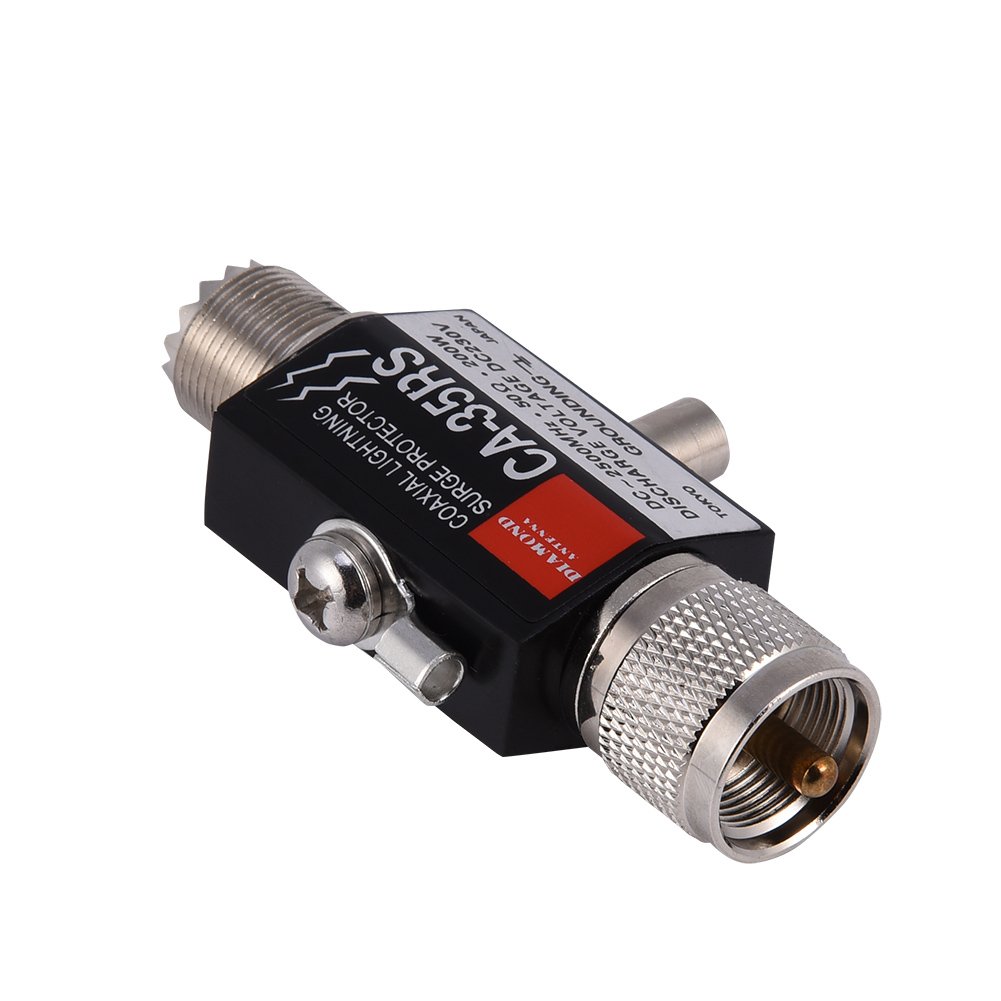

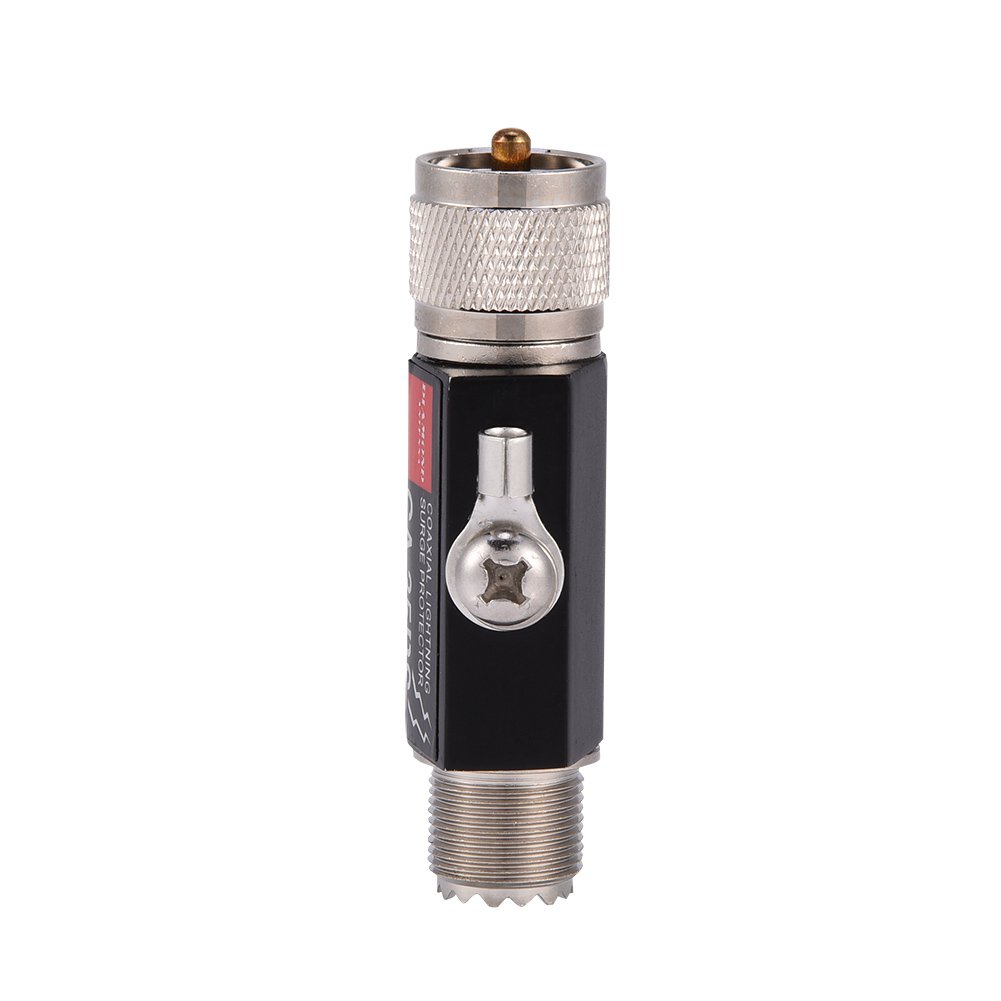

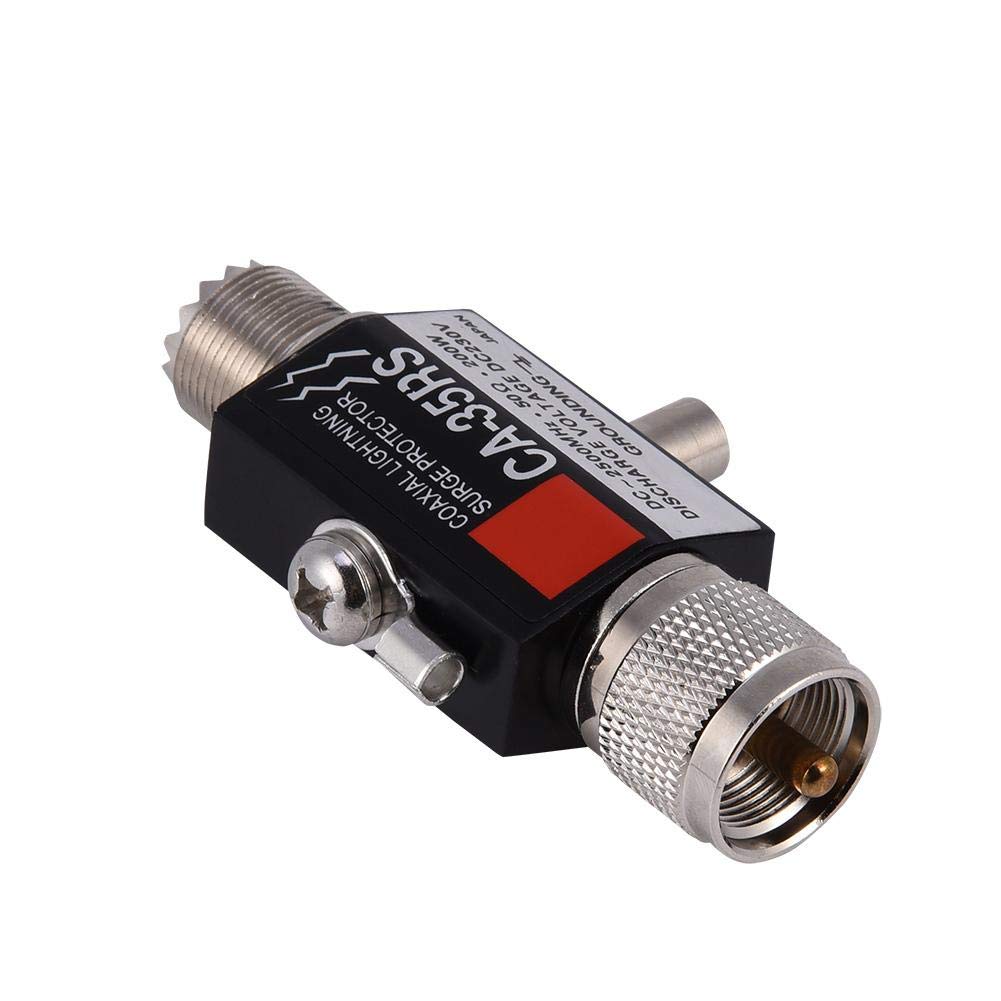

Description: The Surge Protector is a arrester of coaxial construction. The device is designed to absorb the surge of strikes on an antenna at the top of a building and ground it, thus providing full for transceivers, receivers, etc. Specifications: Material: Iron Color: Black Model: CA-35RS Connector: UHF/UHF Frequency range: 0-3000MHz Voltage standing wave ratio: 1.1 Peak power: 200w Voltage: DC 230A Current: 500A Impedance: 50 ohms Size: 78 * 41 * 20mm / 3.1 * 1.6 * 0.8in Package weight: 105g Package List: 1 x Coaxial Surge Protector
