TOPAI DIM Touch Panel LED Controller RF 433Mhz Wireless Remote Control Distance 20m Wall Mounted DC 5-24V 15A*2CH for DIM LED Strip Lights

• It is widely used in 5050,2835,COB LED strip light and so on. The package comes with a complete set of remote controller and receiver, both are very convenient and easy to use.
• With the technology of the RF 433Mhz high frequency wireless remote control, high speed telecommunications, strong anti-interference ability, remote distance up to 24M
• Max Current Load: 15A*2CH, Max 30A. Max output power is 150Watt（5VDC） 360 Watt (12VDC), 720 Watt (24VDC).
• RF radio frequency (RF) remote control, wireless signal strong penetrating power, even if there is an obstacle in front can be controlled, the partition of remote control; ID code, independent each other
• According to the different needs of customers, you can choose dynamic lighting effects such as gradient, jump, fade, flicker, flash, etc. and a variety of static lighting options. Widely used in home decoration, shopping mall advertising, bar counters and other places

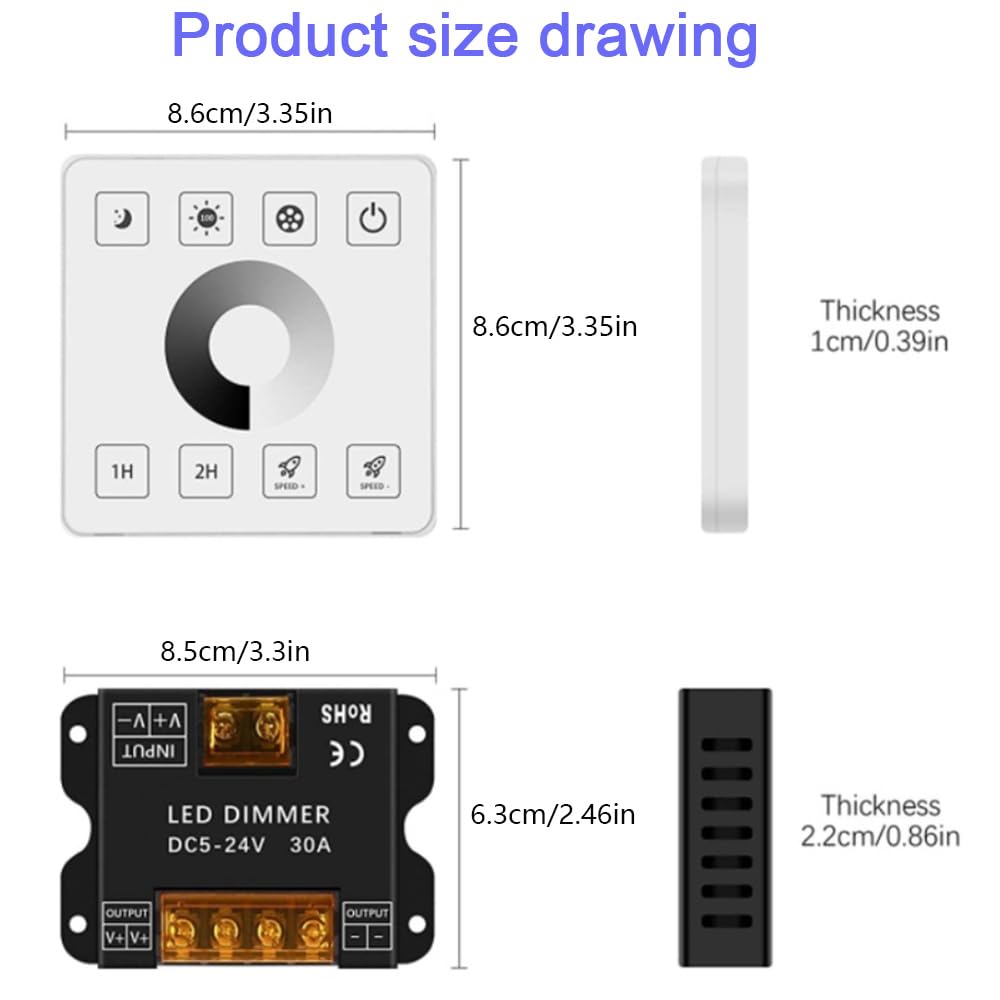

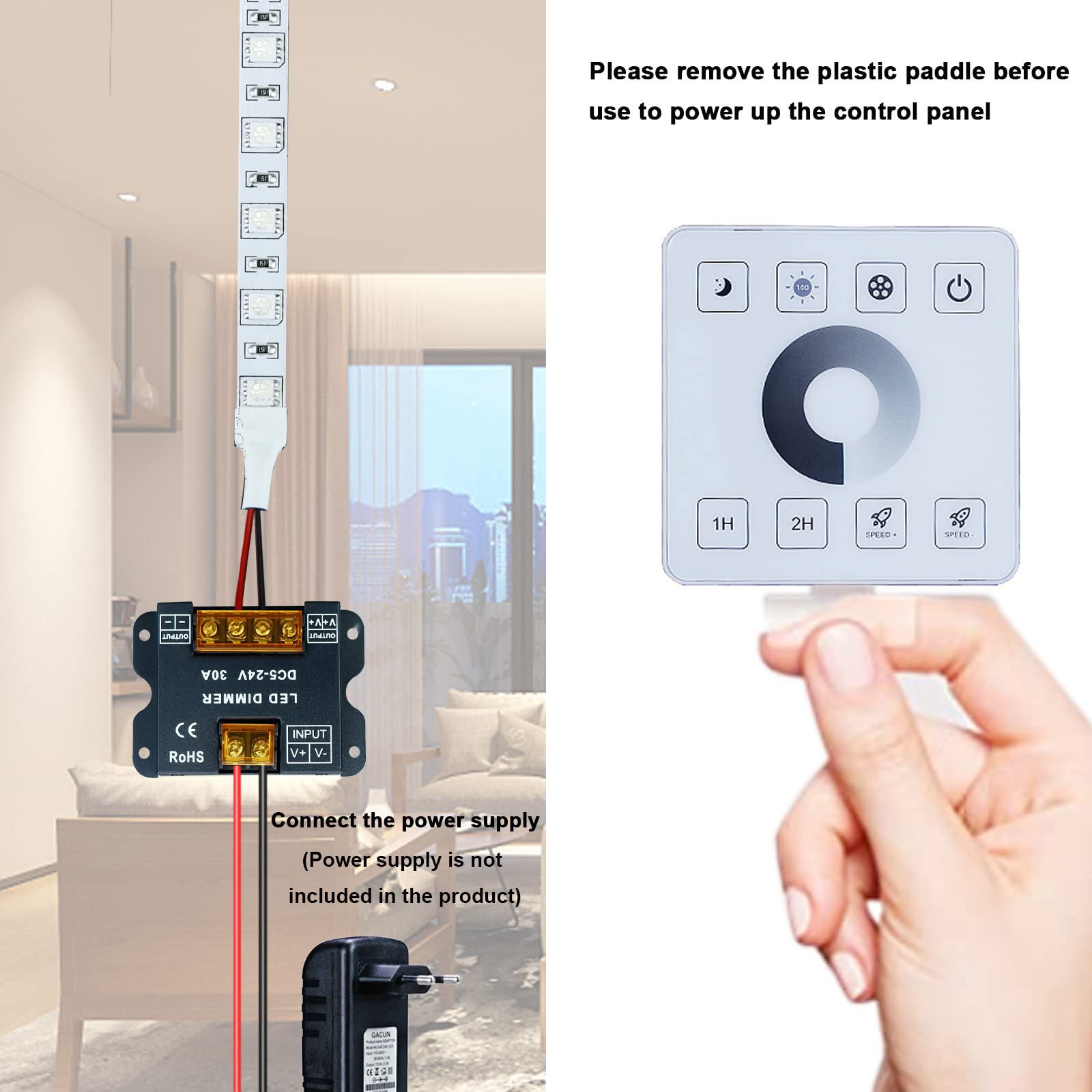

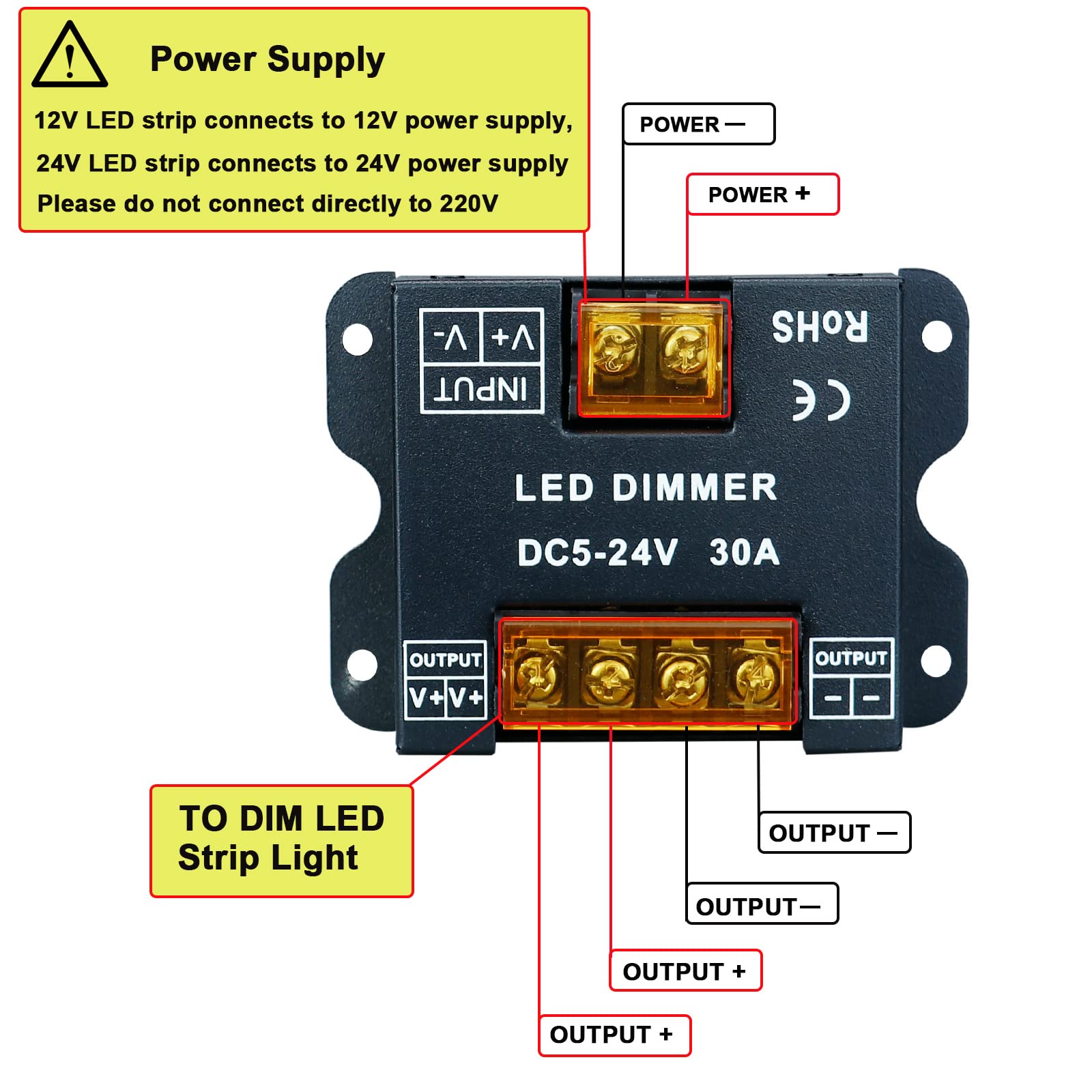

DIM RF Remote Controller: - Working Voltage: 3VDC ( Battery include CR2025 ) -Output Signal: RF ( 433Mhz ) -Standby Time: 12 months -Remote Distance: 20M -Size: L84 x W84 x H10mm -Working Temperature: -20℃~60℃ -Net Weight: 53g -Operating Life: 20000 hours LED Receiver: - Input voltage: 5-24V DC -Output current: 2CH, 15A/CH -Output power: 5V 150W; 12V 360W; 24V 720W -Working temperature: -20℃~60℃ -Product size: L102×W60×H22mm -Net weight: 114g Safety Information: -The product is non-waterproof. Please avoid the sun and rain. -Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation. -Please check whether the output voltage of any power supplies used comply with the working voltage of the product. -Ensure all wire connections and polarities are correct and secure before applying power to avoid any damages to the LED lights. -Before the first use, please pull out the plastic battery barrier sheet from the battery compartment located on the bottom of the remote. Pay attention to the battery positive and negative polarity. Package Included: 1x LED Receiver 1x LED RF M433hz Remote ( Battery include )
