ToneShaper Guitar Wiring Kit, for Les Paul Standard (Modern Wiring)

• CTS 500k audio-taper, low-torque pots with 1/2” bushing lengths - long enough for any top thickness
• The finest OEM component brands, no generic part specs – the RIGHT parts for your application
• UTS threads for USA guitars; imported guitars may require hole enlargement
• All hardware included, and it’s the right hardware - you’ll have everything you need

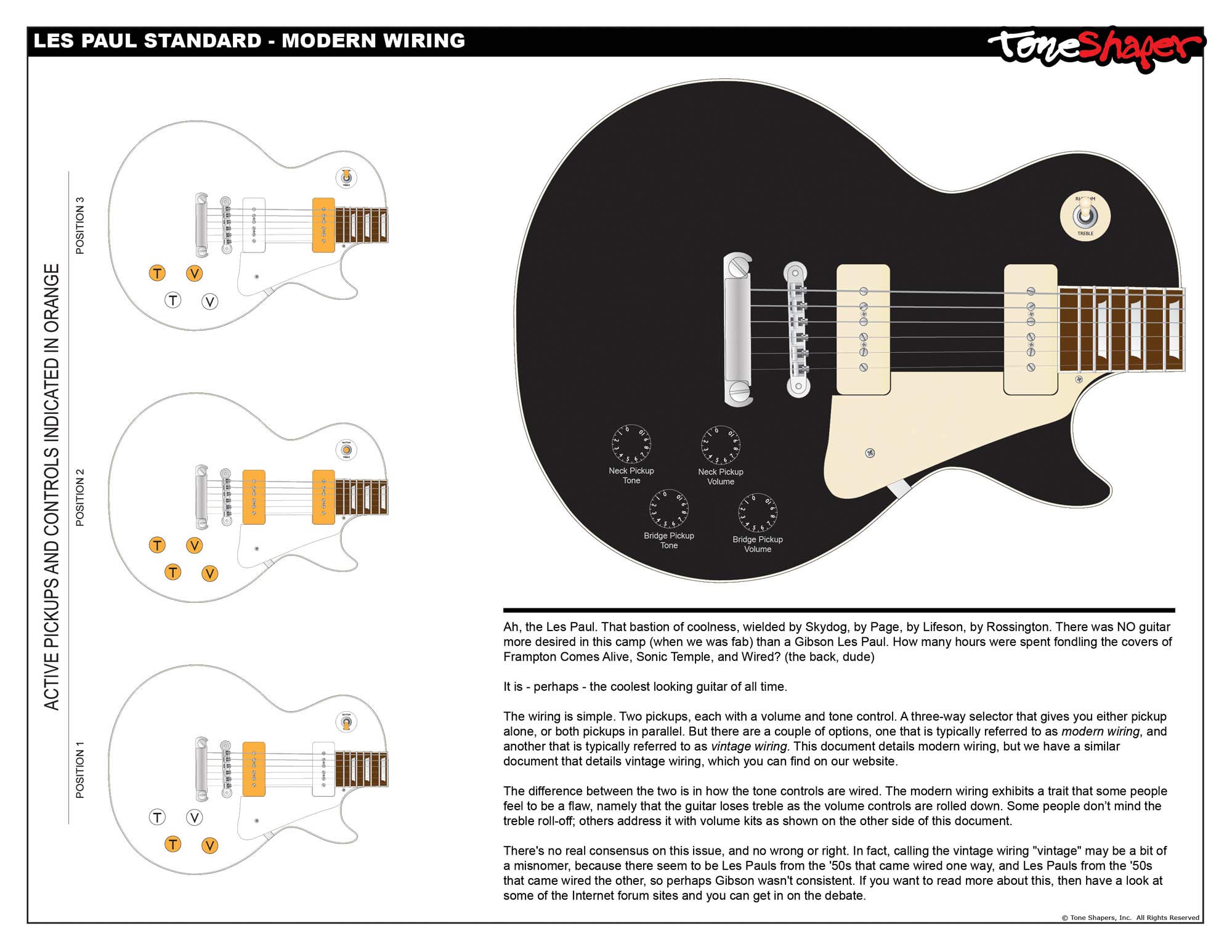

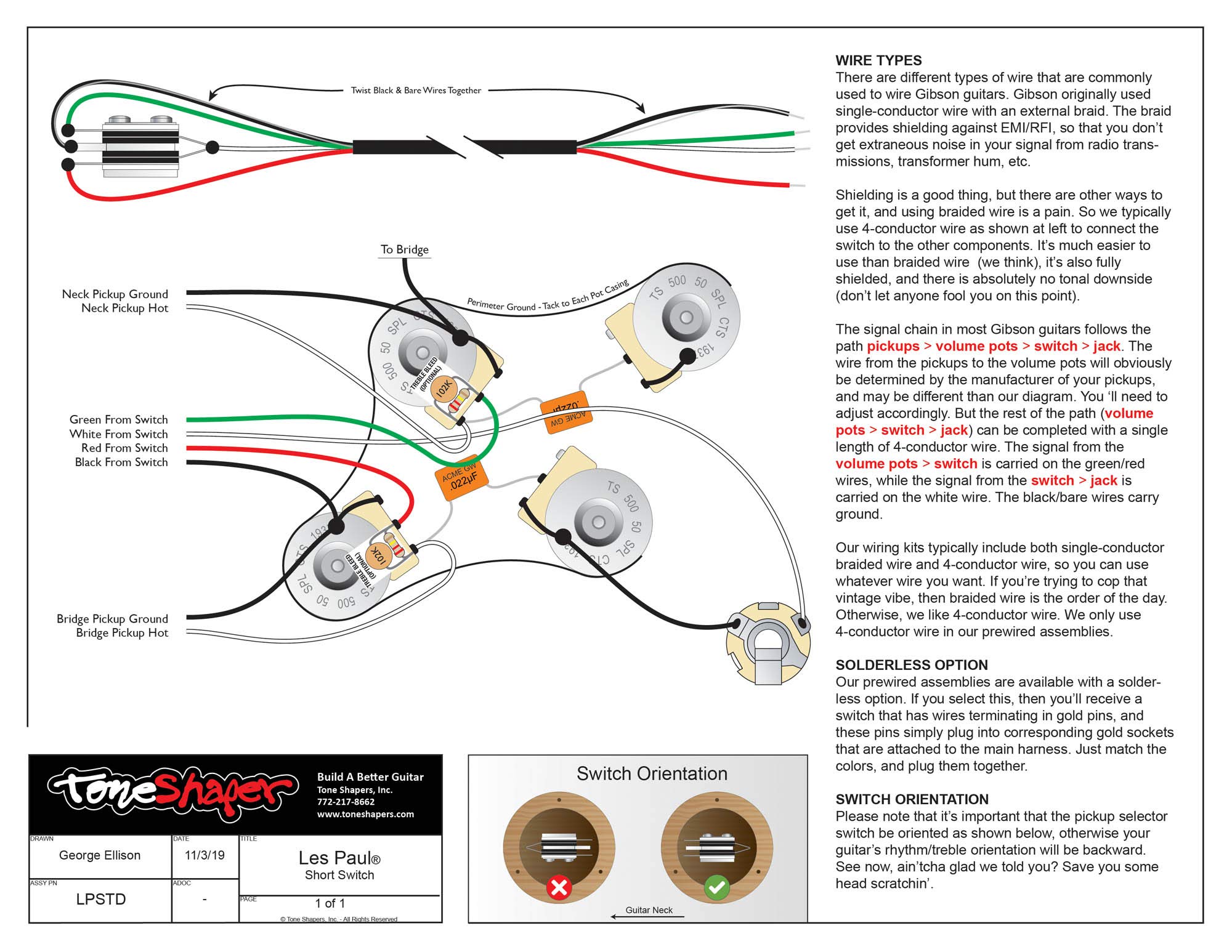

• Professional wiring diagram - the highest-quality documentation in the industry

ToneShaper wiring kits for Gibson guitars are available in modern and vintage versions. The modern kits are a few bucks more as they include treble-bleed networks (resistor/capacitor in parallel) which may be installed if desired to address the problem of treble rolloff when using the volume controls. The vintage kits address the treble rolloff by wiring the tone controls a little differently. Of course, the treble rolloff doesn’t bother some people. And each method of addressing it carries pros & cons which are debated ad nauseum on the forum sites for your perusal. If you’re unsure about which way to go, buying the modern kit gives you the option to try both and see which you prefer. This kit includes everything you need to wire a Gibson Les Paul Standard, Custom, or Deluxe, or similar guitar. It includes the finest components, from the same suppliers that Gibson has used for years: (2) Capacitor, .022µF Orange Drop (1) Deep Nut for Switchcraft Switches, Nickel (1) Jack, Switchcraft 1/4" Mono (4) Pot, CTS 500k Audio, Low Torque (1/2" Bushing Length) (1) Switch, Switchcraft 3-Way Toggle, Long Straight (2) Treble Bleed Kit for Humbuckers (2) Wire, 22 AWG Cotton Push Back w/ Tinned Overcoat, Black (4) Wire, 22 AWG Single Conductor Braided (2) Wire, 22 AWG Stranded Silver-Plated Copper, Black PTFE (2) Wire, 4-Conductor (1) Professional, Fully-Illustrated Wiring Diagram
