TOGGLER Toggle TA Hollow-Door Anchor with Screws, Polypropylene, Made in US, 1/8 to 1/4 Grip Range, For #8 to #12 Fastener Sizes (Pack of 5) by TOGGLER

• Hollow-door anchor provides a firm hold from within hollow-core doors and thin panels 1/8" to 1/4" thick
• Anchor affixes to the wall before adding the bolt and fixture, allowing one-person installation and fixture changes

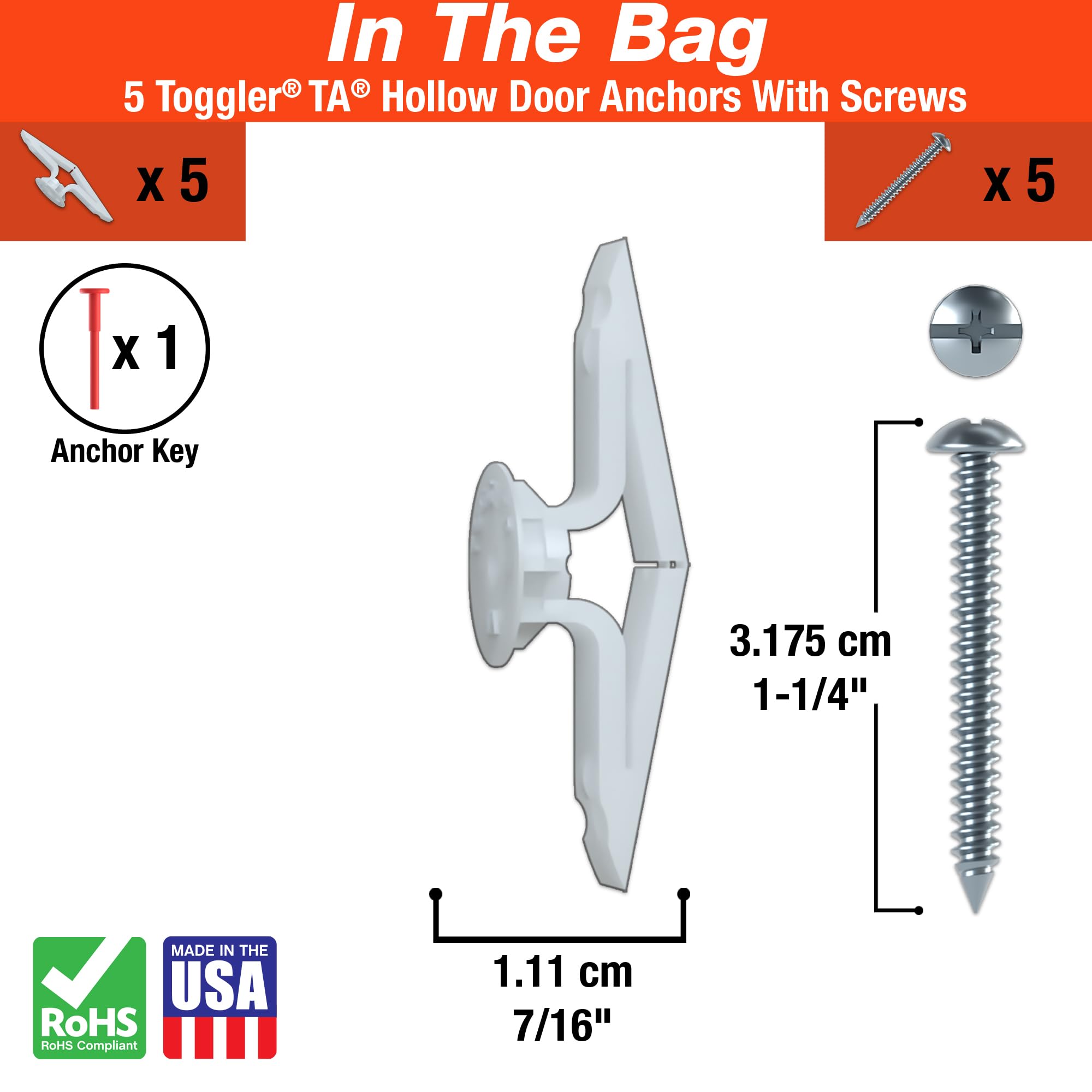

• Made in USA, and includes #8 x 1-1/4" screws
• Ultimate tensile strength is 124 lb. in 1/4" plywood with a #8 x 1-1/4" screw
• Use one-fourth or less of listed maximum values for safe working loads (as required by local regulations)

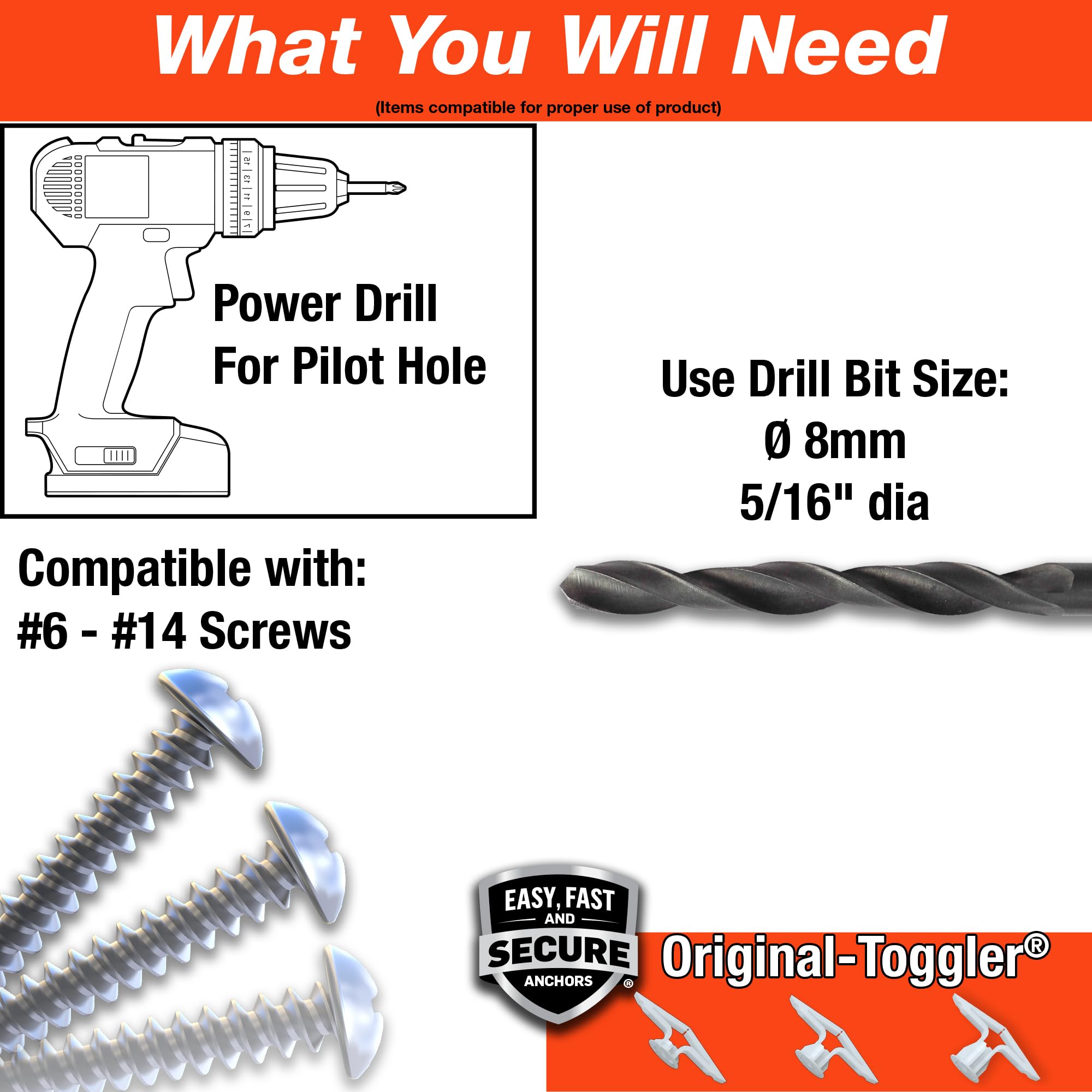

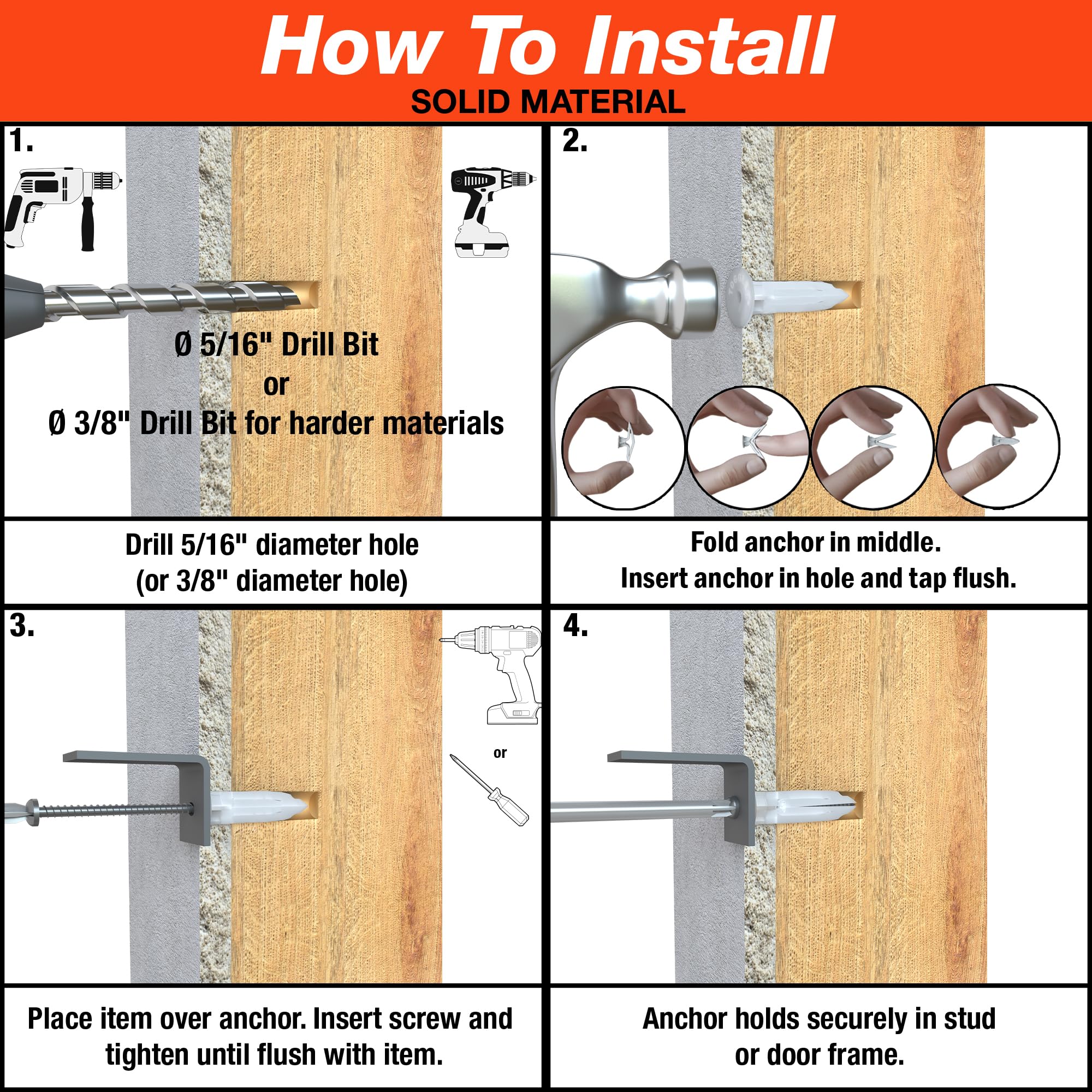

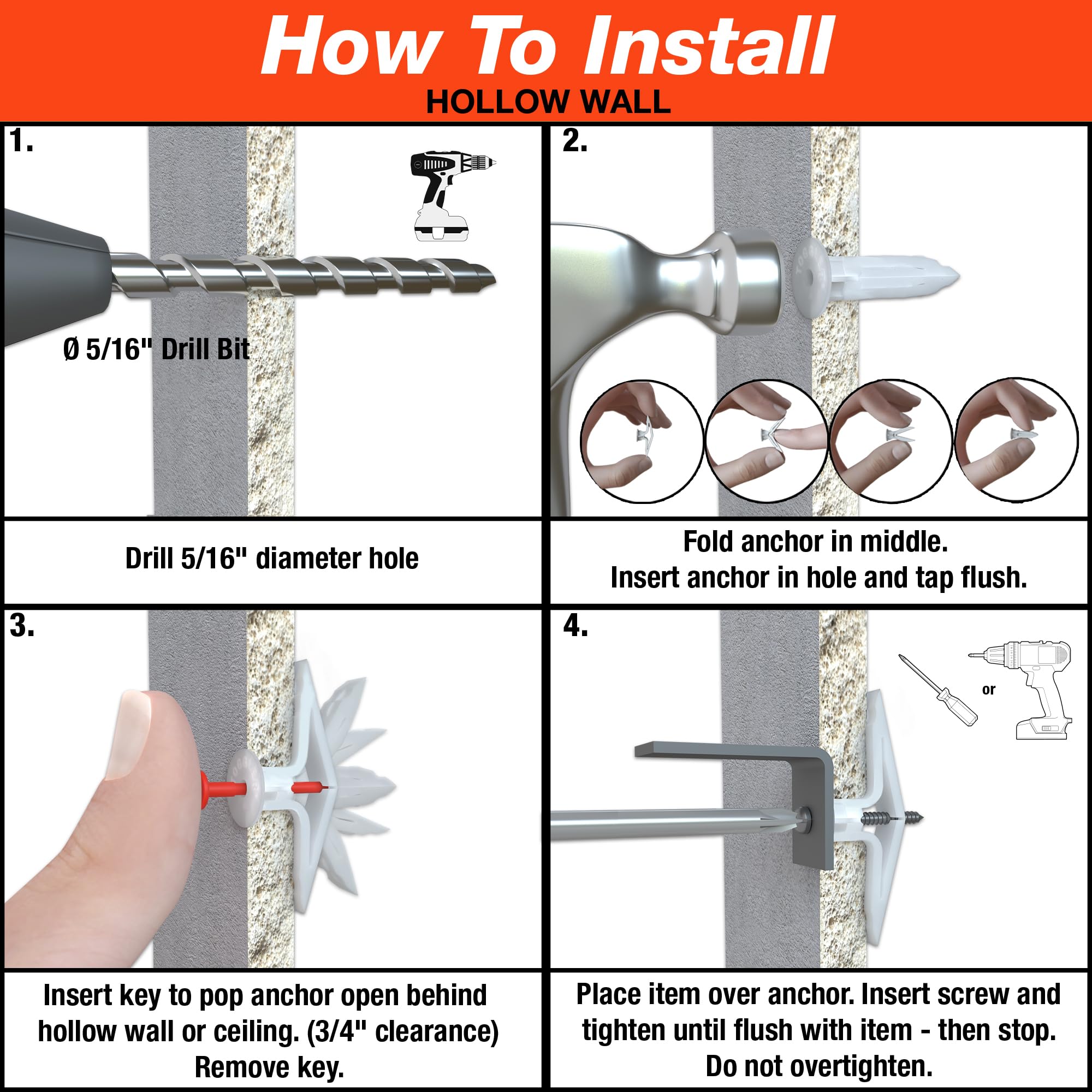

The TOGGLER Toggle TA hollow-door anchor provides a firm hold in 1/8"- to 1/4"-thick hollow-core doors and thin panels, includes #8 x 1-1/4" screws, and is made in USA. The anchor is made from polypropylene that resists corrosion, is nonconductive for anchoring electrical components, and is low-friction to facilitate screw installation. The anchor hammers into a 5/16" drilled hole until flush with the mounting material's surface. Before the screw can be inserted into the anchor to create a secure hold, the included key is used to open the anchor's wings behind the material. The fins on the anchor head grip the mounting material to prevent spinning when a screw is inserted, and the anchor will stay in place if the fastener is removed, facilitating fixture and screw changes. If using screws other than those supplied, the anchor accepts #8 to #12 size screws with a minimum thread length of 1". The Toggle TA anchor meets Federal Specification FF-B-588-D for Type IV anchors. Specifications Ultimate Tensile Strength Values AnchorDrill DiameterScrew Description1/4" Plywood1/2" Plywood3/8" Drywall1/2" Drywall5/8" DrywallTA5/16"#8 x 1-1/4"124 lb.Not applicableNot applicableNot applicableNot applicableTB5/16"#8 x 1-1/2"Not applicable175 lb.97 lb.143 lb.Not applicableTC5/16"#8 x 1-3/4"Not applicableNot applicableNot applicableNot applicable159 lb. Ultimate Shear Strength Values AnchorDrill DiameterScrew Description1/4" Plywood3/8" Drywall1/2" Drywall5/8" DrywallTA5/16"#8 x 1-1/4"265 lb.Not applicableNot applicableNot applicableTB5/16"#8 x 1-1/2"Not applicable126 lb.167 lb.Not applicableTC5/16"#8 x 1-3/4"Not applicableNot applicableNot applicable237 lb. Warning: Use one-fourth or less of listed maximum values for safe working loads (as required by local regulations). For more information, see the manufacturer's technical bulletin. Anchors provide reinforcement to a fastener that would otherwise have insufficient hold in substrates such as concrete, brick, stone, drywall, or other materials for a particular application. The fastener may be included with or integrated into the anchor itself, or it may be sold separately. Anchors provide support through various methods, including expansion from within or behind the substrate or even adhesive compounds. TOGGLER Anchor System manufactures wall anchors and toggle bolts. The company, founded in 1968, is headquartered in Norwalk, CT. What’s in the Box? (5) TOGGLER Toggle TA anchors (5) #8 x 1-1/4" screws (1) Setting key
