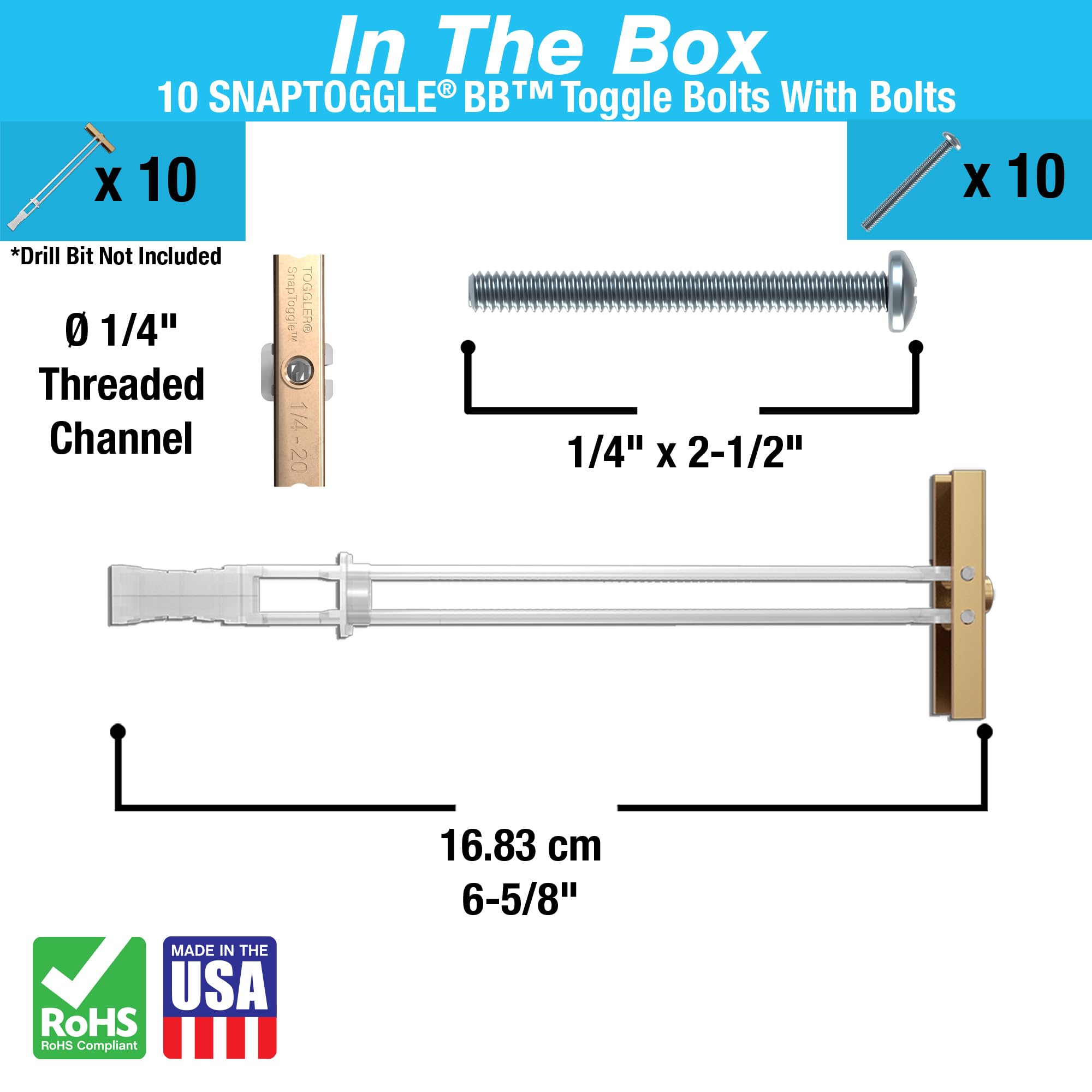

TOGGLER SNAPTOGGLE BB Toggle Anchor with Bolts, Zinc-Plated Steel Channel, Made in US, 3/8" to 3-5/8" Grip Range, For 1/4"-20 UNC Fastener Size (Pack of 10)

• Toggle anchor installs behind 3/8"- to 3-5/8"-thick hollow materials including gypsum board, drywall, and concrete block to provide a secure hold from within the mounting material
• Anchor affixes to the wall before adding the bolt and fixture, allowing one-person installation and fixture changes
• Made in USA, and includes 1/4"-20 UNC-threaded bolts
• Ultimate tensile strength is 265 lb. in 1/2" drywall and 1,080 lb. in concrete block with a 1/4"-20 UNC bolt
• Use one-fourth or less of listed maximum values for safe working loads (as required by local regulations)

The TOGGLER SNAPTOGGLE BB Toggle Anchor provides secure grip made of various hollow materials, 3/8" to 3 3/4" thick, including plasterboard, drywall and concrete block, includes 1/4"-20 UNC screws and is made in the USA. The anchor channel does not rotate when installing the screw, whether by hand or with a screw gun, and stays in place when the bolt is removed to facilitate fastening and screw replacement. If using screws other than the included screws, the anchor accepts 1/4"-20 UNC metal screws with a minimum length equal to the thickness of the item being fastened and the thickness of the mounting hardware plus 1/2 ". Snaptoggle anchor meets federal specification FF-B-588-D for Type V anchors. The anchor consists of a corrosion-resistant, galvanized steel anchor channel that plugs into walls, ceilings or floors through a 1/2" drill hole and attaches to the back of the mounting hardware; plastic straps attached to the channel that position it; and a plastic cap that slides down the straps and presses firmly into the drill hole to lock the anchor channel behind the mounting hardware. Once the cap is put on, the straps snap off by hand. The item to be attached is attached to the mounting material by inserting and tightening one of the supplied screws through the item, into the drill hole and through the anchoring channel behind the material. Technical data: Ultimate tensile and shear strength values. Drill Diameter Screw Description: ultimate tensile strength, ultimate shear strength, 1/2 inch, drywall, 1/2 inch, 1/4 inch, 20 UNC, galvanized steel, 265 lb. 240 lb 5/8" Drywall 1/2" 1/4"-20 UNC Galvanized Steel 350 lb. 320 lb 1/2" Drywall with 25 Gauge Bolt x 1/2", 1/4"-20 UNC Galvanized Steel, 420 lbs. Not available 5/8" drywall with 25 gauge bolt * 1/2", 1/4"-20 UNC galvanized steel 450 lbs. Not available concrete block 1/2" 1/4" 20 UNC galvanized steel 1 lb. Unavailable. * Error measured as breakage of drywall. WARNING: Use a quarter or less of the maximum values listed for safe workloads (as required by local regulations). Please refer to the manufacturer's technical bulletin for more information. Dowels reinforce a fastener that would otherwise have insufficient grip on substrates such as concrete, brick, stone, drywall or other materials for a particular application. The clasp can be included with the anchor itself or integrated into it, or it can be sold separately. Dowels provide support through various methods, including expansion from inside or behind the substrate or even adhesive joints. The TOGGLER anchor system manufactures wall anchors and toggle screws. Founded in 1968, the company is headquartered in Norwalk, CT. Package includes: (10) TOGGLER SNAPTOGGLE BB Toggle Anchor (10) 1/4"-20 UNC Bolts
