Titus T-Type Glissando Hinge, 170° Full Overlay, Soft-Closing, 35mm Cup, Nickel 701-0ET0-054

• FEATURES: Nickel-finished T-Type Glissando 170° full overlay hinge with adjustable soft-close. 3-way snap-on mounting system, designed for quick assembly. Shallow hinge cup at 9.5mm. Hinge only with mounting plate sold separately (Cam adjustable mounting plate model 700-0KC0-054).
• TITUS SOFT CLOSE DAMPER: Reliable and consistent life-long soft-closing feature using proven Glissando technology for smooth and controlled door operation. The soft close system is also intuitively adjustable to ensure consistent performance on doors of different weights and dimensions.

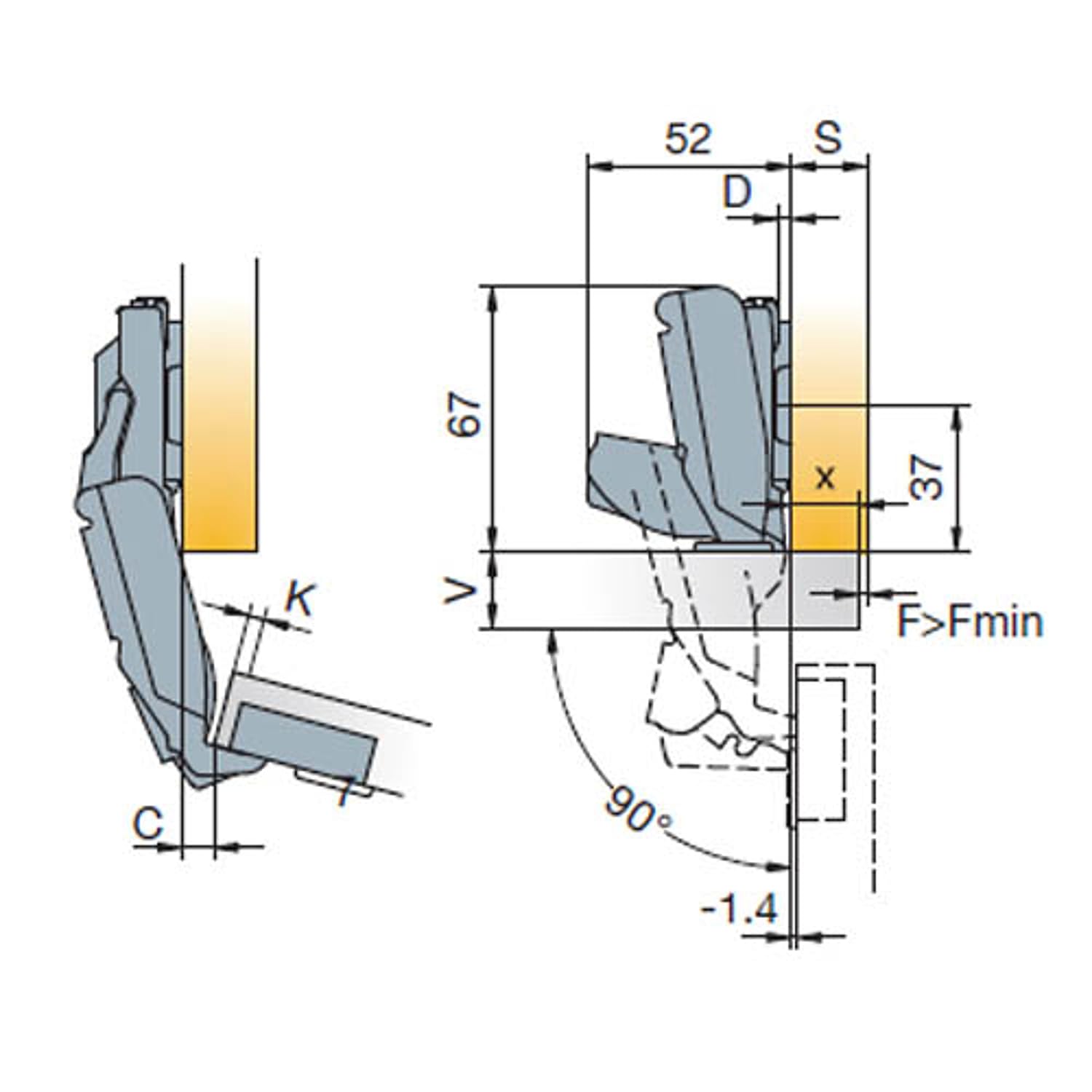

• ADJUSTABILITY: With the cam adjustable mounting plate (sold separately), the three-way adjustment system allows +3/-1mm side, +2/-2mm height, and +4/-1mm depth modifications for perfect alignment.

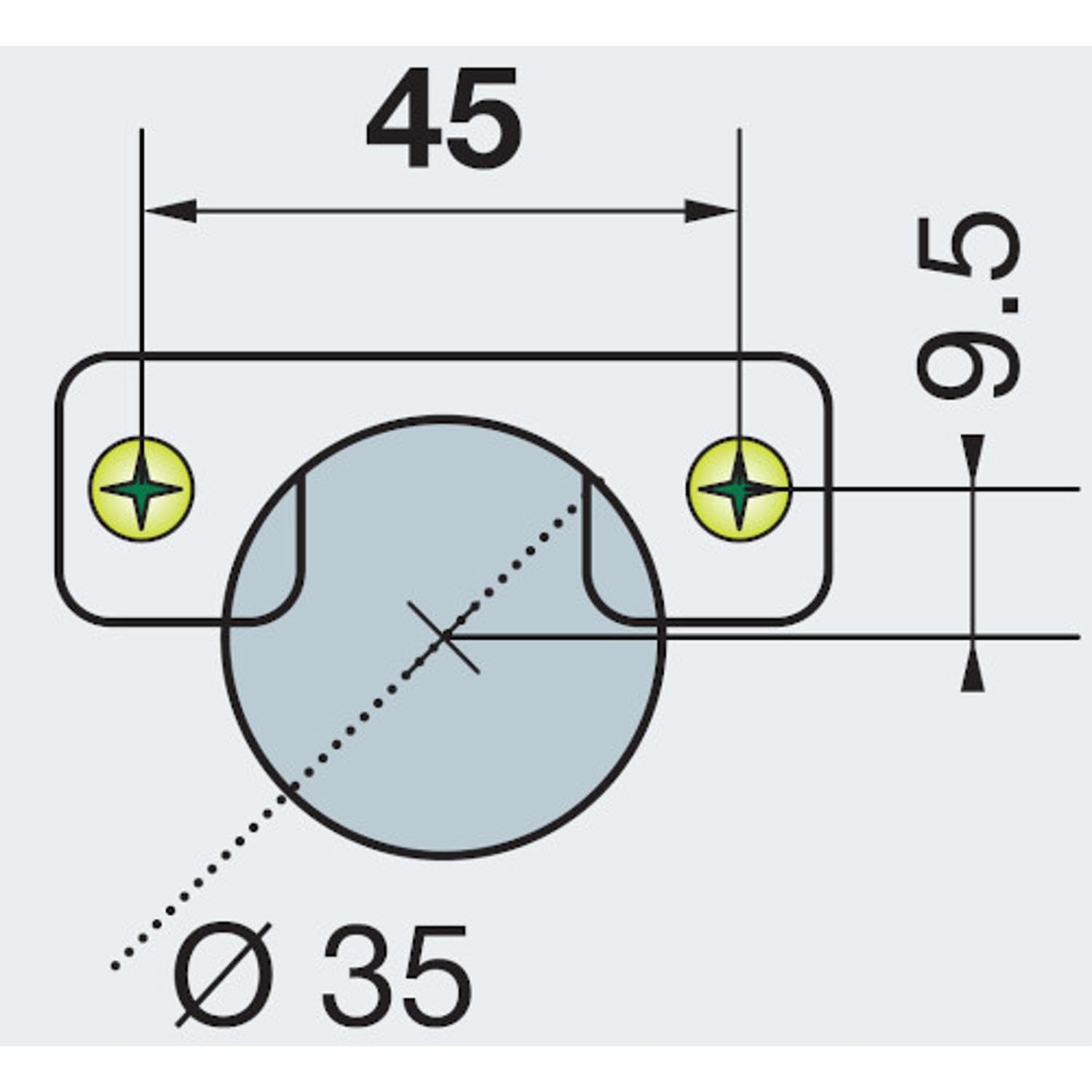

• TECHNICAL SPECS: 170-degree, full overlay. 35mm cup diameter, 9.5mm cup depth, and 45mm hole centres.
• RELIABILITY: Precision engineered to provide lasting stability and rigourously tested for performance and reliability. Corrosion-resistant finish. Proven Glissando soft-close technology.

The T-Type Glissando 170° hinge from Titus is a full overlay European-style hinge featuring soft-closing functionality and a versatile design suitable for both frameless and face frame cabinet applications. The nickel-finished hinge features a 35mm cup diameter, 9.5mm depth and 45mm hole centres. With the compatible mounting plate (sold separately), this hinge delivers exceptional adjustability: +3/-1mm side adjustment, ±2mm height adjustment, and +4/-1mm depth adjustment. Perfect for standard applications, this professional-grade hardware component comes as an individual unit, with the plate sold separately. Each hinge is precisely manufactured to deliver consistent performance and smooth operation in your cabinetry projects.
