Titan Ties Timber Frame Type 6 Wall Ties - 100Nr (150mm)

• 100Nr Type 6 Timber frame Wall Ties
• Manufactured from Grade 304 Stainless Steel.
• Excellent Corrosion Resistance & Life of 60 Years+
• Tested as Type B (sound) and as Type 6 (strength) to BS EN 845-1

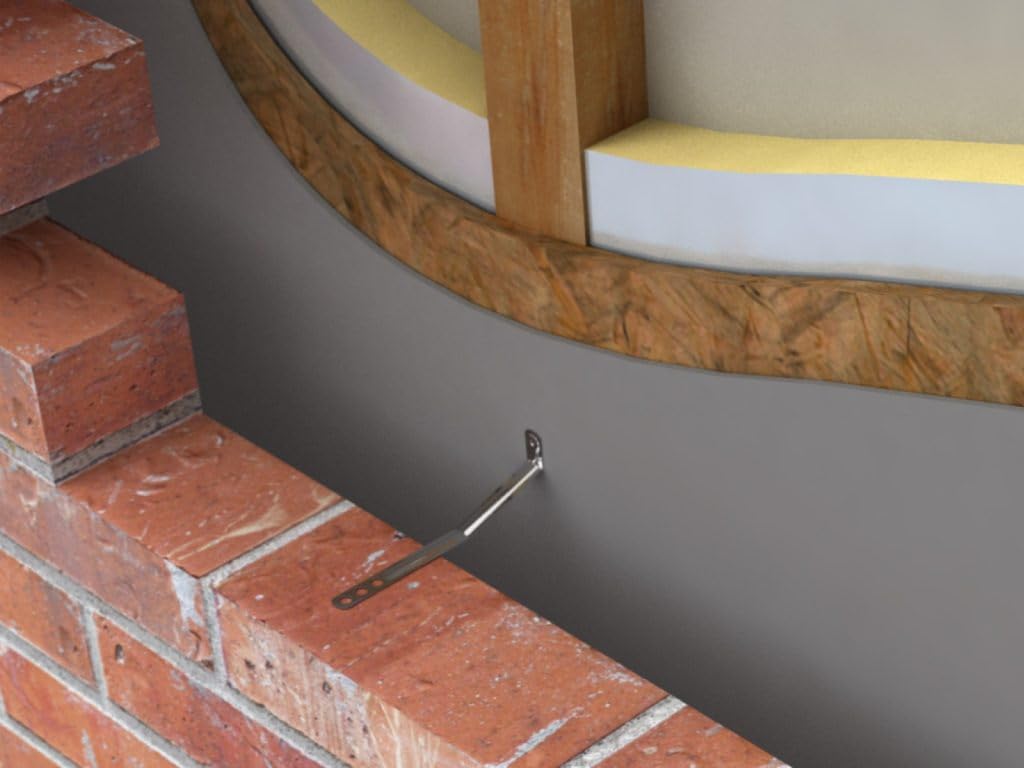

A Type 6 stainless steel masonry to timber wall tie for timber-framed domestic and small commercial buildings up to four storeys high. Designed to accommodate vertical movement and sold in packs of 100Nr ties. Supplied with 50mm x 3.35mm stainless steel annular ring nails. Also available (on special request) with 50mm x 4.0mm stainless steel screws for SIPS panels. Application A Type 6 wall tie suitable for domestic and small commercial builds up to four storeys high. They are suitable for buildings with a maximum height of 15m and for flat sites where the basic wind speed is up to 25m/s and altitude is not greater than 150m above sea level. Design Masonry to timber tie for timber frame buildings that accommodates vertical movement. Material Manufactured from grade 304 stainless steel Behaviour in relation to fire Non combustible (as defined in the National Building Regulations) Durability Excellent corrosion resistance and a service life of not less than 60 years Thermal performance In situations where thermal losses through ties need to be taken into account, the products will adequately resist thermal transmittance through a wall cavity Compliance Tested as Type B (sound) and as Type 6 (strength) to BS EN 845-1
