Tinned Copper Aluminum PVC Twisted Pair Cable

• Flame Retardant: PVC sheath is flame retardant and extinguishes automatically when removed from an open flame.
• Low Eccentricity: Uniform insulation thickness with low eccentricity reduces the risk of current breakdown and supports stable performance.

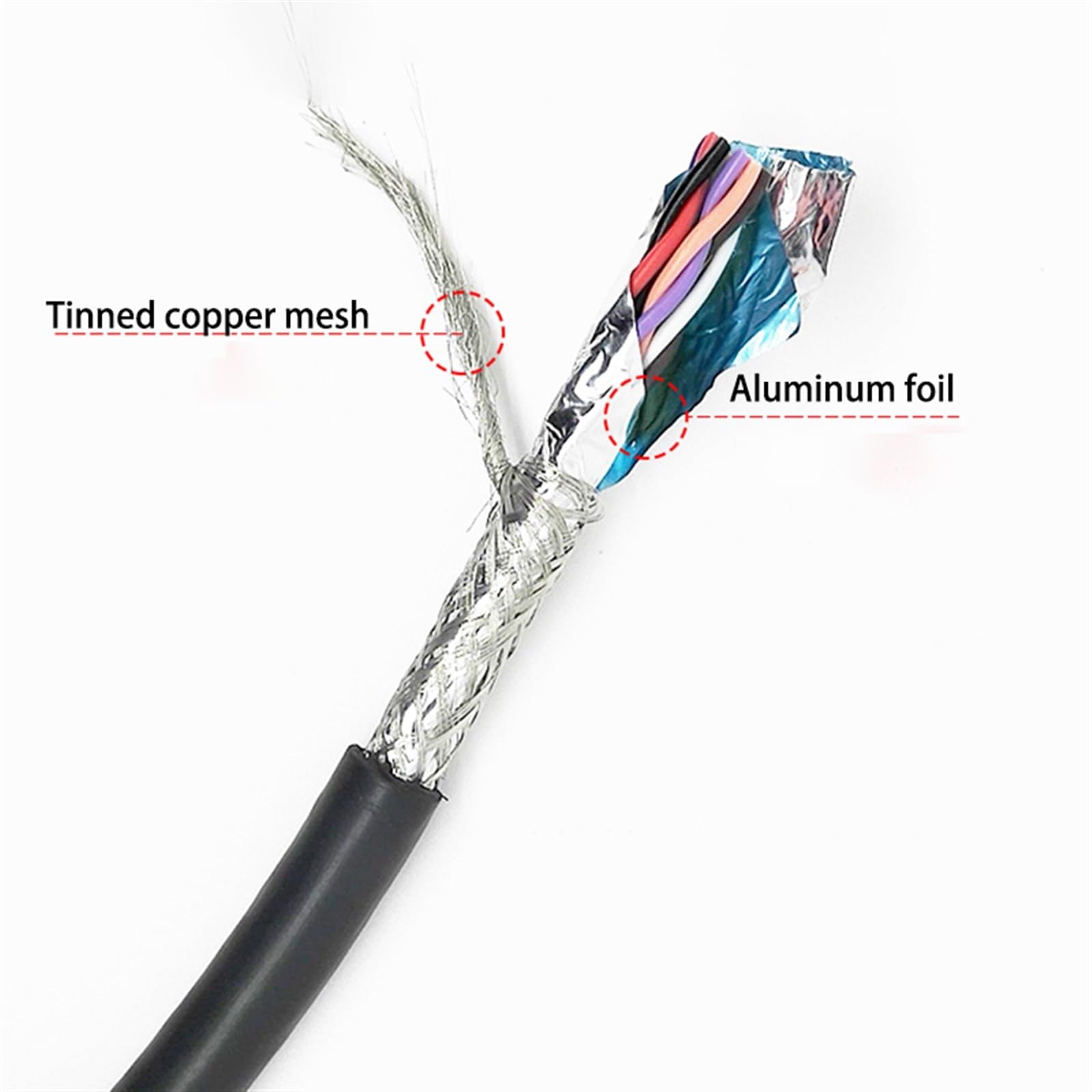

• Shielded Construction: Tinned copper mesh plus aluminum foil provides high shielding performance and strong interference resistance for stable signal transmission.
• Conductor Options: Available in 26AWG to 18AWG, 2/4/6/8 cores, and 1/5 meter lengths, with high conductivity and low resistance for easy welding, connecting, cutting, and separating.
• Flexible Durability: Moisture resistant and acid and alkali resistant, with flexibility to bend at any angle without breaking.

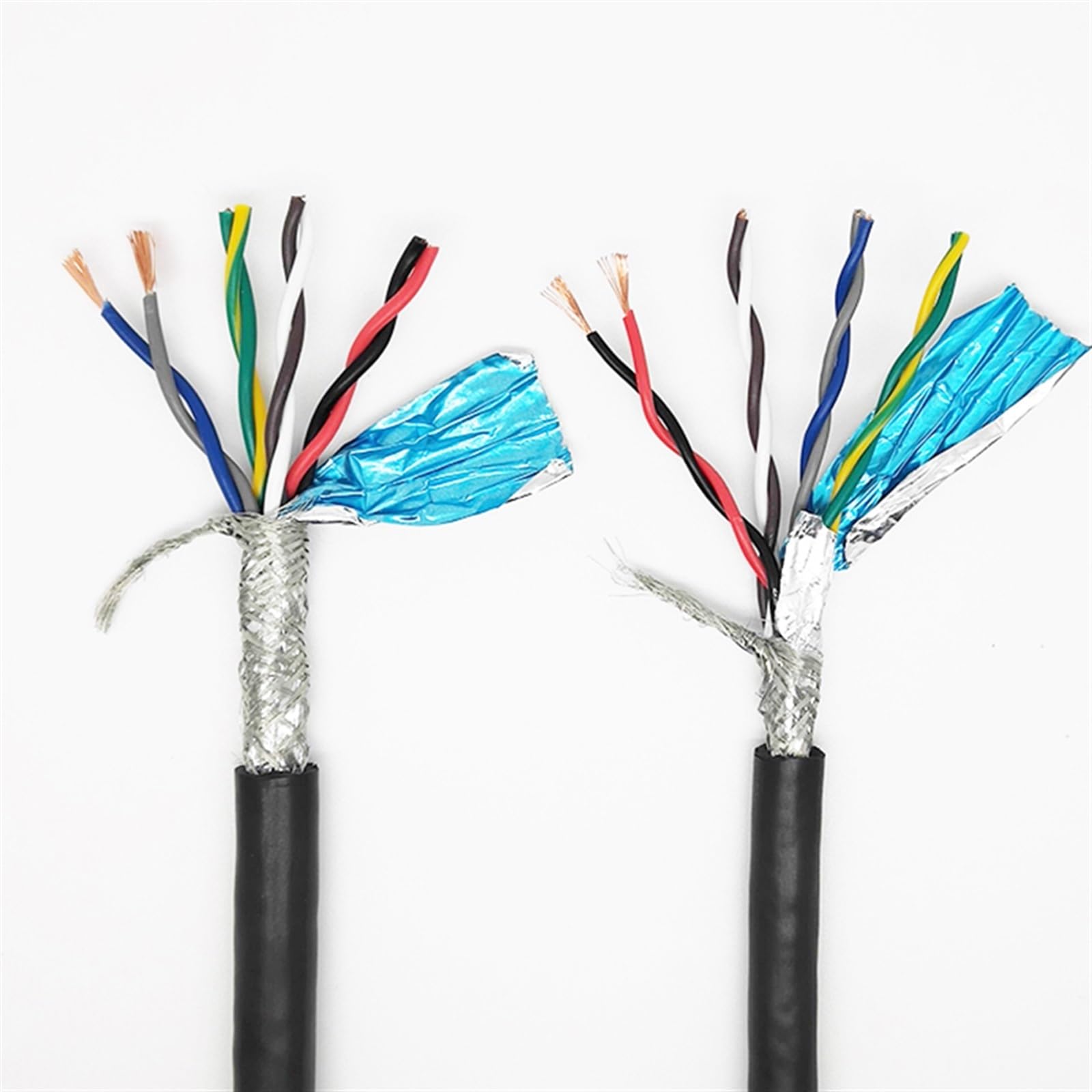

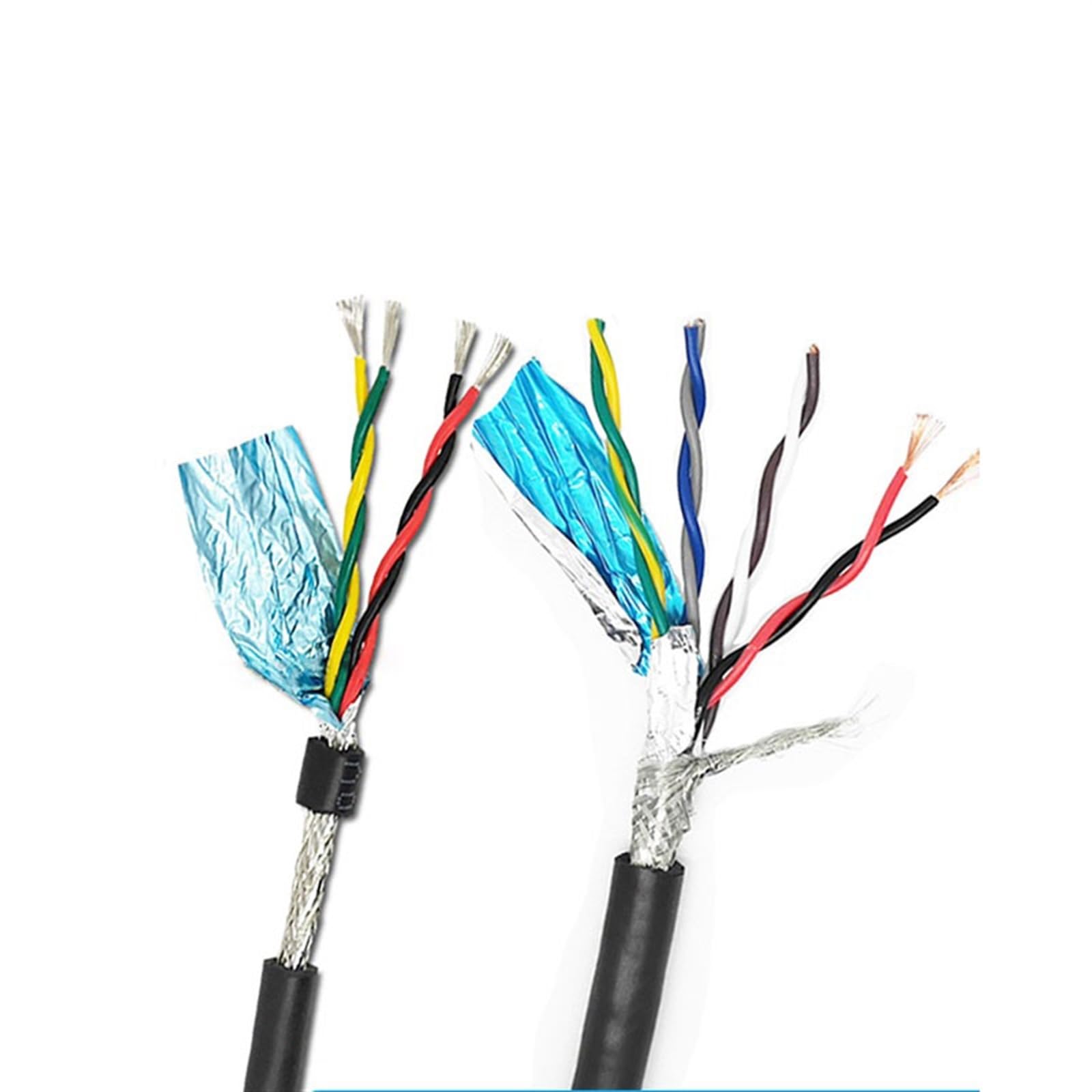

This twisted pair shielded cable uses tinned copper braided mesh, aluminum foil shielding, and twisted pair cores to strengthen electromagnetic interference resistance in demanding electromagnetic environments. It suits communication, audio, broadcasting, sound systems, security alarm systems, intelligent automation systems, and automatic meter reading systems. Available in 26AWG to 18AWG with conductor cross sections from 0.15 mm2 to 0.75 mm2, and in 2, 4, 6, or 8 core configurations with 1 or 5 meter lengths. The cable has low eccentricity and uniform insulation thickness, reducing the risk of current breakdown. Its PVC flame retardant sheath extinguishes automatically when removed from an open flame. Conductors provide high conductivity and low resistance, and are easy to weld, connect, cut, and separate. The cable is moisture resistant, acid and alkali resistant, and flexible enough to bend at any angle without breaking.
